Fockety 220V Sliding Gate Opener PCB Control Board Instruction Manual

1. Producto terminadoview

This Fockety 220V Sliding Gate Opener PCB Control Board is an advanced electronic control unit designed for automated sliding gate systems. It offers stable performance, comprehensive features, and user-friendly operation for both professional installers and DIY enthusiasts. Key features include adjustable motor force, slow speed function for smooth gate movement, and automatic stop on obstruction for enhanced safety.

Image: The Fockety 220V Sliding Gate Opener PCB Control Board, a green circuit board with various electronic components, including a transformer and connection terminals.

2. Información de seguridad

• Seguridad eléctrica: Ensure all power connections are made by a qualified electrician and comply with local electrical codes. Disconnect power before any installation, maintenance, or troubleshooting.
• Detección de obstrucciones: The control board features an automatic stop function upon encountering significant resistance. Regularly test this safety feature to ensure proper operation.
• Partes móviles: Keep hands, clothing, and other objects clear of the gate's moving parts during operation.
• Niños y mascotas: Do not allow children or pets to play near the gate or its controls.
• Acceso de emergencia: Ensure there is a manual release mechanism for the gate in case of power failure or system malfunction.

3. Componentes y diseño del producto

Familiarize yourself with the various components and connection points on the control board before installation.

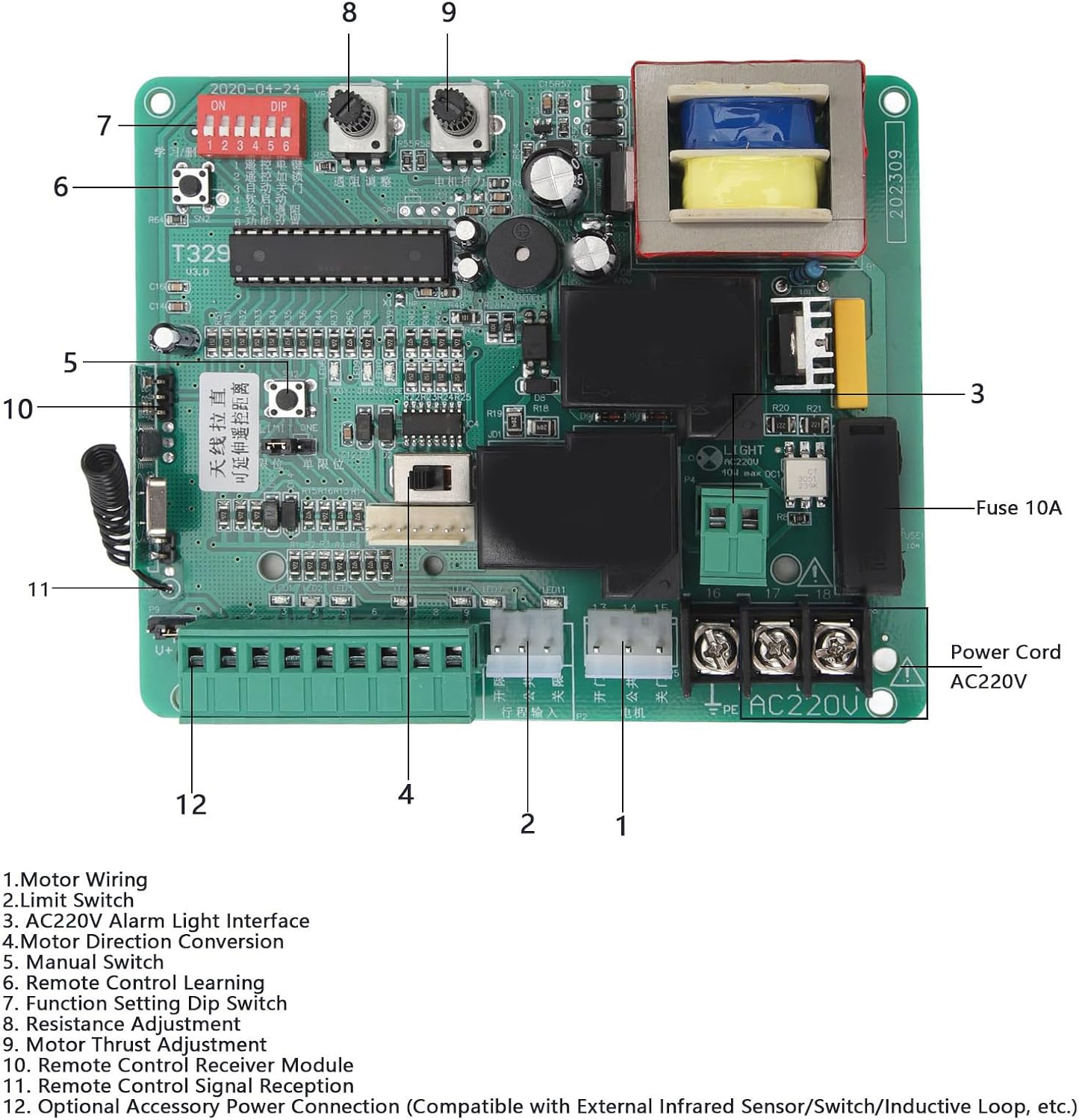

Imagen: Un detalle view of the Fockety PCB control board, highlighting key components with numbered labels for easy identification.

1. Cableado del motor: Terminals for connecting the gate motor.
2. Límite de cambio: Connections for the gate's limit switches, which define the open and closed positions.
3. AC220V Alarm Light Interface: Output for an external alarm light (220V).
4. Motor Direction Conversion: Jumper or switch to reverse motor direction if needed.
5. Interruptor manual: Terminals for connecting an external manual control switch.
6. Remote Control Learning Button: Button used to program remote controls.
7. Function Setting DIP Switch: A set of switches for configuring various operational parameters.
8. Ajuste de resistencia: Potentiometer for fine-tuning the motor's resistance sensitivity.
9. Motor Thrust Adjustment: Potentiometer for adjusting the motor's force.
10. Remote Control Receiver Module: Integrated module for receiving remote control signals.
11. Remote Control Signal Reception Antenna: Antenna for optimal remote signal reception.
12. Optional Accessory Power Connection: Terminals for connecting external accessories such as infrared sensors, additional switches, or inductive loops.

4. Instalación

4.1 conexiones de cableado

Carefully follow the wiring diagrams for correct installation. Ensure all connections are secure and insulated.

4.1.1 Infrared Sensor Wiring

Connect infrared sensors to the designated terminals. Ensure the infrared sensor is set to a normally open (NO) interface.

Image: Diagram illustrating the correct wiring for infrared sensors to the control board, showing connections for GND, U+, and signal lines.

4.1.2 External Manual Switch Wiring

Connect an external manual switch for convenient gate operation. The diagram shows connections for Open, Stop, and Close functions.

Image: Diagram showing how to connect an external manual switch (e.g., a three-button switch for On/Stop/Off) to the control board's terminals.

4.2 Configuración del interruptor DIP

The Function Setting DIP Switch (labeled 7 in the component diagram) allows configuration of various operational parameters. Refer to the specific DIP switch settings table (not provided in source, but implied by 'Function Setting Dip Switch') for detailed configuration options. Ensure power is off before adjusting DIP switches.

5. Operación

5.1 Aprendizaje por control remoto

1. Press the Remote Control Learning Button (labeled 6) on the controller for 1 second.
2. Release the button when the LED6 indicator turns off.
3. Press and hold any button on the remote control without moving it.
4. The LED indicator will flash three times to confirm successful learning. The remote control can now be used.
5. Repeat this method for additional remote controls.

5.2 Eliminación del control remoto

• Press and hold the Remote Control Learning Button (labeled 6) for approximately 8 seconds.
• Release the button after hearing an audible prompt tone. This action will delete all programmed remote controls.

5.3 Motor Force and Speed Adjustment

• Motor Thrust Adjustment (labeled 9): Use the potentiometer to customize the motor's operating force. This allows for fine-tuning based on gate weight and movement requirements.
• Resistance Adjustment (labeled 8): Adjust this potentiometer to set the sensitivity for obstruction detection. When the gate encounters significant resistance during closing, it will automatically stop to prevent accidents or damage.
• Slow Speed Function: The control board provides adjustable slow speed parameters for both opening and closing, ensuring smooth and stable gate operation.

5.4 One-Button Control

The system supports convenient one-button control for manual opening and closing, offering sensitive control and high anti-interference capabilities.

6. Mantenimiento

The control board features LED indicators that provide clear visual feedback on motor operation and system status. These indicators are useful for quick debugging and routine maintenance checks.

• Inspeccione periódicamente todas las conexiones del cableado para detectar signos de desgaste o daños.
• Keep the control board clean and free from dust and moisture.
• Periodically test the automatic stop function to ensure safety mechanisms are working correctly.

7. Solución de problemas

• La puerta no responde: Check power supply, remote control battery, and ensure remote control is properly programmed. Verify all wiring connections.
• La puerta se detiene inesperadamente: This may indicate the obstruction detection system has been triggered. Check for physical obstructions in the gate's path. Adjust the Resistance Adjustment potentiometer (labeled 8) if the sensitivity is too high.
• Incorrect Gate Direction: Use the Motor Direction Conversion jumper/switch (labeled 4) to reverse the motor's direction.
• Problemas de control remoto: If a remote control is not working, try reprogramming it using the Remote Control Learning procedure. If multiple remotes are not working, consider performing a Remote Control Deletion and reprogramming all remotes.
• Indicadores LED: Observe the LED indicators for diagnostic feedback. Consult a professional if the issue persists after basic troubleshooting.

8. Especificaciones

Imagen: de arriba hacia abajo view of the control board, illustrating its compact size of approximately 130x108mm.

9. Garantía y soporte

9.1 Información de garantía

This Fockety Sliding Gate Opener PCB Control Board comes with a 24-month warranty or refund policy, ensuring quality and customer satisfaction. Please retain your proof of purchase for warranty claims.

9.2 Atención al cliente

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact the seller or authorized service provider. Provide your product model number (Fockety46vkhxczmi-11) and a detailed description of the issue when seeking support.
