Xoopar Ice-Powerbank (Model XP61145) User Manual

1. Introducción

Thank you for choosing the Xoopar Ice-Powerbank. This device is a portable 5000 mAh external battery designed to charge your mobile devices on the go, featuring an integrated touch-sensitive LED light. This manual provides essential information for safe and efficient use of your power bank.

2. Producto terminadoview

The Xoopar Ice-Powerbank is a compact and lightweight portable charger. It features a 5000 mAh high-density battery, an integrated 10 cm charging cable with Lightning and USB-C outputs, and a USB-C input for recharging the power bank. The device also includes a tactile LED light for illumination.

Características principales:

• Batería de 5000 mAh: Provides up to two full charges for most smartphones.
• Cable integrado: 10 cm cable with both Lightning and USB-C connectors for versatile device compatibility.
• Tactile LED Light: Built-in light for convenience in low-light conditions.
• Materiales reciclados: Constructed with 28% GRS certified recycled plastic and 2% recycled PC.
• Diseño compacto: Lightweight and slim for easy portability.

Imagen: Más alláview of Xoopar Ice-Powerbank features, highlighting its recycled plastic construction, capacity for approximately two charges, and slim profile. Note: The image text "Wireless charging" and "Battery free" are inaccurate for this model; it uses wired charging and contains an internal battery.

Image: A display of Xoopar Ice-Powerbanks in different colors, emphasizing the 5000 mAh battery capacity and the integrated touch light feature.

3. Configuración

3.1 Carga del banco de energía

1. Locate the USB-C input port on the Xoopar Ice-Powerbank.
2. Connect a USB-C charging cable (not included) to the power bank's input port.
3. Connect the other end of the USB-C cable to a compatible USB power adapter (e.g., wall charger, computer USB port).
4. Los indicadores LED del banco de energía se iluminarán para indicar el estado de carga. Cuando todos los indicadores estén fijos, el banco de energía estará completamente cargado.

Note: For optimal charging speed, use a 5V/3A compatible power adapter.

3.2 Conexión de dispositivos para cargar

1. Identify the integrated 10 cm charging cable on the power bank.
2. Select the appropriate connector for your device:
   • Iluminación: For Apple iPhones, iPads, and other Lightning-compatible devices.
   • USB-C: For Android smartphones, tablets, and other USB-C compatible devices.
3. Plug the chosen connector into your device's charging port.
4. El banco de energía comenzará a cargar automáticamente su dispositivo.

Image: The Xoopar Ice-Powerbank connected to a smartphone, illustrating the device charging process using the integrated cable.

Imagen: Un detalle view of the integrated charging cable, highlighting both the USB-C and Lightning connectors for broad compatibility.

4. Instrucciones de funcionamiento

4.1 Uso del banco de energía

Once your device is connected, the power bank will automatically detect it and begin charging. The LED indicators will show the remaining battery level of the power bank. Disconnect your device once it is fully charged or when you no longer need to charge.

4.2 Uso de la luz LED integrada

The Xoopar Ice-Powerbank features a tactile LED light. To activate or deactivate the light, gently tap the designated area on the power bank. The light provides convenient illumination in dark environments.

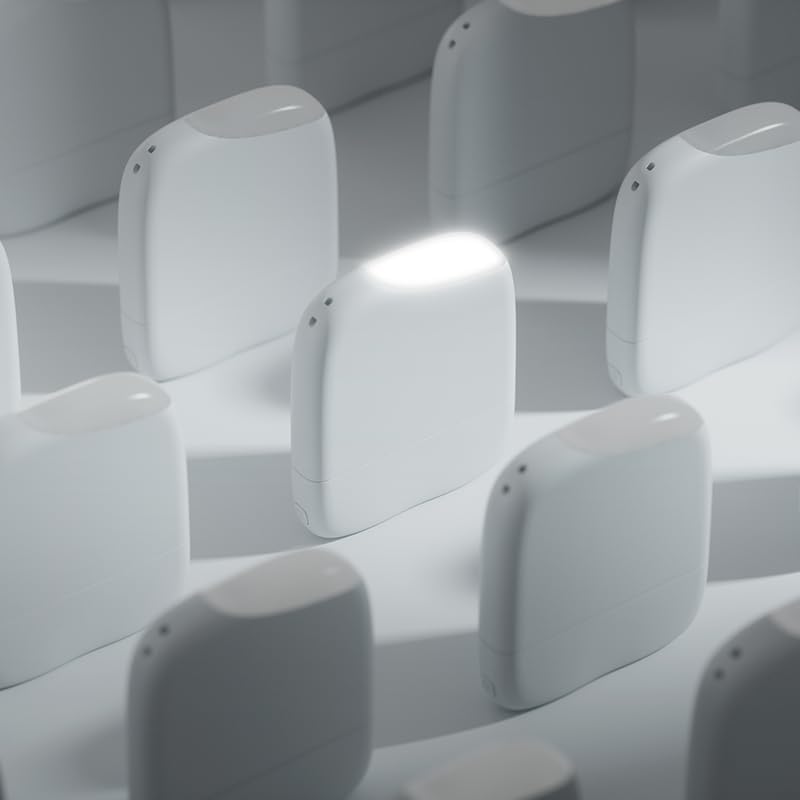

Image: Several Xoopar Ice-Powerbanks, with one unit demonstrating the integrated LED light in an active state.

5. Mantenimiento

• Mantenga el banco de energía seco y alejado de la humedad.
• Evite temperaturas extremas (calor o frío).
• No deje caer, desarme ni intente reparar el dispositivo usted mismo.
• Limpie el exterior con un paño suave y seco. No utilice productos químicos agresivos ni materiales abrasivos.
• Store the power bank in a cool, dry place when not in use. For long-term storage, charge the power bank to approximately 50% every three months to maintain battery health.

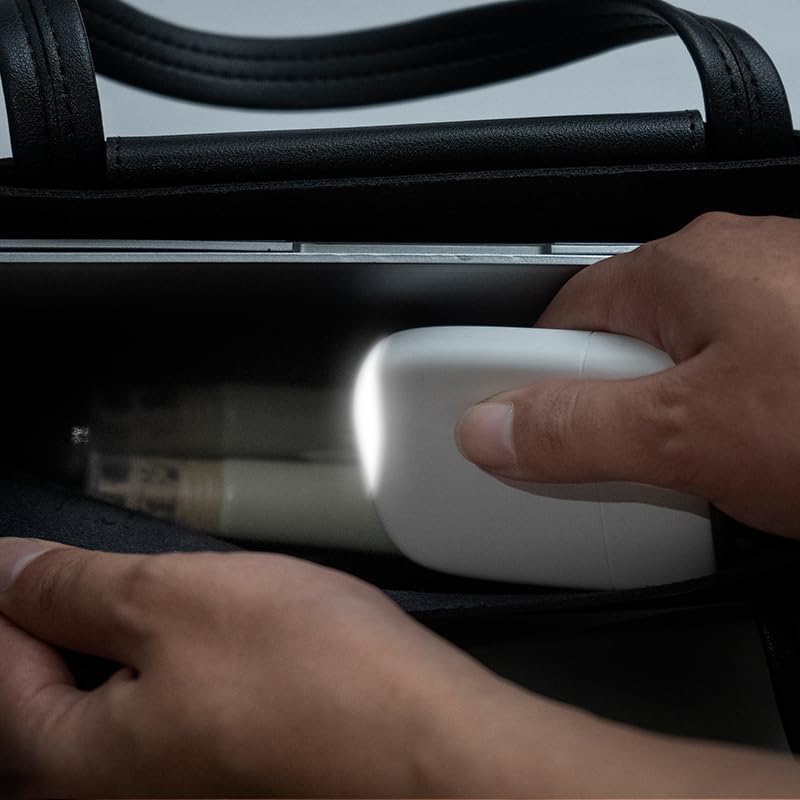

Image: A hand placing the Xoopar Ice-Powerbank into a bag, illustrating its compact size and suitability for portable use and storage.

6. Solución de problemas

7. Especificaciones

• Nombre del modelo: Ice-P
• Número de modelo: XP61145
• Capacidad de la batería: 5000 mAh (polímero de litio)
• Aporte: USB tipo C, 5 V / 3 A
• Producción: USB Type-C, Lightning, 5V/3A (shared)
• Dimensiones (L x An x Al): 7.6 cm x 6.5 cm x 1.4 cm
• Peso: 85 gramos
• Material: 28% GRS certified recycled plastic, 2% recycled PC
• Características especiales: Compact, integrated flashlight (LED light), lightweight, slim, LED indicators.
• Compatibilidad: Universal for smartphones, tablets, wireless earphones, etc.

Image: A visual representation of the Xoopar Ice-Powerbank's dimensions, indicating a height of 75mm and a width of 65mm.

8. Garantía y soporte

The Xoopar Ice-Powerbank comes with a Garantía del producto por 2 años Desde la fecha de compra. Esta garantía cubre defectos de fabricación y defectos de material en condiciones normales de uso. No cubre daños causados ​​por mal uso, accidentes, modificaciones no autorizadas ni desgaste normal.

For warranty claims or technical support, please contact Xoopar customer service through their official website or your retailer. Please have your proof of purchase and product model number (XP61145) ready.

9. Información de seguridad

• No exponga el banco de energía al fuego ni a altas temperaturas.
• No sumerja el banco de energía en agua ni en otros líquidos.
• Mantener fuera del alcance de los niños.
• Deseche el banco de energía de manera responsable de acuerdo con las regulaciones locales para desechos electrónicos.
• Avoid using the power bank if it is visibly damaged or swollen.
