Newair 10000W Hardwired Electric Garage Heater User Manual

1. Información importante de seguridad

Please read and understand this entire manual before attempting to assemble, operate, or install the product. Failure to follow the safety instructions could result in electric shock, fire, property damage, or personal injury.

• Conexión eléctrica: This heater requires a single-phase 240V A.C. hardwire connection. Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
• Protección contra sobrecalentamiento: The heater is equipped with an integrated digital thermostat and built-in overheat protection. If the heater overheats, it will automatically shut off. Allow it to cool down before attempting to restart.
• Autorización: Mantenga una distancia adecuada de materiales combustibles. No bloquee las entradas ni salidas de aire.
• Uso exclusivo en interiores: This heater is designed for indoor use in garages, workshops, and similar large spaces. Do not use outdoors.
• Montaje seguro: Ensure the heater is securely mounted according to the instructions to prevent it from falling.

2. Producto terminadoview y características

The Newair 10000W Electric Garage Heater is a powerful, fan-forced heating solution designed to rapidly increase ambient temperature in large areas up to 1605 sq. ft. It features robust construction and user-friendly controls.

This image illustrates the key features of the Newair garage heater, including its powerful 10,000W output, flexible mounting options, precise digital thermostat, and durable industrial-grade construction.

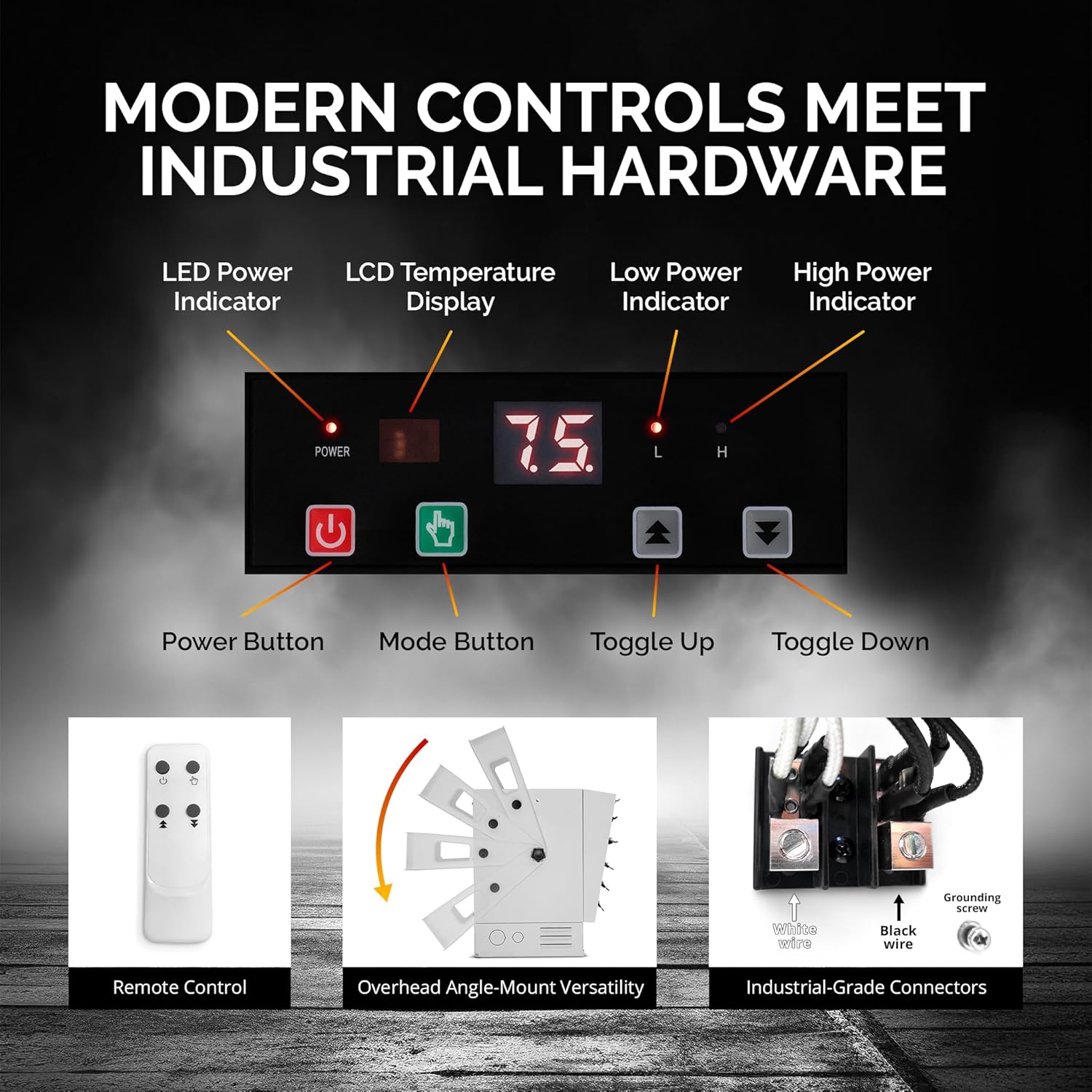

Un detallado view of the heater's modern controls, including the LED power indicator, LCD temperature display, power button, mode button, toggle up/down buttons, remote control, overhead angle-mount versatility, and industrial-grade connectors.

Características principales:

• Potente calefacción: Delivers up to 10,000 watts of fan-forced heat, covering areas up to 1605 sq. ft.
• Salida ajustable: Choose between Low (7,500 watts) and High (10,000 watts) settings.
• Termostato digital: Integrated digital thermostat allows temperature settings from 45-99 degrees Fahrenheit.
• Montaje flexible: Includes an adjustable mounting bracket for ceiling, wall, or counter placement.
• Construcción duradera: Made with industrial-grade stainless and carbon steel elements, coated cabinet, and commercial connectors.
• Mando a distancia: Convenient operation with the included remote control.

3. Configuración e instalación

Proper installation is critical for safe and efficient operation. Due to the hardwired nature of this unit, professional installation by a licensed electrician is highly recommended.

Opciones de montaje:

The adjustable mounting bracket allows for versatile installation. Mounting hardware for vertical wall or ceiling beam mount is included. The bracket also doubles as a handle if you choose to set the unit on a countertop.

This image shows the heater mounted on the ceiling of a garage, demonstrating a typical installation scenario.

The heater is shown placed on the floor in a large industrial space, illustrating its portability for temporary or counter-top use.

Conexión eléctrica:

This unit requires a dedicated 240V A.C. hardwired circuit. Ensure the wiring is correctly connected to the industrial connectors provided. Sidewall knock-outs are available for wire channels to facilitate various setup configurations.

Refer to the detailed wiring diagrams and instructions provided in the full installation guide that accompanies your product for specific electrical requirements and connection procedures.

4. Instrucciones de funcionamiento

The Newair garage heater features a simple LCD control panel and an included remote control for easy operation.

This image provides a close-up of the heater's digital control panel, showing the power button, mode button, temperature display, and temperature adjustment buttons.

Funciones del panel de control:

• Botón de encendido: Presione para encender o apagar el calentador.
• Botón de modo: Toggles between Low (7,500W) and High (10,000W) power settings.
• Botones de ajuste de temperatura (arriba/abajo): Use these buttons to set your desired temperature between 45-99 degrees Fahrenheit. The LCD display will show the set temperature.
• Pantalla LCD de temperatura: Muestra la temperatura establecida actual.
• Indicadores LED: Indicate power status, low power mode, and high power mode.

Mando a distancia:

The included remote control provides convenient access to all control panel functions from a distance.

Rejillas ajustables:

The heater features adjustable louvers, allowing you to direct the airflow and heat exactly where it is needed for optimal warmth and distribution.

This image depicts the heater operating in a workshop, illustrating its fan-forced air design for maximum heat and distribution across the space.

5. Mantenimiento

Regular maintenance ensures the longevity and efficient operation of your Newair garage heater.

• Limpieza: Before cleaning, always ensure the heater is turned off, unplugged (if applicable), and completely cool. Use a soft, damp Paño para limpiar las superficies exteriores. No utilice limpiadores abrasivos ni disolventes.
• Rejillas de ventilación: Periodically check the air intake and output vents for dust and debris accumulation. Use a vacuum cleaner with a brush attachment to gently remove any blockages.
• Almacenamiento: Si va a guardar el calentador durante un periodo prolongado, asegúrese de que esté limpio y seco. Guárdelo en un lugar fresco y seco, preferiblemente en su embalaje original, para protegerlo del polvo y otros daños.

6. Solución de problemas

If you encounter issues with your heater, refer to the following common troubleshooting steps. For persistent problems, contact Newair customer support.

7. Especificaciones

Detailed technical specifications for the Newair 10000W Electric Garage Heater.

This image displays the key dimensions (14.4"D x 14.6"W x 17"H) and temperature range (45-99°F) of the Newair garage heater, along with a note about the 240V A.C. hardwire connection.

8. Garantía y soporte

Newair stands behind the quality of its products. This Newair 10000W Electric Garage Heater comes with a 1-year warranty.

This image highlights the 30-day hassle-free product returns and a 1-year warranty offered by Newair.

For warranty claims, technical assistance, or any questions regarding your product, please contact Newair customer service. Newair is committed to providing excellent after-sale support.

You can find more information and contact details on the official Newair websitio o a través de su Amazon Brand Store: Newair Amazon Store.
