XD Designs Full Size Multi-Functional Loft Bed with Wardrobe and Desk Instruction Manual

1. Introducción

This manual provides detailed instructions for the assembly, operation, and maintenance of your XD Designs Full Size Multi-Functional Loft Bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The XD Designs Full Size Multi-Functional Loft Bed is designed to maximize space, featuring a full-size sleeping area, an integrated wardrobe with a hanging pole, a desk, and shelving units. It is constructed from solid pine wood and commercial-grade MDF for durability and stability.

2. Información de seguridad

Su seguridad es primordial. Por favor, respete las siguientes normas de seguridad:

• Requiere ensamblaje para adultos: This product requires adult assembly. Ensure all parts are correctly installed before use.
• Barandillas: The loft bed is equipped with safety guardrails. Ensure they are securely attached at all times to prevent falls.
• Capacidad de peso: La cama soporta un peso de 500 kg. No exceda este límite.
• Grosor del colchón: Use a mattress with a recommended thickness of 6 inches to ensure adequate guardrail height.
• Seguridad en escalera: Always use the inclined ladder for access to and from the bed. Ensure the ladder is stable before climbing.
• Controles periódicos: Periodically check all bolts and fasteners to ensure they remain tight. Retighten as necessary.
• Ventilación: Ensure proper air circulation around the mattress by using the provided slats.
• Peligro de asfixia: Mantenga las piezas pequeñas y los herrajes fuera del alcance de los niños durante el montaje.

3. Contenido del paquete

Your XD Designs Loft Bed is shipped in two packages. Please verify that all components and hardware are present before beginning assembly. Refer to the included parts list for a complete inventory. If any parts are missing or damaged, please contact customer support immediately.

Nota: Some customer feedback indicates that parts may not always be clearly numbered. Please cross-reference with the assembly diagrams carefully.

4. Instrucciones de instalación y montaje

Estimated Assembly Time: Approximately 1.5 hours (for two adults).

Tools required: All necessary tools are provided with the product.

1. Desembalaje e identificación de las piezas: Carefully unpack all components from both packages. Lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratches. Identify each part using the provided diagrams and labels.
2. Ensamblar el marco de la cama: Begin by assembling the main bed frame structure. Attach the side rails to the headboard and footboard using the designated hardware. Ensure all connections are secure but do not fully tighten bolts until the frame is stable.
3. Instalar listones de soporte: Once the main frame is assembled, place the wooden slats across the bed frame. Secure them according to the instructions to provide proper mattress support.
4. Colocar barandillas: Securely attach the guardrails to the bed frame. These are crucial for safety.
5. Assemble Wardrobe and Desk Unit: Construct the wardrobe and desk unit separately following the specific diagrams. This unit will integrate with the loft bed frame.
6. Integrate Wardrobe and Desk: Carefully attach the assembled wardrobe and desk unit to the main loft bed frame. Ensure all connecting points are aligned and secured.
7. Adjuntar escalera: Securely attach the inclined ladder to the designated points on the bed frame. Verify its stability.
8. Ajuste final: Once all components are in place and aligned, go back and fully tighten all bolts and fasteners. Do not overtighten.

For detailed visual guidance, refer to the assembly diagrams included in your package. It is recommended to have at least two adults for assembly.

Image 1: Fully assembled XD Designs Full Size Multi-Functional Loft Bed, showcasing the bed, desk, shelves, and wardrobe in a grey finish.

Imagen 2: Frente view of the loft bed, highlighting the integrated desk and wardrobe area beneath the bed.

Imagen 3: En ángulo view of the loft bed, providing a clearer perspective of the desk and shelving units.

Image 4: Another front view of the loft bed, emphasizing the functional desk and wardrobe components.

Imagen 5: Lateral view of the loft bed, illustrating the wardrobe section and the inclined ladder.

Imagen 6: En ángulo view focusing on the ladder and the integrated wardrobe unit of the loft bed.

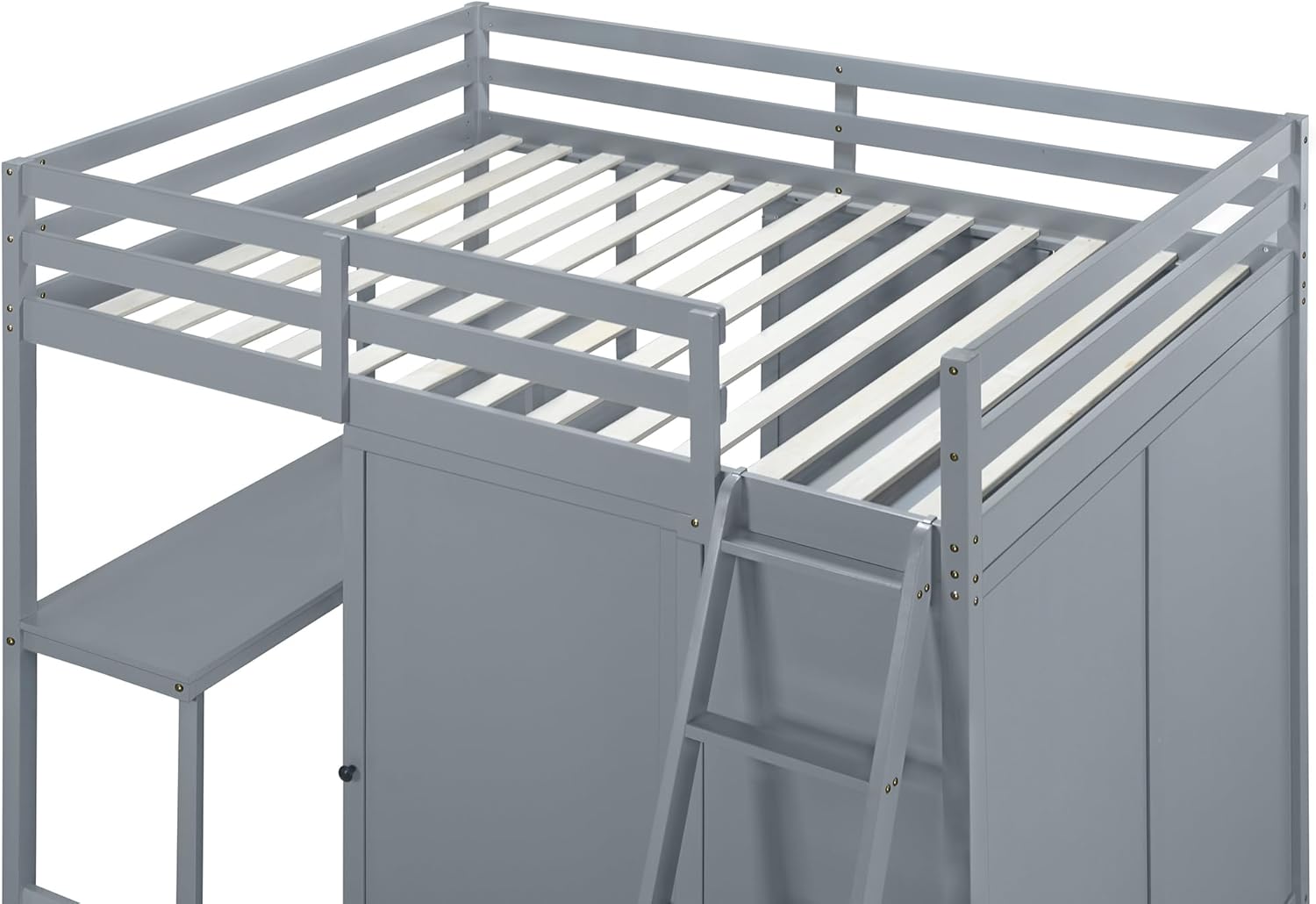

Imagen 7: Primer plano view of the bed platform, showing the wooden slats for mattress support and the safety guardrails.

5. Funcionamiento y uso

This loft bed is designed for versatile use, providing a sleeping area, storage, and a workspace.

• Zona de dormir: The top bunk is a full-size bed. Ensure a mattress of appropriate size and thickness (recommended 6 inches) is used.
• Guardarropa: The integrated wardrobe includes a hanging pole for clothes, offering convenient storage.
• Desk and Shelves: Utilize the desk for studying or working, and the adjacent shelves for books, decor, or other personal items.
• Acceso por escalera: Always use the inclined ladder to safely access and exit the loft bed.

6. Mantenimiento

To ensure the longevity and safety of your loft bed, follow these maintenance guidelines:

• Limpieza: Limpie las superficies con un paño suave yamp paño. Evite productos químicos agresivos o limpiadores abrasivos que puedan dañar el acabado.
• Comprobación del hardware: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and fasteners. Tighten any that have become loose.
• Cuidado de la madera: Proteja la madera de los cambios extremos de temperatura y de la luz solar directa para evitar que se deforme o se decolore.
• Distribución del peso: Avoid concentrating heavy loads on a single point on the bed or shelves.

7. Solución de problemas

Si tiene problemas con su cama alta, considere las siguientes soluciones comunes:

• Ruidos chirriantes: Squeaking often indicates loose hardware. Retighten all bolts and screws, especially those connecting the main frame components.
• Marco tambaleante: A wobbly frame is typically due to uneven assembly or loose fasteners. Ensure all connections are fully tightened and the bed is on a level surface.
• Piezas dañadas o faltantes: If you received damaged parts or find components missing during assembly, do not proceed. Contact customer service for replacements.
• Dificultad con el montaje: If you find assembly challenging due to unnumbered parts or unclear diagrams, refer to the visual aids in this manual and the provided assembly guide. Consider seeking assistance from another adult.
• Wood Cracking: If wood components crack during assembly, it may be due to overtightening screws or manufacturing defects. Stop assembly and contact customer support.

8. Especificaciones

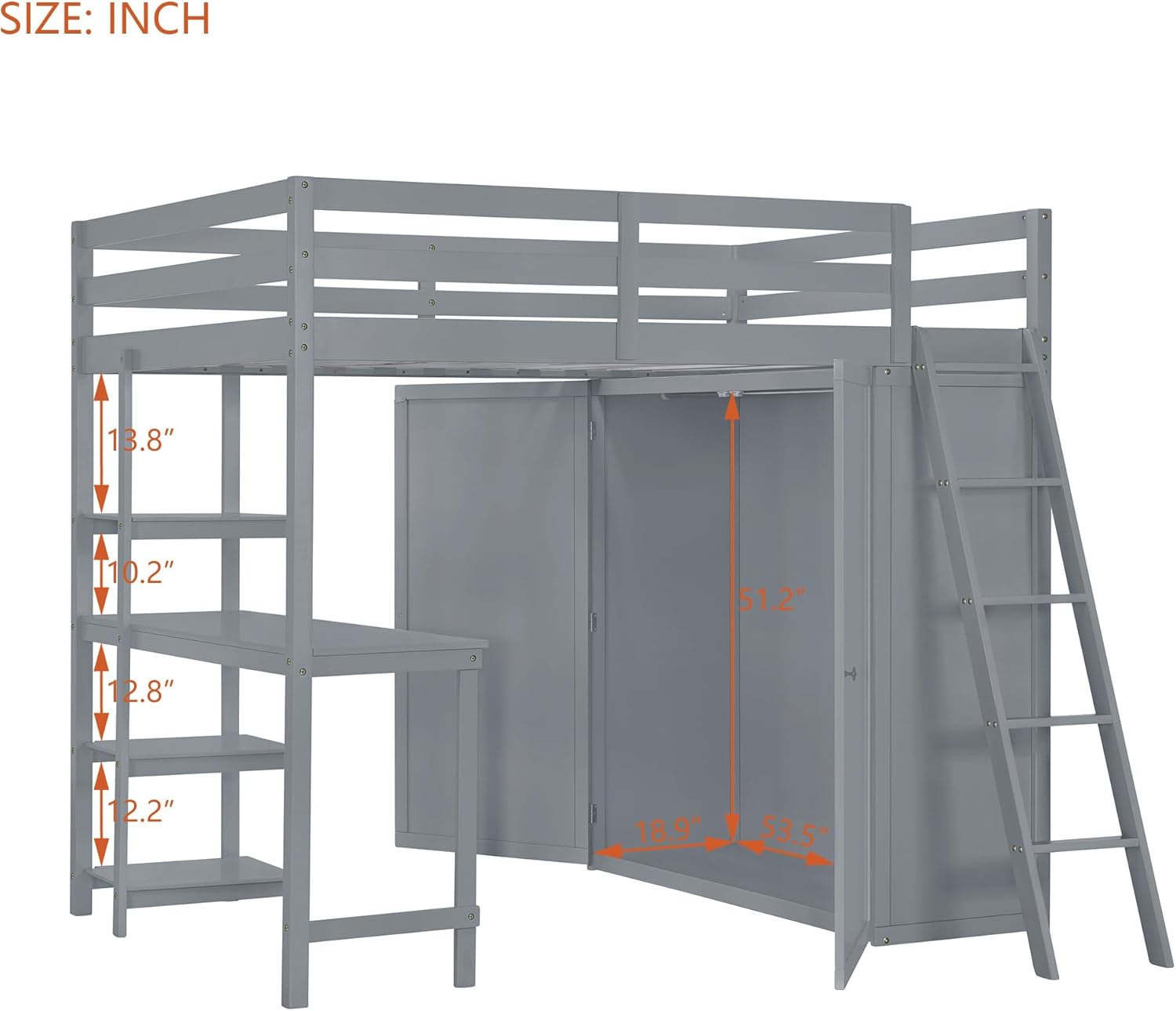

Imagen 8: Lateral view dimension diagram, showing measurements for the desk, shelves, and wardrobe interior.

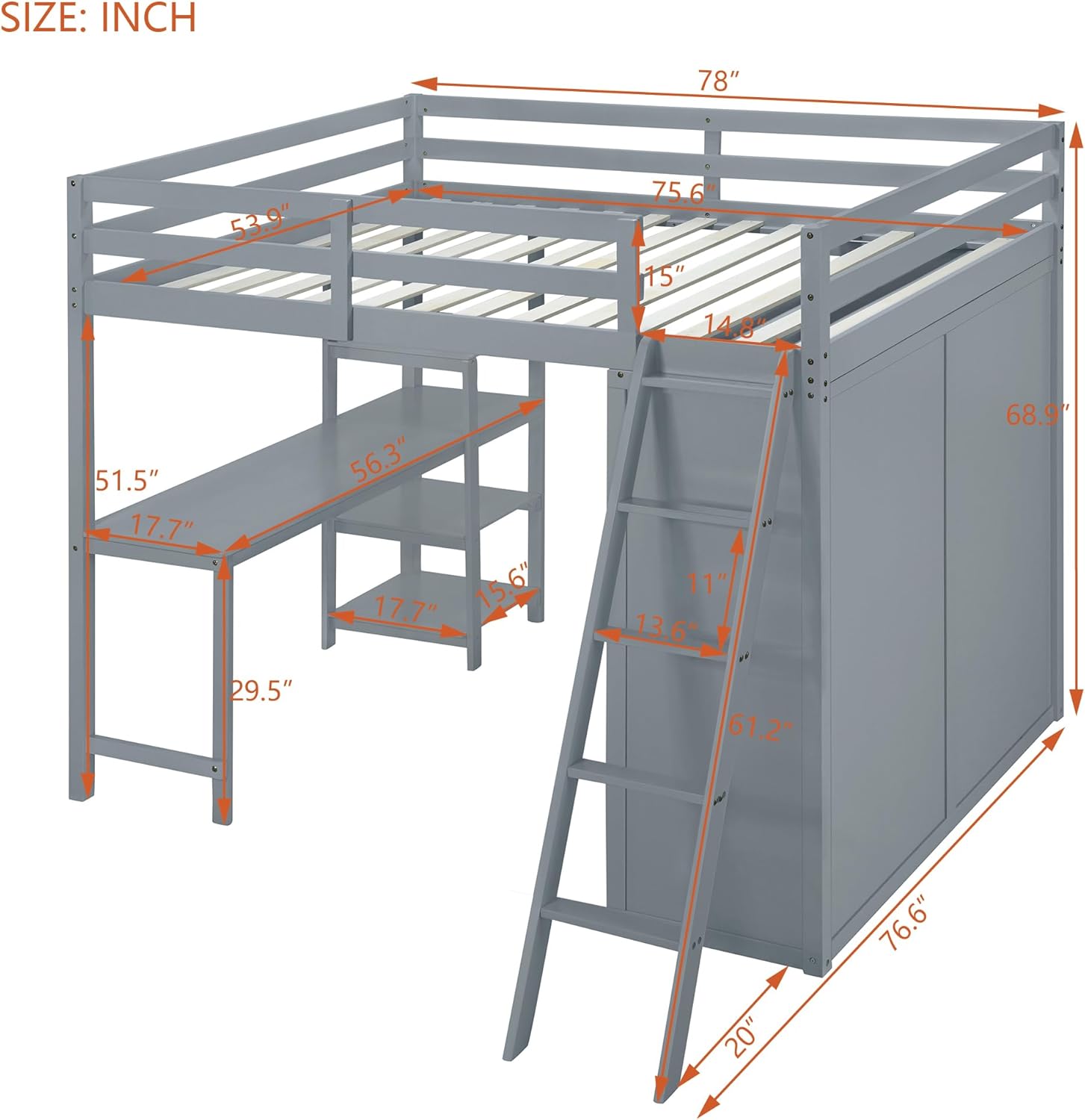

Image 9: Angled dimension diagram, illustrating overall length, width, height, and specific measurements for the desk, bed platform, and ladder.

9. Garantía y soporte

XD Designs is committed to providing quality products and excellent customer service. If you have any questions about your product, require assistance with assembly, or need to report missing/damaged parts, please do not hesitate to contact our after-sales service department.

Consulte la documentación de compra o la del minorista. webSitio para obtener detalles específicos de la garantía e información de contacto.
