Manual de usuario del altavoz Bluetooth solar pequeño Urbanista Malibu

Introducción

The Urbanista Malibu is a portable Bluetooth speaker designed for outdoor and indoor use, featuring integrated Powerfoyle solar cell technology for continuous charging. It offers robust sound, IP67 dust and waterproof rating, and dual pairing capabilities for an enhanced audio experience. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Malibu speaker.

Figure 1: Urbanista Malibu Speaker Overview

The image displays the Urbanista Malibu speaker in black, showcasing its compact, rounded design with a textured speaker grille and a smooth top surface that integrates the Powerfoyle solar panel. Control buttons are visible on the top edge.

Características principales

• Carga solar: Equipped with Powerfoyle solar cell technology for continuous charging from indoor and outdoor light.
• Clasificación IP67: Fully dust and waterproof, making it suitable for various environments including beaches, pools, and outdoor adventures.
• Bluetooth 5.2: Ensures stable and efficient wireless connectivity with compatible devices.
• Stereo Link Function: Allows pairing two Malibu speakers for a true stereo sound experience.
• Urbanista App Control: Provides access to EQ settings, battery status, and charging performance data.
• Diseño duradero: Constructed with recycled plastic and materials, featuring a rugged build and integrated wrist strap for portability.

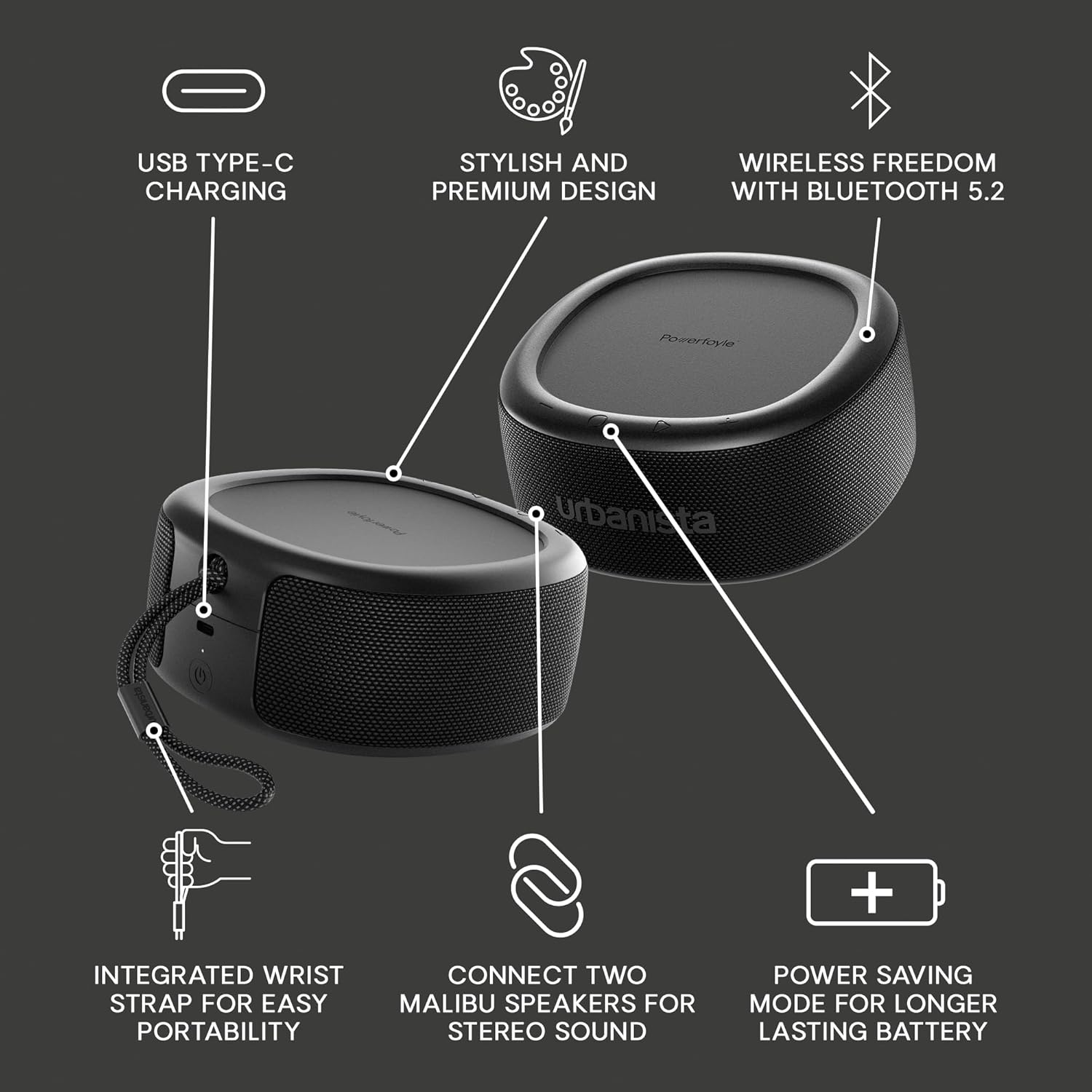

Figure 2: Malibu Speaker Feature Overview

This diagram illustrates the various features of the Malibu speaker, including USB Type-C charging, stylish design, Bluetooth 5.2 wireless freedom, integrated wrist strap, the ability to connect two speakers for stereo sound, and a power-saving mode.

Configuración

1. Carga inicial

Before first use, it is recommended to fully charge your Urbanista Malibu speaker using the included USB-C cable. Connect the USB-C end to the speaker's charging port and the other end to a compatible USB power adapter (not included). The charging indicator light will provide feedback on the charging status.

2. Encendido / apagado

To power on the speaker, press and hold the power button located on the side until you hear an audible prompt or see the indicator light illuminate. To power off, press and hold the power button again until the speaker shuts down.

3. Emparejamiento Bluetooth

1. Ensure the speaker is powered on and in pairing mode (indicated by a flashing LED). If not, press and hold the Bluetooth button.
2. En su dispositivo (teléfono inteligente, tableta, etc.), vaya a la configuración de Bluetooth.
3. Select "Urbanista Malibu" from the list of available devices.
4. Once connected, the speaker will provide an audible confirmation, and the LED indicator will turn solid.

4. Urbanista Audio App

For enhanced control and features, download the Urbanista Audio App from your device's app store. The app allows you to monitor solar charging performance, check battery levels, and customize sound settings via an equalizer.

Figure 3: Urbanista App Integration

This image shows the Urbanista Malibu speaker alongside a smartphone running the Urbanista app, demonstrating how users can monitor charging performance and battery levels, as well as change EQ settings to personalize their sound.

Instrucciones de funcionamiento

Controles básicos

Carga solar

The Malibu speaker features an integrated Powerfoyle solar panel on its top surface. For optimal charging, expose the speaker to direct sunlight or strong indoor light. The speaker will continuously charge as long as it is exposed to light, extending its playtime. Monitor charging efficiency via the Urbanista Audio App.

Figura 4: Capacidad de carga solar

This image illustrates the speaker's solar charging feature, showing it being held outdoors with sunlight illuminating its top panel, emphasizing its "Light Powered" functionality.

Stereo Link Function (Dual Pairing)

Para lograr un sonido más ampliotage and true stereo audio, you can pair two Urbanista Malibu speakers together:

1. Ensure both Malibu speakers are powered on and not connected to any other Bluetooth device.
2. On one speaker (this will be your primary speaker), press and hold the Bluetooth button until it enters pairing mode.
3. Quickly double-press the Bluetooth button on the primary speaker. It will then search for another Malibu speaker.
4. Once connected, both speakers will provide an audible confirmation, and their LEDs will indicate a successful stereo link.
5. Now, connect your audio source device to the primary Malibu speaker via Bluetooth as usual.

Figure 5: Dual Speaker Pairing

This image shows two Urbanista Malibu speakers positioned near a pool, illustrating the dual speaker support feature for achieving stereo sound.

Mantenimiento

Limpieza

Due to its IP67 rating, the Malibu speaker can be rinsed with water to clean off dirt, sand, or dust. Use a soft, damp cloth for general cleaning. Do not use harsh chemicals or abrasive cleaners, as these may damage the speaker's finish or solar panel.

Almacenamiento

Store the speaker in a cool, dry place away from extreme temperatures. While the solar panel charges in various light conditions, prolonged storage in complete darkness may lead to battery depletion over time. For long-term storage, ensure the battery is at least 50% charged.

Figura 6: Protección contra agua y polvo IP67

This image shows the Urbanista Malibu speaker near a pool, highlighting its IP67 dust and waterproof rating, signifying its durability and suitability for outdoor use.

Solución de problemas

Presupuesto

Vídeo oficial del producto

Garantía y soporte

Urbanista products are covered by a limited warranty. For detailed warranty information, product registration, and technical support, please visit the official Urbanista webSitio web o contacte con el servicio de atención al cliente. Conserve su comprobante de compra para reclamaciones de garantía.

Para obtener más ayuda, también puede consultar la Urbanista Brand Store on Amazon.
