VOCIC V62 Pro Electric Wheelchair User Manual

1. Introducción

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your VOCIC V62 Pro Electric Wheelchair. Please read it thoroughly before first use and keep it for future reference.

Image: The VOCIC V62 Pro Electric Wheelchair designed for user independence.

2. Información de seguridad

Precauciones de seguridad importantes:

• Ensure the correct delivery address, phone number, and email are provided for transport company contact. Incorrect information may lead to delivery failure.
• If you receive damaged parts or encounter installation issues, contact customer support immediately for a resolution within 24 hours.
• The VOCIC electric wheelchair complies with CE requirements.
• For first use, charge the batteries for 6 to 8 hours. If not used frequently, charge the battery once a month.
• Always ensure the wheelchair is in 'D' mode (electric mode) for operation. Otherwise, the electric wheelchair will emit continuous warning sounds and will not start correctly.
• Always wear the safety belt when operating the wheelchair.
• Sea consciente de su entorno y evite los obstáculos.

3. Contenido del paquete

Verifique que todos los componentes estén presentes al desembalar:

• VOCIC V62 Pro Electric Wheelchair (pre-installed)
• 2 x 24V/10Ah Lithium Batteries
• Controlador de joystick
• Cargador
• Anti-roll wheels
• Manual de usuario

4. Montaje y configuración

The VOCIC V62 Pro Electric Wheelchair comes largely pre-assembled. Follow these steps for final setup:

1. Posicionamiento: Place the folded wheelchair as shown in the video, ensuring stability.
2. Install Anti-Roll Wheels: Attach the anti-roll wheels to the designated points at the rear of the wheelchair.
3. Conecte el cable de alimentación: Locate the power cord connection points and securely plug them in.
4. Unfold Wheelchair: Grasp the backrest with one hand and the seat with the other. Apply force in opposite directions until the wheelchair is fully unfolded and locked into position.
5. Adjuntar controlador: Unscrew the pre-installed screws on the armrest. Insert the joystick controller into the armrest slot and tighten the screws to secure it. The controller can be installed on either the left or right armrest.
6. Instale la batería: Press the red button inwards to release the battery compartment. Slide the battery into place until it clicks securely.
7. Ajuste del reposapiés: The footrest can be tilted 90 degrees for comfort and storage.
8. Abrocharse el cinturón de seguridad: Secure the safety belt around your waist before operating.

Image: The VOCIC V62 Pro Electric Wheelchair in its fully unfolded state, ready for use.

5. Operación

The V62 Pro features an intuitive joystick control for easy maneuverability.

• Encendido/apagado: Use the designated button on the joystick controller to power the wheelchair on or off.
• Control de palanca de mando: The 360° intelligent joystick allows for smooth turns and flexible control in tight spaces. Push the joystick forward to move forward, pull back to reverse, and move left or right to turn.
• Ajuste de velocidad: Use the speed up and speed down buttons on the controller to adjust your travel speed.
• Bocina: Press the horn button for an audible warning.
• Visualización de la batería: The controller features a battery display to monitor the remaining charge.
• Cambio de modo: The wheelchair has two modes: 'D' for electric mode and 'N' for manual mode. To switch between modes, simultaneously operate the switches on both the left and right sides of the motor. Ensure both are switched for proper function.

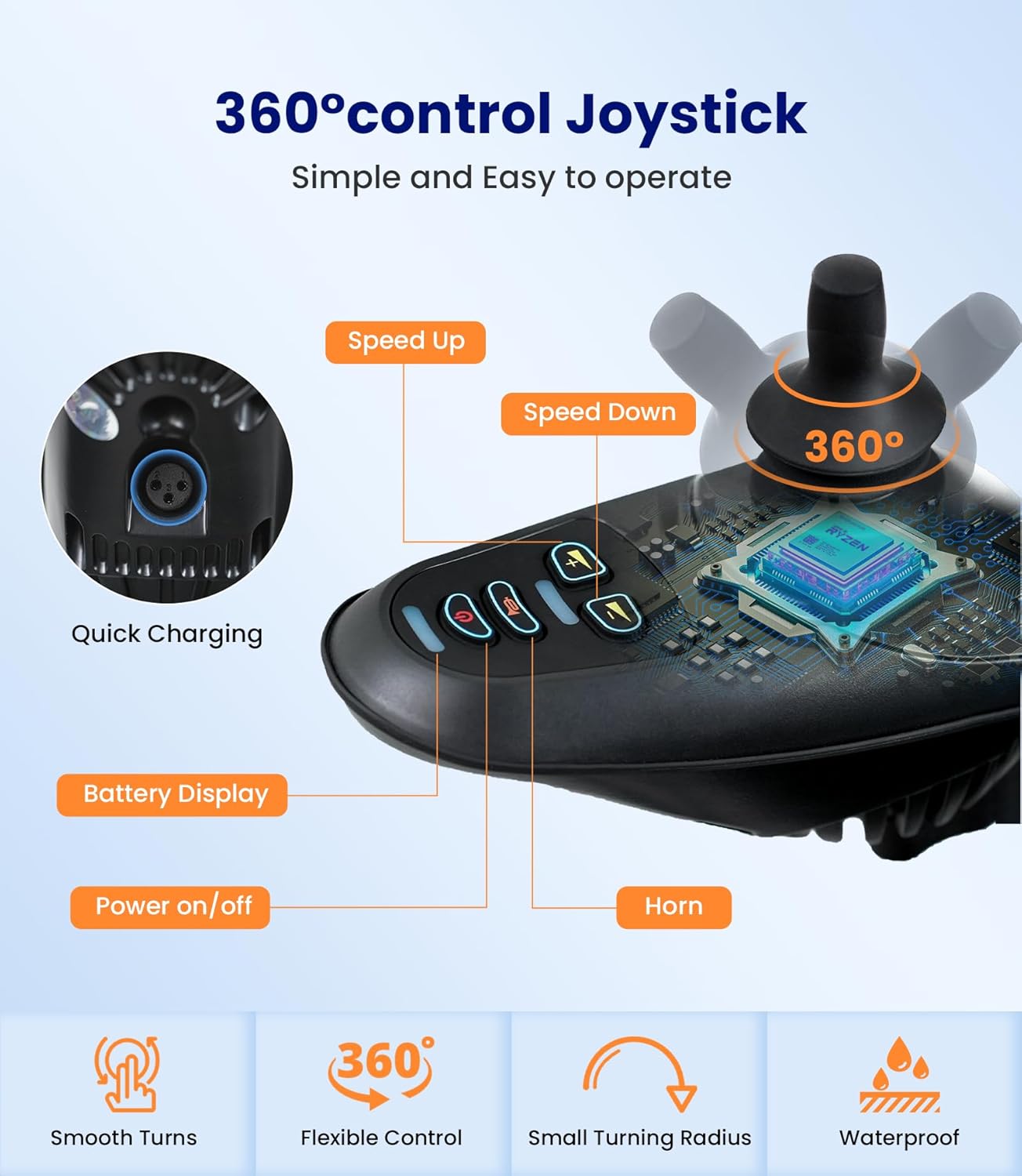

Imagen: Detallada view of the 360° intelligent joystick controller with power, speed, horn, and battery display functions.

Image: Location of the mode switch on the motor for transitioning between electric and manual operation.

6. Plegado y portabilidad

The V62 Pro is designed for quick folding and easy transport.

1. Plegable: Pull the black button outwards until it disengages. Then, grasp the backrest with one hand and press downwards until the wheelchair is completely folded.
2. Traction Rod: Pull the traction rod located on the footrest to easily roll the folded wheelchair like luggage.

Image: The VOCIC V62 Pro Electric Wheelchair in its compact, folded state, ideal for storage or transport.

Image: A person easily loading the folded VOCIC V62 Pro Electric Wheelchair into a car trunk, highlighting its portability.

7. Batería y carga

The V62 Pro is equipped with an innovative dual battery system for extended range.

• Tipo de batería: Two 24V/10Ah lithium batteries.
• Métodos de carga: The batteries can be charged in two ways:
1. A través del controlador: Plug the charger directly into the charging port on the joystick controller.
2. Carga de batería independiente: Remove the battery from the wheelchair and plug the charger directly into the battery's charging port. This allows for charging one battery while using the other.
• Carga inicial: Charge for 6 to 8 hours before first use.
• Carga regular: If not used frequently, charge the batteries once a month to maintain their health.

Image: Charging the wheelchair battery directly through the controller port.

Image: A battery removed from the wheelchair and connected to a charger for independent charging.

8. Funciones terminadasview

• Ultralight and Portable: Constructed from high-quality aluminum alloy, weighing only 25kg (including 2 batteries, gross weight: 28kg). Folds quickly in 3 seconds to a compact size of 66x35x80 cm.
• Potente motor: Equipped with a 500W brushless motor for longer life, energy efficiency, and quiet operation. Capable of navigating complex terrains.
• Premium Inflatable Tires: 30 cm inflatable rubber rear wheels provide excellent shock absorption, allowing smooth travel over uneven surfaces like gravel, grass, mud, marble, and wood.

Image: The durable inflatable tires of the VOCIC V62 Pro, designed for stability and comfort across diverse terrains.

• Seguridad avanzada: Features an intelligent electromagnetic braking system that activates even during power failure. Includes 4 additional shock-absorbing springs, safety belts, and anti-roll wheels for enhanced user well-being.
• Comfort and Storage: A 4 cm thick breathable seat cushion and backrest provide comfortable support, preventing pressure sores during long periods of sitting. Includes a large 10.5-liter removable storage bag and a rear pocket on the backrest.

Image: The adjustable footrest and integrated safety features of the VOCIC V62 Pro Electric Wheelchair.

9. Especificaciones

Image: Diagram illustrating the key dimensions of the VOCIC V62 Pro Electric Wheelchair, both unfolded and folded.

10. Mantenimiento

Regular maintenance ensures the longevity and optimal performance of your wheelchair.

• Limpieza: Limpie el marco y el asiento con un paño húmedo.amp paño. Evite el uso de productos químicos agresivos.
• Cuidado de la batería: As mentioned in the safety section, charge batteries for 6-8 hours initially and monthly if not in regular use. Store batteries in a cool, dry place.
• Presión de los neumáticos: Periodically check the pressure of the inflatable tires and inflate as needed to the recommended level.
• Inspección general: Regularly inspect all connections, screws, and moving parts for any signs of wear or looseness. Tighten or replace as necessary.

11. Solución de problemas

Si encuentra algún problema, consulte los siguientes problemas y soluciones comunes:

• Wheelchair Emits Warning Sounds and Does Not Start: Ensure the wheelchair is switched to 'D' (electric) mode. Both motor switches must be engaged simultaneously. Check battery charge level.
• Alcance o potencia reducida: Check battery connections and ensure batteries are fully charged. Battery performance can decrease over time; consider replacing if significantly degraded.
• Ruidos inusuales: Inspect wheels, motor, and frame for any loose parts or obstructions. If the noise persists, contact customer support.
• El controlador no responde: Ensure the controller is securely connected and powered on. Check for any visible damage to the cable.

For issues not listed here or if solutions do not resolve the problem, please contact VOCIC customer support.

12. Garantía y soporte

VOCIC se compromete a proporcionar productos de alta calidad y un excelente servicio al cliente.

• Garantía: We offer an extended 5-year warranty on this product.
• Atención al cliente: Our professional after-sales team is available to assist you. All problems will be resolved within 24 hours.
• Contacto: For any warranty claims, technical assistance, or product inquiries, please refer to the contact information provided with your purchase or visit the official VOCIC websitio.

Image: VOCIC customer support details, highlighting 24/7 support, 5-year warranty, and 30-day free returns.
