Newentor ND-25LS-WH-DE-4
Manual del usuario del deshumidificador Newentor 25L/día
Model: ND-25LS-WH-DE-4 | Brand: Newentor
1. Introducción y másview
The Newentor 25L/Day Dehumidifier, model ND-25LS-WH-DE-4, is designed to efficiently remove excess moisture from your indoor environment, creating a healthier and more comfortable living space. Featuring revolutionary dehumidification technology with an integrated TCL x Newentor compressor, this unit offers powerful moisture extraction of up to 25 liters per day, suitable for areas up to 80m² (215m³).
It boasts advanced 3-fold noise reduction technology, ensuring quiet operation at only 45dB, making it ideal for use in living areas, bedrooms, basements, and bathrooms. With a highly energy-efficient 290W chip, it minimizes electricity consumption. The dehumidifier is also equipped with user-friendly controls, a 3.5-liter water tank with overflow protection, and options for continuous drainage.
2. Configuración
2.1 Desembalaje y colocación
Carefully remove the dehumidifier from its packaging. Ensure all packing materials are removed. Place the unit on a flat, stable surface. For optimal performance, allow at least 20 cm (8 inches) of space around the unit for proper air circulation. The dehumidifier features a telescopic handle and 360° swivel casters for easy movement between rooms.
2.2 Conexión de alimentación
Connect the power cord to a grounded electrical outlet (220V). Ensure the voltage coincide con su fuente de alimentación local.
2.3 Opciones de drenaje de agua

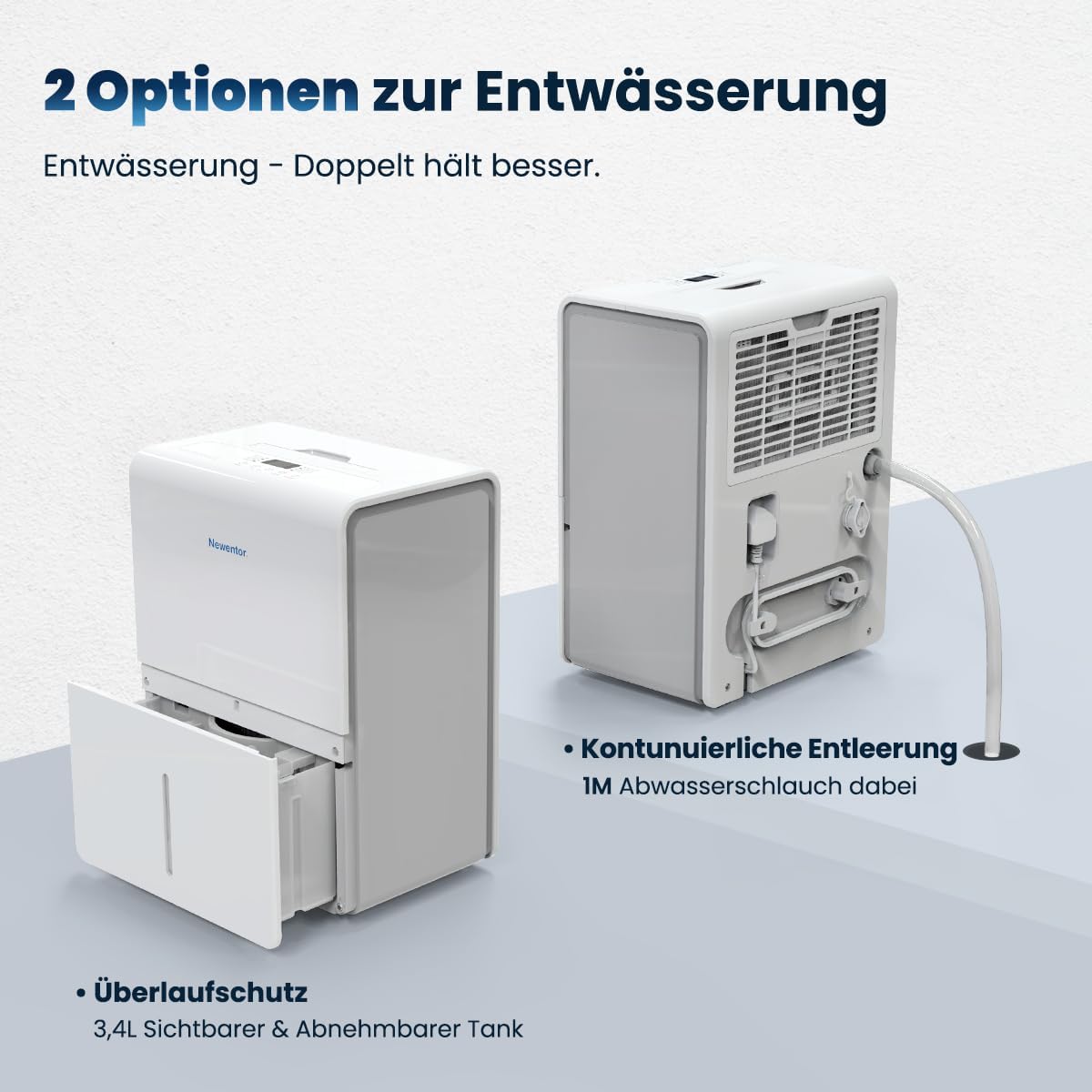

The Newentor dehumidifier offers two drainage methods:
- Drenaje manual (tanque de agua): The unit collects water in its internal 3.5-liter water tank. The dehumidifier will automatically shut off when the tank is full, indicated by a "Tank Full" light on the control panel. Simply remove the tank, empty it, and reinsert it to resume operation.
- Drenaje continuo (manguera de drenaje): For continuous operation without needing to empty the tank, attach the included 1-meter drain hose to the continuous drainage port on the back of the unit. Route the hose to a suitable drain (e.g., floor drain, sink). Ensure the hose is sloped downwards to allow gravity drainage.
Video 1: This video demonstrates the Newentor 25L Dehumidifier's features, including its portability, ease of use, noise reduction, and water drainage options. It shows the unit being moved, the control panel, the water tank being emptied, and the continuous drainage hose in action.
3. Instrucciones de funcionamiento
3.1 Panel de control terminadoview
El deshumidificador cuenta con un panel de control táctil intuitivo para una fácil operación.
- Botón de encendido: Pulse para encender o apagar la unidad.
- Botón MODE: Recorrer diferentes modos de funcionamiento:
- Normal: Standard dehumidification.
- Turbo: Maximum dehumidification power for rapid moisture removal (290W).
- Comodidad: Mantiene automáticamente un nivel de humedad confortable.
- Continuo: Runs continuously, ideal for drying laundry or very damp áreas.
- Botones de ajuste de humedad (+/-): Adjust the desired humidity level (e.g., 35% to 80% RH).
- Botón TEMPORIZADOR: Set a timer for automatic ON/OFF operation (1-24 hours).
- LOCK Button (3 Sec): Mantenga presionado durante 3 segundos para activar/desactivar el bloqueo para niños, evitando cambios accidentales en la configuración.
- FILTER Indicator: Se ilumina cuando el filtro necesita limpieza.
- TANK FULL Indicator: Se ilumina cuando el tanque de agua está lleno y necesita vaciarse.
3.2 Modos de funcionamiento y características

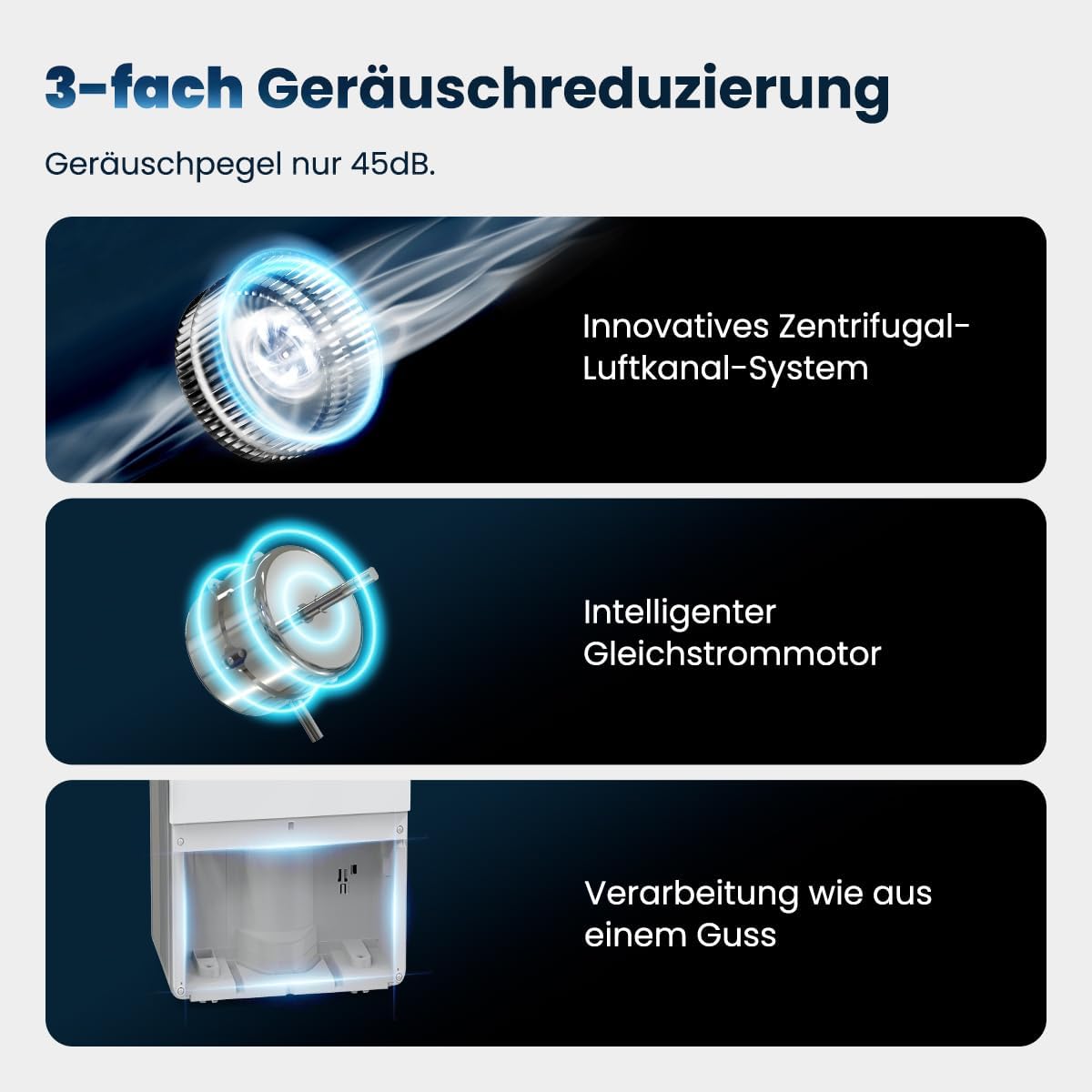

The Newentor dehumidifier is designed for efficient and quiet operation. Its advanced 3-fold noise reduction system ensures a quiet environment, even during active dehumidification.
- Modo de secado: Utilize the continuous mode for drying laundry faster in humid environments.
- Descongelación automática: La unidad se descongela automáticamente cuando se acumula escarcha en las bobinas del evaporador, lo que garantiza un funcionamiento eficiente en temperaturas más frías.
- Restart After Power Failure: The dehumidifier will automatically resume operation with the last settings after a power outage.
4. Mantenimiento
4.1 Vaciado del tanque de agua
When the "Tank Full" indicator lights up, the dehumidifier will stop operating.
- Extraiga con cuidado el tanque de agua desde la parte delantera de la unidad.
- Vacíe con cuidado el agua recogida en un fregadero o desagüe.
- Deslice el depósito de agua vacío de nuevo en la unidad hasta que encaje en su lugar. El deshumidificador volverá a funcionar.
4.2 Limpieza del filtro de aire
The dehumidifier is equipped with a washable air filter to maintain optimal performance and air quality. The "Filter" indicator light will remind you when it's time to clean.
- Apague y desenchufe el deshumidificador.
- Localice la tapa del filtro en la parte posterior de la unidad y ábrala.
- Retire el filtro de aire.
- Clean the filter using a vacuum cleaner or wash it gently with warm, soapy water. Rinse thoroughly.
- Deje que el filtro se seque al aire por completo antes de volver a insertarlo.
- Cierre la tapa del filtro.
5. Solución de problemas
If you encounter issues with your Newentor dehumidifier, please refer to the following common problems and solutions:
| Problema | Posible causa | Solución |
|---|---|---|
| El deshumidificador no se enciende. | No power, power cord loose, tank full, child lock active. | Check power connection, ensure tank is empty and correctly inserted, deactivate child lock. |
| La unidad está funcionando pero no recoge agua. | Humidity setting too high, room temperature too low, air filter clogged, continuous drainage hose connected. | Lower humidity setting, ensure room temperature is above 5°C, clean air filter, check if continuous drainage is active. |
| Ruido inusual durante el funcionamiento. | Unit not on a level surface, foreign object in fan, filter loose. | Place on a level surface, check for obstructions, ensure filter is securely in place. |
| El indicador "Tanque lleno" está encendido, pero el tanque no está lleno. | Tank not properly seated, sensor malfunction. | Remove and reinsert the water tank firmly. If problem persists, contact customer support. |
If the problem persists after trying these solutions, please contact Newentor customer support for assistance.
6. Especificaciones
| Número de modelo | ND-25LS-WH-DE-4 |
| Marca | Nuevo Entor |
| Capacidad de deshumidificación | 25 litros/día |
| Área de aplicación | 80m² / 215m³ |
| Consumo de energía | 290 vatios |
| Nivel de ruido | 45 dB |
| Volumen del tanque de agua | 3.5 litros |
| Dimensiones (L x An x Al) | 27 x 34 x 48 cm |
| Peso del artículo | 14.5 kilogramos |
| Material | Acrilonitrilo butadieno estireno (ABS) |
| Características especiales | Tank Overflow Protection, Drying Mode, 24-Hour Timer, Child Lock, Restart After Power Failure |
| Componentes incluidos | Water Tank, 1M Drain Hose |
7. Garantía y soporte
7.1 Información de garantía
The Newentor 25L/Day Dehumidifier comes with an exceptional 10 año de garantía. This warranty covers defects in materials and workmanship under normal use. In case of a valid warranty claim, Newentor offers a simple replacement process instead of lengthy repairs, ensuring long-lasting, worry-free dehumidification.
7.2 Atención al cliente
For any questions, technical assistance, or warranty claims, please contact Newentor customer support. Our team of experts is ready to provide professional support.
- Websitio: www.newentor.com (Por favor, consulte la información oficial) web(sitio para detalles de contacto específicos)
- Correo electrónico: support@newentor.com (Ej.ample email, please refer to product documentation for actual contact)
