Manual de usuario del altavoz Bluetooth XDOBO Vibe Plus

1. Introducción

The XDOBO Vibe Plus is a powerful portable Bluetooth speaker designed to deliver high-quality audio with enhanced bass and versatile connectivity. Its robust construction and IPX5 waterproof rating make it suitable for various indoor and outdoor environments. This manual will guide you through the features, setup, operation, and maintenance of your speaker.

Frente view of the XDOBO Vibe Plus Bluetooth speaker, showcasing its robust design, illuminated speaker cones, and top-mounted control panel.

2. Características principales

• Salida de alta potencia: This speaker is larger than typical portable speakers and features dual passive radiators for superior bass. It delivers a maximum output of 80W with 2.1 channel audio for an immersive music experience.


Explotó view of the XDOBO Vibe Plus speaker components, highlighting the three speaker units and passive radiators that contribute to its 80W maximum output.

• Modos de reproducción versátiles: Supports Bluetooth playback, USB memory playback, and AUX cable playback.
• Batería de larga duración: Equipped with a 20000mAh rechargeable battery that fully charges in approximately 5-6 hours using the included Type-C cable. The large capacity battery allows for extended music playback at high power.

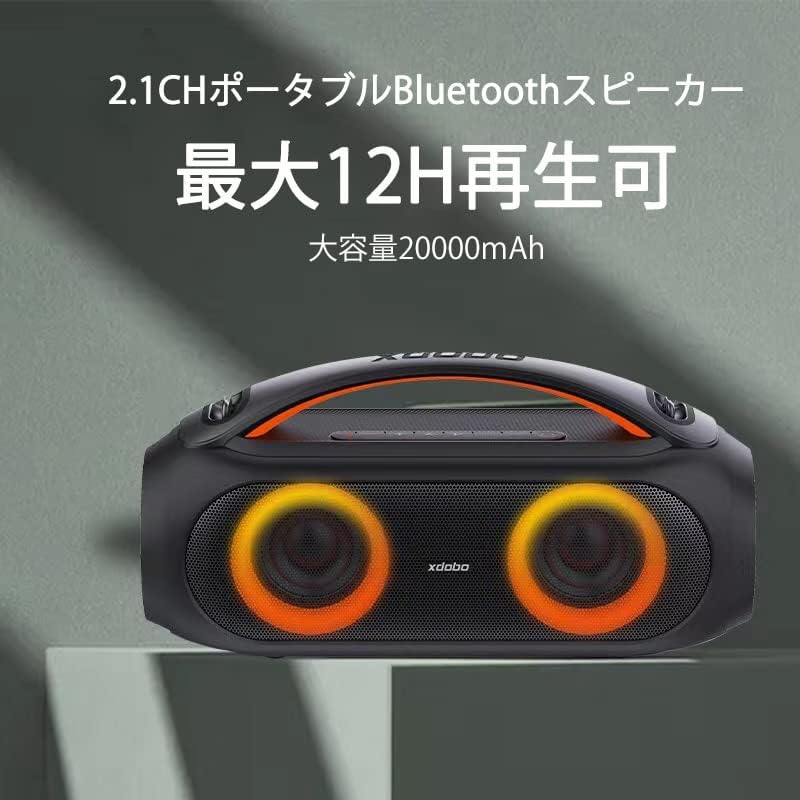

The XDOBO Vibe Plus speaker with illuminated cones, representing its large 20000mAh battery capacity and extended playback time.
• Funcionalidad TWS: Purchase two speakers and use the TWS (True Wireless Stereo) pairing function to link them for a 360° stereo sound experience, similar to a movie theater.
• Iluminación ambiental: Features 3 types of mood light settings to enhance your listening environment.
• High-Quality Audio with EQ: Constructed with high-quality materials. The built-in EQ equalizer function allows for clear high and mid-range sounds, and especially powerful bass reproduction. Sound remains clear even at maximum volume.
• Salida USB-A: Equipped with a USB-A output (2A output) to charge smartphones and other devices.
• IPX5 a prueba de agua: Features IPX5 waterproof rating, protecting against harmful effects from water jets from any direction (splash-proof type). Ideal for use in bathrooms, by the pool, at the beach, or during other outdoor activities.


The XDOBO Vibe Plus speaker positioned outdoors, demonstrating its IPX5 waterproof rating suitable for beach, poolside, and other outdoor activities.

3. Configuración

3.1 Carga del altavoz

1. Connect the included Type-C USB charging cable to the speaker's charging port.
2. Conecte el otro extremo del cable a un adaptador de corriente USB compatible (no incluido).
3. The battery indicator lights will show charging progress. Charging is complete when all lights are solid.

3.2 Encendido y apagado

• Encendido: Press and hold the Power button until the speaker powers on and you hear an audible prompt.
• Apagado: Mantenga presionado el botón de encendido hasta que el altavoz se apague.

3.3 Emparejamiento Bluetooth

1. Encienda el altavoz. Entrará automáticamente en modo de emparejamiento Bluetooth, lo que se indicará mediante una luz LED parpadeante.
2. Habilite Bluetooth en su dispositivo (teléfono inteligente, tableta, computadora).
3. Buscar "XDOBO Vibe Plus" in your device's Bluetooth list and select it to connect.
4. Una vez conectado, el altavoz proporcionará una confirmación audible y la luz LED dejará de parpadear.

3.4 Emparejamiento TWS (estéreo inalámbrico verdadero)

To achieve 360° stereo sound, you can pair two XDOBO Vibe Plus speakers together:

1. Asegúrese de que ambos altavoces estén encendidos y no conectados a ningún otro dispositivo Bluetooth.
2. On one speaker (this will be the primary speaker), press and hold the TWS button (if available, or a combination of buttons as per specific model instructions, typically the Play/Pause button for a few seconds).
3. El altavoz principal buscará al altavoz secundario. Una vez conectados, ambos altavoces emitirán una confirmación audible.
4. Ahora, conecta tu dispositivo al altavoz principal por Bluetooth, como se describe en la sección 3.3. El audio se reproducirá en estéreo por ambos altavoces.

4. Instrucciones de funcionamiento

4.1 Control de reproducción

• Reproducir/Pausa: Presione el botón Reproducir/Pausar para iniciar o pausar la reproducción.
• Sube el volumen: Presione el botón '+' para aumentar el volumen.
• Bajar volumen: Presione el botón '-' para disminuir el volumen.
• Pista siguiente: Mantenga presionado el botón '+' para pasar a la siguiente pista.
• Pista anterior: Mantenga presionado el botón '-' para ir a la pista anterior.

4.2 Cambio de modo

The speaker supports Bluetooth, USB, and AUX input modes. Press the 'M' (Mode) button to cycle through the available input modes.

4.3 Mood Light Control

The speaker features three types of mood lighting. Press the Light button (often indicated by a lightbulb icon) to cycle through the different lighting patterns or to turn the lights off.

4.4 Ajuste del ecualizador

The speaker has a built-in equalizer function. Press the EQ button (if available, or a specific button combination) to switch between different sound profiles (e.g., enhanced bass, balanced, vocal). This allows you to customize the audio to your preference.

4.5 USB-A Output for Charging

To use the speaker as a power bank, connect your device's charging cable to the USB-A output port on the speaker. The speaker will provide 2A output for charging.

5. Mantenimiento

• Limpieza: Utilice un paño suave y seco para limpiar la superficie del altavoz. No utilice limpiadores abrasivos, alcohol ni otros disolventes químicos, ya que pueden dañar el acabado.
• Exposición al agua: While the speaker is IPX5 waterproof, avoid submerging it in water. Ensure the charging port cover is securely closed when near water to prevent damage.
• Almacenamiento: Guarde el altavoz en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas. Si lo va a guardar durante un periodo prolongado, cargue la batería al 50 % aproximadamente cada pocos meses para mantenerla en buen estado.
• Tratar con cuidado: The handle is designed for portability. Handle the speaker carefully to avoid damage, especially when carrying it.

6. Solución de problemas

7. Especificaciones

Dimensions of the XDOBO Vibe Plus speaker.

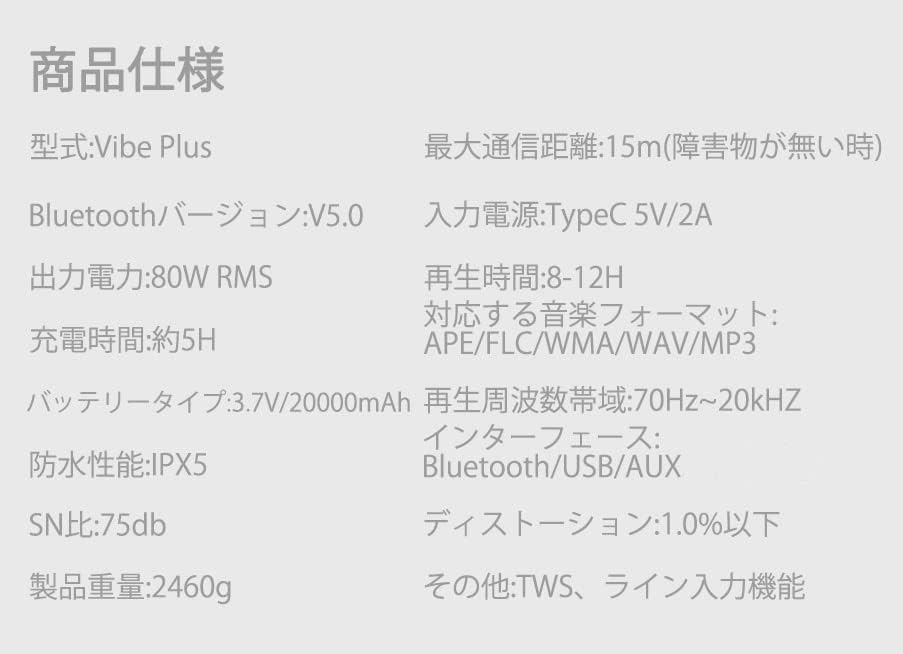

Detailed technical specifications of the XDOBO Vibe Plus speaker.

8. Garantía y soporte

Information regarding product warranty and customer support was not available in the provided data. Please refer to the product packaging or the seller's webSitio para conocer los términos de garantía específicos y la información de contacto para obtener soporte.
