kleankin Wall Mounted Medicine Cabinet User Manual

1. Información importante de seguridad

Lea y comprenda todas las instrucciones antes de ensamblar y usar. Conserve este manual para futuras consultas.

• Ensure the wall mounting surface is structurally sound and capable of supporting the cabinet's weight (15.9 kg / 35 lbs empty) plus contents.
• Maximum overall weight capacity: 33 lbs (15 kg).
• Maximum shelf weight capacity: 11 lbs (5 kg) per shelf. Do not overload shelves.
• Use appropriate hardware for your wall type (wood studs, drywall anchors, masonry anchors). Hardware not included may be required.
• Mantenga las piezas pequeñas y los materiales de embalaje fuera del alcance de los niños.
• Revise periódicamente todas las conexiones y sujetadores para asegurarse de que permanezcan firmes y seguros.

2. Producto terminadoview

The kleankin Wall Mounted Medicine Cabinet is designed to provide functional storage and a mirror for your bathroom. It features a modern aesthetic and practical design elements.

Características principales:

• Estilo moderno: Contemporary design suitable for various bathroom decors.
• Diseño 2 en 1: Combines a mirrored door with enclosed compartments and open shelving.
• Ahorro de espacio: Wall-mounted design optimizes floor space.
• Diseño practico: Features cushioned hinges for smooth door operation and melamine coating for water resistance and easy maintenance.
• Estantes ajustables: Internal shelves can be adjusted to three different levels.
• Barra de toalla: Integrated towel bar for convenience.

Componentes:

This image displays the overall appearance of the cabinet, highlighting its mirrored door and the open shelving on the right side, along with the integrated towel bar at the bottom.

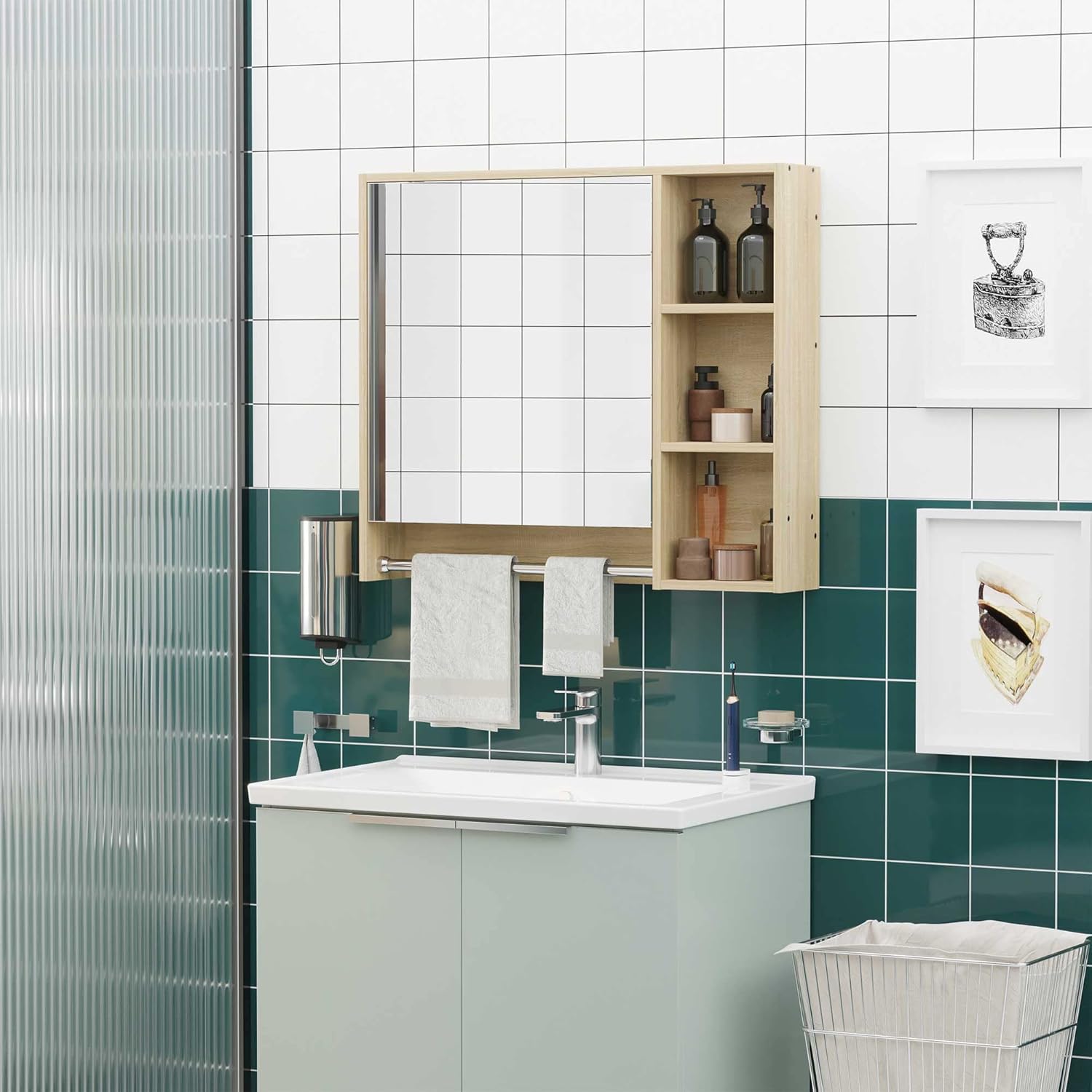

This image shows the cabinet mounted on a wall in a bathroom, demonstrating its integration into a typical bathroom environment above a sink, with towels hanging from the bar.

This image highlights the interior storage capabilities, showing the two main compartments behind the mirrored door, the three open shelves on the side, and the towel bar at the bottom, filled with various bathroom items.

This close-up image focuses on the hinges of the cabinet door, illustrating their design for smooth and quiet opening and closing, with an inset showing the hinge mechanism.

This image shows a person using the integrated mirror for shaving, emphasizing its utility for daily grooming tasks.

This image details the adjustable shelving system within the cabinet, showing the different peg holes that allow for three levels of shelf height adjustment, indicated by a diagram.

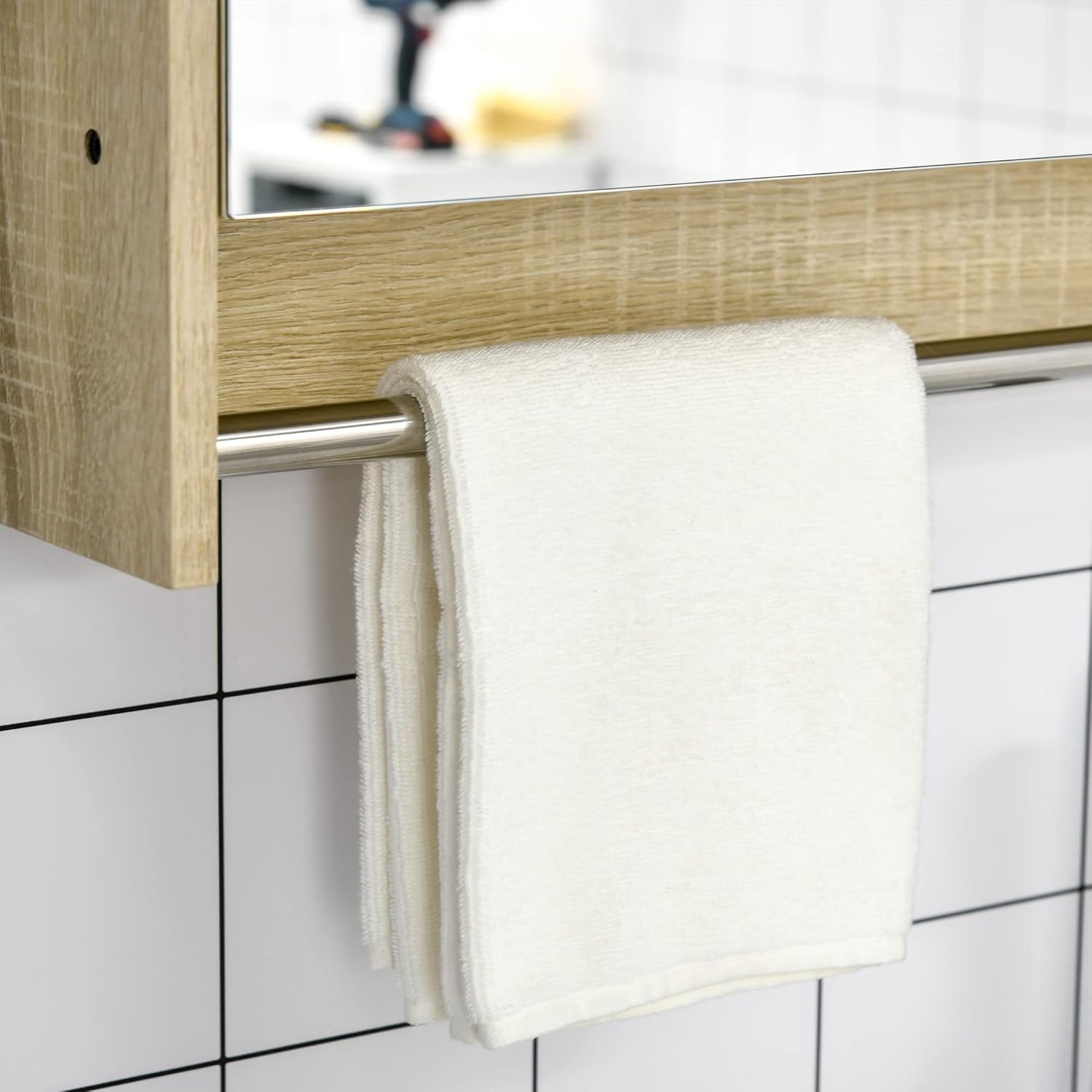

This close-up image shows the metal towel bar located at the bottom of the cabinet, with a white towel neatly folded and hanging on it.

Esta imagen proporciona una visión detallada view of the open shelves on the right side of the cabinet, showing various bottles and containers stored, illustrating the practical storage capacity.

3. Configuración e instalación

This medicine cabinet requires assembly and surface mounting to a wall. It is recommended that two people perform the installation for safety and ease.

Herramientas necesarias (no incluidas):

• Perforar
• Drill bits appropriate for wall material
• Nivel
• Cinta métrica
• Lápiz
• Destornillador (cabeza Phillips)
• Stud finder (if mounting to drywall)

Pasos de instalación:

1. Desembalaje e inspección: Carefully unpack all components and verify against the parts list (not provided in this manual, refer to product packaging). Inspect for any damage.
2. Elegir la ubicación: Select a suitable wall location, ensuring it is free from electrical wires, plumbing, or other obstructions. Consider the height for comfortable mirror use and access to shelves.
3. Marcar los puntos de montaje: Hold the cabinet against the wall at the desired height and use a level to ensure it is straight. Mark the mounting hole locations with a pencil.
4. Perforar agujeros piloto: Drill pilot holes at the marked locations. The size of the drill bit will depend on your wall material and the type of mounting hardware used.
5. Instalar anclajes de pared (si es necesario): If mounting into drywall without studs, install appropriate wall anchors into the pilot holes.
6. Gabinete de montaje: Align the cabinet with the drilled holes/anchors. Secure the cabinet to the wall using appropriate screws. Ensure all screws are tightened securely, but do not overtighten.
7. Instalar estantes: Insert the shelf pins into the desired holes for the adjustable shelves. Place the shelves onto the pins.
8. Colocar la barra de toalla: Secure the towel bar to the designated points on the cabinet.

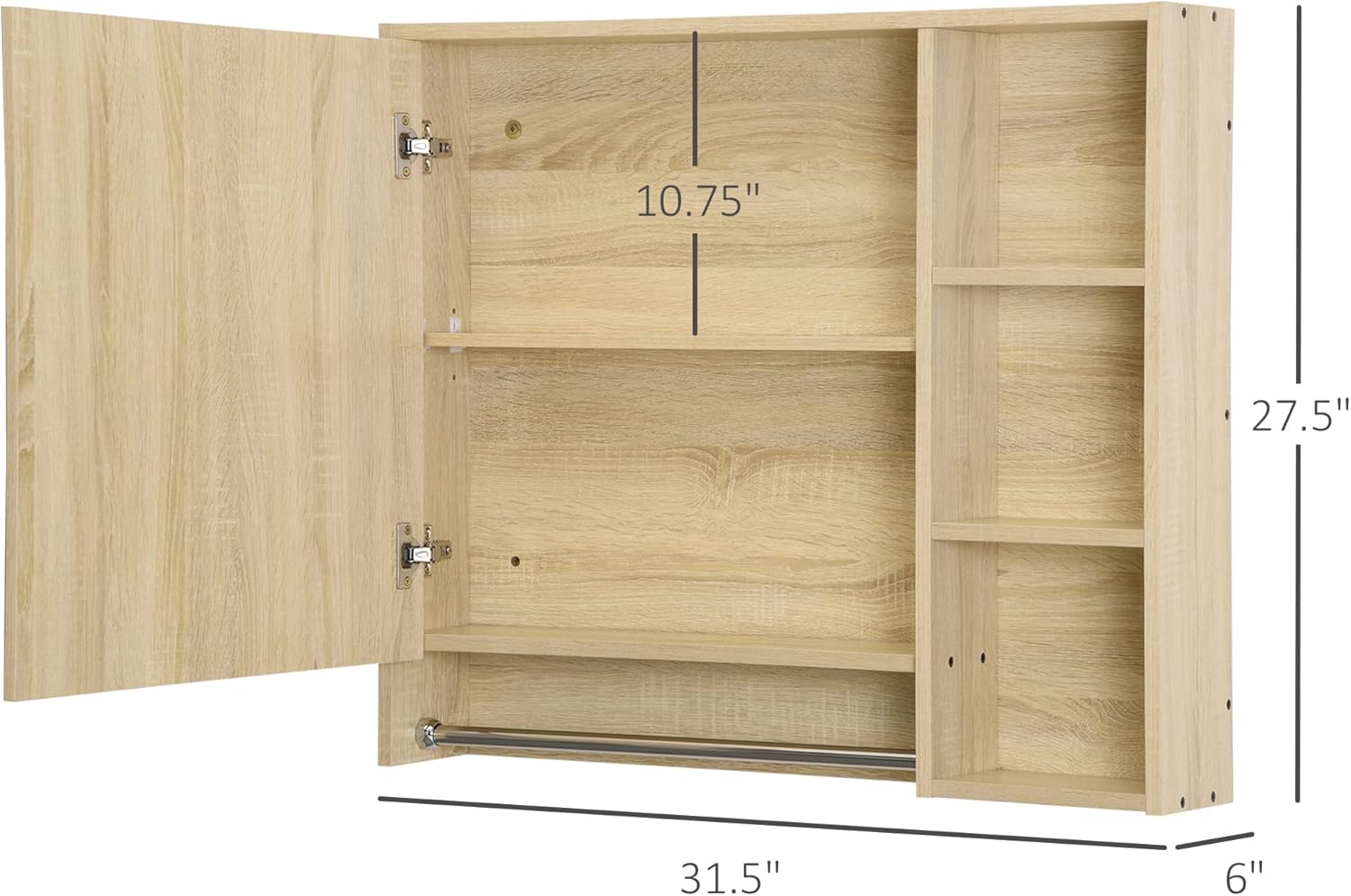

This image provides a diagram with the precise measurements of the cabinet, including its width, depth, and height, which are crucial for planning the installation space.

4. Instrucciones de funcionamiento

The kleankin medicine cabinet is designed for straightforward daily use.

• Mirrored Door: Gently pull the door to open. The cushioned hinges ensure a smooth and quiet operation when opening and closing.
• Compartimentos de almacenamiento: Utilize the two enclosed compartments behind the mirrored door for items you wish to keep out of sight.
• Estantes abiertos: The three open shelves provide easy access storage for frequently used items or decorative elements.
• Estantes ajustables: To adjust the height of the internal shelves, remove the shelf and shelf pins, reinsert the pins into the desired holes, and place the shelf back on the pins.
• Barra de toalla: Use the integrated towel bar to hang hand towels or washcloths.

5. Mantenimiento

Regular maintenance will help preserve the appearance and functionality of your medicine cabinet.

• Limpieza del gabinete: The melamine coating on the MDF makes the cabinet resistant to water and easy to clean. Wipe surfaces with a soft, damp paño. Evite limpiadores abrasivos o productos químicos fuertes que puedan dañar el acabado.
• Limpiar el espejo: Use a standard glass cleaner and a lint-free cloth to clean the mirror. Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into edges.
• Comprobación del hardware: Periodically check all screws and fasteners, especially those used for wall mounting and hinges, to ensure they remain tight. Tighten if necessary.
• Evite la sobrecarga: Do not exceed the stated weight capacities for the overall cabinet or individual shelves.

6. Solución de problemas

Esta sección aborda problemas comunes que podrías encontrar.

7. Especificaciones

8. Garantía y soporte

For warranty information, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. Specific warranty terms may vary.

For product support or inquiries, you may contact the manufacturer:

• Fabricante: Aosom Canadá
• Domicilio social: Markham, Ontario, California
• Teléfono: 1-416-792-6088
