Manual de usuario del horno compacto con microondas integrado Balay 3CW5179B2

1. Introducción

Thank you for choosing a Balay appliance. Your new 3CW5179B2 compact oven with integrated microwave is designed to offer versatility and convenience in your kitchen. This appliance combines the functionalities of a traditional oven with the speed of a microwave, featuring intuitive controls and a sleek design.

To ensure optimal performance and safety, please familiarize yourself with all instructions and warnings contained within this manual. Keep this manual for future reference.

2. Información de seguridad

Siga siempre las siguientes pautas de seguridad para evitar lesiones o daños al aparato:

• Ensure the appliance is correctly installed by a qualified technician according to the provided installation instructions.
• Do not operate the oven if the door seals are damaged or if the appliance is malfunctioning.
• Never heat sealed containers in the microwave, as they may explode.
• Use oven mitts when handling hot dishes or accessories.
• Mantenga a los niños alejados del aparato durante su funcionamiento y cuando se esté enfriando.
• Regularly clean the oven to prevent grease buildup, which can be a fire hazard.
• No utilice limpiadores abrasivos ni raspadores metálicos afilados para limpiar el vidrio de la puerta del horno, ya que pueden rayar la superficie y provocar roturas.

3. Producto terminadoview

The Balay 3CW5179B2 is a compact built-in oven designed for modern kitchens, offering both conventional oven and microwave functionalities. Its sleek Crystal Series design and intuitive touch controls enhance user experience.

Figura 1: Frente view of the Balay 3CW5179B2 compact oven.

Características principales:

• Integrated Microwave Functionality: Combines oven and microwave for versatile cooking.
• Glass Touch Slider Control: Intuitive and modern interface for easy operation.
• AutoChef with 15 Pre-programmed Recipes: Simplifies cooking your favorite dishes.
• Aqualisis Cleaning Assistant: Facilitates effortless oven cleaning.
• 5 Cooking Functions: Includes Microwave, Full Grill, Keep Warm, Turbo Grill, and Hot Air.
• Crystal Series Design: Elegant white finish with a hinged door for comfortable and safe access.
• 44-Liter Capacity: Spacious interior for various cooking needs.
• LED Interior Lighting: Provides clear visibility of food during cooking.
• Included Grill Rack: For grilling and roasting.

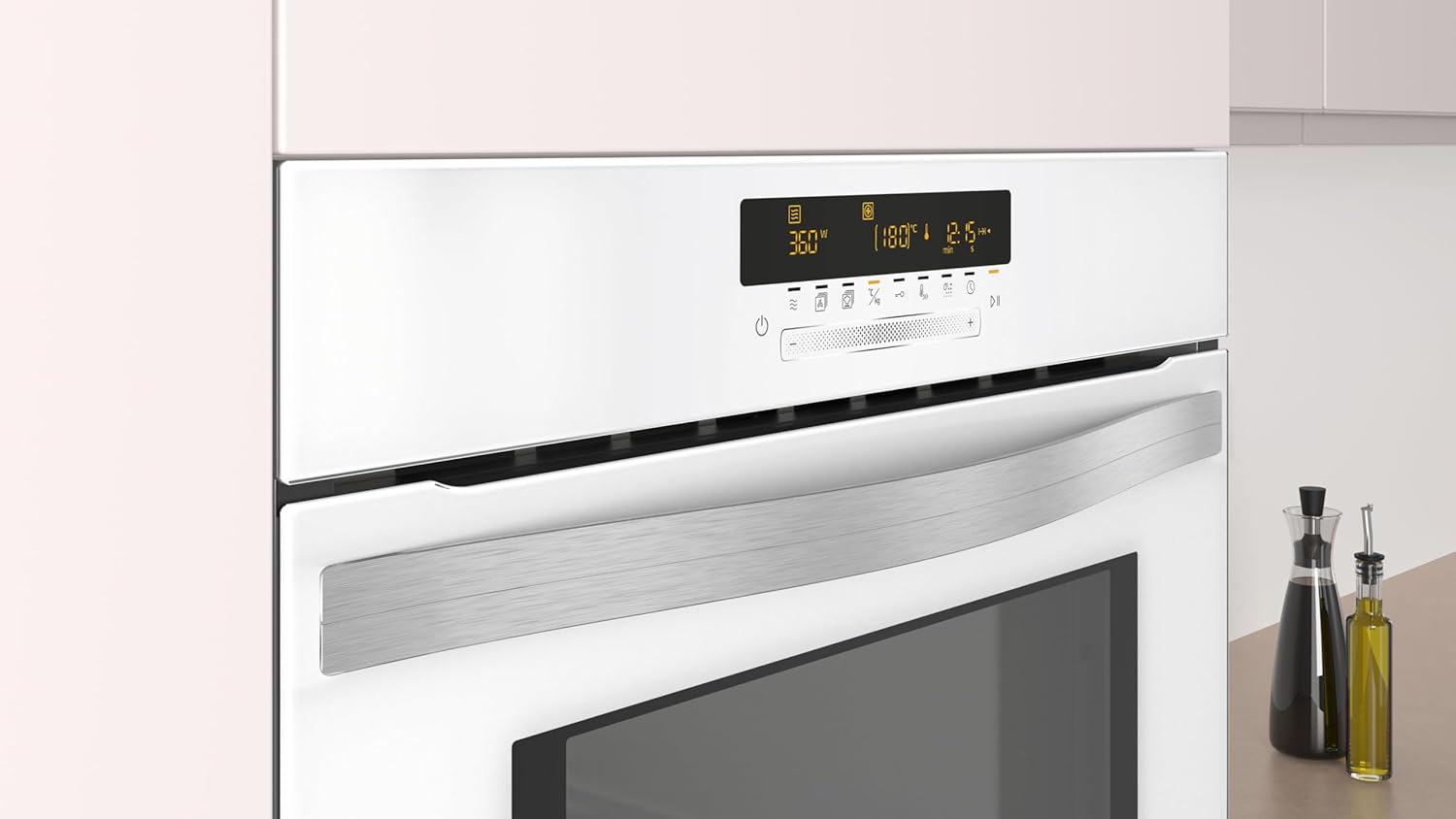

Figura 2: detallada view del panel de control táctil.

4. Configuración e instalación

Proper installation is crucial for the safe and efficient operation of your Balay oven. This appliance is designed for built-in installation.

Dimensiones y requisitos del gabinete:

The oven has a capacity of 44 liters and external dimensions of 45.4 cm (height) x 59.4 cm (width) x 57 cm (depth). Ensure your cabinet opening meets the required specifications for a secure fit and adequate ventilation.

Figure 3: Front and side dimensions for installation (in mm).

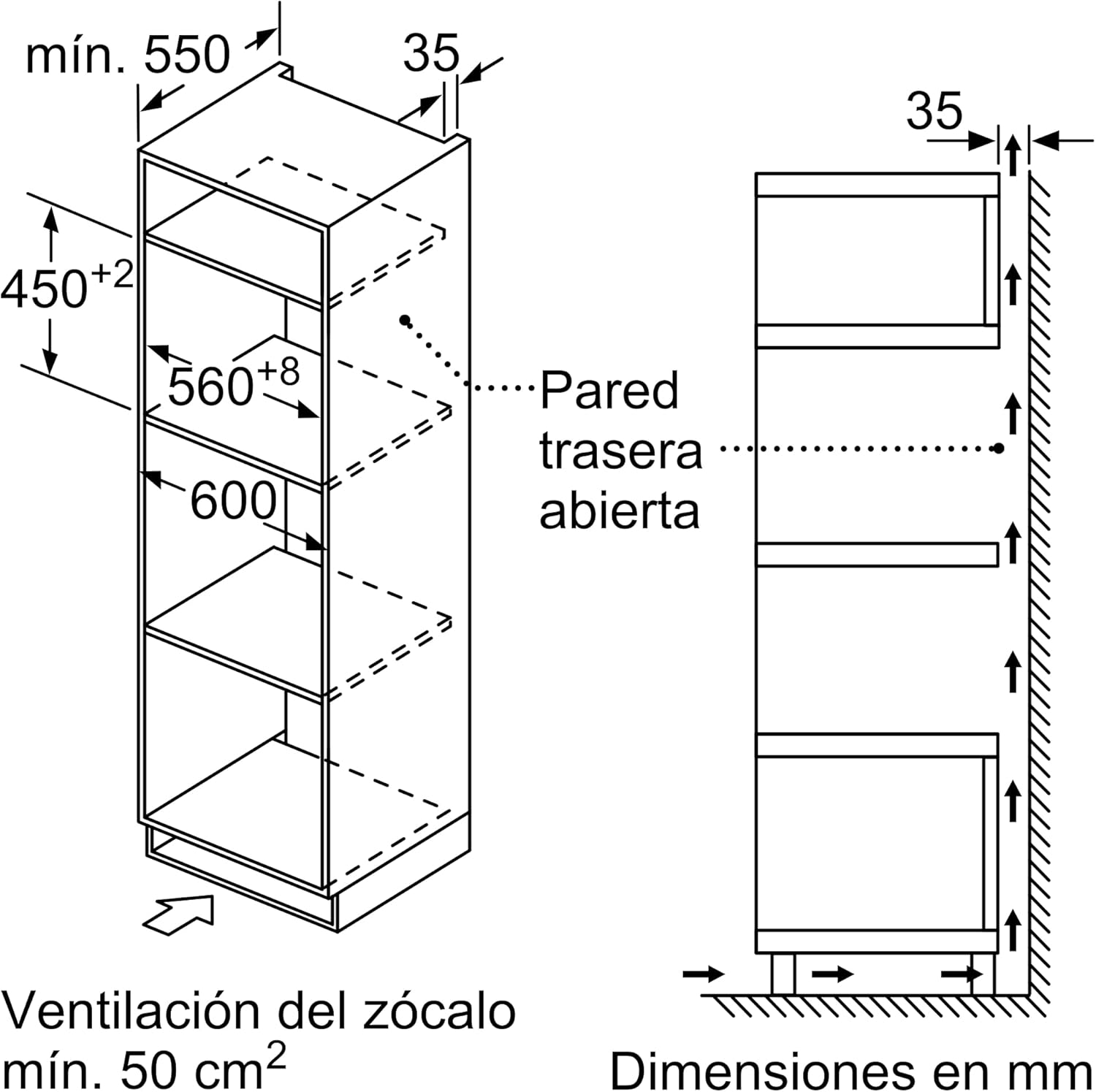

Figure 4: Cabinet dimensions and ventilation requirements.

Ensure sufficient ventilation around the appliance as indicated in the diagrams to prevent overheating. The rear wall of the cabinet should be open, and a minimum plinth ventilation of 50 cm² is required.

5. Instrucciones de funcionamiento

Your Balay oven features a user-friendly glass touch slider control for selecting functions and adjusting settings.

Operación básica:

1. Encienda el aparato usando el botón de encendido.
2. Select your desired cooking function using the touch icons.
3. Adjust temperature or microwave power using the slider control.
4. Configure el tiempo de cocción.
5. Presione comenzar para comenzar a cocinar.

AutoChef Function:

The AutoChef function provides 15 pre-programmed recipes. Simply select the desired recipe, and the oven will automatically set the optimal cooking mode, temperature, and time. Refer to the full appliance manual for a complete list of AutoChef recipes and their usage.

Using the Flex Rails:

The oven is equipped with 100% extendable and easily interchangeable Flex Rails, allowing for perfect visibility and safe access to the oven interior. To install or adjust the rails, simply fix them at the desired level on the side rack.

Figure 5: Oven interior with extendable Flex Rails.

Figura 6: Interior del horno con la puerta abierta.

Vídeo oficial del producto:

6. Funciones de cocción

The Balay 3CW5179B2 offers a range of cooking functions to suit diverse culinary needs:

• Microonda: For rapid heating, defrosting, and cooking.
• Parrilla completa: Ideal for grilling larger quantities of food, such as steaks or sausages.
• Mantener caliente: Mantiene los alimentos a la temperatura de servicio sin cocinarlos demasiado.
• Parrilla Turbo: Combines grill and fan for faster and more even grilling results.
• Aire caliente: Circulates heat evenly throughout the oven for baking and roasting on multiple levels.

7. Mantenimiento y limpieza

Regular cleaning ensures the longevity and hygiene of your oven. The Balay 3CW5179B2 features the Aqualisis cleaning assistant for easy maintenance.

Aqualisis Cleaning Assistant:

Aqualisis is an eco-friendly cleaning system that uses water vapor to loosen food residues. To use, pour a small amount of water into the oven cavity, select the Aqualisis function, and let the oven do the work. Once the cycle is complete and the oven has cooled, simply wipe away the softened dirt with a cloth.

Figure 7: Aqualisis cleaning assistant in action.

Limpieza general:

• Limpie las superficies exteriores con un paño suave yamp Paño y detergente suave.
• Remove and clean the grill rack and other accessories after each use.
• Avoid using harsh chemicals or abrasive materials that could damage the oven's surfaces.

8. Solución de problemas

If you encounter any issues with your Balay oven, refer to the following common troubleshooting tips before contacting customer service.

Problemas comunes:

• El horno no calienta: Compruebe que el aparato esté correctamente enchufado y que el disyuntor no se haya disparado. Asegúrese de seleccionar la función y la temperatura de cocción correctas.
• Microwave not working: Verify the door is fully closed. Check if the power level and time are set correctly.
• Cocción irregular: Ensure food is placed centrally and that the correct cooking function (e.g., Hot Air for even distribution) is selected. Avoid overcrowding the oven.
• La pantalla no funciona: Try resetting the appliance by turning off the power at the main switch for a few minutes, then turning it back on.

If the problem persists after attempting these solutions, please contact Balay customer support.

9. Especificaciones técnicas

10. Garantía y soporte

Your Balay 3CW5179B2 oven is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or any questions not covered in this manual, please contact Balay customer support. You can find contact information on the official Balay websitio web o en la documentación de su producto.
