The KAOLALI Motorcycle Multi-Function Speedometer is a comprehensive digital instrument designed for 12V motorcycles. It integrates multiple essential functions into a single LCD display unit, providing riders with critical information such as speed, engine RPM, fuel level, and water temperature.
Figure 1: KAOLALI Motorcycle Multi-Function Speedometer and its components, including the main unit, wiring harness, and mounting hardware.
Constructed from high-quality stainless steel and nickel-plated ABS material, this speedometer is designed for durability, rust resistance, and corrosion resistance. Its sealed design ensures reliable operation even in adverse weather conditions like heavy rain.
The unit features a clear LCD screen with a wide viewing angle, designed to reduce eye fatigue and enhance readability. It also includes a bright two-color LED nightlight for improved visibility during nighttime riding, making the dial mileage clearly visible.
Características principales
- Pantalla multifuncional: Integrates speedometer, tachometer, fuel gauge, and water temperature gauge.
- Pantalla LCD clara: Proporciona una amplia viewing angle and stable visibility to reduce eye strain.
- Construcción duradera: Made from high-quality stainless steel and nickel-plated ABS for rust and corrosion resistance.
- Diseño a prueba de agua: Sealed construction ensures normal operation in heavy rain.
- Two-Color LED Nightlight: Enhances visibility of the dial and pointer during nighttime use.
- Compatibilidad universal: Designed for most 12V motorcycles.
Presupuesto
| Atributo | Valor |
|---|---|
| Marca | KAOLALI |
| Número de modelo | 9-A |
| Material | Acero inoxidable, acrilonitrilo butadieno estireno (ABS) |
| Peso del artículo | 0.52 kilogramos (1.15 libras) |
| Tamaño de pantalla | 5 pulgadas |
| Dimensiones del paquete | 7.95 x 5.12 x 4.02 pulgadas |
| Volumentage Compatibilidad | 12V (for most motorcycles) |
Guía de instalación
This section provides detailed instructions for installing the KAOLALI Motorcycle Multi-Function Speedometer. Professional installation is recommended if you are unfamiliar with motorcycle electrical systems.
Contenido del paquete
- 1 x KAOLALI Multi-Function Speedometer Unit
- 1 x arnés de cableado
- 1 x Speed Sensor (magnetic pickup type)
- Mounting Brackets and Hardware (nuts, washers, clips)
- Manual de usuario (copia en papel)
Dimensiones
Figure 2: Detailed dimensions of the speedometer unit, showing measurements for diameter, height, and mounting bracket width.
Diagrama de cableado
Refer to the provided wiring diagram for correct electrical connections. Incorrect wiring can damage the unit or your motorcycle's electrical system.
Figura 3: Posterior view of the speedometer unit, illustrating the connection point for the main wiring harness.
The wiring harness includes multiple wires, each color-coded for specific functions. Consult the paper user manual for the exact pinout and color code definitions for your specific model. Generally, connections include power (positive/negative), ignition, speed sensor input, RPM signal, fuel level sensor, and indicator lights (turn signals, high beam, neutral, ABS, engine check, battery).
Vídeo 1: Un finalview of the speedometer unit and its components, including the wiring harness and mounting accessories. This video demonstrates the physical aspects of the product.
Instrucciones de montaje
- Identify a suitable mounting location on your motorcycle, typically near the handlebars or existing instrument cluster.
- Attach the mounting bracket to the speedometer unit using the provided screws.
- Secure the assembled speedometer and bracket to your motorcycle using the appropriate hardware. Ensure it is firmly attached and does not obstruct your view o controles.
- Route the wiring harness safely, avoiding moving parts or hot engine components.
- Connect the speed sensor to the appropriate location on your motorcycle, typically near the wheel. Ensure proper alignment for accurate readings.
Instrucciones de funcionamiento
Once installed and powered on, the speedometer will display various parameters. The LCD screen provides real-time data for speed, RPM, fuel level, and other indicators.
Funciones de visualización
Figura 4: Una vista detallada view of the speedometer's digital display, highlighting the speedometer, tachometer, odometer, fuel gauge, and various indicator lights.
- Velocímetro: Muestra la velocidad actual en MPH o KM/H.
- Tacómetro: Shows engine RPM.
- Odómetro (ODO): Registra la distancia total recorrida.
- Medidor de viaje (TRIP): Records distance for a single trip, resettable.
- Indicador de combustible: Indicates current fuel level.
- Luces indicadoras: Includes turn signals (left/right), high beam, neutral gear, ABS, engine check, and battery warning.
Ajustes de configuración
The unit may have a button on the back for adjusting settings such as units (MPH/KM/H) or resetting the trip meter. Refer to the specific instructions in your paper manual for detailed steps on how to access and change these settings.
Figura 5: Lado view of the speedometer, indicating the location of the setting button on the rear of the unit.
Mantenimiento
To ensure the longevity and accurate operation of your KAOLALI Multi-Function Speedometer, follow these maintenance guidelines:
- Limpieza: Limpie la pantalla y casing con un suave, damp paño. Evite limpiadores abrasivos o disolventes que puedan dañar la pantalla o el acabado.
- Conexiones: Revise periódicamente todas las conexiones eléctricas para asegurarse de que estén seguras y libres de corrosión.
- Sensor: Inspect the speed sensor for any debris or damage that might affect its accuracy. Keep it clean.
- Exposición al agua: While the unit is designed to be waterproof, avoid prolonged submersion or high-pressure water jets directly on the display.

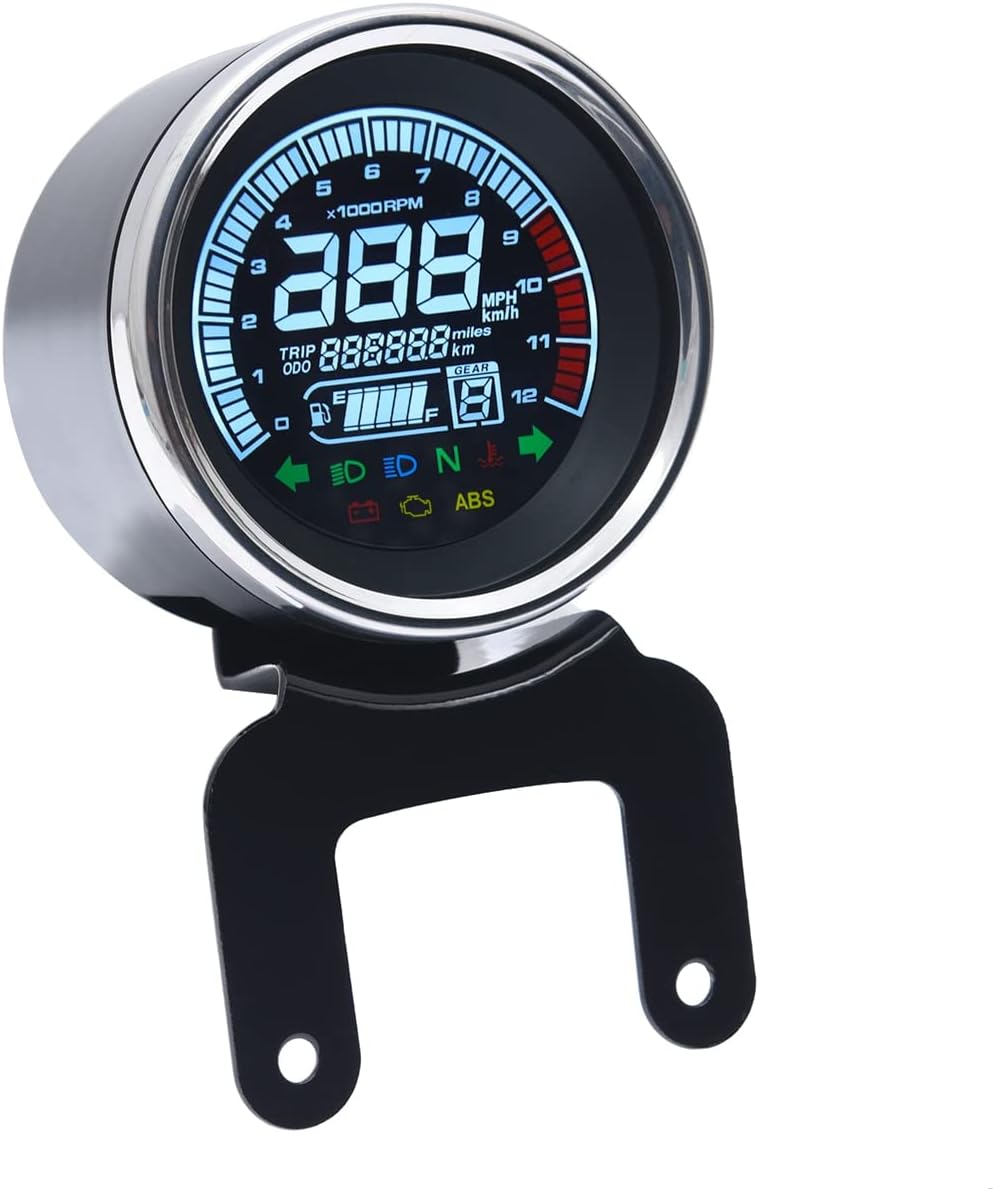

Figure 6: The speedometer demonstrating its waterproof and dustproof capabilities, suitable for various riding conditions.
Solución de problemas
Si tiene problemas con su velocímetro, consulte los siguientes problemas y soluciones comunes:
| Problema | Posible causa | Solución |
|---|---|---|
| Sin energía/pantalla apagada | Loose wiring connection, blown fuse, insufficient power supply. | Check all wiring connections, inspect motorcycle fuses, ensure 12V power supply. |
| Inaccurate Speed/RPM | Speed sensor misalignment/damage, incorrect wiring, sensor debris. | Verify speed sensor alignment and cleanliness, check sensor wiring, replace sensor if damaged. |
| Fuel Gauge Malfunction | Faulty fuel sensor, incorrect wiring to fuel sensor. | Check fuel sensor wiring, test fuel sensor functionality. |
| Parpadeo de la pantalla | Unstable power supply, loose internal connection. | Ensure stable 12V power, check main wiring harness connection. |
If the problem persists after attempting these solutions, contact KAOLALI customer support or consult a qualified motorcycle technician.
Garantía y soporte
KAOLALI products are manufactured to high standards. For warranty information and technical support, please refer to the contact details provided in the original product packaging or visit the official KAOLALI websitio.
Conserve su recibo de compra como comprobante de compra para reclamos de garantía.
Para obtener recursos adicionales, puede consultar el manual de usuario oficial en PDF: KAOLALI Motorcycle Speedometer User Manual (PDF)
