Manual del usuario del cargador rápido de batería Ingco 20 V FCLI2001

1. Introducción

Thank you for choosing the Ingco FCLI2001 20V Rapid Battery Charger. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your charger. Please read this manual thoroughly before first use and keep it for future reference.

The Ingco FCLI2001 is designed to charge Ingco 20V Lithium-Ion batteries. It features advanced technology to monitor current, voltage, and battery temperature, contributing to improved battery life and efficient charging.

2. Instrucciones de seguridad

Observe siempre las precauciones básicas de seguridad al utilizar aparatos eléctricos para reducir el riesgo de incendio, descarga eléctrica y lesiones personales.

• Lee todas las instrucciones: Antes de usar el cargador, lea todas las instrucciones y marcas de precaución en el cargador, la batería y el producto que usa la batería.
• Solamente para uso en interiores: No exponga el cargador a la lluvia ni a la humedad. Está diseñado solo para uso en interiores.
• Vol. Adecuadotage: Asegúrese de que la fuente de alimentación voltage coincide con el voltage specified on the charger's rating label (220V-240V ~ 50/60Hz).
• Avoid charging non-rechargeable batteries: This charger is specifically designed for Ingco 20V Lithium-Ion batteries. Do not attempt to charge non-rechargeable batteries or other battery types, as this may cause them to burst, leading to personal injury and damage.
• Ventilación: Asegúrese de que haya suficiente ventilación durante la carga. No cubra el cargador.
• Cables dañados: Never operate the charger if the cord or plug is damaged. Replace immediately.
• Evite los cortocircuitos: No provoque cortocircuito en los terminales de la batería.
• Children and untrained persons: Este aparato no está diseñado para ser utilizado por personas (incluidos niños) con capacidades físicas, sensoriales o mentales reducidas, o con falta de experiencia y conocimientos, a menos que hayan recibido supervisión o instrucciones sobre el uso del aparato por parte de una persona responsable de su seguridad.
• Desconectar la energía: Always disconnect the charger from the power outlet before attempting any maintenance or cleaning.

3. Producto terminadoview

The Ingco FCLI2001 charger is a compact and efficient unit designed for rapid charging of Ingco 20V batteries. It features indicator lights to communicate charging status.

Figura 1: Angulado view of the Ingco FCLI2001 20V Rapid Battery Charger, showing the battery slot and indicator lights.

Componentes:

• Ranura de la batería: Area where the 20V Ingco battery is inserted for charging.
• Cable de alimentación: Connects the charger to a standard electrical outlet.
• Luces indicadoras: LEDs that display the charging status (e.g., charging, fully charged, error).

4. Configuración

Follow these steps to set up your Ingco FCLI2001 battery charger:

1. Deshacer: Retire con cuidado el cargador de su embalaje. Inspeccione si presenta daños.
2. Colocación: Coloque el cargador sobre una superficie estable, plana y no inflamable en un área bien ventilada. Protéjalo de la luz solar directa, fuentes de calor y humedad.
3. Conectarse a la energía: Plug the charger's power cord into a standard 220V-240V ~ 50/60Hz electrical outlet. The charger may have a power indicator light that illuminates to show it is ready.

Figura 2: Arriba view of the Ingco FCLI2001 20V Rapid Battery Charger, showing the battery connection terminals.

5. Instrucciones de funcionamiento

To charge an Ingco 20V Lithium-Ion battery:

1. Insertar batería: Align the battery with the battery slot on the charger. Slide the battery firmly into the charger until it clicks into place.
2. Carga del monitor: The indicator lights on the charger will illuminate to show the charging status. Typically:
   • Rojo/naranja sólido: La batería se está cargando.
   • Verde sólido: La batería está completamente cargada.
   • Flashing Red/Error: Indicates a problem (e.g., battery too hot/cold, defective battery). Refer to the Troubleshooting section.
3. Retire la batería: Once the battery is fully charged (indicated by a solid green light), press the battery release button (if present) and slide the battery out of the charger.
4. Desconectar el cargador: Desenchufe el cargador de la toma de corriente cuando no esté en uso.

Nota: The charger is designed to monitor battery temperature and voltage to optimize charging and prevent overcharging. Charging time will vary depending on the battery's capacity and its current charge level.

6. Mantenimiento

Un mantenimiento adecuado garantiza la longevidad y el funcionamiento seguro de su cargador.

• Limpieza: Disconnect the charger from the power supply before cleaning. Use a soft, dry cloth to wipe the exterior of the charger. Do not use water or chemical cleaners. Keep the charging terminals clean and free of debris.
• Almacenamiento: Store the charger in a dry, cool place, away from direct sunlight and moisture. When not in use, unplug it from the power outlet.
• Inspección: Regularly inspect the power cord and charger housing for any signs of damage. If damage is found, discontinue use and have it repaired by a qualified service technician.

7. Solución de problemas

If you encounter issues with your Ingco FCLI2001 charger, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact Ingco customer support for further assistance.

8. Especificaciones

Key technical specifications for the Ingco FCLI2001 20V Rapid Battery Charger:

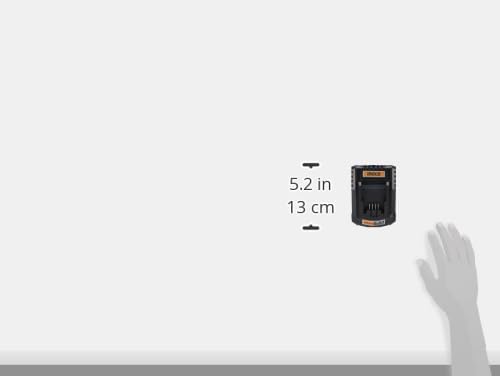

Figure 3: Illustrative image showing the approximate dimensions of the Ingco FCLI2001 charger.

9. Garantía y soporte

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Ingco webSitio. Conserve su comprobante de compra para reclamaciones de garantía.

If you require technical assistance or have questions regarding the operation of your Ingco FCLI2001 charger, please contact Ingco customer service.
