Cómoda AKORD K60 de 6 cajones: Manual de montaje y uso

1. Introducción

This manual provides detailed instructions for the assembly, safe operation, and maintenance of your new AKORD K60 6-drawer chest of drawers. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Image 1: AKORD K60 6-Drawer Chest of Drawers (White / Sonoma Oak finish).

2. Información de seguridad

• Monte siempre los muebles sobre una superficie suave y limpia para evitar arañazos.
• Asegúrese de que todos los tornillos y fijaciones estén bien apretados antes de usar. Revíselos periódicamente y ajústelos según sea necesario.
• To prevent tipping, always use the included anti-tip hardware to secure the chest of drawers to a wall. This is crucial for child safety.
• No permita que los niños se suban a los cajones o estantes.
• Distribute weight evenly across drawers. Avoid placing heavy items in the top drawers only.
• Do not exceed the maximum weight capacity for each drawer or the top surface.

3. Contenido del paquete

Before beginning assembly, verify that all components and hardware are present. If any parts are missing or damaged, please contact customer support.

Componentes:

• Laminated particle board panels for frame and drawers.
• Drawer fronts (6 units).
• Drawer bottoms.
• Metal drawer slides (6 pairs).

Hardware:

• Screws, dowels, cam locks, and other fasteners.
• Anti-tip hardware.

4. Instrucciones de montaje

Follow these steps carefully to assemble your AKORD K60 chest of drawers. It is recommended to have two people for assembly.

Step 1: Prepare Drawer Slides

Unpack the metal drawer slides. Each slide consists of two main parts: one for the drawer and one for the cabinet frame. Separate these parts by pressing the small lever on the inner slide and pulling it apart.

Step 2: Attach Slides to Drawer Sides

Attach the inner part of the metal slides to the pre-drilled holes on the sides of each drawer. Ensure they are oriented correctly, with the roller mechanism facing the front of the drawer.

Image 2: Attaching the inner part of the drawer slide to the drawer side panel using screws.

Step 3: Assemble Drawer Boxes

Connect the drawer sides, back, and front panels using the provided hardware (e.g., dowels and cam locks). Slide the drawer bottom into the grooves. Ensure the drawer is square and stable.

Image 3: Illustration of drawer box assembly, showing how panels connect and the bottom slides into place.

Step 4: Attach Slides to Cabinet Frame

Attach the outer part of the metal slides to the pre-drilled holes on the inner sides of the cabinet frame. Ensure they are level and correctly aligned for smooth drawer operation.

Image 4: Securing the outer part of the drawer slide to the cabinet's side panel.

Step 5: Assemble Cabinet Frame

Connect the side panels, top, and bottom panels of the cabinet using the provided hardware. Ensure the back panel is properly installed to add stability and squareness to the frame.

Image 5: The fully assembled AKORD K60 chest of drawers, ready for use.

Paso 6: Insertar cajones

Carefully align the assembled drawers with the cabinet slides and push them in until they click into place. Test each drawer for smooth operation.

Imagen 6: View of the drawers fully installed and functioning smoothly.

5. Uso

The AKORD K60 chest of drawers is designed for storing clothing, linens, and other household items. Its handle-less design provides a clean, modern aesthetic. Ensure items are placed within the drawers without overfilling to allow for smooth opening and closing.

The robust top surface can be used for decorative items, lamps, or other light objects. Avoid placing excessively heavy items on the top surface to maintain stability and prevent damage.

6. Mantenimiento y cuidado

• Limpieza: Limpie las superficies con un paño suave, damp cloth. For stubborn marks, a mild, non-abrasive cleaner can be used, followed by wiping with a dry cloth. Avoid harsh chemicals or abrasive materials that could damage the finish.
• Derrames: Immediately wipe up any spills to prevent staining or water damage to the laminated particle board.
• Hardware: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten as needed to maintain the structural integrity of the furniture.
• Correderas para cajones: If drawers become stiff, a small amount of silicone-based lubricant can be applied to the metal slides.

7. Solución de problemas

Problema: Los cajones no se deslizan suavemente.

• Solución: Check if the drawer slides are correctly aligned and securely fastened to both the drawer and the cabinet frame. Ensure no objects are obstructing the slides. Apply a silicone lubricant if necessary.

Problem: Chest of drawers feels unstable.

• Solución: Verify that all assembly hardware is fully tightened. Ensure the chest is placed on a level surface. Most importantly, confirm that the anti-tip hardware is correctly installed and secured to a wall stud.

Problema: Piezas faltantes o dañadas.

• Solución: Do not attempt to assemble with missing or damaged parts. Contact AKORD customer support for replacements.

8. Especificaciones

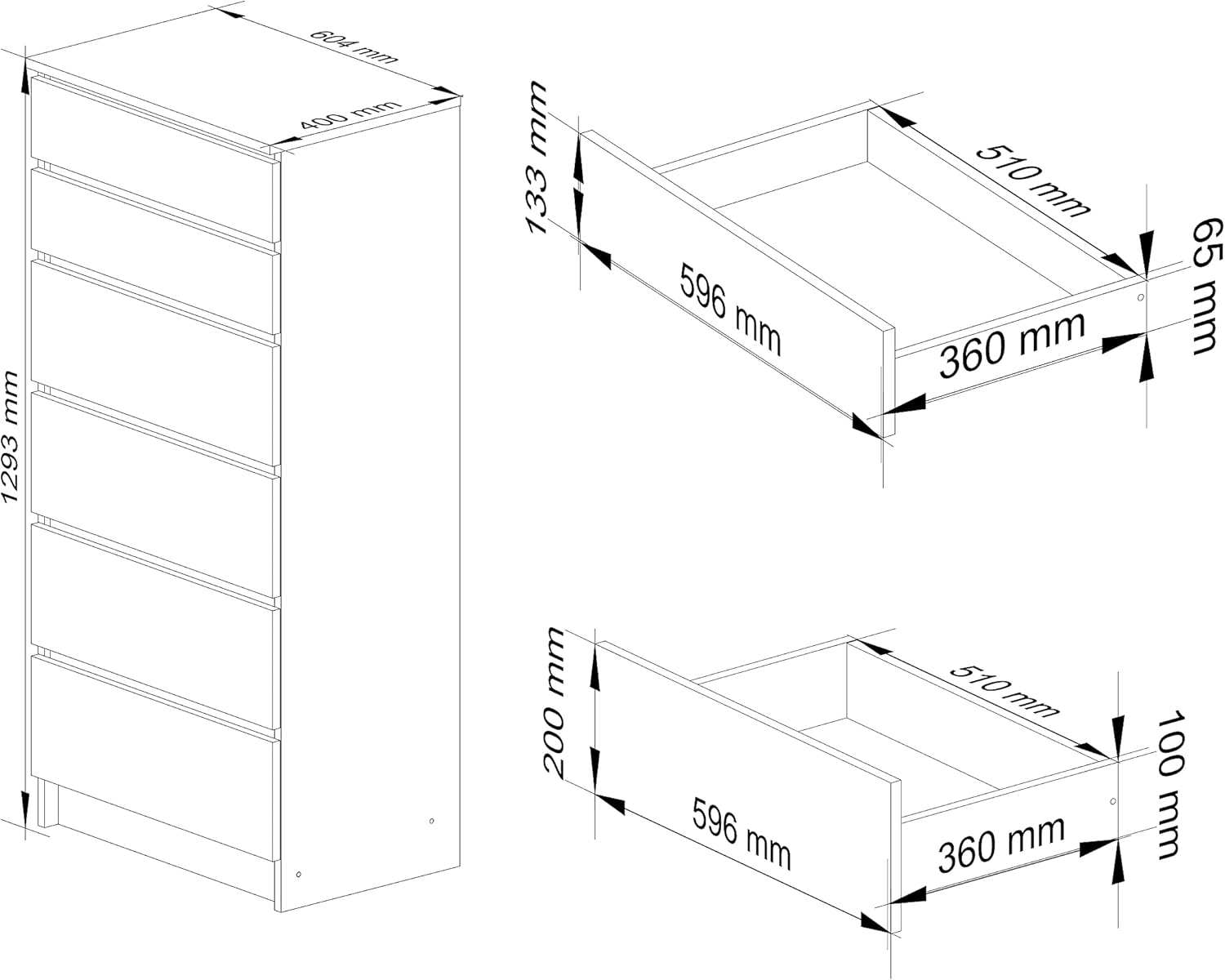

Image 7: Technical drawing showing the dimensions of the AKORD K60 chest of drawers.

9. Garantía y soporte

Your AKORD K60 chest of drawers is covered by standard legal guarantees. For specific warranty details, please refer to your purchase documentation or contact the seller directly. We offer specialized customer support for any questions or issues you may encounter.

For assistance, please contact Furniture-Akord customer service through your purchase platform or visit the official AKORD brand store for more information.

Returns are accepted within 30 days of purchase, subject to the seller's return policy.
