1. Introducción

Thank you for choosing the Hodozzy Digital Wireless Reversing Camera Kit. This system is designed to provide a clear and stable view of your vehicle's surroundings, enhancing safety during reversing and maneuvering. It is suitable for a wide range of 12V-24V vehicles, including cars, RVs, trucks, trailers, buses, and caravans.

This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your device. Please read it thoroughly before use.

2. Contenido del paquete

Verifique que todos los artículos enumerados a continuación estén incluidos en su paquete:

1 x 7-inch TFT LCD Monitor
2 x Wireless Reversing Cameras
1 x cargador de coche
2 x Power Cords for Cameras
1 x Monitor Mounting Bracket
1 x Parasol para monitor
2 x Antenas
1 x Manual de usuario
Installation Kits (screws, adhesive sticker)

Diagram showing all components included in the Hodozzy Digital Wireless Reversing Camera Kit: 7-inch monitor, two cameras, power cable, power extension cable, accessories, sticker, antenna head, frame accessories, user manual, and suction cup holder.

Figure 2.1: Hodozzy Digital Wireless Reversing Camera Kit Components

3. Especificaciones

Característica	Especificación
Número de modelo	Z2091
Tamaño del monitor	7 Inches TFT LCD
Resolución de la cámara	720P (Effective Capture Resolution)
Tecnología de sensor de cámara	CMOS
Clasificación de impermeabilidad	IP69
View Ángulo	130 grados
Visión nocturna	Yes (Color Night Vision with 8 LED lights)
Rango de señal inalámbrica	20-40 feet (up to 70m in open area without interference)
Entrada de potencia	12V-24V DC
Modos de visualización del monitor	Full screen, Dual split, Quad split (with additional cameras)
Función de grabación	Yes (with SD card, up to 128GB)

Diagram showing the dimensions of the camera and monitor components.

Figura 3.1: Dimensiones del producto

4. Configuración e instalación

This system is designed for easy installation. Follow these steps carefully:

4.1 Instalación de la cámara

Ubicación de montaje: Choose a suitable location for each camera at the rear of your vehicle. Ensure the camera has a clear, unobstructed view. The cameras are IP69 waterproof, shockproof, and dustproof, suitable for various weather conditions.
Montaje seguro: Use the provided screws and brackets to securely attach the cameras. Adjust the camera angle for optimal viewEn.
Conexión de energía: Connect the camera's power cable to a 12V-24V DC power source. For continuous monitoring, connect to a constant power source. For reversing assistance, connect to the vehicle's reverse lights (positive and negative wires).

Image showing two IP69 waterproof cameras with antennas, highlighting their durability against water, shock, dust, and high temperatures.

Figure 4.1: IP69 Waterproof and Durable Cameras

Close-up image of the IP69 waterproof camera, showing its robust design.

Figure 4.2: Camera Waterproof Rating

Image illustrating the 130-degree wide view angle of the camera mounted on a vehicle, showing its broad coverage.

Figura 4.3: 130° de ancho View Ángulo

4.2 Instalación del monitor

Montaje: Attach the monitor to your dashboard or windshield using the provided mounting bracket. Ensure it is in a position that does not obstruct your view Mientras conduce.
Conexión de energía: Plug the monitor's car charger into your vehicle's cigarette lighter socket or connect it to an ACC/fuse/radio power source.
Antena: Screw the antenna onto the monitor for optimal wireless signal reception.

Diagram showing the wireless connection between the monitor and two cameras, with a maximum range of 240ft in open areas. The monitor is powered by a car charger, and cameras are wired to the vehicle's power and reverse lights.

Figure 4.4: Wireless Connection and Power Diagram

Diagram illustrating the wireless signal transmission range of up to 240 feet between the monitor and cameras, suitable for large vehicles like trucks.

Figura 4.5: Alcance de la señal inalámbrica

5. Instrucciones de funcionamiento

5.1 Encendido / Apagado

Once connected to power, the monitor will automatically turn on when the vehicle is started or when the reverse gear is engaged (if wired to reverse lights). Press the 'POWER' button on the monitor to manually turn it on or off.

5.2 modos de visualización

The 7-inch monitor supports multiple display modes:

Pantalla completa: Muestra una sola cámara view.
Dual Split: Muestra dos cámaras views simultáneamente.
Cuádruple Split: Displays up to four camera views simultaneously (requires additional cameras, sold separately).

Use the 'CH' button on the monitor to cycle through the available camera channels (CH1, CH2, CH3, CH4) and the 'MODE' button to switch between full screen, dual split, and quad split display modes.

Image showing the 7-inch monitor displaying both a full-screen view of a truck and a split-screen view of two different trucks, illustrating the full screen and 2-split screen display options.

Figure 5.1: Full Screen and Split Screen Display

Diagram illustrating a 4-channel system with a monitor displaying four camera feeds, labeled CAM1, CAM2, CAM3, and CAM4, indicating expandability up to four cameras.

Figure 5.2: 4-Channel System Overview

5.3 Auxiliary Lines

The monitor can display auxiliary parking lines to assist with reversing. You can enable or disable these lines by pressing the dedicated button on the monitor.

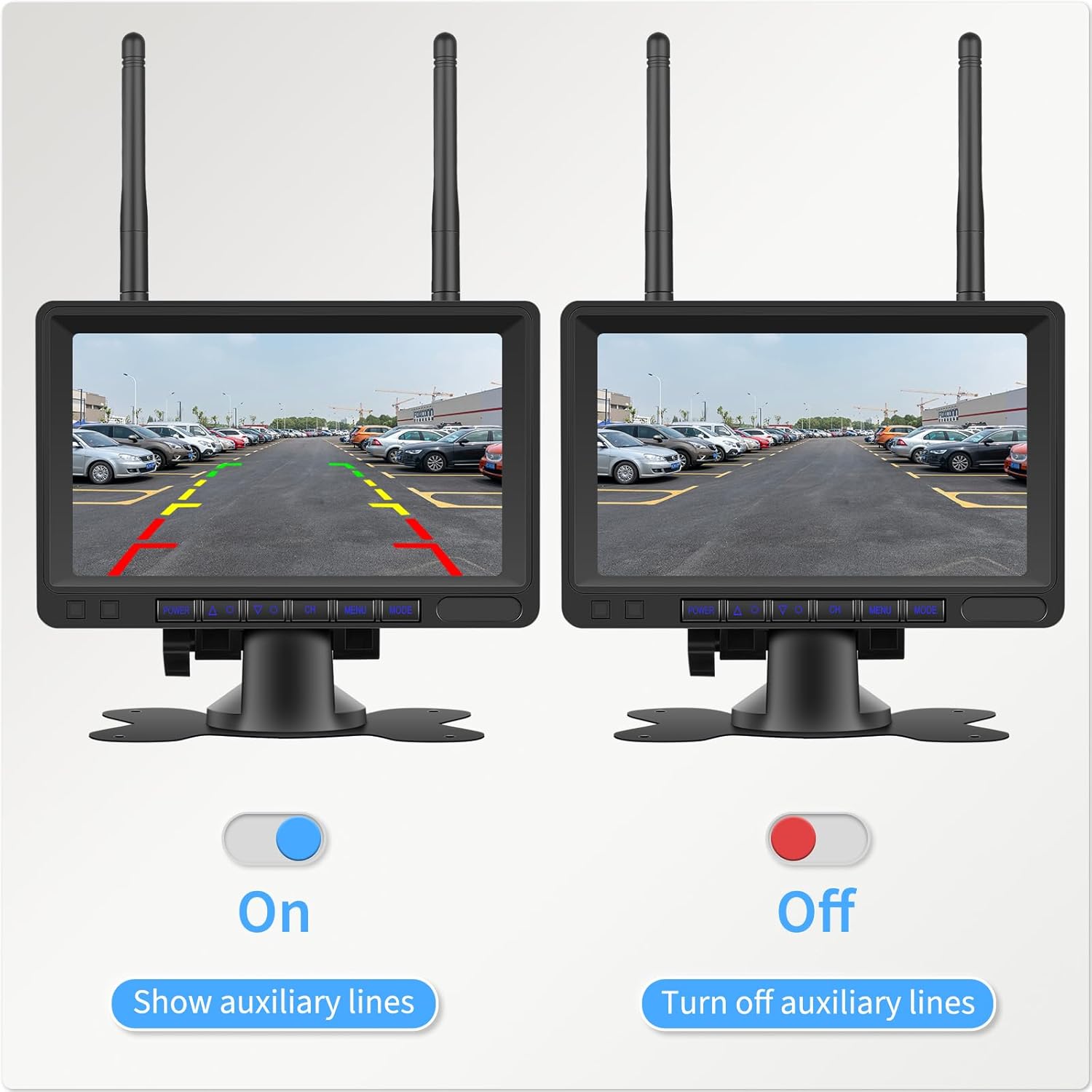

Two monitors side-by-side, one showing auxiliary parking lines enabled ('On') and the other showing them disabled ('Off'), demonstrating the ability to toggle guide lines.

Figure 5.3: Auxiliary Lines On/Off

Image showing a monitor with parking guide lines displayed, indicating the feature to turn them on or off.

Figure 5.4: Guide Lines Control

5.4 Voltear imagen

The monitor allows you to flip the camera image (horizontal, vertical, or both) to suit your mounting orientation and preference. Use the 'MENU' button to access settings and adjust the image flip option.

Four monitors showing different image flip orientations (normal, horizontal flip, vertical flip, and both flips), demonstrating the image flip function.

Figure 5.5: Image Flip Options

5.5 Grabación de vídeo

The monitor supports video recording to an SD card (up to 128GB, not included). Insert an SD card into the designated slot on the monitor to enable recording. The system will record footage from the active camera channels.

Image showing the monitor with a 'Record Video' icon and an SD card being inserted into a slot, indicating the video recording capability.

Figure 5.6: Video Recording Function

Image highlighting the video recording feature of the reversing camera kit, showing an SD card slot.

Figure 5.7: SD Card Slot for Recording

5.6 Visión nocturna

The cameras are equipped with 8 LED lights and advanced chips to provide clear color night vision, ensuring visibility even in low-light conditions.

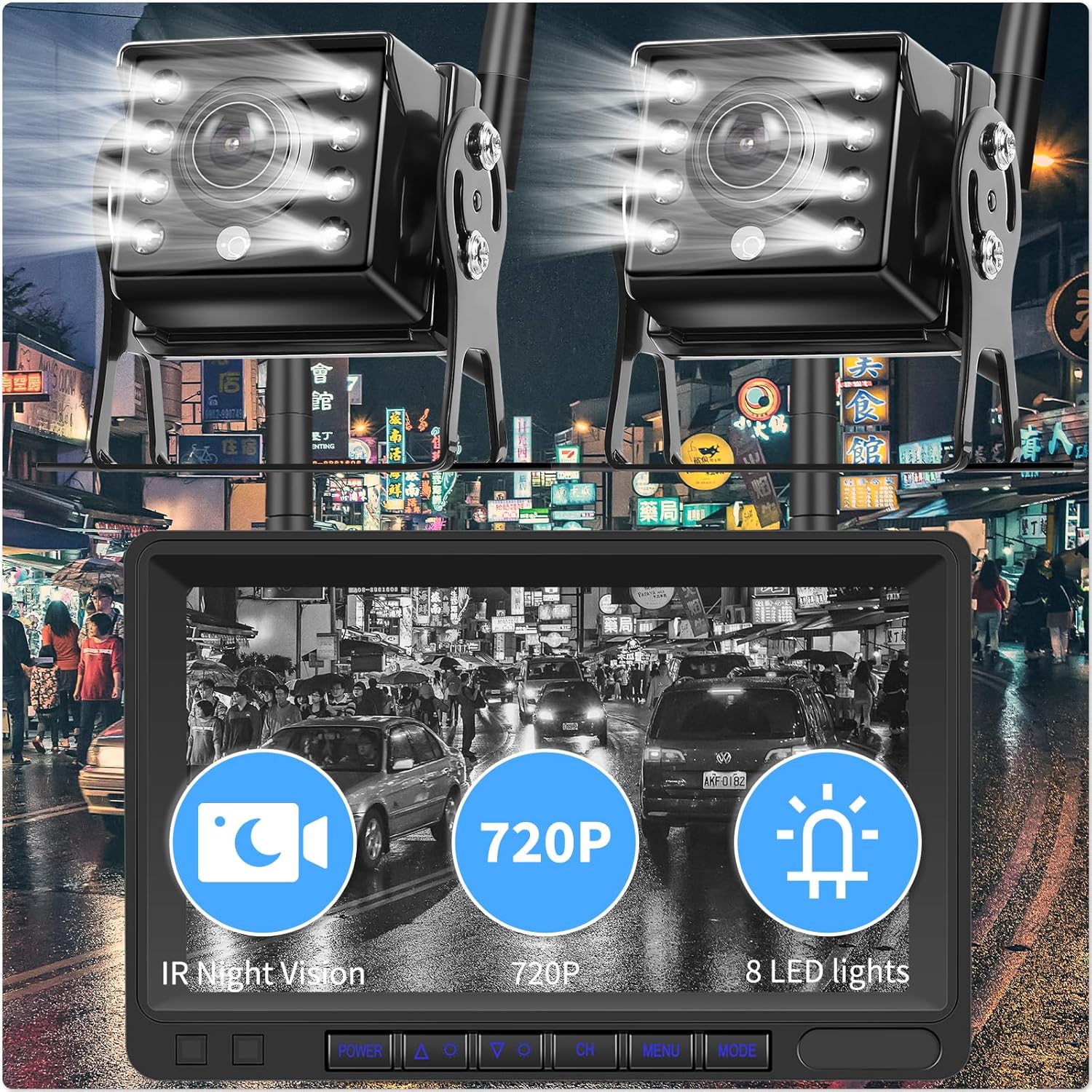

Image showing the monitor displaying a clear 720P night vision view with 8 LED lights, indicating enhanced visibility in the dark.

Figure 5.8: 720P Night Vision with 8 LED Lights

Image showing the monitor displaying a clear, colorful night vision view of a city street, highlighting the color night vision capability.

Figure 5.9: Color Night Vision Display

6. Mantenimiento

To ensure the longevity and optimal performance of your Hodozzy Reversing Camera Kit, follow these maintenance guidelines:

Limpieza: Limpie periódicamente las lentes de la cámara y la pantalla del monitor con un paño suave.amp paño. Evite limpiadores abrasivos o disolventes que puedan dañar las superficies.
Conexiones de cable: Revise periódicamente todas las conexiones de cables para asegurarse de que estén seguras y libres de corrosión o daños.
Carcasa de la cámara: Although the cameras are IP69 waterproof, inspect their housing for any cracks or damage that could compromise their water resistance, especially after exposure to harsh conditions.
Actualizaciones de software: Verifique el fabricante website for any available software updates for your device.

7. Solución de problemas

If you encounter issues with your reversing camera kit, please refer to the following common problems and solutions:

Problema	Posible causa	Solución
Sin imagen en el monitor	Cable de alimentación suelto o desconectado Cámara sin alimentación Interferencia de señal Camera or monitor malfunction	Check all power connections to monitor and cameras. Ensure cameras are receiving 12V-24V power. Relocate antennas for better signal. Comuníquese con el servicio de atención al cliente si el problema persiste.
Imagen parpadeante o inestable	Señal inalámbrica débil Interferencia electromagnética Fuente de alimentación baja	Asegúrese de que las antenas estén conectadas y colocadas correctamente. Evite colocar el sistema cerca de fuentes electromagnéticas fuertes. Verify stable 12V-24V power supply.
La visión nocturna no es clara	Camera lens dirty Insufficient ambient light for color night vision	Limpiar la lente de la cámara. Ensure there is some ambient light for optimal color night vision.
La grabación no funciona	No hay tarjeta SD insertada SD card full or corrupted SD card not formatted	Insert a compatible SD card (up to 128GB). Format the SD card via monitor settings. Replace with a new SD card if corrupted.

If these solutions do not resolve the issue, please contact Hodozzy customer support for further assistance.

8. Garantía y soporte

Hodozzy provides a 12-month replacement service and lifetime after-sales support for this product. If you encounter any defective product or issues, please do not hesitate to contact us. Our customer service team is available 24 hours a day to assist you.

Información del contacto:

Correo electrónico: hodozzyofficial@163.com
Online Support: Refer to the contact details provided in your package or on the official Hodozzy websitio.

Image showing Hodozzy customer support details, including 18-hour response, 60-day returns, 2-year exchange, and lifetime support, with an email address for customer support.

Figure 8.1: Hodozzy Customer Support Information
