1. Introducción
This manual provides essential instructions for the safe and effective use, setup, maintenance, and storage of your awesafe Inflatable Stand Up Paddle Board. Please read this manual thoroughly before using the product to ensure optimal performance and safety.
2. Componentes del producto
Your awesafe Inflatable Stand Up Paddle Board package includes the following items:
- Tabla de remo inflable de pie
- Adjustable Aluminum Paddle
- Bomba manual de doble acción
- Detachable Main Fin
- Correa de seguridad
- Bolsa impermeable
- Comfortable Backpack for storage and transport
Figura 2.1: Sobreview of all included awesafe SUP components.
Board Construction and Features
The awesafe SUP is constructed with military-grade material and an ultra-light Drop-stitch core for durability and rigidity. Key features include a soft non-slip EVA foam deck pad for stability, secure D-rings, and bungee tie-downs for gear.
Figura 2.2: detallada view of the awesafe SUP's layered construction.
Figura 2.3: Superior y lateral view of the awesafe SUP with labeled features.
3. Instrucciones de configuración
3.1 Unpacking and Unrolling
Remove the paddle board and all accessories from the backpack. Unroll the board on a flat, clean surface, free from sharp objects. Ensure the board is fully extended before proceeding.
3.2 Inflación
- Locate the air valve at the tail of the board.
- Open the valve cap. Ensure the inner pin is in the "up" position (outward) for inflation. If it's down, press it to pop it up.
- Connect the hose from the double-action hand pump to the valve by twisting it securely.
- Begin pumping. The double-action pump inflates on both the up and down strokes. For easier pumping at higher pressures, you can switch to single-action mode (refer to pump instructions if applicable).
- Infle la tabla a la presión recomendada de 15 PSI (1 bares). The pump's gauge will indicate the current pressure.
- Once inflated, quickly remove the pump hose and close the valve cap tightly to prevent air leakage.
Figure 3.1: Air valve on the awesafe SUP.
3.3 Instalación de las aletas
The awesafe SUP features a detachable main fin for improved tracking and stability. The two smaller side fins are fixed.
- Turn the inflated board upside down.
- Locate the fin box at the rear underside of the board.
- Slide the main fin into the fin box groove.
- Secure the fin in place using the provided clip or pin mechanism. Ensure it is firmly locked to prevent loss during use.
Figure 3.2: Fin installation area on the awesafe SUP.
3.4 Conjunto de paletas
The adjustable aluminum paddle comes in multiple pieces for easy transport.
- Connect the paddle shaft sections by pressing the spring-loaded pins and sliding the sections together until they click into place.
- Attach the paddle blade to one end and the handle to the other.
- Adjust the paddle length to your height. A general guideline is that the paddle handle should reach your wrist when your arm is raised above your head. Secure the adjustment clamp firmemente.
3.5 Fijación de la correa
Always use the safety leash to keep your board close if you fall off.
- Attach one end of the coiled leash to the D-ring located at the tail of the paddle board.
- Secure the ankle cuff of the leash comfortably around your ankle.
4. Operación y uso
4.1 Pautas de seguridad
- Utilice siempre un dispositivo de flotación personal (PFD) aprobado por la Guardia Costera de EE. UU.
- Check weather conditions and water forecasts before heading out. Avoid strong winds, currents, and storms.
- Never paddle alone. Inform someone of your planned route and return time.
- Stay clear of motorized boats and designated swimming areas.
- No exceda la capacidad máxima de peso de 320 libras.
- Sea consciente de su entorno y de los peligros potenciales.
4.2 Getting on the Board
Start in shallow water. Kneel on the center of the board, just behind the carry handle. Once comfortable, slowly stand up, placing your feet shoulder-width apart over the carry handle, facing forward. Keep your knees slightly bent and your core engaged for balance.
Figure 4.1: Demonstrating kneeling on the awesafe SUP.
4.3 Técnicas de remo
Hold the paddle with one hand on the top handle and the other on the shaft. The blade should be angled away from you. Use your core muscles, not just your arms, to propel the board. For turning, paddle on one side or use a sweep stroke.
4.4 Suitable Environments and Activities
The awesafe SUP is versatile and can be used in various calm water environments such as oceans, freshwater lakes, and rivers. It is suitable for a range of activities:
- Recreational Paddling: Enjoy leisurely cruises on calm waters.
- Yoga: The stable platform is ideal for practicing paddle board yoga.
- Pesca: Use the board for a unique fishing experience.
- Touring: Explore longer distances with ease.
- Snorkel: Paddle to your favorite snorkeling spots.
Figure 4.2: awesafe SUP used for various activities.
5. Mantenimiento y almacenamiento
5.1 Limpieza
After each use, rinse your paddle board with fresh water to remove salt, sand, and dirt. Use a mild soap and soft brush if necessary. Avoid harsh chemicals or abrasive cleaners.
5.2 Secado
Ensure the board is completely dry before deflating and storing. This prevents mold, mildew, and material degradation.
5.3 Deflation and Rolling
- Open the air valve cap. Press the inner pin down to release the air.
- Once most of the air has escaped, you can start rolling the board tightly from the nose (front) towards the tail (valve end). This helps expel remaining air.
- Ensure the fins are removed before rolling to prevent damage.
- Once rolled, secure it with the provided strap or place it directly into the backpack.
5.4 Almacenamiento
Store your awesafe SUP in its backpack in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid storing heavy objects on top of the rolled board.
Figure 5.1: awesafe SUP backpack for storage.
6. Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| Board not inflating / losing air quickly | Valve pin in "down" position; loose valve cap; pump hose not securely attached; small puncture. | Ensure valve pin is "up" for inflation. Tighten valve cap. Re-attach pump hose securely. Inspect board for punctures and use repair kit if necessary. |
| Difficulty standing on board | Incorrect foot placement; insufficient inflation; choppy water conditions. | Ensure feet are centered over the carry handle. Inflate to 15 PSI. Practice in calm water. |
| El tablero no sigue una trayectoria recta | Fin not installed; incorrect paddling technique. | Ensure the main fin is correctly installed. Review paddling techniques, focusing on a straight stroke. |
7. Especificaciones del producto
- Modelo: awesafe-SUP
- Dimensiones (inflado): 10' L x 32" W x 6" H (120" L x 32" W)
- Peso del artículo: 17.2 libras
- Recomendación de peso máximo: 320 libras
- Material: Ethylene Vinyl Acetate (EVA), Military Grade PVC
- Recommended Inflation Pressure: 15 PSI (1 bares)
- Nivel de dificultad: Todo
Figure 7.1: Key specifications of the awesafe SUP.

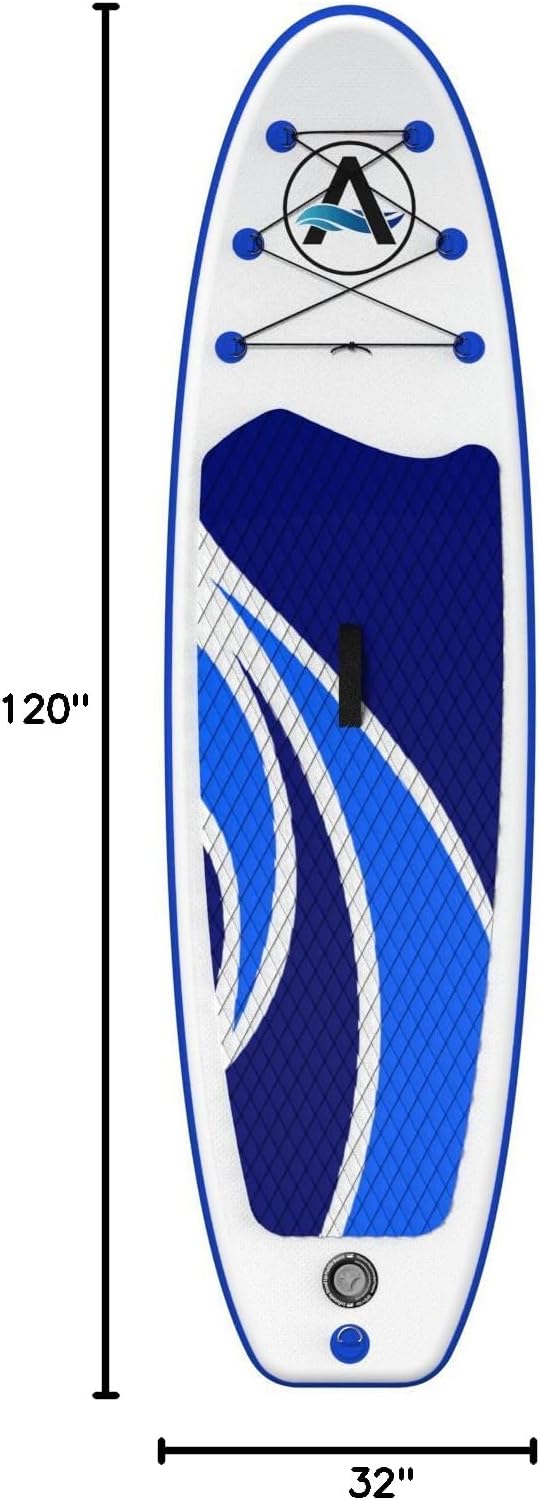

Figure 7.2: Dimensions of the awesafe SUP.
8. Garantía y soporte
Your awesafe Inflatable Stand Up Paddle Board comes with a Garantía del fabricante de 1 años. This warranty covers manufacturing defects and ensures quality. For any quality problems within the first year, the manufacturer will replace the board at no additional cost.
For customer service or support, please contact awesafe's online customer service, available 7 days a week, 24 hours a day. Refer to your product packaging or the official awesafe webSitio para obtener detalles de contacto específicos.
