Lámpara LED Koda de 46" para taller, interior y exterior, con sensor de movimiento y control remoto. Manual del usuario

1. Producto terminadoview

The Koda 46" LED Shop Light is a versatile and energy-efficient lighting solution designed for various indoor and outdoor environments, including garages, workshops, utility rooms, and patios. It features an integrated motion sensor and is controlled via a convenient remote, offering adjustable brightness, light color temperature, and motion detection settings.

The Koda 46-inch LED Shop Light, designed for both indoor and outdoor use, features an integrated motion sensor and is controlled by a dedicated remote. The remote allows for adjustment of brightness, light color (warm to cool), ambient light sensor activation, motion sensor activation, and time until dim/off.

Características principales:

• 46-inch LED Design: Provides bright, efficient illumination.
• Sensor de movimiento: Automatically turns the light on when motion is detected.
• Mando a distancia: Offers convenient adjustment of settings from a distance.
• Brillo ajustable: Customize light intensity from 10% to 100%.
• Color de luz ajustable: Transition between warm and cool white light.
• Uso interior / exterior: Durable construction suitable for various environments.
• Eficiencia energética: La tecnología LED reduce el consumo de energía.

2. Información de seguridad

Lea atentamente todas las instrucciones de seguridad antes de la instalación y el funcionamiento. El incumplimiento de estas instrucciones podría provocar descargas eléctricas, incendios u otros peligros.

• Always disconnect power before installing, cleaning, or servicing the light fixture.
• Asegúrese de que la fuente de alimentación vol.tage matches the light's requirements (120 Volts).
• No mire directamente a la fuente de luz LED cuando esté iluminada, ya que esto puede causar fatiga visual o daños.
• Mantenga la luz alejada de materiales inflamables.
• No intente desmontar ni modificar la lámpara. No contiene piezas que puedan ser reparadas por el usuario.
• Use only the provided mounting hardware or suitable alternatives that can safely support the weight of the fixture.
• Ensure the installation location is structurally sound and can support the light fixture securely.
• This product is designed for indoor and outdoor use. Ensure proper protection from direct water exposure if installed outdoors in unsheltered areas.

3. Contenido del paquete

Verifique que todos los componentes estén presentes y sin daños antes de continuar con la instalación.

• Koda 46" LED Shop Light (1 unit)
• Mando a distancia (1 unidad)
• Mounting Hardware (e.g., chains, hooks, screws, anchors)
• Manual de usuario (este documento)

The Koda 46-inch LED shop light comes with a pre-attached power cord for easy plug-and-play installation.

4. Configuración e instalación

The Koda 46" LED Shop Light can be installed using the included mounting hardware. Choose a location that provides adequate illumination and is suitable for the light's dimensions (45.8"L x 4.4"W x 2.7"H).

Pasos de instalación:

1. Elija el método de montaje: Determine if you will hang the light using chains or mount it flush to a surface.
2. Puntos de perforación de marcado: Hold the light fixture or mounting brackets against the desired surface and mark the drilling points for screws or hooks. Ensure marks are level and spaced correctly.
3. Perforar agujeros: Drill pilot holes at the marked points. Use appropriate drill bits for the surface material (wood, drywall, concrete). Insert wall anchors if necessary.
4. Hardware de montaje seguro: Attach the mounting hooks or brackets securely to the ceiling or wall using the provided screws.
5. Fijar la luminaria: If using chains, attach the chains to the light fixture and then to the ceiling hooks. If flush mounting, align the light with the secured brackets and fasten it in place.
6. Conecte la electricidad: Conecte el cable de alimentación a una toma de corriente estándar de 120 V CA. Asegúrese de que la toma sea fácilmente accesible.

The light features a robust mounting bracket designed for secure installation. The power cord connects directly to the unit, ensuring a stable and reliable power supply.

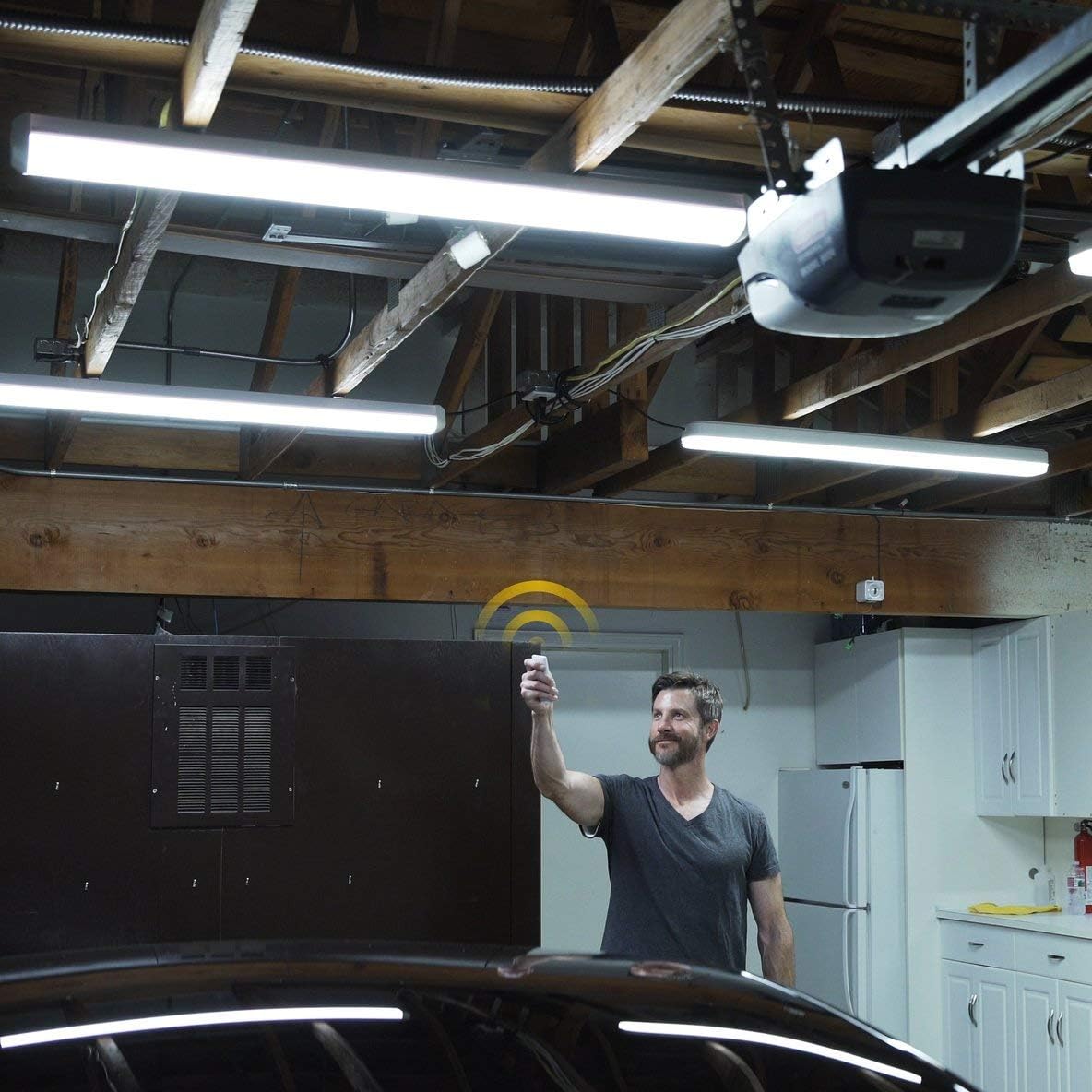

Once installed, the Koda LED shop light can be easily controlled via its remote, allowing for convenient adjustments of light settings from a distance, ideal for large spaces like garages.

5. Instrucciones de funcionamiento

The Koda 46" LED Shop Light is operated primarily using the included remote control. Ensure 2 AA batteries (not included) are inserted into the remote control with correct polarity.

Funciones del control remoto:

This diagram illustrates the various functions of the remote control, including power, brightness adjustment, light color temperature control, ambient light sensor toggle, motion sensor toggle, dimming time settings, and motion detection range adjustment.

• Botón de encendido (⏻): Enciende o apaga la luz.
• Modo nocturno (☾): Dims the light to 10% brightness and sets it to warm white.
• Ajuste de brillo (Mínimo máximo): Use the '-' and '+' buttons to decrease or increase brightness (10% to 100%).
• Light Color (Warm / Cool): Use the '<' and '>' buttons to adjust the color temperature from warm to cool white.
• Ambient Light Sensor (ENCENDIDO / APAGADO): Toggles the ambient light sensor. When ON, the light will not activate during daylight hours if sufficient ambient light is present.
• Motion Sensor (ENCENDIDO / APAGADO): Toggles the motion detection feature. When ON, the light will activate upon detecting motion.
• Time Until Dim/Off (30seg / 10min / 30min): Sets the duration the light remains on after motion is no longer detected before dimming to 50% or turning off.
• Timer for Auto Shut-off (1 Min / 5 Min / 10 Min / 30 Min): Sets the total time the light remains on after activation before automatically shutting off.
• Adjustable Motion Detection Range (Very Near / Near / Mid-range / Far): Adjusts the sensitivity and range of the motion sensor.

Funcionamiento del sensor de movimiento:

The built-in smart sensor system detects movement within its adjustable range. When the motion sensor is enabled, the light will automatically turn on when motion is detected and turn off or dim after a set period of inactivity, based on your chosen settings.

The Koda shop light incorporates a built-in smart sensor system that detects motion, automatically activating the light when movement is detected within its range.

6. Mantenimiento

The Koda 46" LED Shop Light requires minimal maintenance. Regular cleaning will help maintain its performance and appearance.

• Limpieza: Disconnect power before cleaning. Use a soft, dry cloth to wipe the surface of the light fixture. For stubborn dirt, a slightly damp cloth can be used, but ensure no water enters the electrical components. Do not use abrasive cleaners or solvents.
• Reemplazo de bombilla: The LED bulbs are integrated and non-removable. They are designed for long-term use and do not require replacement.
• Baterías de control remoto: Replace the 2 AA batteries in the remote control when its functionality diminishes.

7. Solución de problemas

If you encounter issues with your Koda 46" LED Shop Light, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Koda customer support for further assistance.

8. Especificaciones

9. Garantía y soporte

Koda products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your product packaging or visit the official Koda websitio.

Conserve su comprobante de compra para cualquier reclamo de garantía.
