1. Introducción
Thank you for choosing the Tefal Ultimate Pure FV9844 Steam Iron. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before first use and keep them for future reference.
2. Instrucciones de seguridad
Al usar su plancha, siempre se deben seguir las precauciones básicas, incluidas las siguientes:
- Conecte siempre la plancha a una toma de corriente con conexión a tierra.
- No deje la plancha desatendida mientras esté conectada a la red eléctrica.
- No sumerja la plancha, el cable de alimentación ni el enchufe en agua ni en otros líquidos.
- Mantenga la plancha fuera del alcance de los niños y las mascotas.
- Desenchufe la plancha del tomacorriente cuando la llene con agua, la vacíe o cuando no esté en uso.
- No utilice la plancha si el cable está dañado o si la plancha se ha caído o dañado.
- La suela puede calentarse mucho. Evite el contacto directo con superficies calientes.
- Utilice la plancha únicamente para el fin previsto, tal como se describe en este manual.
3. Producto terminadoview
Familiarize yourself with the components of your Tefal Ultimate Pure FV9844 Steam Iron.
Figure 3.1: The Tefal Ultimate Pure FV9844 steam iron, showcasing its sleek black and blue design with the transparent water tank and Micro-Calc filter compartment.
- A. Tanque de agua: Transparent reservoir for water. Capacity: 0.35 liters.
- B. Micro-Calc Filter: Exclusive filter system to prevent limescale stains.
- C. Steam Trigger/Boost Button: Activates powerful steam shot (up to 250 g/min).
- D. Variable Steam Control: Adjusts continuous steam output (up to 60 g/min).
- E. Temperature Dial: Selects appropriate temperature for different fabric types.
- F. Durilium AirGlide Autoclean Soleplate: Provides excellent glide and requires no maintenance.
- G. Spray Button: Libera una fina niebla de agua.
- H. Self-Clean Button: For periodic cleaning of the iron.
Figura 3.2: A view of the iron's soleplate, highlighting its dimensions of 31.6 cm in length and 15.1 cm in width, crucial for understanding its size and maneuverability.
4. Configuración y primer uso
- Desembalaje: Retire todos los materiales de embalaje y las etiquetas de la plancha.
- Llenado de agua: Ensure the iron is unplugged. Open the water tank inlet and fill with tap water up to the 'MAX' level. The 0.35-liter capacity allows for extended ironing sessions.
- Calentamiento inicial: Plug the iron into a suitable power outlet (220 Volts). Set the temperature dial to the maximum setting. The iron will heat up quickly due to its 3200W power. The indicator light will turn off when the desired temperature is reached.
- First Steaming: For the first use, iron an old piece of fabric to remove any manufacturing residues from the soleplate. Press the steam trigger a few times to ensure proper steam flow.
5. Instrucciones de funcionamiento
5.1. Planchado con vapor
For steam ironing, ensure the water tank is filled and the temperature dial is set to a steam-compatible setting (usually indicated by steam symbols on the dial). The iron delivers a variable steam output of up to 60 g/min for effective wrinkle removal.
5.2. Función Steam Boost
For stubborn creases, press the steam boost button. This provides an intense steam shot of up to 250 g/min, penetrating deep into fabrics. Wait a few seconds between each boost to allow the iron to regenerate steam.
5.3. Vapor vertical
The iron can be used for vertical steaming of hanging garments, curtains, or delicate fabrics. Hold the iron vertically, close to the fabric, and press the steam trigger. This feature is ideal for refreshing clothes without an ironing board.

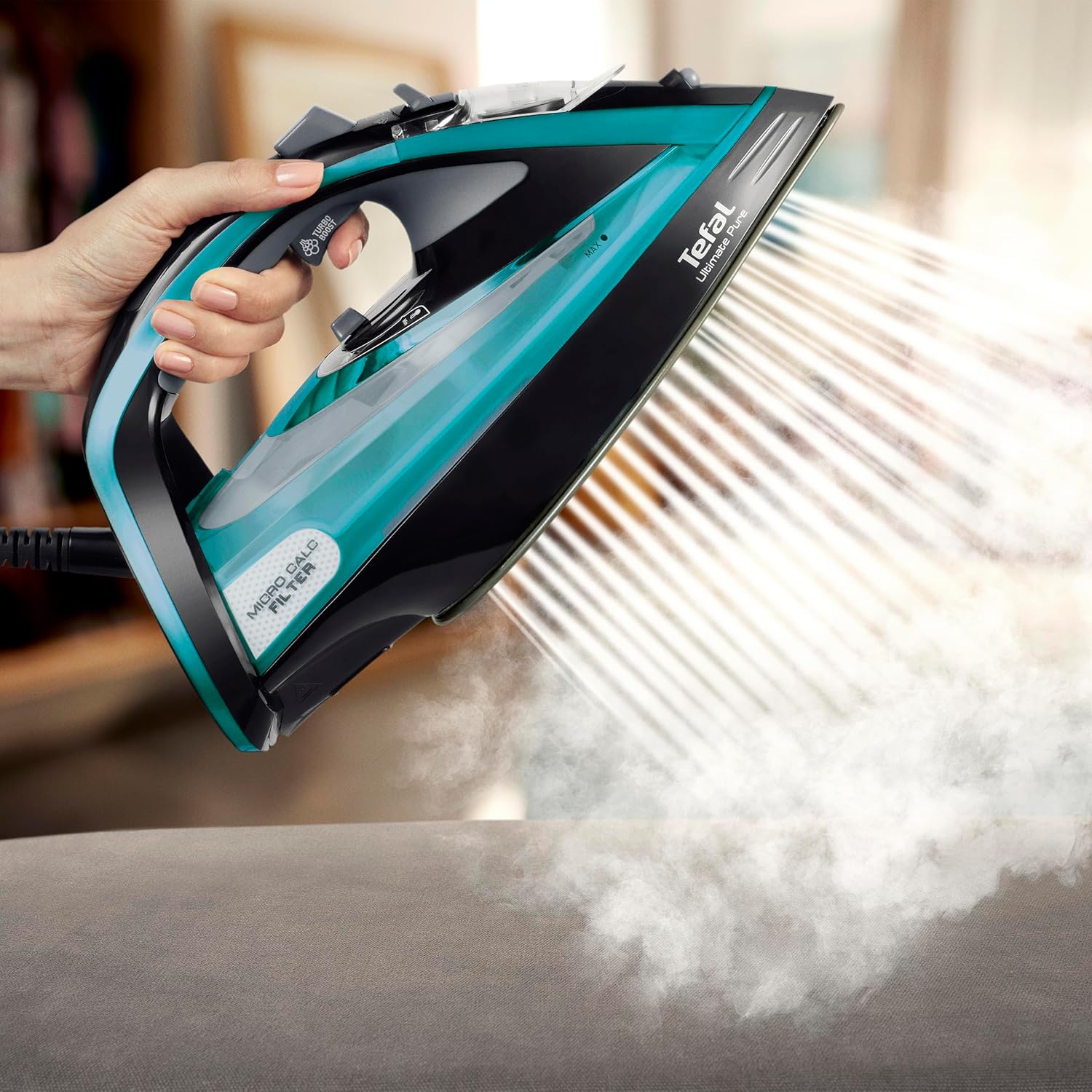

Figure 5.1: The iron in action, demonstrating its powerful steam output, suitable for vertical steaming of hanging garments.
5.4. Planchado en seco
For dry ironing, ensure the steam control is set to 'no steam' or empty the water tank. Set the temperature according to the fabric type. The Durilium AirGlide Autoclean soleplate ensures smooth gliding even without steam.
Figure 5.2: The iron resting on an ironing board, providing a clear view of its Durilium AirGlide Autoclean soleplate, designed for smooth gliding.
5.5. Apagado automático
For safety, the iron features an automatic shut-off function. If left motionless on its soleplate for 30 seconds, or vertically for 8 minutes, it will automatically turn off. To restart, simply move the iron.
6. Mantenimiento y limpieza
6.1. Limpieza de la suela
The Durilium AirGlide Autoclean soleplate is designed to stay clean. If necessary, wipe it with a damp Paño después de que la plancha se haya enfriado. No utilice limpiadores abrasivos ni estropajos metálicos.
6.2. Cleaning the Micro-Calc Filter
The exclusive Micro-Calc filter ensures 100% filtration of steam to prevent limescale stains. The iron will signal when the filter needs cleaning. To clean:
- Asegúrese de que la plancha esté desenchufada y completamente fría.
- Locate the Micro-Calc filter compartment, usually at the rear of the iron.
- Retire el filtro tirando de él hacia afuera.
- Enjuague el filtro bajo agua corriente para eliminar la cal acumulada.
- Reinsert the clean filter back into its compartment until it clicks into place.
Figure 6.1: A close-up showing the removable Micro-Calc filter, illustrating the ease of maintenance for optimal performance.
6.3. Almacenamiento
After use, unplug the iron and allow it to cool completely. Empty any remaining water from the tank. Store the iron upright on its heel to protect the soleplate.
Figure 6.2: The iron positioned on an ironing board, ready for use in a typical home environment.
7. Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| El hierro no se calienta. | No enchufado; sin energíatage; apagado automático activado. | Verifique la conexión eléctrica; verifique el disyuntor; mueva la plancha para reactivarla. |
| Falta de vapor o vapor insuficiente. | Water tank empty; temperature too low for steam; steam control set to 'dry'; Micro-Calc filter clogged. | Fill water tank; set higher temperature; adjust steam control; clean Micro-Calc filter. |
| Fuga de agua por la suela. | Temperatura demasiado baja para el vapor; tanque de agua demasiado lleno; problema con el sistema antigoteo. | Increase temperature; do not overfill; contact support if problem persists. |
| White flakes/stains on clothes. | Limescale buildup; Micro-Calc filter needs cleaning. | Clean the Micro-Calc filter as per instructions. |
8. Especificaciones
- Modelo: FV9844
- Fuerza: 3200 vatios
- Volumentage: 220 voltios
- Capacidad del tanque de agua: 0.35 litros
- Salida de vapor continua: Hasta 60 g/min
- Impulso de vapor: Hasta 250 g/min
- Suela: Limpieza automática Durilium AirGlide
- Dimensiones (L x An x Al): 31.6 x 15.1 x 16.3 cm (approximate, based on product description)
- Peso: 1.5 kilogramos (3.31 libras)
- Características especiales: Automatic power cut-off, Anti-calc system, Anti-drip system, Vertical steam function, Spray function.
9. Garantía y soporte
Tefal products are designed for durability and performance. While specific warranty details may vary by region, Tefal is committed to providing repairability for its products. Information regarding spare parts availability is not explicitly provided in the product details, but Tefal generally supports product longevity.
For further assistance, troubleshooting beyond this manual, or to inquire about repairs, please visit the official Tefal website or contact their customer support service in your region. Always refer to your purchase receipt for warranty claims.
Tefal is known for innovations and smart functionalities, ensuring customer satisfaction for over 60 years. You can find more information and support at the Tienda de la marca Tefal.
