Manual del usuario del concentrador de escritorio transparente ORICO con 7 puertos USB 3.0

1. Introducción

Thank you for choosing the ORICO 7-Port USB 3.0 Transparent Desktop Hub. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read it thoroughly before use to ensure optimal performance and longevity.

2. Producto terminadoview

The ORICO 7-Port USB 3.0 Transparent Desktop Hub expands your computer's connectivity with seven high-speed USB 3.0 ports. Its transparent design allows visibility of internal components, complemented by a blue indicator light when connected. The hub features dual-port power supply capability for enhanced stability with power-hungry devices.

Image: The ORICO 7-Port USB 3.0 Transparent Desktop Hub, showcasing es transparente casing and multiple USB ports.

Características principales:

• Diseño transparente: Ofrece una visión clara view of the internal circuitry, with a blue LED light illuminating the bottom when active.
• 7 puertos USB 3.0: Proporciona ample connectivity for various peripherals, supporting data transfer speeds up to 5Gbps.
• Dual-Port Power Supply: Includes a micro USB input port for optional external power, crucial for devices like external hard drives that require more power. (Micro USB cable not included for power).
• Compacto y portátil: Designed with rounded corners and a compact size (5.31 x 1.3 x 0.74 inches) for easy transport.
• Conectar y usar: No driver installation required for Windows, macOS, and Linux systems.

3. Contenido del paquete

Por favor verifique que todos los artículos estén presentes en su paquete:

• 1 x ORICO 7-Port USB 3.0 Transparent Desktop Hub
• 1 x USB-A to USB 3.0 Micro-B Data Cable (1 meter)
• 1 x Manual de usuario (este documento)

4. Instrucciones de configuración

1. Conectar a la computadora: Use the provided USB-A to USB 3.0 Micro-B data cable to connect the hub's Micro-B port to a USB-A port on your computer (desktop, laptop, etc.).
2. Optional External Power (for high-power devices): If you plan to connect multiple high-power devices (e.g., external hard drives, multiple USB-powered accessories), connect a standard Micro USB cable (not included) from a 5V power adapter (like a smartphone charger) to the hub's dedicated Micro USB power input port. This provides additional power for stable operation.
3. Reconocimiento de dispositivo: Your operating system (Windows, macOS, Linux) should automatically detect and install the necessary drivers. The hub is plug-and-play, requiring no manual driver installation.

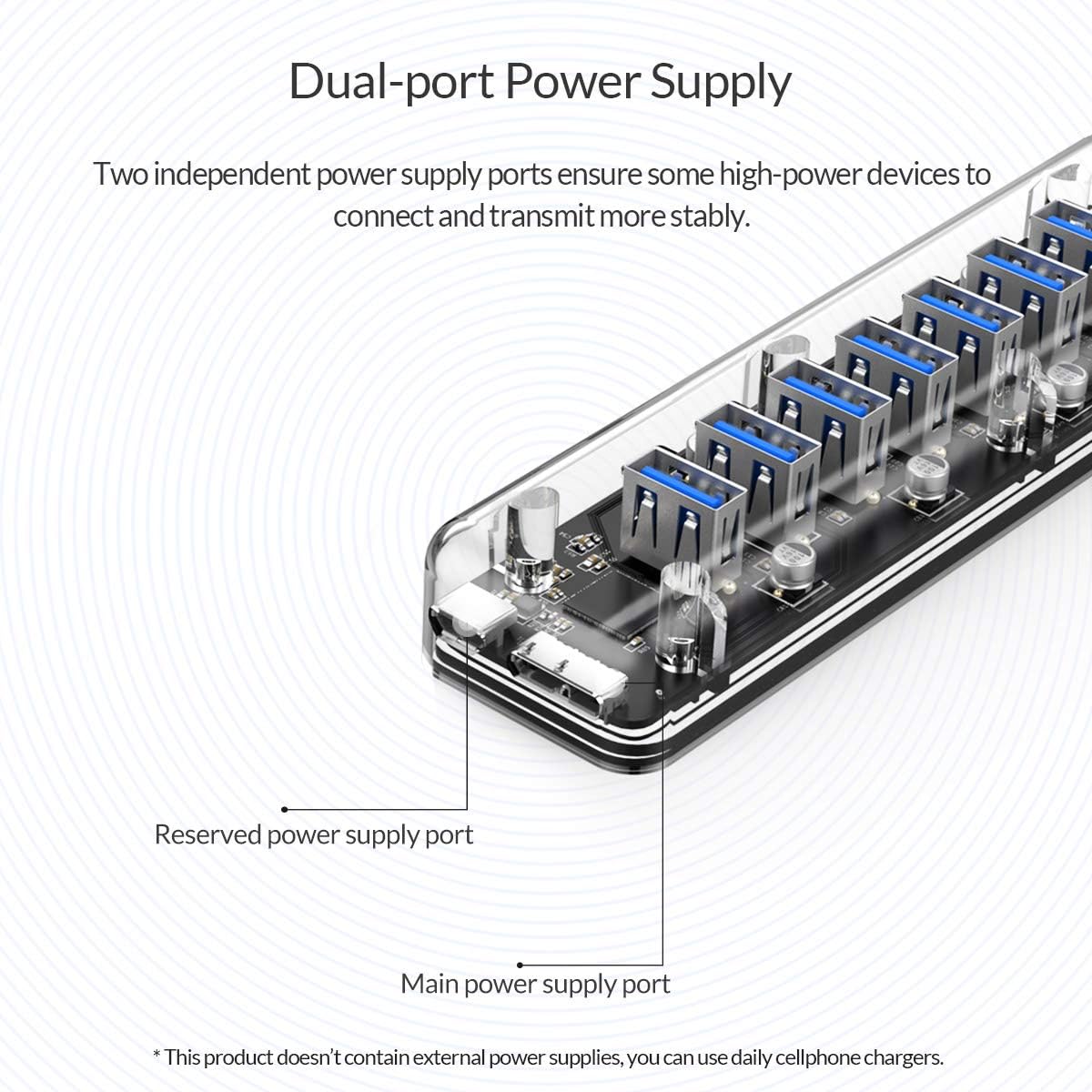

Imagen: Primer plano view of the ORICO hub highlighting the main power supply port and the reserved power supply port for optional external power.

Image: Diagram illustrating the ORICO hub's compatibility with Windows, Linux, and Mac operating systems, emphasizing plug-and-play functionality.

5. Instrucciones de funcionamiento

1. Conexión de dispositivos USB: Insert your USB devices (e.g., flash drives, keyboards, mice, external hard drives) into any of the seven available USB 3.0 ports on the hub.
2. Transferencia de datos: The hub supports USB 3.0 speeds up to 5Gbps, allowing for fast data transfer with compatible devices.
3. Luz indicadora azul: When the hub is connected and powered, the bottom of the device will illuminate with a blue light, indicating active operation.
4. Mobile Device Connectivity (OTG Function): To connect the hub to a smartphone or tablet, ensure your mobile device supports OTG (On-The-Go) functionality. An OTG adapter (not included) may be required. External power for the hub is recommended when connecting multiple peripherals to a mobile device.

Image: The ORICO hub connected to a laptop, expanding ports for peripherals like a mouse, keyboard, and external hard drive.

Image: The ORICO hub demonstrating connectivity with a smartphone and a tablet, showing the use of an external power supply for expanded functionality.

Image: Multiple scenarios showing the ORICO hub in use for multi-port expansion, including office work, entertainment, and study setups.

Image: The ORICO hub illuminated with its special blue indicator light when connected and active.

6. Mantenimiento

• Mantenga el concentrador limpio con un paño suave y seco. Evite usar limpiadores líquidos o disolventes.
• Guarde el concentrador en un lugar fresco y seco, alejado de la luz solar directa y de temperaturas extremas.
• Evite dejar caer el dispositivo o someterlo a fuertes impactos.
• No intente desmontar ni reparar el cubo usted mismo, ya que esto anulará la garantía.

7. Solución de problemas

• Device Not Recognized / Unstable Connection:
  • Asegúrese de que el concentrador esté conectado de forma segura al puerto USB de su computadora.
  • If connecting high-power devices (e.g., multiple external hard drives), ensure an external 5V power adapter is connected to the hub's Micro USB power input. Insufficient power is a common cause of instability.
  • Try connecting the device directly to your computer's USB port to rule out hub-specific issues.
  • Test the hub with a different USB port on your computer.
• Velocidades lentas de transferencia de datos:
  • Ensure both the hub and the connected device support USB 3.0 for optimal speeds. Connecting a USB 2.0 device will result in USB 2.0 speeds.
  • Verify that the hub is connected to a USB 3.0 port on your computer (often identified by a blue port or SS symbol).
• Wireless Peripherals (Mouse/Keyboard) Not Working:
  • Some wireless peripheral dongles may experience interference or compatibility issues when connected through a hub. If you encounter problems, try connecting the wireless dongle directly to a USB port on your computer.

8. Especificaciones

9. Garantía y soporte

The ORICO 7-Port USB 3.0 Transparent Desktop Hub comes with an Garantía de 18 meses from the date of purchase. ORICO also provides Soporte técnico de por vida para este producto.

For warranty claims, technical assistance, or any inquiries, please contact ORICO customer support through their official website or the retailer where the product was purchased. Please have your purchase receipt and product model number (B07KBVRV5H) ready when contacting support.
