1. Introducción
Thank you for choosing the Massive Audio BP1000.1 V2 Blade Series Monoblock Car Amplificador. Este manual proporciona información esencial para la correcta instalación, operación y mantenimiento de su ampLea este manual detenidamente antes de intentar la instalación o el funcionamiento para garantizar un rendimiento y una seguridad óptimos.

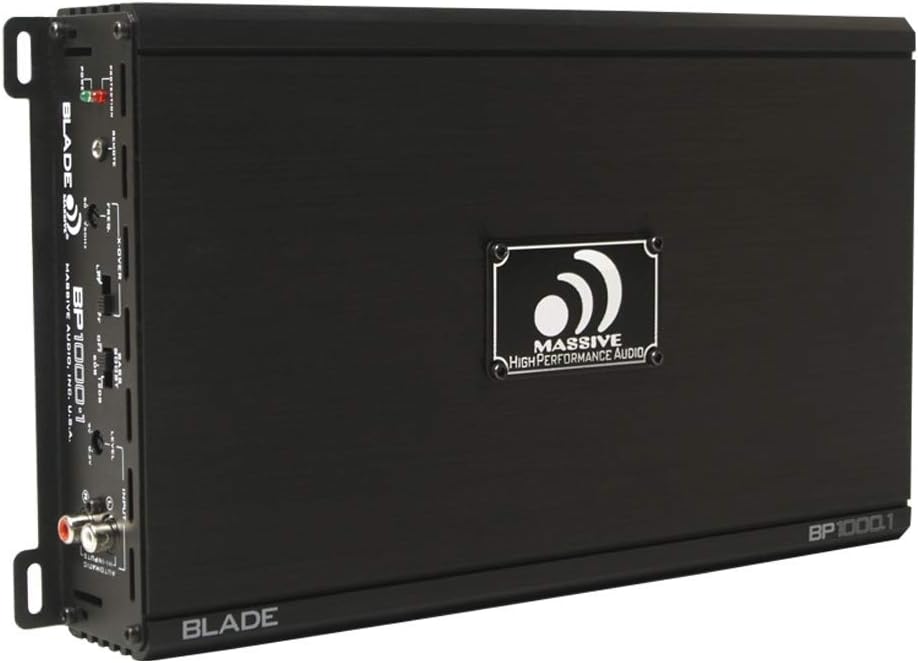

Imagen 1.1: Arriba view of the Massive Audio BP1000.1 V2 Blade Series Monoblock Car Amplificador, espectáculoasing su elegante chasis negro y su marca.
1.1 Precauciones de seguridad
- Desconecte siempre el terminal negativo de la batería del vehículo antes de comenzar cualquier instalación.
- Asegúrese de que todo el cableado esté correctamente enrutado y asegurado para evitar daños o cortocircuitos.
- Utilice cableado de calibre apropiado para las conexiones de alimentación, tierra y altavoces según lo especificado.
- Montar el ampGuarde el dispositivo de forma segura en un lugar que permita una ventilación adecuada y esté protegido de la humedad y del calor excesivo.
- No opere el ampSi el dispositivo está dañado o no funciona correctamente, consulte la sección de solución de problemas o póngase en contacto con el servicio de asistencia.
2. Características principales
The Massive Audio BP1000.1 V2 Blade Series Monoblock Amplifier is designed for high-performance car audio systems. Key features include:
- 1000 Watts Max Power Output.
- 2 Ohm Stable operation.
- Class A/B Monoblock design for efficient power delivery.
- Variable Low Pass Filter (LPF) for precise subwoofer integration.
- Adjustable Bass Boost for enhanced low-frequency response.
- High-level inputs for integration with factory head units.
- Protection circuitry against thermal overload, short circuits, and over/under voltage.
3. Configuración e instalación
3.1 Montaje del Ampmás vivaz
Elija un lugar de montaje seco, bien ventilado y seguro. Evite montar el amplifier directly on carpet or in enclosed spaces that restrict airflow. Ensure sufficient space around the amplifier para la refrigeración.
- Coloque el ampColoque el elevador en la ubicación deseada y marque los orificios de montaje.
- Si es necesario, taladre agujeros piloto, asegurándose de que no haya cables ni líneas de combustible dañados.
- Asegurar el ampElevador utilizando los tornillos de montaje proporcionados.
3.2 conexiones de cableado
Proper wiring is crucial for performance and safety. Refer to the diagram below for connection points.
Image 3.1: Rear connection panel of the amplifier, showing power, ground, remote, and speaker terminals.
3.2.1 Conexiones de alimentación, tierra y remotas
- Potencia (12 V): Connect a heavy-gauge power cable (e.g., 4 AWG) directly from the positive terminal of the vehicle's battery to the amplifier's +12V terminal. Install an in-line fuse (not supplied) within 18 inches of the battery.
- Tierra (GND): Connect a heavy-gauge ground cable (e.g., 4 AWG) from the amplifier's GND terminal to a clean, unpainted metal surface of the vehicle chassis. The ground point should be as short as possible.
- Control remoto (REM IN/OUT): Conecte un cable de encendido remoto desde la salida remota de la unidad principal a la amplifier's REM IN terminal. This wire signals the ampLificador para encender y apagar con su unidad principal.
3.2.2 Conexiones de altavoces
Conecte su(s) subwoofer(es) a la amplifier's speaker terminals. Ensure the total impedance of the connected speakers is 2 Ohms or higher for stable operation. Observe correct polarity (+ to + and - to -).
3.2.3 Conexiones de entrada
- Entradas RCA (nivel bajo): Si su unidad principal tiene salidas previas RCA, conéctelas a la amplifier's RCA INPUTs (L and R).
- Entradas de alto nivel: If your head unit does not have RCA pre-outs, use the high-level input connector. Connect the speaker wires from your head unit to the corresponding terminals on the high-level input harness.
4. Instrucciones de funcionamiento
El amplifier features several controls to fine-tune its performance. Refer to the control panel image below.

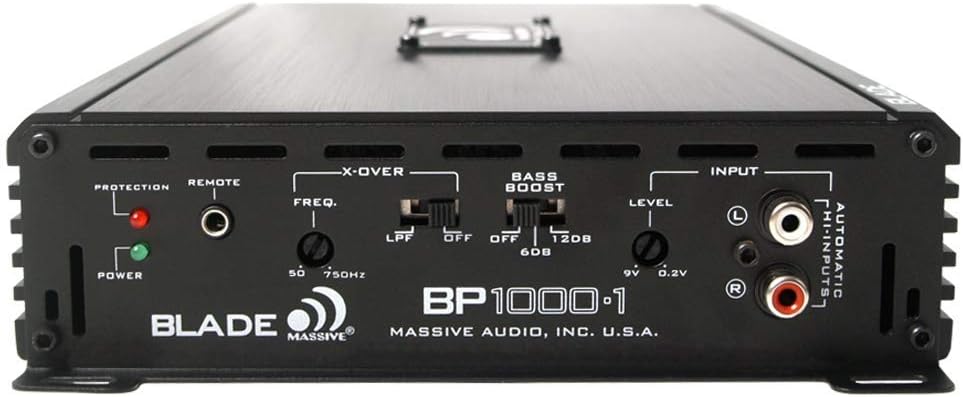

Image 4.1: Front control panel of the amplifier, detailing the crossover, bass boost, and level adjustments.
4.1 Level Control (Gain)
The LEVEL control (also known as gain) matches the amplifier's input sensitivity to the output of your head unit. Start with the level control at minimum. Gradually increase it until you hear distortion, then back off slightly. This is not a volume control.
4.2 Crossover (LPF)
The LPF (Low Pass Filter) control allows you to set the upper frequency limit for the amplifier's output. This is essential for subwoofers, ensuring they only reproduce low frequencies. Adjust the FREQ. knob between 50Hz and 750Hz to blend the subwoofer output with your main speakers.
4.3 refuerzo de graves
The BASS BOOST switch provides an adjustable boost to low frequencies. You can select OFF, 6dB, or 12dB boost. Use this feature sparingly and adjust carefully to avoid distortion or damage to your speakers.
4.4 Selección de entrada
El amplifier automatically detects whether RCA or high-level inputs are connected. Ensure only one type of input is used at a time.
5. Mantenimiento
The Massive Audio BP1000.1 V2 ampEl elevador requiere un mantenimiento mínimo. Siga estas pautas para garantizar su longevidad:
- Mantener el ampLimpie el dispositivo sin polvo ni residuos. Utilice un paño suave y seco para limpiarlo.
- Ensure proper ventilation. Periodically check that the cooling fins are not obstructed.
- Inspeccione periódicamente todas las conexiones del cableado para comprobar su estanqueidad y ausencia de corrosión.
- Evite exponer el ampresistente a temperaturas extremas o humedad.
6. Solución de problemas
Si tiene problemas con su amplifier, consult the following table for common problems and solutions.
| Problema | Posible causa | Solución |
|---|---|---|
| Sin energía / AmpEl lifier no se enciende |
|
|
| Sin salida de sonido |
|
|
| Sonido distorsionado |
|
|
| Amplifier Overheating / Protection Light On |
|
|
7. Especificaciones
Technical specifications for the Massive Audio BP1000.1 V2 Monoblock Ampmás duradero:
| Característica | Especificación |
|---|---|
| Marca | Audio masivo |
| Número de modelo | BP1000.1V2 |
| Número de canales | 1 (Monobloque) |
| Potencia de salida | 1000 Watts (Max) |
| Impedancia mínima estable | 2 ohmios |
| Volumentage (Suministro Mínimo) | 12 voltios |
| Volumentage (Suministro Máximo) | 9 Volts (Note: This specification appears inconsistent with typical car audio systems. Refer to product documentation for operational voltagy rango.) |
| Tipo de montaje | Montaje en superficie |
| Peso del artículo | 6.18 libras |
| Dimensiones del paquete | 15.2 x 8.15 x 2.95 pulgadas |
| Código Postal | 623169631122 |
8. Garantía y soporte
For warranty information, technical support, or service inquiries, please contact Massive Audio directly or refer to their official webSitio. Conserve su recibo de compra como comprobante de compra para cualquier reclamación de garantía.
Para obtener más ayuda, visite el Gran tienda de audio en Amazon.
