Manual de usuario de la máquina de café expreso Nespresso Expert Original

1. Introducción

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your Nespresso Expert Original Espresso Machine by De'Longhi. Please read this manual thoroughly before first use and keep it for future reference.

The Nespresso Expert machine is designed to deliver a premium coffee experience, offering a range of coffee sizes and temperature settings, along with a dedicated hot water function. Its advanced features ensure consistent quality and ease of use.

2. Instrucciones de seguridad

• Conecte siempre la máquina a una toma eléctrica con conexión a tierra.
• No sumerja la máquina, el cable de alimentación ni el enchufe en agua ni en otros líquidos.
• Mantenga la máquina fuera del alcance de los niños.
• Desenchufe la máquina antes de limpiarla y cuando no vaya a utilizarla durante períodos prolongados.
• No opere la máquina si el cable de alimentación o el enchufe están dañados.
• Utilice únicamente cápsulas Nespresso OriginalLine con esta máquina.
• Be cautious of hot surfaces and hot water/coffee during operation.

3. Componentes sobreview

Familiarize yourself with the main components of your Nespresso Expert machine:

• Water Tank (removable, 1.1 quarts capacity)
• Capsule Insertion Slot
• Cabezal de elaboración de cerveza
• Salida de café
• Bandeja de goteo y contenedor de cápsulas usadas
• Control Panel (buttons for Ristretto, Espresso, Lungo, Hot Water, and temperature settings)
• Botón de encendido

Figura 3.1: Sobreview of the Nespresso Expert Original Espresso Machine.

Figura 3.2: De arriba hacia abajo view of the machine, showing the 1.1 quarts water tank capacity.

4. Configuración

1. Desembalaje: Remove the machine from its packaging and place it on a stable, flat, heat-resistant surface.
2. Limpieza inicial: Wash the water tank, drip tray, and used capsule container with warm water and mild detergent. Rinse thoroughly and dry.
3. Llena el tanque de agua: Fill the water tank with fresh drinking water up to the MAX level. Place it back on the machine.
4. Conexión de energía: Plug the machine into a grounded electrical outlet. The machine will power on automatically.
5. Primer uso/enjuague: Before first use, or after a long period of inactivity, perform a rinsing cycle. Place a container under the coffee outlet. Press any coffee button (e.g., Lungo) without inserting a capsule. Repeat this process 2-3 times to clean the internal system.

5. Instrucciones de funcionamiento

The Nespresso Expert machine offers various coffee sizes and a hot water function.

5.1 Preparar café

1. Asegúrese de que el tanque de agua esté lleno con agua fresca.
2. Place a cup on the cup support.
3. Open the capsule insertion slot by sliding the lever.
4. Insert a Nespresso OriginalLine capsule.
5. Close the capsule insertion slot by sliding the lever back.
6. Select your desired coffee size by pressing the corresponding button: Ristretto, Café exprés, o Pulmón. The machine will begin brewing.
7. The brewing process will stop automatically. Remove your cup.

5.2 Dispensación de agua caliente

To dispense hot water for Americano or tea:

1. Ensure no capsule is inserted in the machine.
2. Coloque una taza debajo de la salida de café.
3. Presione el Agua caliente button. The machine will dispense hot water.
4. Press the button again to stop dispensing, or it will stop automatically after a preset volume.

5.3 configuraciones de temperatura

The Nespresso Expert allows for temperature adjustment. Refer to the machine's specific temperature control buttons or the Nespresso app for detailed instructions on changing temperature settings.

5.4 Nespresso App Connectivity

This machine can connect to the Nespresso app via Bluetooth. The app allows for personalized coffee settings, including precise water volume adjustment for Ristretto, Espresso, and Lungo, and provides descaling notifications. Consult the Nespresso app's instructions for pairing and usage.

Figure 5.1: The Nespresso Expert machine positioned on a kitchen counter, demonstrating its compact design.

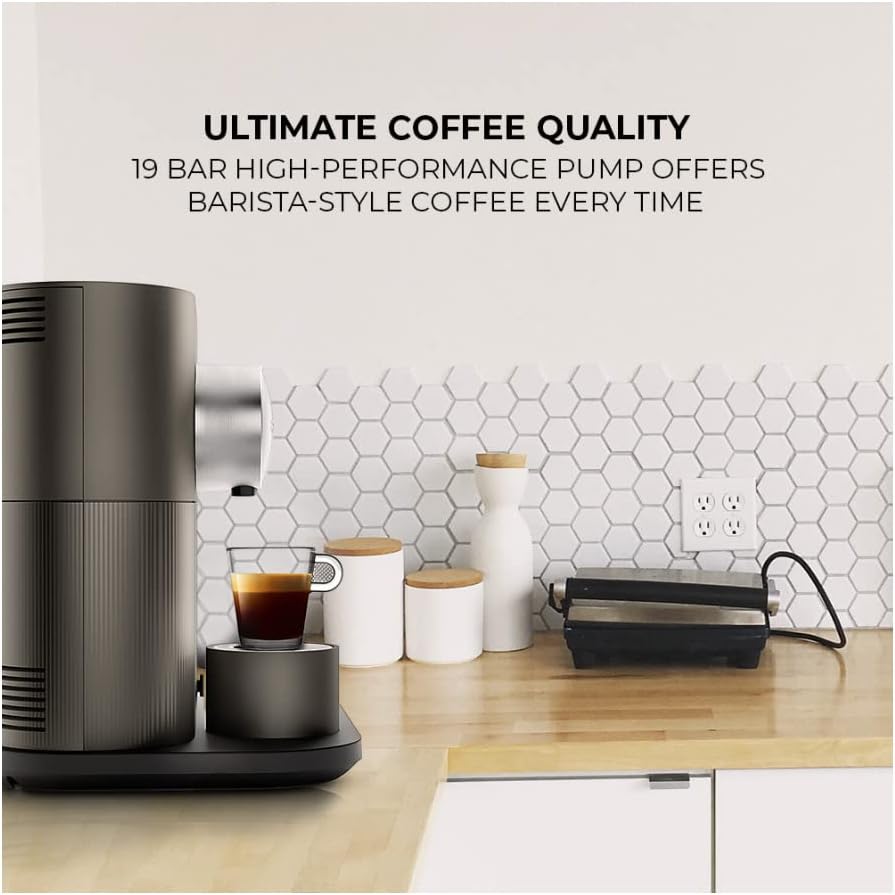

Figura 5.2: Lado view of the machine, illustrating its design and the 19 bar high-performance pump for optimal coffee extraction.

6. Mantenimiento y limpieza

El mantenimiento regular garantiza la longevidad y el rendimiento óptimo de su máquina.

6.1 Limpieza diaria

• Empty Used Capsule Container: After each use, or when full, empty the used capsule container. It can hold approximately 12-14 used capsules.
• Limpiar la bandeja de goteo: Remove and clean the drip tray and its grid. Rinse with warm water and mild detergent.
• Tanque de agua de enjuague: Enjuague el tanque de agua con agua fresca diariamente.
• Máquina de limpieza: Limpie el exterior de la máquina con un paño húmedo.amp paño.

6.2 Descalcificar

Descaling is crucial to remove mineral deposits and maintain machine efficiency. The Nespresso Expert machine features an automatic descaling notification and process.

1. The machine will indicate when descaling is required (refer to your machine's specific indicator light or the Nespresso app).
2. Use only the Nespresso descaling kit. Follow the instructions provided with the kit carefully.
3. The descaling process typically involves filling the water tank with the descaling solution and running cycles through the machine.
4. Después de descalcificar, enjuague bien la máquina realizando varios ciclos con agua fresca.

7. Solución de problemas

If you encounter issues with your Nespresso Expert machine, refer to the common problems and solutions below:

Si el problema persiste después de intentar estas soluciones, comuníquese con el Servicio de atención al cliente de Nespresso para obtener más ayuda.

8. Especificaciones

9. Garantía y soporte

Your Nespresso Expert Original Espresso Machine is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Nespresso websitio.

For technical support, spare parts, or descaling kits, please contact Nespresso Customer Service. You can also find additional resources and frequently asked questions on the Nespresso websitio.

For a detailed user guide, you may refer to the official PDF document: Nespresso Expert User Manual (PDF)
