Manual del usuario de la hidrolavadora eléctrica Ryobi de 1700 PSI y 1.2 GPM

Introducción

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Ryobi 1700 PSI 1.2 GPM Electric Pressure Washer. Please read this manual thoroughly before initial use and retain it for future reference.

The Ryobi 1700 PSI 1.2 GPM Electric Pressure Washer is designed for residential cleaning tasks, offering a powerful yet compact solution for various outdoor surfaces.

Información importante de seguridad

ADVERTENCIA:

Siga siempre las precauciones básicas de seguridad al utilizar este producto para reducir el riesgo de incendio, descarga eléctrica o lesiones personales.

• Lea todas las instrucciones antes de operar la hidrolavadora.
• No opere la unidad si alguna pieza está dañada o falta.
• Asegúrese de que todas las conexiones estén seguras antes de comenzar.
• Mantenga a los niños y a las mascotas alejados del área de operación.
• Use equipo de protección personal adecuado, incluida protección para los ojos.
• Nunca apunte la pistola rociadora hacia personas, mascotas o dispositivos eléctricos.
• Desconecte la alimentación antes de realizar cualquier mantenimiento o limpieza.

Montaje y configuración

Before operating your pressure washer, ensure all components are correctly assembled and connected.

1. Desembalaje e identificación de componentes

Carefully remove all items from the packaging. Verify that all parts are present. Refer to the diagram below for component identification.

Image: The Ryobi 1700 PSI 1.2 GPM Electric Pressure Washer, fully assembled with hose and wand, ready for use. This image shows the overall structure including the frame, wheels, motor housing, and integrated soap tank.

2. Handle and Wheel Assembly

Attach the handle to the main unit using the provided hardware. Secure the wheels to the axle if they are not pre-assembled.

Imagen: Un primer plano view of one of the durable wheels of the pressure washer, designed for easy portability across various surfaces.

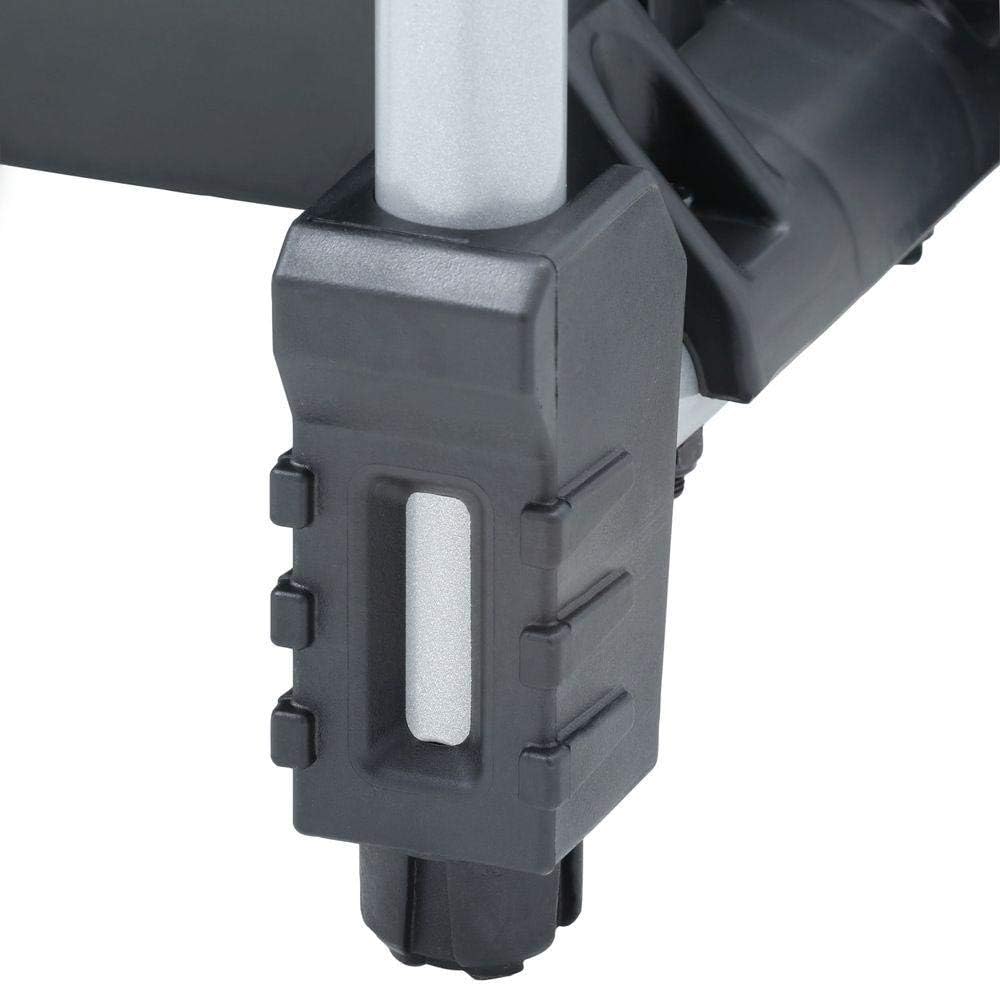

Imagen: Un detalle view of the sturdy base support of the pressure washer, providing stability during operation.

3. Conexión del suministro de agua

1. Connect a garden hose (not included) to the water inlet on the pressure washer. Ensure the connection is tight to prevent leaks.
2. Connect the high-pressure hose to the outlet on the pump and to the spray gun.

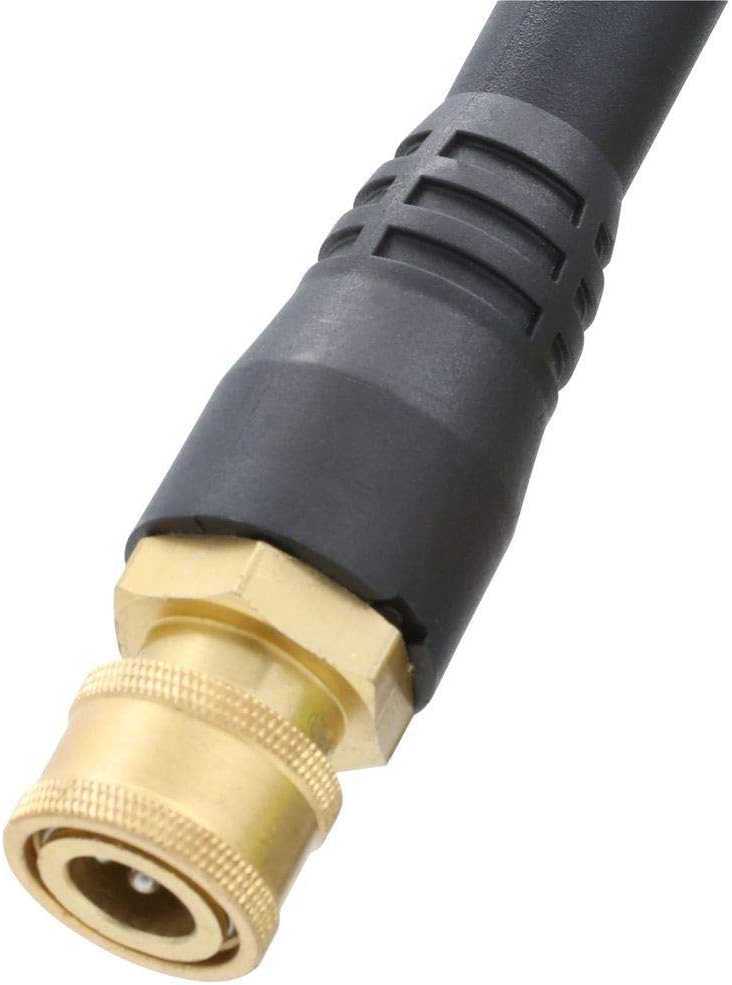

Image: A close-up of the brass quick-connect fitting for the high-pressure hose, ensuring a secure and leak-free connection to the spray gun.

4. Conexión eléctrica

Plug the power cord into a grounded 120V AC outlet. Ensure the outlet is protected by a Ground Fault Circuit Interrupter (GFCI).

Instrucciones de funcionamiento

Follow these steps for safe and effective operation of your Ryobi pressure washer.

1. Preparación para la operación

1. Asegúrese de que el suministro de agua esté completamente abierto.
2. Apriete el gatillo de la pistola rociadora para purgar el aire del sistema hasta que salga un chorro constante de agua.
3. Select the appropriate nozzle for your cleaning task. Nozzles can be stored on the unit for convenience.

Imagen: A view of the integrated nozzle storage area on the pressure washer, showing two different types of nozzles securely placed.

2. Puesta en marcha de la hidrolavadora

Locate the ON/OFF switch on the unit. Press the "ON" (I) position to start the motor.

Image: A close-up of the main power switch, clearly marked with ON (I) and OFF (O) positions, located on the front panel of the pressure washer.

3. Using Detergent (Optional)

The pressure washer features an integrated detergent tank for applying cleaning solutions.

1. Open the cap of the detergent tank.
2. Pour pressure washer safe detergent into the tank.
3. Cierre bien la tapa.
4. To apply detergent, use the black soap nozzle (if provided) or ensure the pressure washer is set to low pressure mode, as high pressure will not draw soap.

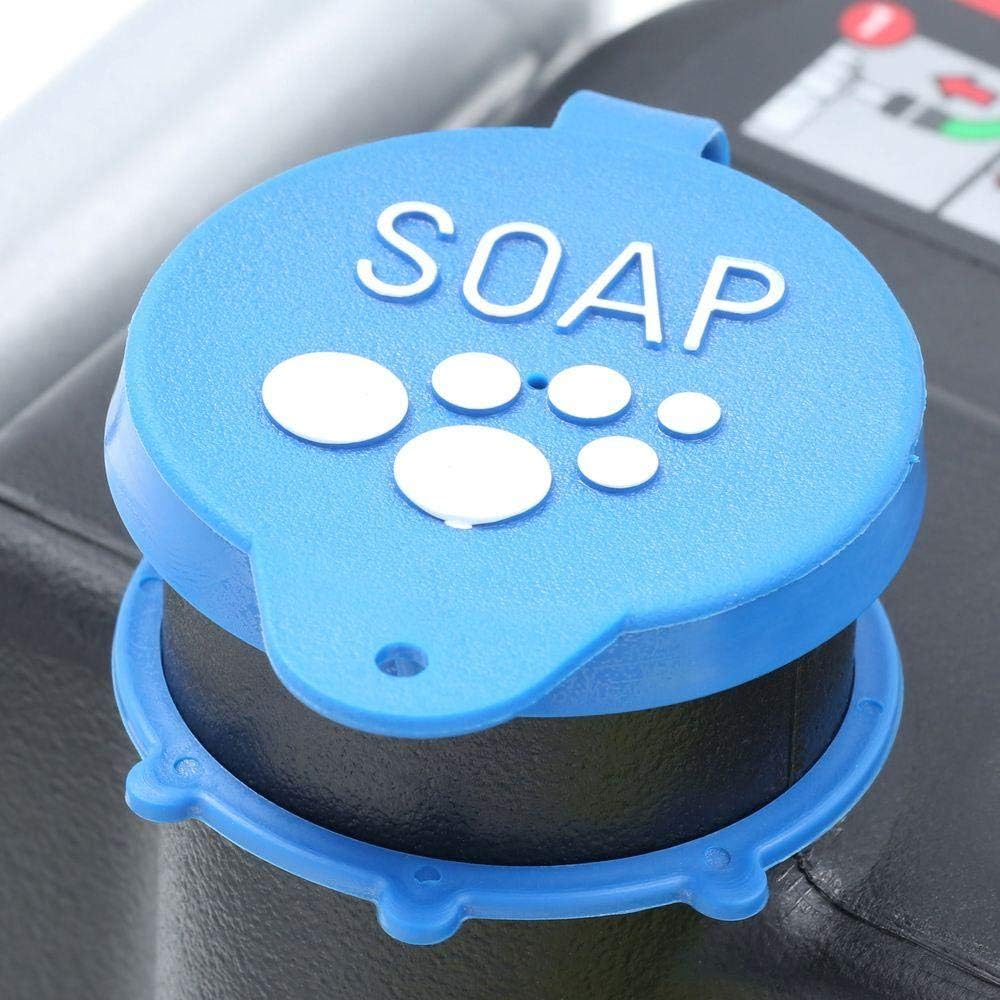

Image: A close-up of the blue cap for the integrated soap tank, clearly labeled "SOAP" with bubble icons, indicating its function.

4. Apagado

1. Suelte el gatillo de la pistola pulverizadora.
2. Turn the power switch to the "OFF" (O) position.
3. Cierre el suministro de agua.
4. Apriete el gatillo de la pistola rociadora para liberar cualquier presión restante en el sistema.
5. Desconecte la manguera de jardín y la manguera de alta presión.

Mantenimiento

El mantenimiento regular garantiza un rendimiento óptimo y prolonga la vida útil de su hidrolavadora.

1. Limpieza del filtro de entrada de agua

Periodically inspect and clean the water inlet filter to prevent debris from entering the pump.

Imagen: Un detalle view of the pump assembly, showing the robust metal construction and connections for water intake and high-pressure output.

2. Cuidado de la boquilla

Clean clogged nozzles using the provided nozzle cleaning tool or a thin wire. Rinse thoroughly with water.

3. Almacenamiento

Before storing, ensure all water is drained from the pump and hoses to prevent freezing damage. Store the unit in a dry, protected area.

Solución de problemas

This section addresses common issues you may encounter with your pressure washer.

Presupuesto

• Modelo: 1700 PSI 1.2 GPM Electric Pressure Washer
• Marca: RYOBI
• Presión máxima: 1700 PSI
• Caudal: 1.2 GPM
• Fuente de energía: Eléctrico con cable
• Color: Multicolor
• ASIN: B0713TRMSP

Garantía y soporte

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official RYOBI webSitio. Conserve su comprobante de compra para reclamaciones de garantía.
