Ninja Coffee Bar Auto-iQ Programmable Coffee Maker (CF091) User Manual

1. Introducción

Welcome to the Ninja Coffee Bar Auto-iQ Programmable Coffee Maker user manual. This guide provides essential information for setting up, operating, maintaining, and troubleshooting your coffee system. Designed for versatility, this machine offers multiple brew sizes and styles, a built-in frother, and a removable water reservoir for convenience.

2. Información importante de seguridad

Please read all instructions carefully before using your Ninja Coffee Bar. Keep this manual for future reference.

• Asegúrese siempre de que el aparato esté desenchufado antes de limpiarlo o cuando no esté en uso.
• No sumerja el aparato, el cable de alimentación ni el enchufe en agua ni en otros líquidos.
• Use only cold, filtered water in the reservoir.
• No utilice ningún aparato con un cable o enchufe dañado.
• Evite el contacto con piezas móviles.
• No lo coloque sobre o cerca de un quemador de gas o eléctrico caliente, ni dentro de un horno caliente.
• Asegúrese siempre de que la jarra esté colocada correctamente sobre la placa calefactora antes de preparar el café.
• This brewer is designed to brew coffee grounds only. Do not insert pods or K-Cups.

3. ¿Qué hay en la caja?

Your Ninja Coffee Bar Auto-iQ Programmable Coffee Maker package includes:

• Ninja Coffee Bar Brewer Unit
• 10-cup (50-oz.) Glass Carafe
• Built-In Frother
• Depósito de agua extraíble
• Permanent Reusable Filter
• Cuchara inteligente Ninja
• Guía de inspiración de 20 recetas

4. Partes y características anterioresview

Familiarize yourself with the components of your Ninja Coffee Bar system:

• Main Brewer Unit: The central part of the coffee maker housing all brewing mechanisms and controls.
• Panel de control: Features an illuminated display and buttons for selecting brew size, brew style, and other functions like Delay Brew, Clean, and Stay Warm.
• Depósito de agua extraíble: A clear, detachable tank for easy filling and cleaning, with marked fill lines.
• Cesta de preparación: Holds the permanent filter and coffee grounds. It swivels out for easy access.
• Permanent Reusable Filter: Elimina la necesidad de filtros de papel.
• Detención de goteo: A lever to stop the flow of coffee from the brew basket, allowing you to pour a cup mid-brew.
• Jarra de vidrio: A 10-cup (50-oz.) glass carafe for collecting brewed coffee.
• Plato calefactor: Mantiene la jarra caliente después de preparar el café.
• Espumador incorporado: A retractable frother arm for creating frothed milk for specialty drinks.
• Pala inteligente Ninja: A measuring scoop designed for precise coffee ground measurements.
• Single Serve Platform: A retractable platform to accommodate smaller cups and travel mugs.

Image: The Ninja Coffee Bar Auto-iQ Programmable Coffee Maker with its glass carafe and control panel visible.

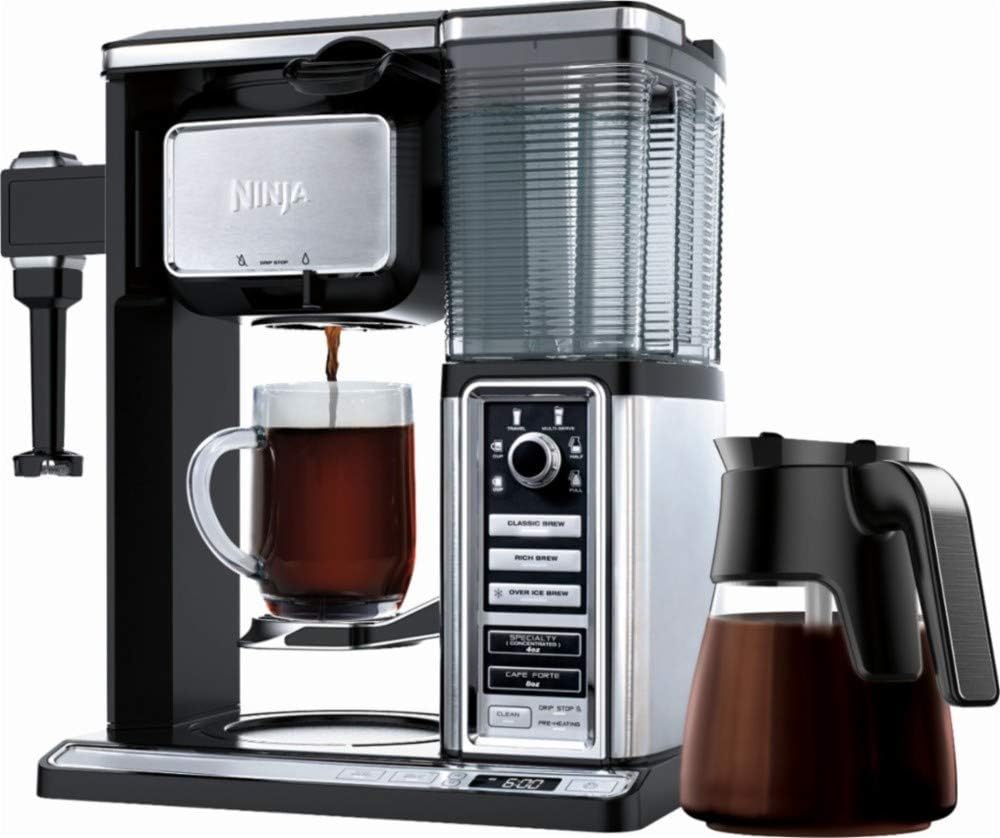

Image: The Ninja Coffee Bar system, showcasing the main unit, glass carafe, and a single-serve mug in place.

5. Configuración

Siga estos pasos para configurar su cafetera por primera vez:

1. Deshacer: Carefully remove all components from the packaging. Remove any tape or labels from the unit.
2. Limpieza inicial: Before first use, it is recommended to run two full clean cycles. Fill the water reservoir with white vinegar to the MAX fill line. Place the empty carafe on the warming plate. Select the 'Clean' function on the control panel and allow the cycle to complete. Repeat this process with fresh water to rinse the system thoroughly.
3. Posicionamiento: Place the coffee maker on a clean, dry, and level surface. Ensure adequate clearance for the brew basket and water reservoir.
4. Reserva de agua: Ensure the removable water reservoir is securely seated on the side of the brewer.
5. Fuerza: Enchufe el cable de alimentación a una toma eléctrica con conexión a tierra.

6. Instrucciones de funcionamiento

Learn how to brew your perfect cup of coffee:

6.1. Preparing for Brew

1. Llenar el depósito de agua: Remove the water reservoir and fill it with cold, filtered water to the desired level, corresponding to your chosen brew size. Reattach it securely.
2. Agregar café molido: Open the brew basket. Place the permanent reusable filter inside. Use the Ninja Smart Scoop to add your desired amount of coffee grounds. Refer to the included recipe guide for recommended measurements based on brew size and strength. Close the brew basket.

Image: A hand using the Ninja Smart Scoop to add coffee grounds into the permanent filter within the brew basket.

6.2. Selecting Brew Size and Style

El panel de control le permite personalizar su preparación:

Imagen: Un detalle view of the Ninja Coffee Bar's control panel, highlighting the various brew size and style selections.

• Tamaños de preparación: Use the dial to select your desired brew size:
  • Taza: For a single serving.
  • XL Cup: For a larger single serving or travel mug.
  • Viajar: Optimized for travel mugs.
  • Multi-Serve: For multiple servings.
  • Half Carafe: For a half pot of coffee.
  • Full Carafe: For a full 10-cup pot of coffee.
• Estilos de preparación: Select your preferred brew strength and type:
  • Clásico: A smooth, balanced flavor.
  • Rico: Un sabor más intenso, ideal para leche, crema o saborizante.
  • Cerveza con hielo: Specifically designed to brew hot coffee over ice without dilution.
  • Specialty Concentrated (4oz): A super-rich concentrate for hot or cold layered drinks.
  • Cafe Forte (8oz): An amplified flavor experience, unique to Ninja.

6.3. Iniciar la preparación

1. Place your chosen vessel (cup, travel mug, or carafe) under the brew basket. If brewing a single cup, extend the single-serve platform.
2. Press the START/STOP button to begin brewing. The machine will automatically detect the water level and brew accordingly.
3. Detención de goteo: If you need to pause brewing to pour a cup, push the Drip Stop lever to the closed position. Remember to open it again to resume brewing and prevent overflow.
4. Mantente caliente: If brewing a carafe, the warming plate will activate. Press the 'Stay Warm' button to turn this feature on or off.

6.4. Uso del espumador incorporado

Create creamy frothed milk for your specialty beverages:

1. Gire el brazo del espumador hacia afuera desde el costado de la máquina.
2. Add cold milk (dairy or non-dairy) to a mug.
3. Sumerja el batidor espumador justo debajo de la superficie de la leche.
4. Press and hold the frother button on top of the frother arm until desired froth is achieved (typically 30-60 seconds).
5. Remove the frother from the milk and swing it back into its storage position.

Image: The built-in frother actively creating foam in a glass mug, demonstrating its function.

6.5. Delay Brew Function

Set your coffee to brew automatically at a later time:

1. Prepare your coffee maker with water and grounds as usual.
2. Press the 'Delay Brew' button. The clock will flash.
3. Use the 'H' (Hour) and 'M' (Minute) buttons to set your desired brew time.
4. Press the 'Delay Brew' button again to confirm. The indicator light will illuminate, and your coffee will brew at the set time.

7. Mantenimiento

La limpieza regular garantiza un rendimiento y un sabor óptimos.

7.1. Limpieza diaria

• Filtro permanente: After each use, remove the permanent filter from the brew basket, discard grounds, and rinse thoroughly under warm water.
• Jarra: The glass carafe is dishwasher-safe. Alternatively, wash with warm, soapy water and rinse thoroughly.
• Reserva de agua: The removable water reservoir can be easily detached and washed with warm, soapy water.
• Espumador: Rinse the frother whisk immediately after use to prevent milk residue from drying. The whisk can be detached for more thorough cleaning.
• Exterior: Wipe the exterior of the brewer with a soft, damp paño.

7.2. Descaling (Clean Cycle)

The 'Clean' indicator light will illuminate when descaling is recommended. This process removes mineral buildup.

1. Empty the carafe and ensure the permanent filter is clean and in place.
2. Fill the water reservoir to the MAX fill line with white vinegar.
3. Coloque la jarra vacía en la placa de calentamiento.
4. Press the 'Clean' button. The cycle will begin and may take approximately one hour to complete.
5. Una vez finalizado el ciclo, desecha la solución de vinagre.
6. Fill the water reservoir with fresh water to the MAX fill line and run another 'Clean' cycle to rinse the system. Repeat if necessary until the vinegar smell is gone.

8. Solución de problemas

Refer to this section for common issues and solutions. For more detailed troubleshooting, consult page 19 of your physical user manual.

9. Especificaciones

• Marca: Ninja
• Nombre del modelo: Cafeteras
• Número de modelo del artículo: CF091
• Color: Plata
• Dimensiones del producto: 9.21" de profundidad x 11.34" de ancho x 15" de alto
• Peso del artículo: 12.73 libras
• Capacidad: 10-cup (50-oz.) Glass Carafe / 3.1 Pounds
• Tipo de cafetera: Máquina de café por goteo
• Característica especial: Programable
• Modo de operación: Completamente automático
• Entrada de interfaz humana: Pantalla táctil
• Tipo de entrada de café: Suelo
• Es apto para lavavajillas: No (Main unit), Yes (Carafe, Water Reservoir, Permanent Filter)
• Código postal: 622356543385

Image: Diagram showing the dimensions (height, width, depth) of the Ninja Coffee Bar Auto-iQ Programmable Coffee Maker.

10. Garantía y soporte

Para obtener información sobre la garantía y atención al cliente, consulte la tarjeta de garantía incluida con su producto o visite el sitio web oficial de Ninja. websitio. También puede encontrar soporte adicional y preguntas frecuentes en el Tienda Ninja en Amazon.
