Introducción
This user manual provides detailed instructions for the operation, maintenance, and care of your Burgmeister BM531-111 Quartz Analog Watch. Please read this manual thoroughly to ensure proper use and to maximize the lifespan of your timepiece.
Figura 1: Frente view of the Burgmeister BM531-111 Quartz Analog Watch, featuring a silver stainless steel bracelet, white dial, and a red bezel with minute markers.
Producto terminadoview
The Burgmeister BM531-111 is a men's quartz analog watch designed for precision timekeeping and durability. It features a robust stainless steel case and bracelet, a clear analog display, and a date function.
Componentes clave:
- Caja del reloj: Houses the movement and protects internal components.
- Marcar: Displays time with hour, minute, and second hands.
- Corona: Se utiliza para configurar la hora y la fecha.
- Bisel: Rotatable ring on the watch face, often used for timing.
- Pulsera: Correa de acero inoxidable para llevar el reloj.
- Corchete: Secures the bracelet on the wrist.

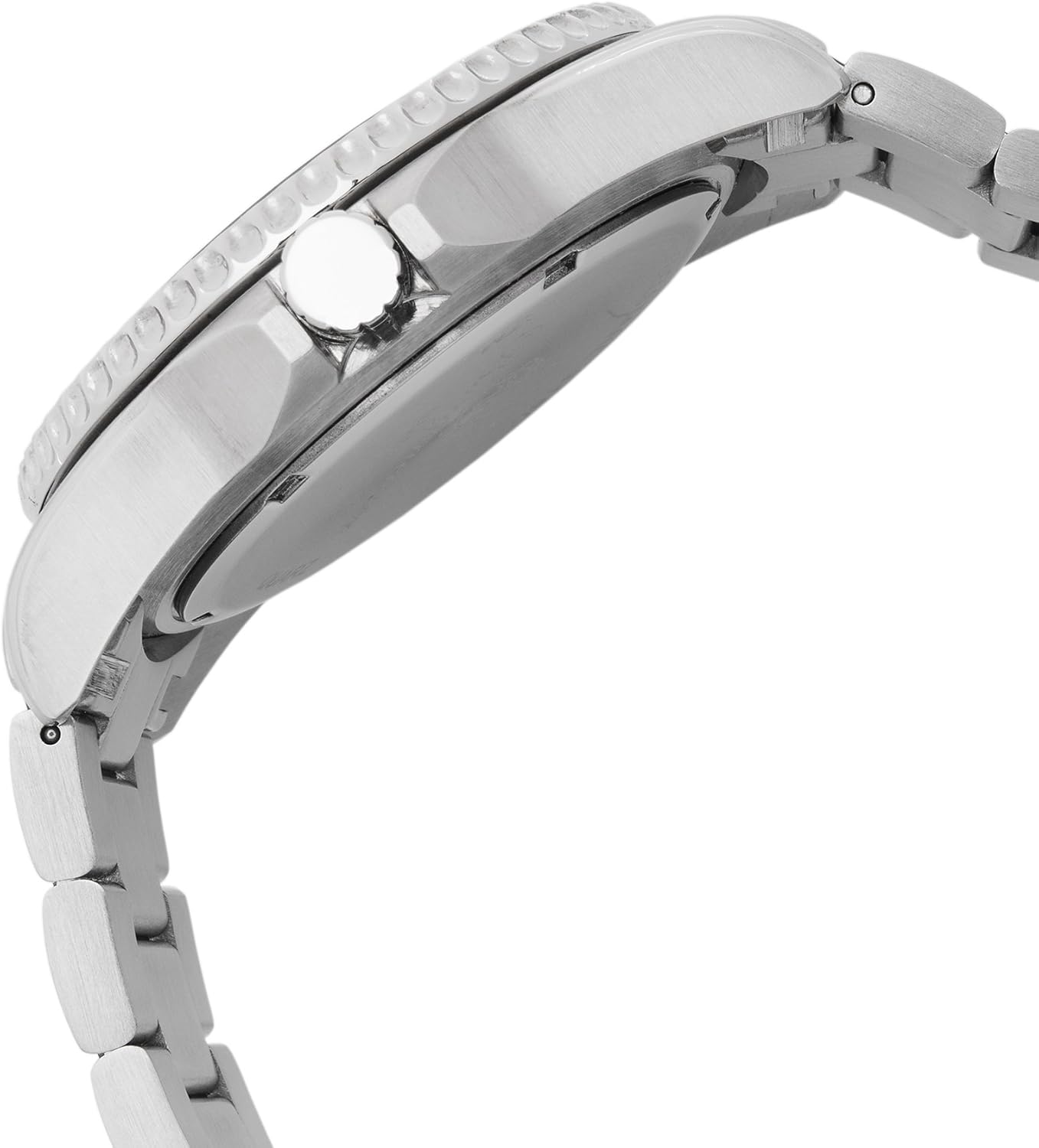

Figura 2: Lado view of the watch, highlighting the crown used for adjustments.
Configuración
Configuración inicial:
- Desembalaje: Carefully remove the watch from its packaging. Ensure all components, including the watch, user manual, and warranty card, are present.
Figura 3: The Burgmeister watch comes in a protective box, accompanied by a user manual and warranty information.
- Ajuste de hora:
- Pull the crown out to the first click position for date adjustment (if applicable).
- Pull the crown out to the second click position to set the time. Rotate the crown to move the hour and minute hands to the correct time.
- Empuje la corona nuevamente a su posición original para iniciar el reloj.
- Ajuste de la fecha:
- Tire de la corona hasta la primera posición de clic.
- Gire la corona para ajustar la fecha.
- Empuje la corona nuevamente a su posición original.
- Ajuste de la pulsera: The stainless steel bracelet may need to be adjusted for a comfortable fit. This typically involves removing or adding links. It is recommended to have this done by a professional jeweler.
Figura 4: El reloj usado en la muñeca, demostrando su ajuste y apariencia.
Figura 5: A visual guide illustrating various watch sizes, helping to understand the scale of the timepiece.
Instrucciones de funcionamiento
Leyendo el tiempo:
The watch features a standard analog display with three hands: an hour hand, a minute hand, and a second hand. The dial is marked with hour indicators and minute markers for precise time reading.
Using the Date Function:
The date window is located on the dial. To adjust the date, follow the instructions in the "Setup" section.
Resistencia al agua:
The Burgmeister BM531-111 watch has a water resistance rating of 5 ATM (50 meters). This means it is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. It is not suitable for swimming, diving, or showering with hot water.
Figura 6: Trasero view of the watch case, displaying the model number BM531-111 and water resistance rating of 5 ATM.
Mantenimiento y cuidado
- Limpieza: Wipe the watch regularly with a soft, dry cloth to remove dust and dirt. For the stainless steel parts, a slightly damp Se puede utilizar un paño y luego secarlo.
- Evite los productos químicos: Do not expose the watch to harsh chemicals, solvents, or detergents, as these can damage the case, bracelet, or seals.
- Temperaturas extremas: Evite exponer el reloj a temperaturas extremas (calor o frío) o cambios bruscos de temperatura, que pueden afectar el movimiento y la vida útil de la batería.
- Campos magnéticos: Mantenga el reloj alejado de campos magnéticos fuertes, ya que pueden interferir con la precisión del movimiento de cuarzo.
- Reemplazo de batería: The watch is powered by a single product-specific battery. When the watch stops or the second hand skips, it indicates a low battery. Battery replacement should be performed by a qualified watchmaker to ensure proper sealing and water resistance.
Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| El reloj se detiene o funciona de forma intermitente | Batería baja | Reemplace la batería (se recomienda servicio profesional) |
| El tiempo es inexacto | Exposure to strong magnetic fields; Crown not fully pushed in | Demagnetize watch (professional service); Push crown fully in |
| La fecha no cambia | Incorrect date setting; Crown not fully pushed in | Adjust date as per instructions; Push crown fully in |
| Condensación bajo el cristal | Entrada de agua; Cambio repentino de temperatura | Busque servicio profesional inmediatamente para evitar daños. |
Presupuesto
- Número de modelo: BM531-111
- Movimiento: Analógico de cuarzo
- Material de la caja: Acero inoxidable
- Material de la pulsera: Acero inoxidable
- Resistencia al agua: 5 ATM (50 metros)
- Batería: 1 x Product Specific (included)
- Dimensiones (paquete): 14.8 x 11.4 x 9.6 cm
- Peso (paquete): 557.92 gramos
Garantía y soporte
Your Burgmeister BM531-111 watch comes with a manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions. For technical support, repairs, or spare parts information, please contact Burgmeister customer service or an authorized service center. Information regarding spare parts availability is currently unavailable.
For further assistance, please visit the official Burgmeister websitio o póngase en contacto con su distribuidor.
