1. Introducción
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Dayton Electric Motor Model 3M552. This motor is designed for various applications requiring a 1/100 horsepower, 1550 RPM, 115 Volt motor with a 3.3-inch diameter. Please read these instructions thoroughly before proceeding with installation or operation.
2. Instrucciones de seguridad
- Desconecte siempre la alimentación antes de instalar, realizar mantenimiento o limpiar el motor.
- Asegúrese de que todas las conexiones eléctricas cumplan con los códigos eléctricos locales y nacionales.
- No opere el motor en lugares húmedos o húmedos.amp condiciones a menos que estén específicamente calificados para tales entornos.
- Keep hands, clothing, and tools clear of moving parts.
- If you are unsure about any electrical procedures, consult a qualified electrician.
3. Configuración e instalación
Proper installation is crucial for the motor's performance and longevity. Follow these guidelines:
3.1 Montaje
The Dayton 3M552 motor is designed for specific mounting configurations. Ensure the mounting surface is stable and capable of supporting the motor's weight and operational vibrations. Use appropriate fasteners to secure the motor firmly.

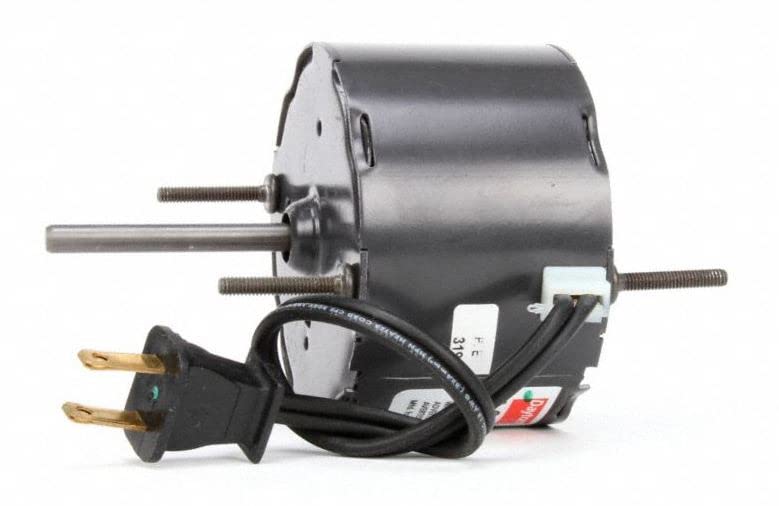

Figura 1: Trasero view of the Dayton Electric Motor Model 3M552, illustrating the mounting bolts and the terminal block for electrical connections. Ensure these bolts are securely fastened to a stable surface.
3.2 Conexión eléctrica
This motor operates on 115 Volts. Connect the motor to a power supply that matches its voltage and frequency requirements. Ensure all wiring is correctly insulated and protected. If the motor includes a pre-attached power cord, ensure the outlet is compatible and properly grounded.

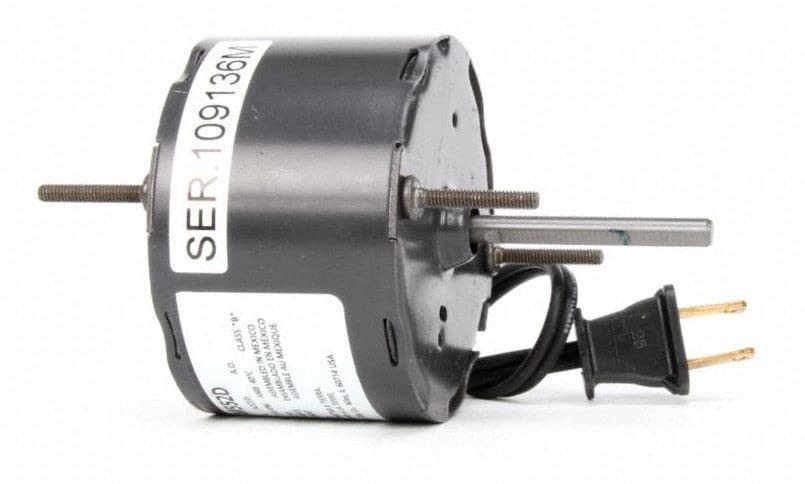

Figura 2: The Dayton Electric Motor Model 3M552, showing the main body, output shaft, and attached power cord with a standard two-prong plug. Verify the power supply matches the motor's 115V requirement.
- Verifique el volumen de la fuente de alimentacióntage matches the motor's 115V rating.
- Ensure the circuit is protected by an appropriately sized fuse or circuit breaker.
- For permanent installations, consult a qualified electrician to ensure compliance with all electrical codes.
4. Instrucciones de funcionamiento
Once properly installed and connected, the Dayton 3M552 motor is ready for operation.
- Puesta en marcha inicial: After ensuring all connections are secure and safety precautions are observed, apply power to the motor.
- Funcionamiento normal: The motor is designed to operate at 1550 RPM under its rated load. Monitor for any unusual noises or vibrations during the first few minutes of operation.
- Parada del motor: Desconecte la alimentación para detener el motor.
Avoid frequent starting and stopping, as this can reduce motor lifespan. Ensure the motor is not continuously overloaded beyond its 1/100 hp rating.
5. Mantenimiento
Regular maintenance helps ensure the longevity and reliable performance of your electric motor.
- Limpieza: Periodically clean the exterior of the motor to prevent dust and debris buildup, which can impede cooling. Use a dry cloth or compressed air. Do not use liquids directly on the motor.
- Inspección: Regularly inspect the motor for any signs of wear, damage, or loose connections. Check the mounting bolts for tightness.
- Lubricación: This motor is typically designed with sealed bearings that do not require periodic lubrication. Refer to the motor's label for specific lubrication requirements if any.
- Ventilación: Ensure the motor has adequate ventilation to prevent overheating. Do not obstruct cooling vents.
6. Solución de problemas
If you encounter issues with your Dayton 3M552 motor, refer to the following troubleshooting guide:
| Problema | Posible causa | Solución |
|---|---|---|
| El motor no arranca | Sin suministro de energía Conexiones eléctricas sueltas Protección contra sobrecarga disparada Motor incautado | Verifique la toma de corriente y el disyuntor Verifique que todas las conexiones del cableado estén seguras Reset circuit breaker; check for overload condition Inspect for obstructions; if seized, professional service may be required |
| El motor se calienta | Sobrecarga Ventilación insuficiente Alta temperatura ambiente Problemas con los cojinetes | Reducir la carga en el motor. Clear obstructions around the motor; ensure proper airflow Operate in a cooler environment if possible Contact professional service |
| Ruido o vibración inusual | Montaje suelto Cojinetes desgastados Objeto extraño en el motor Carga desequilibrada | Apriete los pernos de montaje Contact professional service Disconnect power and inspect for obstructions Check the attached load for balance |
If troubleshooting steps do not resolve the issue, or if you suspect internal damage, discontinue use and consult a qualified service technician.
7. Especificaciones
| Especificación | Valor |
|---|---|
| Modelo | 3M552 |
| Marca | Dayton |
| Caballos de fuerza (hp) | 1/100 |
| Velocidad (RPM) | 1550 |
| Volumentage | 115 voltios |
| Diámetro | 3.3 pulgadas |
| Material | Cobre |
| Fabricante | Dayton |
| ASIN | B00EBXSIBA |
8. Garantía y soporte
For information regarding warranty coverage and technical support for your Dayton Electric Motor Model 3M552, please refer to the documentation provided with your purchase or contact Dayton customer service directly. Keep your purchase receipt as proof of purchase.
