Philips DC315/37 Speaker System

Introducción

The Philips DC315/37 is a versatile speaker system designed for 30-Pin iPod/iPhone devices, featuring an LED clock radio and dual alarms. This manual provides comprehensive instructions for setting up, operating, and maintaining your device, ensuring optimal performance and longevity.

Image: The Philips DC315/37 unit with a docked iPhone, showcasing its clock and speaker design.

Información importante de seguridad

Please read these safety instructions carefully before using your device. Keep this manual for future reference.

• No exponga el dispositivo a la lluvia ni a la humedad.
• Do not place any sources of danger on the device (e.g., liquid filled objects, lit candles).
• Asegúrese de que haya una ventilación adecuada alrededor del dispositivo.
• Utilice únicamente accesorios especificados por el fabricante.
• Desenchufe el dispositivo durante tormentas eléctricas o cuando no lo utilice durante períodos prolongados.

Contenido del paquete

Verifique que todos los artículos estén presentes en su paquete:

• DC315 main unit
• Cable de alimentación
• Adaptador de CA
• cable de enlace MP3
• Manual de usuario (este documento)
• Guía de inicio rápido

Configuración

1. Conexión de alimentación

1. Connect the AC adaptor to the DC IN socket on the back of the unit.
2. Conecte el cable de alimentación a una toma de pared.
3. The unit will power on and the clock display will activate.

2. Docking an iPod/iPhone

The DC315/37 is compatible with most 30-Pin iPod and iPhone models.

1. Carefully align your iPod or iPhone with the 30-pin connector in the docking cradle.
2. Gently push the device down until it is securely seated in the dock.
3. El dispositivo comenzará a cargarse automáticamente.
4. To remove, gently pull the device upwards from the dock.

Image: An iPhone docked into the Philips DC315/37, ready for playback and charging.

3. Connecting External Audio Devices (MP3 Link)

Use the provided MP3 link cable to connect other audio devices.

1. Connect one end of the 3.5mm audio cable to the MP3 LINK input on the DC315/37.
2. Connect the other end to the headphone jack or audio output of your external device (e.g., MP3 player, CD player).
3. Select the MP3 Link source on the unit to play audio from the connected device.

Instrucciones de funcionamiento

1. Controles básicos

• Botón de encendido: Located on the left side. Press to turn the unit on or off.
• Controles de volumen: Utilice los botones '+' y '-' para ajustar el nivel de volumen.
• Botón de fuente: Cycle through available audio sources: iPod/iPhone, FM Radio, MP3 Link.

Image: User interaction with the Philips DC315/37, demonstrating its placement in a bedroom setting.

2. Setting the Clock and Alarms

The DC315/37 features a digital clock and dual alarms with weekday/weekend settings.

1. Ajuste del reloj: Refer to the quick start guide for detailed instructions on initial clock setup. The unit may automatically sync time when an iPhone is docked.
2. Alarmas duales: Two independent alarms (Alarm 1 and Alarm 2) can be set.
3. Fuente de alarma: Choose to wake up to your docked iPod/iPhone music or FM radio.
4. Despertar suave: The alarm volume gradually increases to provide a gentle awakening.
5. Weekday/Weekend Settings: Configure alarms to activate on weekdays (Monday-Friday), weekends (Saturday-Sunday), or all seven days.

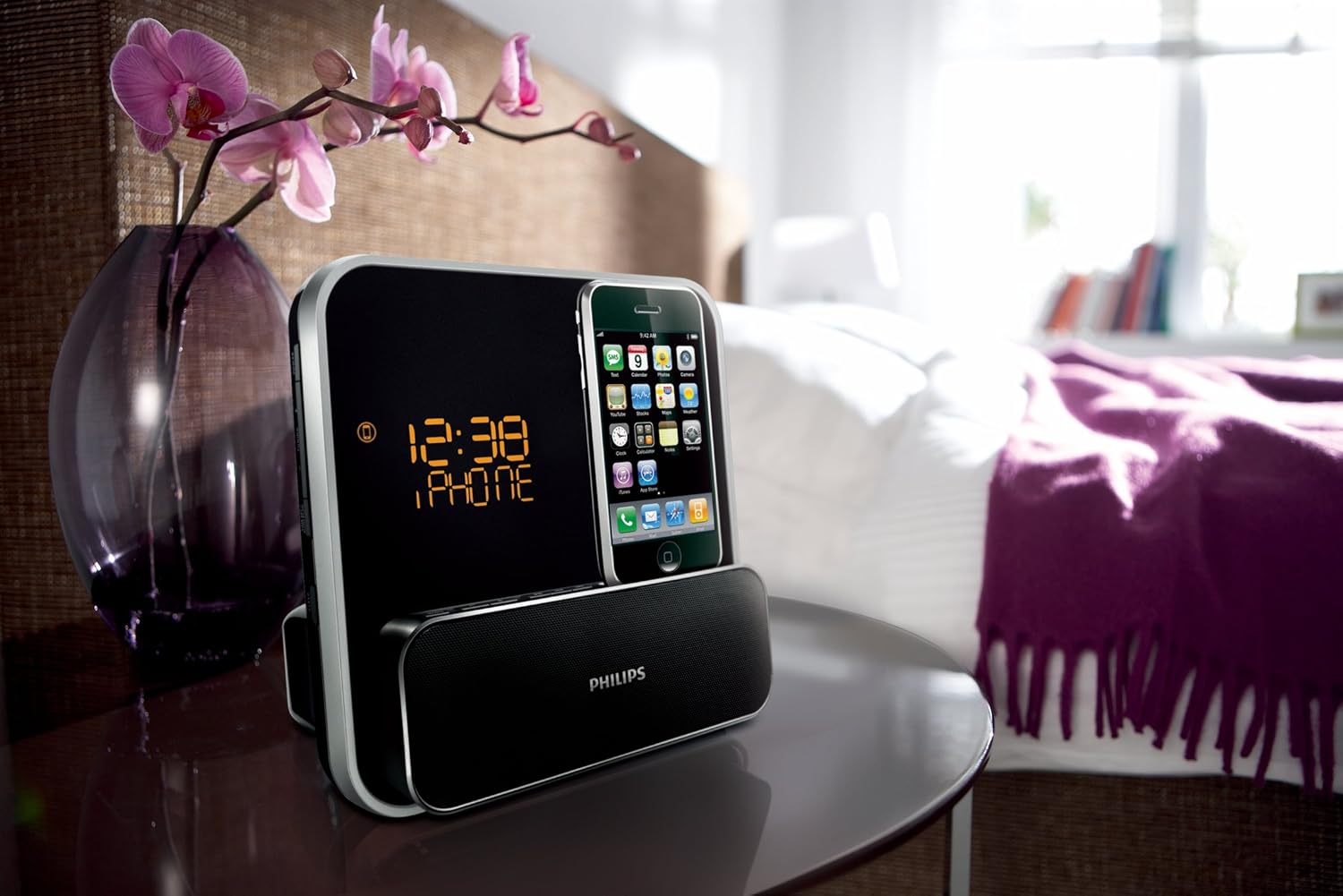

Image: The Philips DC315/37 displaying time, emphasizing its clock and dual alarm capabilities.

3. Operación de radio FM

• Sintonización: Use the tuning buttons to scan for FM radio stations.
• Presets: Press and hold the preset button to memorize a frequency for quick access to your favorite radio stations. The unit supports digital FM tuning with presets.

4. Brillo de pantalla

The LCD display has multiple brightness settings. Adjust as desired for optimal visibility in different lighting conditions.

Mantenimiento

• Limpieza: Utilice un paño suave y seco para limpiar el exterior de la unidad. No utilice limpiadores abrasivos ni disolventes.
• Conector de base: Keep the 30-pin dock connector free of dust and debris to ensure proper connection.
• Almacenamiento: Si va a almacenar la unidad durante un período prolongado, desconéctela del tomacorriente.

Solución de problemas

If you encounter issues with your Philips DC315/37, refer to the following common solutions:

Presupuesto

• Modelo: DC315 / 37
• Dimensiones del producto: 5.12 x 7.2 x 7.2 pulgadas (13 x 18.3 x 18.3 cm)
• Peso del artículo: 2.16 libras (0.98 kg)
• Potencia de salida (RMS): 2 x 4 vatios (total 8 vatios)
• Compatibilidad: iPod classic, iPod mini, iPod nano (1st-4th gen), iPod touch (1st-2nd gen), iPhone, iPhone 3G (30-pin connector)
• Entrada de audio: 3.5mm MP3 Link auxiliary input
• Sintonizador: FM Digital Tuner with Presets
• Reloj: Digital LED display with Dual Alarms (Weekday/Weekend settings, Gentle Wake-up)
• Fuerza: Adaptador de CA

The Bass Reflex Speaker System is designed to deliver a powerful, deeper bass experience from a compact loudspeaker box system. It features a bass pipe acoustically aligned to the woofer to optimize low frequency response, resulting in deeper controlled bass and lower distortion.

Imagen: Lateral view of the Philips DC315/37, illustrating its speaker design and compact form factor.

Garantía y soporte

The Philips DC315/37 comes with a limited one-year warranty. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your quick start guide or visit the official Philips support websitio.

Recursos en línea: Para obtener ayuda adicional y preguntas frecuentes, visite el sitio Tienda Philips en Amazon or the official Philips websitio.
