Introducción
This manual provides detailed instructions for the installation, operation, and maintenance of your KOHLER K-7305-K-CP Triton Centerset Lavatory Faucet. Please read all instructions carefully before beginning installation to ensure proper function and to prevent damage.
The KOHLER K-7305-K-CP Triton faucet is designed for durability and reliable performance, featuring solid brass construction and washerless ceramic valving. This model is a two-handle centerset faucet with a gooseneck spout, suitable for 4-inch centers. Please note that handles are not included with this faucet and must be purchased separately.
Producto terminadoview
The Triton K-7305-K-CP faucet is a polished chrome, two-handle centerset lavatory faucet. Its design emphasizes both functionality and longevity.
- Diseño: Two-handle centerset lavatory faucet for 4-inch centers.
- válvulas: Equipped with KOHLER ceramic disc valves, engineered to exceed industry longevity standards.
- Construcción: Solid brass construction ensures durability and reliability.
- Finalizar: Durable Polished Chrome finish.
- Aireador: Features a vandal-resistant aerator.
- Manijas: Handles are not included. Compatible handle options include lever, cross, square, or wristblade styles.

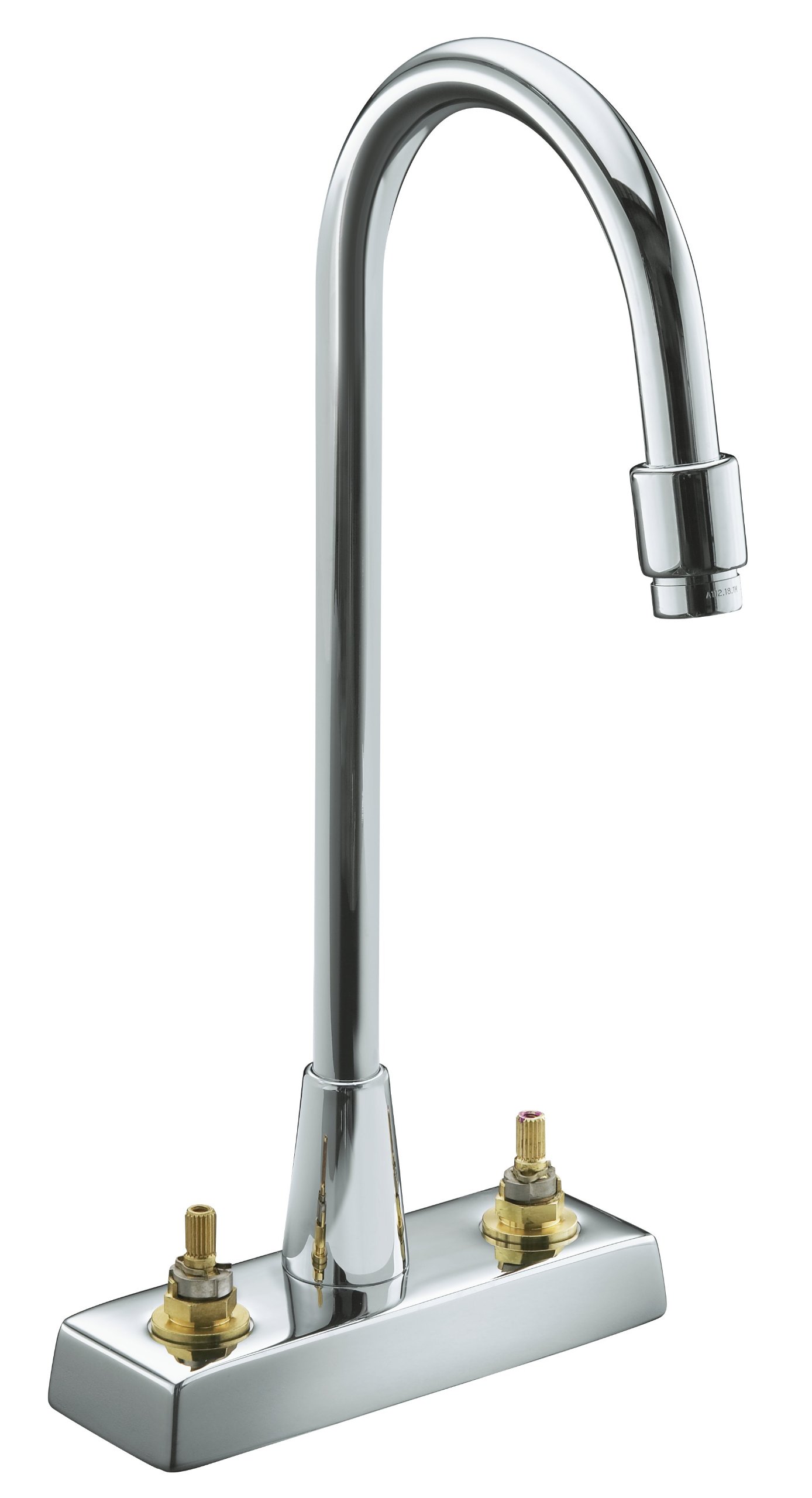

Image: The KOHLER K-7305-K-CP Triton Centerset Lavatory Faucet in Polished Chrome, shown without handles. This image displays the gooseneck spout and the two valve stems where handles would be attached.
Información de seguridad
Observe siempre las siguientes precauciones de seguridad durante la instalación y el mantenimiento:
- Turn off the water supply at the main shut-off valves before beginning any work.
- Utilice equipo de protección personal adecuado, como gafas y guantes de seguridad.
- Si no está seguro acerca de alguna parte del proceso de instalación, consulte a un plomero calificado.
- Asegúrese de que todas las conexiones estén seguras para evitar fugas.
- No apriete demasiado las conexiones, ya que esto puede dañar el grifo o la plomería.
Instalación
Herramientas y materiales necesarios (no incluidos):
- Llave ajustable
- Basin llave inglesa
- Masilla de plomero o sellador de silicona
- Destornillador (Phillips y de punta plana)
- Thread seal tape (Teflon tape)
- gafas de seguridad y guantes
- Handles (lever, cross, square, or wristblade options)
Pasos previos a la instalación:
- Turn off the hot and cold water supply valves under the sink or at the main water supply.
- Retire el grifo viejo, si lo tiene. Limpie bien la superficie del fregadero.
- Asegúrese de que la superficie de montaje esté limpia y seca.
Pasos para la instalación del grifo:
- Prepare the Faucet Base: Apply a thin bead of plumber's putty or silicone sealant around the underside of the faucet base plate.
- Monte el grifo: Insert the faucet body and valve stems through the holes in the sink or countertop. Ensure the faucet is centered and aligned.
- Asegure el grifo: From underneath the sink, slide the rubber washer, metal washer, and mounting nuts onto the threaded shanks. Hand-tighten the nuts, then use a basin wrench to firmly secure the faucet to the sink. Do not overtighten.
- Conectar las líneas de suministro de agua: Attach the hot and cold water supply lines (not included) to the corresponding valve stems. Use thread seal tape on the threaded connections and tighten with an adjustable wrench. Do not overtighten.
- Instalar manijas: Follow the instructions provided with your chosen KOHLER handles to install them onto the valve stems.
- Conecte el conjunto de drenaje: Install the drain assembly (if included with your sink or purchased separately) according to its specific instructions.
Operación
After successful installation, operate the faucet as follows:
- Restablecer el suministro de agua: Abra lentamente las válvulas de suministro de agua fría y caliente.
- Compruebe si hay fugas: Inspect all connections for any signs of water leakage. Tighten connections slightly if necessary.
- Descargue el grifo: Turn both faucet handles to the full open position and let the water run for several minutes. This flushes out any debris that may have entered the water lines during installation.
- Adjust Water Temperature and Flow: Use the hot and cold handles to control the water temperature and flow rate to your desired setting.
Mantenimiento
Proper maintenance will ensure the longevity and appearance of your KOHLER faucet.
- Limpieza: Limpie el grifo periódicamente con un paño suave.amp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the polished chrome finish.
- Mantenimiento del aireador: If water flow decreases or becomes erratic, the aerator may be clogged. Unscrew the aerator from the spout, clean any debris, and rinse thoroughly before reattaching. The aerator is designed to be vandal-resistant, but can still be removed for cleaning.
- Válvulas de disco cerámico: The KOHLER ceramic disc valves are designed for long-lasting, drip-free performance and typically require no maintenance. If a leak occurs from the handles, consult the troubleshooting section.
Solución de problemas
Consulte esta sección para conocer problemas comunes y sus soluciones.
| Problema | Posible causa | Solución |
|---|---|---|
| Bajo caudal de agua | Aireador obstruido; válvulas de suministro parcialmente cerradas; residuos en las líneas de agua. | Clean the aerator. Ensure supply valves are fully open. Flush water lines. |
| Fuga en la base del grifo | Tuercas de montaje flojas; aplicación incorrecta del sellador. | Tighten mounting nuts. Reapply plumber's putty or silicone if necessary. |
| Fuga del pico | Residuos en la válvula; válvula de disco cerámico desgastada. | Flush the faucet. If problem persists, contact KOHLER customer service for valve replacement. |
| Problemas de temperatura del agua | Conexiones incorrectas de suministro de agua fría y caliente; problemas con el calentador de agua. | Verifique que las líneas de agua caliente y fría estén conectadas correctamente. Revise la configuración del calentador de agua. |
Presupuesto
- Nombre del modelo: K-7305-K-CP
- Marca: Kohler
- Material: Latón macizo
- Finalizar: Cromo pulido
- Tipo de instalación: Conjunto central
- Cantidad de asas: 2 (Asas no incluidas)
- Número de agujeros: 2
- Diseño del pico: Cuello de cisne
- Altura del pico: 7.88 pulgadas
- Alcance del surtidor: 5.25 pulgadas
- Tasa de flujo máxima: 1.5 galones por minuto (GPM)
- Característica especial: Vandal Resistant Aerator
- Peso del artículo: 3.64 libras
- Dimensiones del producto: 5.25 x 4 x 12.38 pulgadas
Garantía y soporte
Garantía: This KOHLER faucet is covered by a Lifetime Limited Warranty. For specific details regarding warranty coverage, please refer to the official KOHLER warranty documentation or visit the KOHLER websitio.
Atención al cliente: For technical assistance, replacement parts, or warranty claims, please contact KOHLER customer service. Contact information can typically be found on the official KOHLER websitio o en los materiales de embalaje.
