Uzanto-manlibro de VEVOR-ŝtupetara stabiligilo

1. Produkto Finitaview

The VEVOR Ladder Stabilizer (Model KH-WD03) is a versatile 2-in-1 accessory designed to enhance safety and stability during ladder use. It functions as both a ladder standoff for wall work and a roof ridge hook for secure roof access. Constructed from heavy-duty carbon steel, it offers broad compatibility with various ladder types including wood, fiberglass, and aluminum ladders, provided their step width is ≥11.02 inches.

This stabilizer features a robust design with a 330 lbs (150 kg) load capacity, ensuring reliable support for high-altitude tasks. Its adaptable design allows for horizontal and vertical use, making it an essential tool for a range of applications from roof cleaning to outdoor projects.

Figure 1.1: The VEVOR Ladder Stabilizer shown attached to an extension ladder, demonstrating its primary function as a standoff.

2. Sekurecaj Informoj

Always prioritize safety when working with ladders and accessories. Read and understand all instructions before use. Failure to follow safety guidelines can result in serious injury or property damage.

Ŝlosilaj Sekurecaj Trajtoj:

• Pillar Support: Designed to prevent ladder wobbling and ensure stability against walls.
• T-Shaped Sponge Rod & Anti-Slip Feet: Reduces the risk of slipping when the stabilizer is in use.
• U-Shaped Locking Clip: Secures the stabilizer to the ladder to prevent detachment during operation.
• Rooftop Hook: Provides secure attachment of the ladder to the roof ridge for safe roof access.

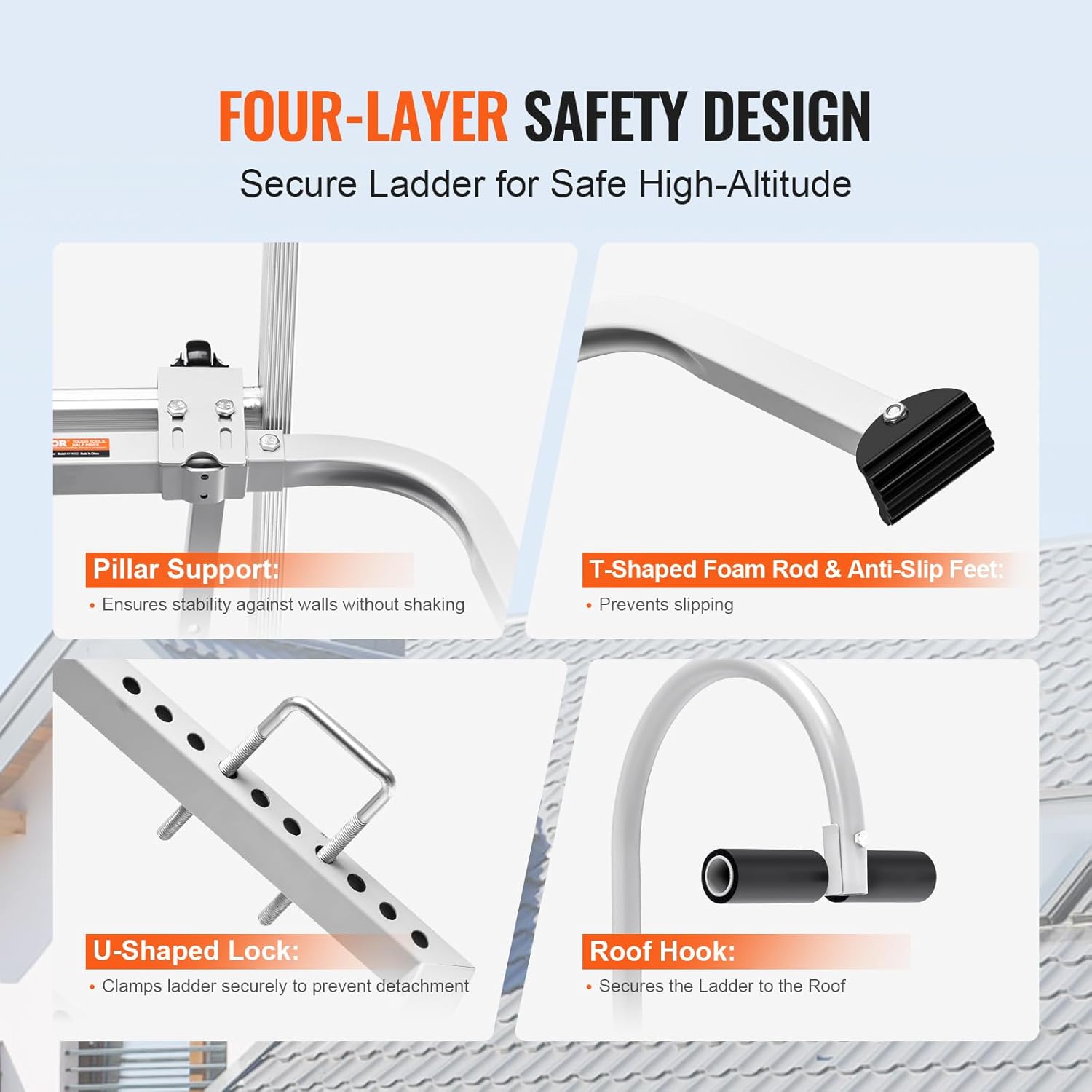

Figure 2.1: Illustration of the four key safety design elements: Pillar Support, T-Shaped Foam Rod & Anti-Slip Feet, U-Shaped Lock, and Roof Hook.

Grava: Regularly inspect all components for wear, damage, or loose connections before each use. Do not use if any part is compromised. Ensure the ladder is placed on a stable, level surface. Always maintain three points of contact with the ladder.

3. Pako Enhavo

Verify that all components are present and undamaged upon opening the package. If any parts are missing or damaged, contact VEVOR customer support.

Figure 3.1: Visual representation of the complete professional accessories included for quick installation.

4. Instalado kaj Asembleo

The VEVOR Ladder Stabilizer offers versatile assembly options to suit different applications. It can be configured as a ladder hook, a ladder support, or both simultaneously.

4.1 Kongrueca Kontrolo

Ensure your ladder's step width is at least 11.02 inches (28 cm) for proper fitment. The stabilizer is compatible with wood, fiberglass, and aluminum ladders.

Figure 4.1: Compatibility details, showing the required pedal width and examples of compatible ladder types.

4.2 Asembleo Opcioj

The stabilizer can be assembled in three primary configurations:

1. Assembly Option 1: Acts as a Ladder Hook. In this configuration, the stabilizer is primarily used to secure the ladder to a roof ridge.
2. Assembly Option 2: Serves as a Ladder Support. This setup provides a standoff from a wall or surface, increasing stabileco.
3. Assembly Option 3: Functions as Both Hook and Support. This combines the features for maximum versatility.

Figure 4.2: Visual guide to the three assembly options for the stabilizer.

4.3 Attaching to the Ladder

The stabilizer attaches to the ladder rungs using the provided U-shaped locking clips and hex screws. Ensure all connections are tightened securely with the open-end wrenches. The dual-row adjustable mounting holes allow for adaptation to various ladder widths and slope surfaces.

Figure 4.3: Illustration of the adjustable leg length feature, allowing adaptation to different slopes and ladder configurations.

5. Funkciaj Instrukcioj

5.1 Using as a Ladder Standoff

When configured as a ladder support, the stabilizer provides a safe distance from the wall, allowing access to eaves, windows, or other obstacles. Position the anti-slip feet firmly against the surface. The pillar support helps prevent lateral movement.

5.2 Using as a Roof Ridge Hook

For roof access, attach the stabilizer in the ladder hook configuration. The integrated wheels facilitate smooth movement of the ladder up the roof. Once the desired position is reached, flip the ladder 180 degrees to engage the roof hook securely over the ridge.

Figure 5.1: Step-by-step instructions for using the stabilizer with wheels for roof access.

Notu: Not recommended for use on roofs with vented ridges, as this may compromise stability.

5.3 Aplikoj

The VEVOR Ladder Stabilizer is suitable for various high-altitude tasks, including but not limited to:

• Purigado de Tegmento
• Outdoor Projects (e.g., gutter cleaning, exterior painting)
• Interior Renovations (e.g., high ceiling work)
• Outdoor Decorations (e.g., hanging lights)

Figuro 5.2: Ekzamples of common uses for the VEVOR Ladder Stabilizer.

6. Prizorgado

Proper maintenance ensures the longevity and safe operation of your VEVOR Ladder Stabilizer.

• Purigado: Wipe down the stabilizer with a damp cloth after each use to remove dirt, debris, or moisture. Avoid abrasive cleaners.
• Inspektado: Before and after each use, visually inspect all welds, bolts, nuts, and rubber components for signs of wear, cracks, deformation, or corrosion. Pay close attention to the U-shaped locking clips and the T-shaped sponge rod.
• Streĉeco: Periodically check and re-tighten all fasteners (screws and nuts) to ensure they remain secure. Loose connections can compromise stability.
• Stokado: Store the stabilizer in a clean, dry place, away from extreme temperatures and corrosive materials.

7. Respondecaj problemoj

This section addresses common issues that may arise during the use of the ladder stabilizer.

8. Specifoj

Figure 8.1: Comprehensive product specifications including dimensions for both leg and hook modes.

9. Garantio kaj Subteno

Produktoj de VEVOR estas desegnitaj por daŭripovo kaj efikeco. Por informoj pri garantio aŭ teknika subteno, bonvolu rilati al la oficiala VEVOR-retejo. webretejon aŭ kontaktu ilian klientan servon rekte. Konservu vian aĉetkvitancon kiel pruvon de aĉeto.

Klientservo de VEVOR: Bonvolu viziti www.vevor.com por kontaktinformoj kaj subtenaj rimedoj.
