Enkonduko
Thank you for choosing the SONGMICS GGD175L Galvanized Steel Garden Gate. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new garden gate. Please read these instructions thoroughly before assembly and retain them for future reference.
Sekurecaj Instrukcioj
- Always ensure that the posts are installed vertically in the ground and that the top ends of both posts are at the same level to ensure proper gate function and stability.
- During installation, carefully handle all parts to prevent injury or damage.
- It is recommended that two adults perform the installation to ensure safety and ease of assembly.
- Tenu ĉiujn malgrandajn partojn kaj pakmaterialojn for de infanoj por eviti sufokiĝajn riskojn.
- Regularly inspect the gate and its components for any signs of wear, damage, or loose connections. Address any issues promptly to maintain safety and functionality.
Enhavo de Pako
Antaŭ ol komenci la muntadon, bonvolu kontroli, ke ĉiuj sube listigitaj komponantoj ĉeestas kaj estas nedifektitaj. Se iuj partoj mankas aŭ estas difektitaj, bonvolu kontakti klientan subtenon.
- 1 x Gate Leaf
- 2 x Gate Posts
- 1 x Lock Housing
- 3 x Ŝlosiloj
- 2 x PP Door Handles
- 1 x Assembly Kit (bolts, hinges, clamps, ktp.)
- 1 x Instrukcia Manlibro
Image: All components of the SONGMICS GGD175L garden gate, including the gate leaf, posts, lock, handles, keys, and various bolts and clamps.
Specifoj
| Koloro | Verda |
| Materialoj | Galvanized Steel, PP Plastic Handles, Metal Key, Aluminum Lock Cylinder |
| Tutaj Dimensioj (L x H) | 106 x 125 cm (41.7 x 49.2 coloj) |
| Totalaj Dimensioj (L x W x H) | 106 x 6 x 170 cm (41.7 x 2.4 x 66.9 coloj) |
| Gate Leaf Dimensions (L x H) | 87 x 125 cm (34.3 x 49.2 coloj) |
| Alto de la fosto | 170 cm (66.9 coloj) |
| Afiŝu Diametron | 60 mm (2.4 coloj) |
| Gate Tube Diameter | 40 mm (1.6 coloj) |
| Diametro de drato | 4 mm (0.16 coloj) |
| Mesh Grandeco | 50 x 50 mm (2 x 2 coloj) |
| Pezo | 18.7 kg (41.2 funt.) |
Image: Detailed dimensions of the gate, posts, and mesh grid.
Instalado kaj Instalado
Follow these steps for proper installation of your garden gate. It is recommended to have two adults for this process.
- Reteja Preparado: Choose a suitable location for your gate. Ensure the ground is level and clear of obstructions. Mark the positions for the two gate posts, considering the overall width of the gate (106 cm).
- Afiŝa Instalado: Dig two holes for the gate posts. The depth should be sufficient to ensure stability, typically around 50-60 cm, depending on soil conditions. Insert the posts into the holes. Ensure the post with the lock mechanism is positioned on the right side (when viewed from the inside, for inward opening).
- Leveling Posts: Use a spirit level to ensure both posts are perfectly vertical. The top ends of the two posts must be at the same height. Secure the posts in place, ideally with concrete, allowing it to cure completely before proceeding.
- Attach Hinges and Clamps: Once the posts are stable, attach the hinges to the gate leaf and the corresponding clamps to the posts. Refer to the assembly diagram for correct placement.
- Mount the Gate Leaf: Carefully lift the gate leaf and attach it to the hinges on the posts. Ensure the gate swings freely and aligns correctly with the lock post.
- Install Lock and Handles: Install the lock housing, door handles, and cylinder lock according to the provided diagram. Test the lock mechanism with the keys.
- Finaj Alĝustigoj: Check all connections and bolts to ensure they are tight. Verify that the gate opens and closes smoothly and that the lock engages securely.
Image: The SONGMICS GGD175L garden gate fully installed, providing access to a garden path.
Bildo: Sekco view showing the gate posts anchored in the ground with a stable base.
Bildo: Detala view of the gate leaf, highlighting the mesh and frame construction.
Bildo: Detala views of the gate's construction, including the frame, mesh, and hinge attachment.

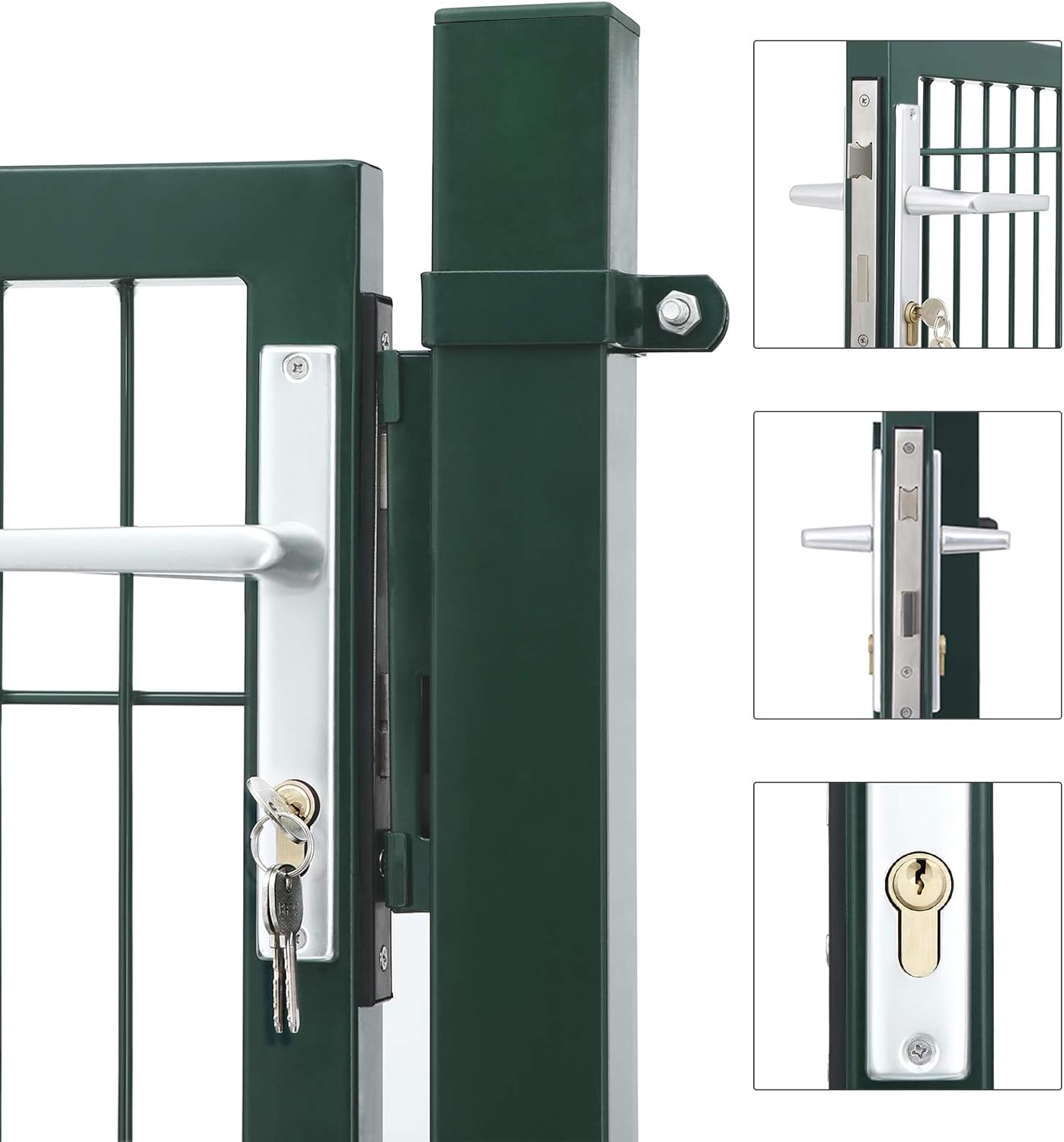

Bildo: Detala views of the gate's lock, handle, and key cylinder.
Image: Six green clamps used for securing the gate to the posts.
Funkciaj Instrukcioj
The SONGMICS GGD175L garden gate is designed for simple and secure operation.
- Malfermante la Pordegon: Insert one of the provided keys into the lock cylinder and turn it to unlock. Press down on the handle and pull or push the gate open.
- Fermante la Pordegon: Guide the gate back into its closed position until it meets the lock post. The latch should engage automatically.
- Ŝlosante la Pordegon: Once the gate is closed, turn the key in the lock cylinder to secure it. Remove the key and store it in a safe place.
Prizorgado
Regular maintenance will extend the lifespan and ensure the continued functionality of your garden gate.
- Purigado: Clean the gate regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized and painted surface.
- Lubrikado: Periodically apply a silicone-based lubricant to the hinges and lock mechanism to ensure smooth operation and prevent rust.
- Inspektado: Annually inspect all bolts, screws, and connections for tightness. Tighten any loose fasteners. Check the gate for any signs of rust, corrosion, or structural damage. Address any issues promptly.
- Drenado: Ensure that the area around the gate posts has proper drainage to prevent water accumulation, which can lead to corrosion or instability.
Solvado de problemoj
| Problemo | Ebla Kaŭzo | Solvo |
|---|---|---|
| Gate does not open/close smoothly | Misaligned posts, stiff hinges, debris in mechanism. | Check post alignment and adjust if necessary. Lubricate hinges. Clear any debris from the gate's path. |
| Lock is difficult to operate | Lack of lubrication, debris in lock cylinder, misaligned lock. | Apply graphite or silicone lubricant to the lock cylinder. Clean out any debris. Check if the lock housing is properly aligned with the gate frame. |
| Gate appears unstable or wobbly | Loose post installation, loose bolts. | Ensure posts are securely anchored in the ground (re-concrete if necessary). Tighten all assembly bolts and connections. |
Garantio kaj Subteno
This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the documentation provided at the time of purchase or contact your retailer.
For technical support, missing parts, or any questions regarding your SONGMICS GGD175L garden gate, please contact SONGMICS customer service through the retailer's platform or visit the official SONGMICS webretejo por kontaktinformoj.
