ELAC Debut 2.0 B5.2 Bookshelf Speakers-Complete Features/Instruction Guide

It was difficult to top its award-winning predecessor, but the new B5.2 raises the bar even further by providing performance that is inversely proportional to its small size. And with sound that rivals speakers that cost much, much more, it is still the finest value among bookshelf speakers. Response to Frequency: 46Hz to 35000Hz

Safety Instructions

General information

Please read and follow these safety instructions.
Keep them safe for future reference.
Observe all warnings on the speaker and in the manual. Please check the speaker for damage before use. The speaker must be in perfect working condition. Damaged parts may lead to personal injury.

Use only as directed

Connect the speaker(s) according to the instructions in the manual.
Many ELAC speakers are equipped with spikes and/or antislip feet. They are explicitly provided for leveling the speaker. For levelling on an uneven floor, unscrew the spikes or ant-slip feet by 2-3 turns of thread. The speaker should always be in perfect vertical alignment: the stability of the speaker must not be compromised by using spikes or anti-slip feet as the speaker may tip-over.

Location

Install the speakers on a level surface only
When choosing the location of these speakers do not place them in locations that are:
- In direct sunlight
- Very humid
- Prone to vibrations
- Exceptionally hot or cold
Near CRT Televisions (the speakers are not magnetically shielded and may cause color issues with a CRT based TV)
Close to magnetic cards (Since the speakers are not magnetically shielded placing magnetic cards such as credit cards or commuter cards may cause them to fail).

WARNING
Please ensure the product is perfectly stable to avoid injury from tip-over. Please note, that stability can be increased by using spikes on carpeted surfaces. However, the mounting of spikes must be carried out carefully due to their very sharp ends which may cause injuries. The stability on slippery floors can be increased by using Velcro fastening tape or double-sided adhesive tape. Do not install the speaker near any heat sources such as radiators, heating valves, stoves, or other apparatus (including amplitiers) that produce heat, or in areas where there is a risk of explosion.

Do not block any ventilation openings. Install in accordance with the manufacturers instructions.
Do not install the speaker ina closed rack or in a closed cupboard.
Do not put burning candles on or near the speaker.
Do not install the speaker near transformers because electromagnetic stray fields can cause hum noise on Woorers.
In combination with certain materials/ lacquers material surfaces, ant-slip feet or spike washers may cause colored imprints on the surfaces.

Overloadd
Extreme overload of the device due to very high volume may cause damage to individual components. Because or tne posSIDie danger, yOu should never leave loudspeakers under extreme overioad conditions unattended.
Service

DANGER
Do not open the cabinet because the components and conductorS may carry current Servicing to be carried out by qualitied service personnel only.

Servicing is required when the loudspeaker has been damaged in any way, such as damage to the power supply cord or the plug, or when liquid has been spilled or objects have fallen onto the loudspeaker, the speaker has been exposed to rain or moisture, does not operate normally, or hass been dropped. To reduce the risk of electric shock, do not open the loudspeaker. Servicing should bee Carried out by qualmed servIce personnel ony.

Cleaning
NOTE Cean only with sort, smooth cloth or with dust brush. Do not use scouring agents, alconol, benzene, Turniture polish or other agents Tor cleaning! Modern turniture is often coated with muituple varnishes and plastics which can be treated with chemical agents. Some of these agents contain SUbstances which degrade or soften the rubber feet. herefore we advise that you place an antk-Slip mat underneath the loudspeakerls).

Volume

CAUTION! Continuous high volume may cause severe damage to your hearing. Please listen responsibly.

Disposal
The packaging is made from recyclable materials. Dispose of this in an environmentally friendly manner. At end of life do not dispose of the speaker(s) with standard household waste. The speaker
must be recycled in accordance with local legislation. Ask your local government for futher information on recycling as the device contains valuable raw materials. Disable the speaker(s) before disposal.

Philosophy

Thank you for purchasing this ELAC product
Since the time we started (1926), ELAC has always striven to achieve the very best. Your new ELAC speakers are built to the highest standards using high-quality components that are carefully constructed to deliver the bestinclass sound quality. Iney are developed by a passionate group of individuals wrnose soul purpose is to bringa new dimension of sound quality into your home. Enjoy

Before Use

Avoid damage to the speakers and other components:

Carefully unbox the speakers carefully to avoid physically damaging your speakers.
Use appropriate gauge wires (minimum of 16 gauge wire for runs up to 25 feet).
Make sure wire polarity is connected correctly. Most speaker cables are coded for ease of use. Make sure positive (red) connection on the amplifier terminal is connected to the positive (red) on your speakers.
Follow the same instructions or the negative side. strip off approximately 12 or the insulation from the ends or tne speaker cable, wst tne bare strands ana insert into tne Dinaing post. Ensure your equipment is turned off before connecting speakers.
Check to ensure positive and negative wires are not touching each other once theyre connected to the speaker terminals.

Installing and Removing the Grills

The mesh grills of your Debut speakers are designed to be removable if desired. To remove it, hold the top or bottom edges of the gril close to the mounting points and pull gently. 1o replace the grill, align the pegs on the grills with the holes on the speaker and press in gently.

IMPORTANT!

ELAC F5.2/F6.2 Floorstanding Speakers Safety Clip

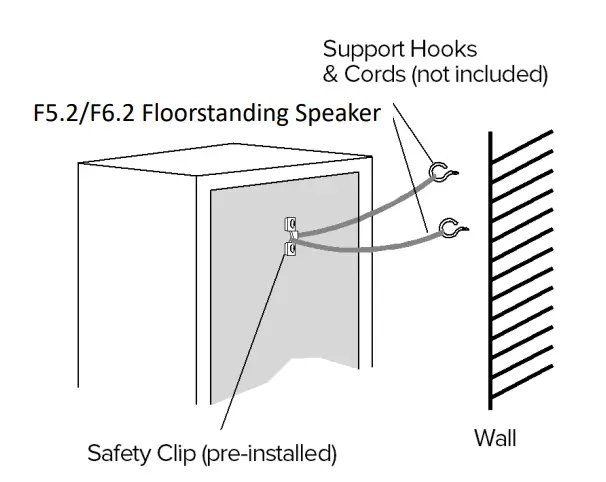

The ELAC F5.2 and F6.2 Floorstanding speakers include a safety clip pre-installed on the back of the cabinet for securing to a wall to prevent tip-over. Use support hooks (not included) screwed into a wall and pasS appropriate size cord (not included) around the hook and through the safety clip. Test to ensure mounted hooks and cord will prevent tipping of the speaker.

CAUTION
The safety clip is nota mounting fixture and the speaker should not be hung on the wall using the clip. ELAC aoes not Claim responsibliny Tor damage resuiting rom improper assenmbly, installation, insumiclent strengtn or tne instaliaion materidls, misuse, or natural aisaster.

Speaker Placement

Deaker maximum pertormance and optimal sound quality trom your ELAC Debut speakers with proper the speakers for vour particular room. There are no vartle r hd ue ut the following suggestions will help optimize your desired results. Remember the best sound setup is what sounds best for you so dont be afraid to experiment and make adjustments to the placement and directivity f th ne speaker.

Place the speakers approximately one to tWO feet away (ig. 1) Trom boundanes such as walls) and especially foarticular to conr ma rocalt in hace that ic unatrala nr location i idablato ncitinn ne ioudspeaker so that the dictane dts unnatural. the distance to the rear wall is not equal to the distance to the side wall.

Stereo Setup

For the best results and the most realistic stereo image and lifelike sound, place the speakers so that an equilateral triangle (ig. 2) Is created detween the speakers and your tavorite listening position. This set up creates the optimum imaging pertormance.
If you find that your B5.2/B6.2 or F5.2/F6.2 left and right speakers are too far apart, angle (toe in) them towards the listening position to gain a more focused centrd Edge.

Surround Sound Setup

Whether you use the B5.2/86.2 bookshelf or the F5.2/F6.2 floorstanding speakers for a 5.-channel surround hioher as the front srneakers for the most envelonina cond feld 1ke the ont cneakers vou mav need to PEE WIL e posiuoning by pointing the rear surround speakers towards the listening area.

Center Speaker Setup

The ELAC C5.2/C6.2 center channel is designed to produce dialog sounds and should be positioned above or Delow (ig. 3) your televislon. Allgn t witn the center or tne televIslon. As mucn as possibie, try to keep tne C.2c6.2 close to the same level (neignt) as your tront speakers tor a more even sound stage. Keeping the same height for the center channel can be very challenging so it might be necessary to tilt the center speaker up (IT too low) or down (it too hign), to aim it towards the listening area.

Optimal results for the center are obtained by setting the receiver/processor center channel size to smal. if you have a choice, set the crossover trequency to 80Hz.

On-Wall Speaker Setup

The ELAC OW4.2 on-wall speakers are designed as either on-wall surround speakers, onwall front channel speakers, or on-wall side channel speakers. Do not block the speaker vents on the bottom of
the speakers. We have included wall brackets for mounting the speakers to the wall, however mounting hardware is not included. We highly suggest that a professional installer performs this installation. Different wall materials require different types of mounting hardware. Mount the speaker bracket using the supplied screws to the rear of the speaker as shown in Fig. 1.

Mount the wall bracket to the wall using the appropriate mounting hardware based on your wall type. We recommend you consult an installation professional for mounting the wall plate to ensure a secure mount. Wall Mounting screws are not provided.

Frequently Asked Questions

In which country are these made?
English/American/German design by Andrew Jones and parts sourced by him in the PRC (China), where they are made. In a nutshell, Mr. Jones is one of the very best speaker designers (see his work at TAD), who also is a seasoned expert in getting speakers made at an exceptionally low cost. BTW he is very cool, you’d love him! There are no finer speakers for the MONEY than these. He wins all price point – quality comparisons.
Does these come with rubber feet?
No
Is it easy to put a bare 16 gauge wire through the binding posts?
Yes, it is easy to put bare wire through. Unscrew banana clips, exposing hole though the binding posts. Strip the wire long enough to thread through. Thread through, then screw posts closed until wires are snug.
Would these make good side surrounds?
Yes, they would make great surrounds. Since you’re probably using them with a sub, and surrounds don’t have to handle much bass in the first place, they will pair very well with front towers. The old B4 speakers wouldn’t sound quiet as good or rich, and they’re sold out anyway. The new OW4.2 are an option if you’re.
What do I need to connect them to a Sonos port?
Yes, they require an amp/receiver.
What wiring do I need to connect these to a TV?
There is no way to know without seeing the back of your tv. You will need an amplifier but which type will depend largely on what connections your television has.
Would these be loud enough for spin studio? Could you use 4 of them, 2 in front 2 in back? Looking for an inexpensive good system.
I would think so but depends what you are driving them with? 100W amp or larger for four speakers.
Can I hook these up to my computer?
Not directly. You will need an amplifier like a stereo receiver or small desktop amp. ook up desktop amps on Amazon. Fosi Audio and SMSL make affordable amps that will connect with most computers and have a Bluetooth receiver so you can stream directly from your phone or anything else with Bluetooth. Alternatively you can get powered speakers which will connect directly but usually don’t have as good sound quality.
Is the width and length of the Atmos speaker the same as the bookshelf speaker?
Yes, it’s an exact match between the top of this one and the bottom of the Atmos speaker.
What speaker stands would you recommend for this set?
A sturdy set of ear level stands would be ideal. I just have mine on shelves and am happy with that.
