Liter energybattery 3.7V Lipo Battery 4000mAh 606090 Instruction Manual

1. Εισαγωγή

This manual provides essential information for the safe and effective use of your Liter energybattery 3.7V 4000mAh Lithium Polymer battery, model 606090. Please read these instructions carefully before installation and operation to ensure optimal performance and safety.

The Liter energybattery 606090 is a high-quality rechargeable lithium polymer battery designed for various electronic devices. It features a protective IC for enhanced safety and a long service life.

2. Πληροφορίες και προειδοποιήσεις για την ασφάλεια

Failure to follow these safety guidelines can result in fire, personal injury, and property damage.

• Φόρτιση: Only use a Li-Po battery charger specifically designed for lithium polymer batteries. Charge the battery on a heat-resistant surface, away from flammable materials. Never charge the Li-Po battery unattended.
• Επιθεώρηση: Always inspect the Li-Po battery for any damage (swelling, leaks, punctures) before charging and operating. Do not use a damaged battery.
• Θερμοκρασία: Do not allow Li-Po cells to overheat at any time. Avoid exposing the battery to extreme temperatures, direct sunlight, or fire.
• Εκπλήρωση: Do not over-discharge the Li-Po battery. Over-discharging can permanently damage the battery.
• Πόλωση: Ensure correct polarity when connecting the battery. The Κόκκινος wire is Positive (+), και το Μαύρος wire is Negative (–). Reverse polarity can damage your device and the battery.
• Βραχυκύκλωμα: Never connect or allow the two wires to touch each other, as this will cause a short circuit and can lead to fire or explosion.
• Γενικός χειρισμός: Do not puncture, crush, or disassemble the battery. Keep out of reach of children.
• Εφαρμογή: This battery is not suitable for drones.

This battery includes PCM protection functions for overload, short circuit, and over-temperature protection, enhancing its overall safety.

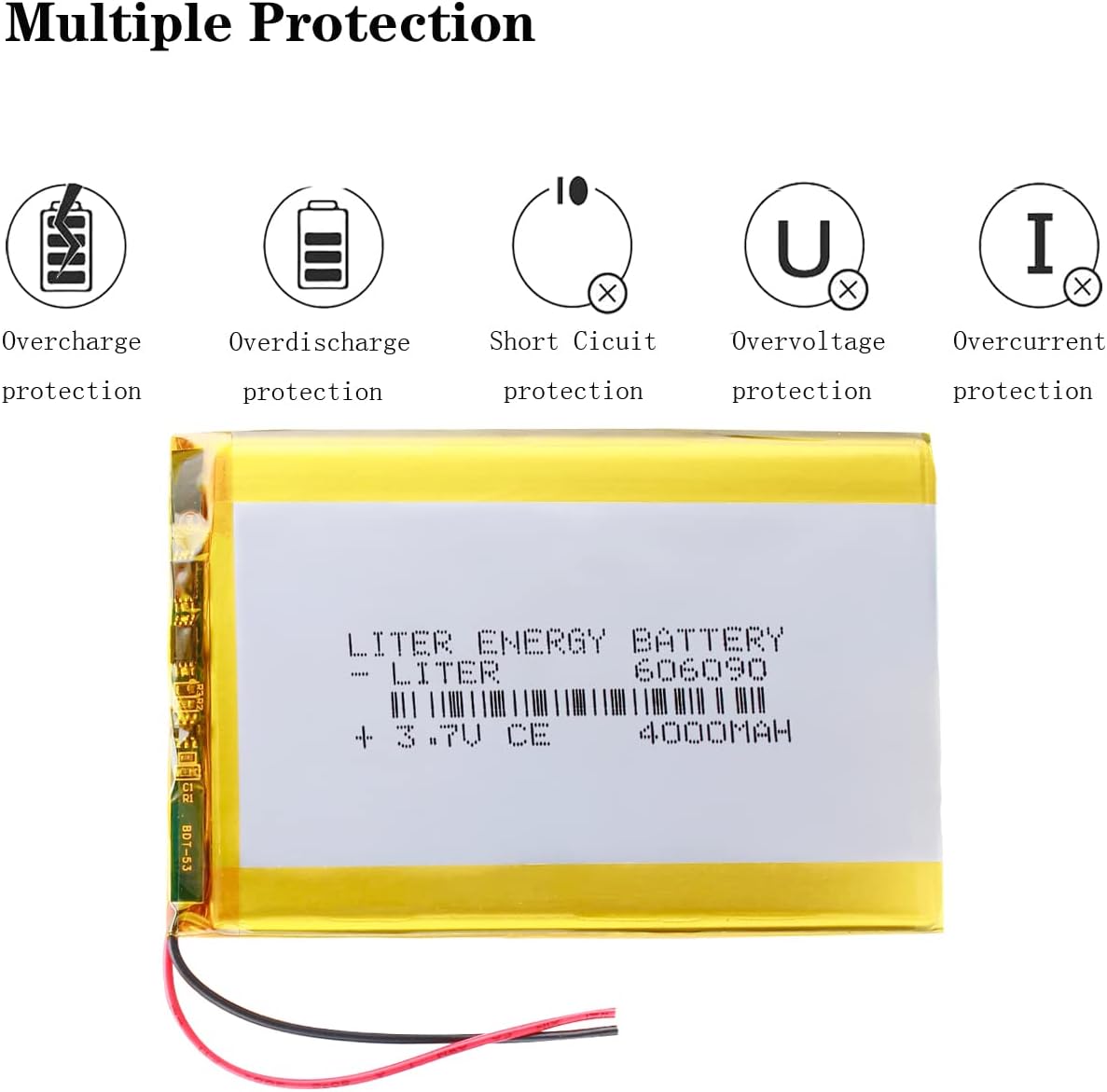

Εικόνα 2.1: The battery is equipped with multiple protection features including overcharge, overdischarge, short circuit, overvoltage, and overcurrent protection to ensure safe operation.

3. Ρύθμιση και εγκατάσταση

Before installing the battery, ensure your device is powered off and disconnected from any power source.

1. Επαλήθευση συμβατότητας: Confirm that the battery's dimensions and voltage (3.7V) are compatible with your device.
2. Προετοιμασία συνδέσεων: If soldering is required, ensure you have the necessary tools and expertise.
3. Σύνδεση καλωδίων: Carefully connect the battery wires to your device, paying close attention to polarity. The Κόκκινος wire connects to the positive (+) terminal, and the Μαύρος wire connects to the negative (–) τερματικό.
4. Αποτρέψτε τα βραχυκυκλώματα: Double-check all connections to ensure no bare wires are touching each other or any conductive surfaces.
5. Ασφαλής μπαταρία: Once connected, secure the battery within your device to prevent movement or damage during use.

4. Οδηγίες λειτουργίας

This battery is designed for use in various portable electronic devices that require a 3.7V lithium polymer power source. Common applications include:

• Κάμερες
• Ψηφιακές συσκευές
• Μονάδες GPS
• Ακουστικά Bluetooth
• Tablet PCs
• Έξυπνα ρολόγια
• Car recorders
• Bluetooth ear plugs
• WiFi transmitters
• Συστήματα οικιακής ασφάλειας

Εικόνα 4.1: Examples of devices compatible with the Liter energybattery 606090.

4.1 Αρχική φόρτιση

Before first use, fully charge the battery using a compatible Li-Po charger. Refer to the charger's instructions for proper operation.

4.2 Regular Use

Once installed and charged, the battery will power your device. Monitor your device's battery indicator to determine when recharging is necessary. Avoid completely draining the battery to prolong its lifespan.

5. Συντήρηση και αποθήκευση

5.1 Γενική Συντήρηση

• Regularly inspect the battery for any signs of damage or swelling. Discontinue use immediately if any issues are observed.
• Keep the battery clean and dry. Avoid contact with liquids.
• Follow the suggestions in this manual to extend the life of your battery.

5.2 Μακροχρόνια αποθήκευση

For optimal battery health during long-term storage:

• Επίπεδο χρέωσης: Store the battery at approximately 40-60% charge. This typically corresponds to a voltage μεταξύ 3.7V και 4.0V.
• Κύκλος επαναφόρτισης: If storing for an extended period, we recommend charging the battery to the 40-60% level every 3 months.
• Περιβάλλον αποθήκευσης: Store the battery in a cool, dry place, away from direct sunlight, heat sources, and flammable materials.

6. Αντιμετώπιση Προβλημάτων

If you experience issues with your Liter energybattery, consider the following troubleshooting steps:

• Η μπαταρία δεν φορτίζεται:
  • Ensure the charger is properly connected and functioning.
  • Verify that you are using a compatible Li-Po charger.
  • Ελέγξτε για τυχόν ορατές ζημιές στην μπαταρία ή στα καλώδια φόρτισης.
• Η συσκευή δεν ενεργοποιείται:
  • Επιβεβαιώστε ότι η μπαταρία είναι πλήρως φορτισμένη.
  • Double-check all connections for correct polarity (Red to +, Black to –) and secure contact.
  • Ensure the battery is properly seated in the device.
• Μικρή διάρκεια ζωής μπαταρίας:
  • Ensure the battery is being charged fully each time.
  • Review maintenance and storage guidelines to ensure proper care.
  • Consider the age of the battery; all rechargeable batteries have a finite lifespan.

Εάν τα προβλήματα επιμένουν αφού επιχειρήσετε αυτά τα βήματα, επικοινωνήστε με την υποστήριξη πελατών.

7. Προδιαγραφές

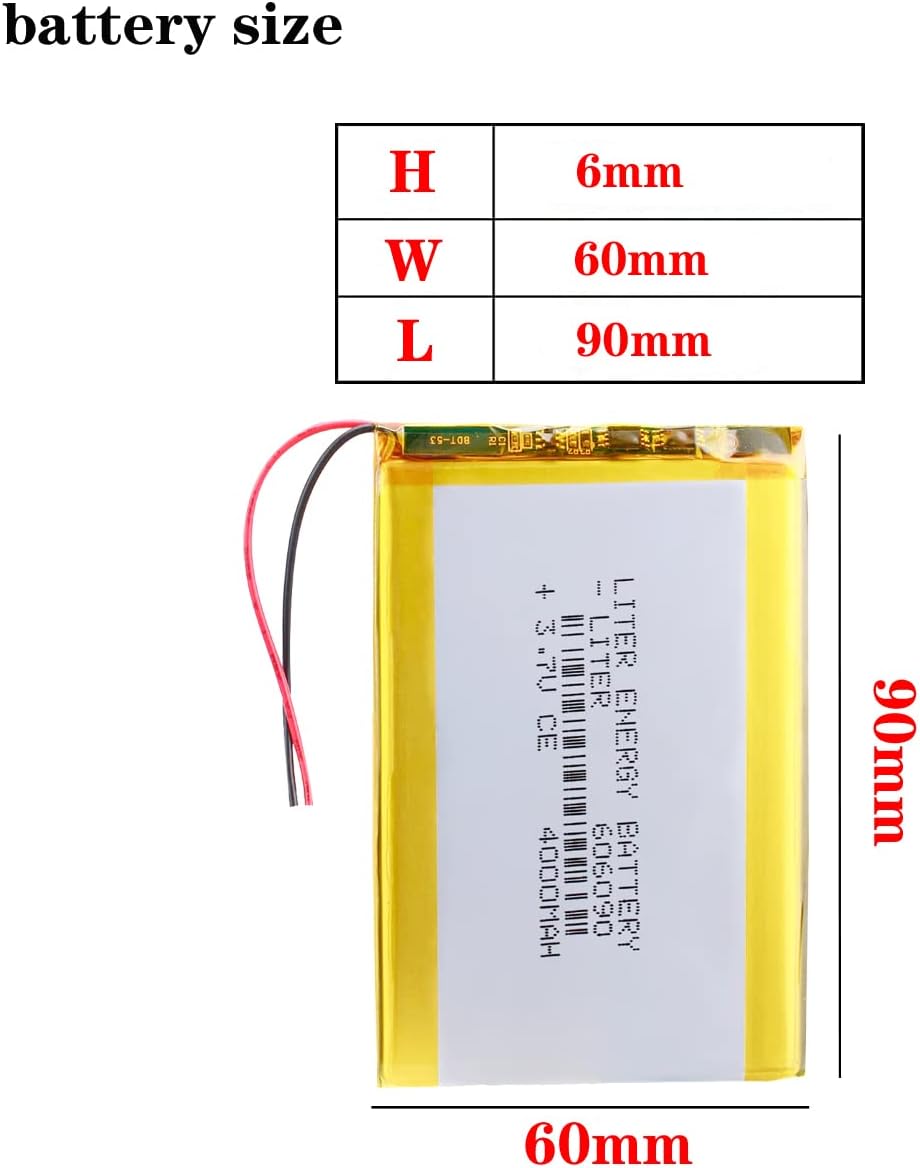

Εικόνα 7.1: Detailed dimensions of the Liter energybattery 606090.

8. Εγγύηση και υποστήριξη

For any questions or concerns regarding your Liter energybattery 3.7V Lipo Battery 4000mAh 606090, please contact us directly via Amazon message. Our support team is available to assist you with product inquiries, technical support, and warranty claims.
