Εισαγωγή
This manual provides essential instructions for the safe and effective use of the Liter Energy Battery 402025 LiPo 3.7V 135mAh rechargeable lithium polymer battery. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your battery.
Πληροφορίες Ασφάλειας
Lithium Polymer (LiPo) batteries require careful handling. Adhere to the following safety guidelines:
- Θερμοκρασία: Do not expose the battery to high temperatures, direct sunlight, or heat sources.
- Διάθεση: Μην πετάτε την μπαταρία σε φωτιά ή νερό.
- Φόρτιση: Avoid overcharging or over-discharging the battery. Use only compatible chargers.
- Φυσική βλάβη: Do not puncture, disassemble, or modify the battery. If the battery swells, leaks, or shows any signs of damage, discontinue use immediately and dispose of it properly.
- Static Sensitivity: This device is static sensitive. Handle with care and avoid unnecessary contact with the terminals.
- Αρμονία: This battery has a discharge rate below 5C and is δεν είναι κατάλληλο for high-current applications such as RC drones, RC cars, RC planes, or RC boats. Using it in such devices may result in insufficient power delivery and potential damage.
Image: Warning label indicating the battery is a static-sensitive device and should not be handled by unauthorized personnel.
Προϊόν Πάνωview
The Liter Energy Battery 402025 is a compact 3.7V 135mAh LiPo battery designed for various portable electronic devices. It features an integrated Protection Circuit Module (PCM) to safeguard against common battery issues.

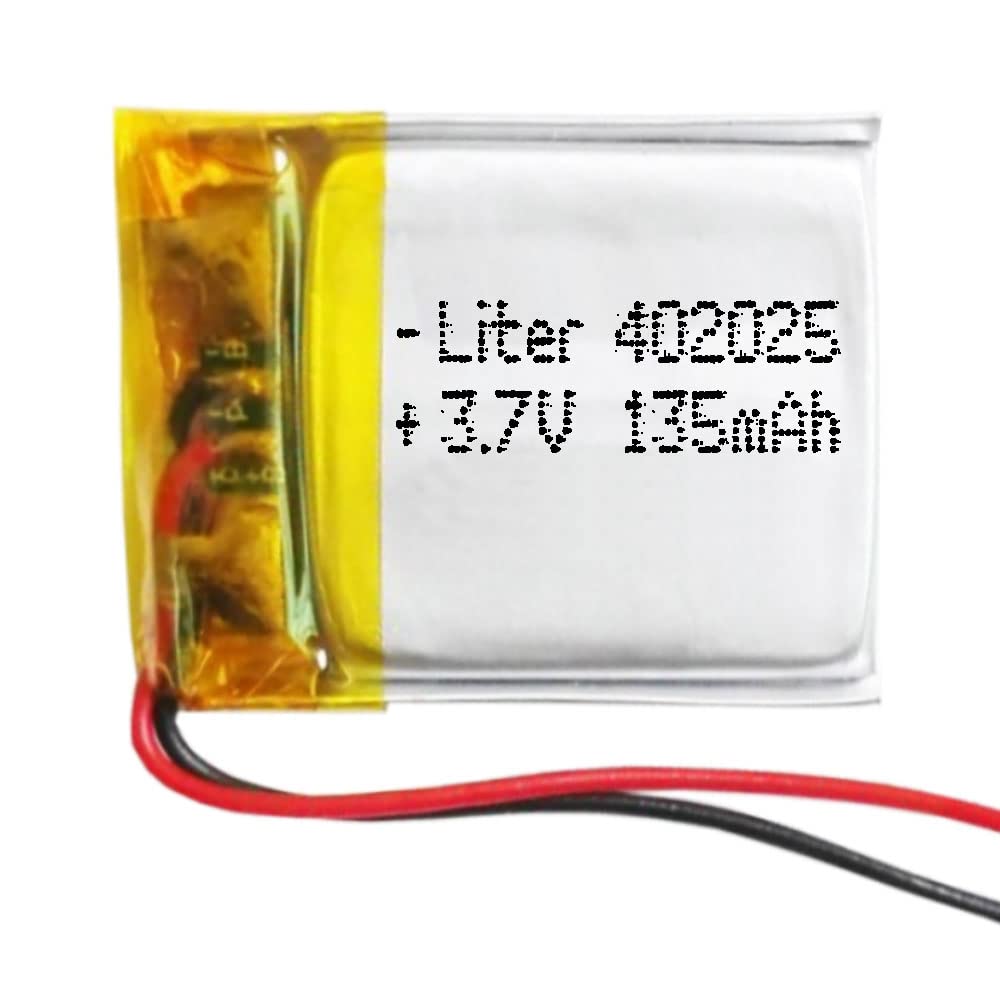

Εικόνα: Ένας στρατηγός view of the Liter Energy Battery 402025, showing its compact size and red/black wires.
Διαστάσεις
The battery measures approximately 27mm x 20mm x 4mm.
Image: Diagram illustrating the dimensions of the 402025 battery: 27mm length, 20mm width, and 4mm thickness, with a 25mm cable length.
Protection Circuit Module (PCM)
The integrated PCM provides multiple layers of protection:
- Προστασία από υπερφόρτιση
- Προστασία από υπερβολική εκφόρτιση
- Προστασία από υπερένταση
- Προστασία από βραχυκύκλωμα
- Προστασία από υπέρβαση θερμοκρασίας
Εικόνα: Μια έκρηξη view diagram showing the internal components of the LiPo battery, including the LiPo cell, Kapton adhesive, and the PCM with its two cables (positive red, negative black).
Προδιαγραφές
Image: A table detailing the product parameters for the LiPo 3.7V 135mAh battery, including rated capacity, nominal voltage, discharge cut-off voltage, φόρτιση τόμtage, internal impedance, standard charge/discharge, fast charge/discharge, maximum continuous charge/discharge current, and operating/storage temperature ranges.
| Παράμετρος | Αξία |
|---|---|
| Αριθμός μοντέλου | 402025 |
| Τύπος μπαταρίας | Πολυμερές λιθίου (LiPo) |
| Nominal Voltage | 3.7 V |
| Ονομαστική χωρητικότητα | 135 mAh |
| Διαστάσεις (Μ x Π x Υ) | 27 x 20 x 4 mm (± 0.5 mm) |
| Βάρος | 4 γρ |
| Κύκλωμα προστασίας | Integrated PCM (Overcharge, Over-discharge, Overcurrent, Short-circuit, Over-temperature) |
| Ποσοστό εκφόρτισης | Κάτω από 5 C |
| Επαναχρησιμοποίηση | Επαναφορτιζόμενη |
| Συμβατές Συσκευές | Mobile phones, web phones, intercoms, Bluetooth headsets, notebooks, PDAs, portable electrographs, portable printers, GPS, digital cameras, camcorders, portable DVDs, portable TVs, MP3, MP4 players, miner's lamps, reflectors, toys. |
| Non-Compatible Devices | RC drones, RC cars, RC planes, RC boats (due to low C-rating). |
Ρύθμιση
- Επαλήθευση συμβατότητας: Before installation, ensure the physical dimensions (27x20x4mm) and electrical specifications (3.7V, 135mAh) of this battery are compatible with your device's requirements.
- Προετοιμασία συσκευής: Power off your device and open the battery compartment according to your device's instructions.
- Σύνδεση μπαταρίας: Carefully connect the battery's positive (red) wire to the corresponding positive terminal and the negative (black) wire to the negative terminal of your device. Ensure connections are secure and correct polarity is maintained.
- Ασφαλής μπαταρία: Place the battery securely within the compartment, ensuring no wires are pinched or damaged. Close the battery compartment.
Image: Visual representation of compatible devices (e.g., phones, smartwatches, GPS) and non-compatible devices (e.g., RC drones, cars, planes, boats) for the battery.
Οδηγίες Λειτουργίας
Φόρτιση
- Use only the original charger or a compatible LiPo battery charger designed for 3.7V single-cell batteries.
- Connect the charger to the battery and a power source.
- Monitor the charging process. Disconnect the charger once the battery is fully charged to prevent overcharging. The PCM will provide protection, but it is best practice to avoid prolonged charging after full capacity is reached.
- Typical charge time is approximately 2-3 hours for a standard charge (0.2C). Fast charge (0.5C) takes approximately 1.2 hours.
Χρήση
- Operate the battery within its specified operating temperature range (Charge: 0-45°C, Discharge: -20-60°C).
- Avoid deep discharge. The PCM will cut off power at 3.0V to protect the battery.
- Do not exceed the maximum continuous discharge current (1C).
Συντήρηση
- Αποθήκευση: Store the battery in a cool, dry place, away from direct sunlight, moisture, and extreme temperatures. For long-term storage (less than 1 year), maintain a temperature of 20-25°C. For shorter periods (less than 3 months), store at 20-40°C.
- Επίπεδο φόρτισης για αποθήκευση: For optimal long-term storage, keep the battery at a partial charge (around 3.7V - 3.8V), not fully charged or fully discharged.
- Καθάρισμα: Keep battery terminals clean and free from dirt or corrosion.
- Επιθεώρηση: Periodically inspect the battery for any signs of swelling, leakage, or physical damage.
Αντιμετώπιση προβλημάτων
- Η μπαταρία δεν φορτίζεται:
- Βεβαιωθείτε ότι ο φορτιστής είναι σωστά συνδεδεμένος τόσο στην μπαταρία όσο και στην πηγή τροφοδοσίας.
- Verify that the charger is compatible with 3.7V LiPo batteries.
- Ελέγξτε για τυχόν ορατές ζημιές στην μπαταρία ή στα καλώδια φόρτισης.
- Σύντομος χρόνος λειτουργίας:
- Βεβαιωθείτε ότι η μπαταρία είναι πλήρως φορτισμένη πριν τη χρήση.
- The battery may be nearing the end of its lifespan.
- The device's power consumption might be higher than expected.
- Η συσκευή δεν ενεργοποιείται:
- Confirm that the battery is correctly installed and the wires are securely connected with correct polarity.
- Ελέγξτε εάν η μπαταρία έχει επαρκή φόρτιση.
- Rule out other potential issues with the device itself.
Εγγύηση και υποστήριξη
For customer service inquiries, warranty claims, or technical support, please contact the manufacturer directly.
- Webτοποθεσία: thestock.es
- Τηλέφωνο: (+34) 699 345 747
Information regarding spare parts availability is currently not provided by the manufacturer.
