Εγχειρίδιο οδηγιών για τα πίσω φώτα LED 6 ιντσών με οβάλ βέλος TMH (2 τεμάχια)

1. Εισαγωγή

Thank you for choosing TMH 6-Inch Oval Arrow LED Red Tail Lights. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new lights. Please read these instructions thoroughly before installation and retain this manual for future reference. These lights are designed for use as tail lights and turn signals on various vehicles including trucks, trailers, buses, and dump trucks, operating on a 12V DC system.

Εικόνα 1.1: TMH 6-Inch Oval Arrow LED Red Tail Lights. This image displays two red oval LED lights, each featuring an arrow pattern. Four mounting screws are visible in the foreground.

Each light features 25 super bright F3 Piranha LEDs arranged in an arrow pattern, providing clear visibility and signaling.

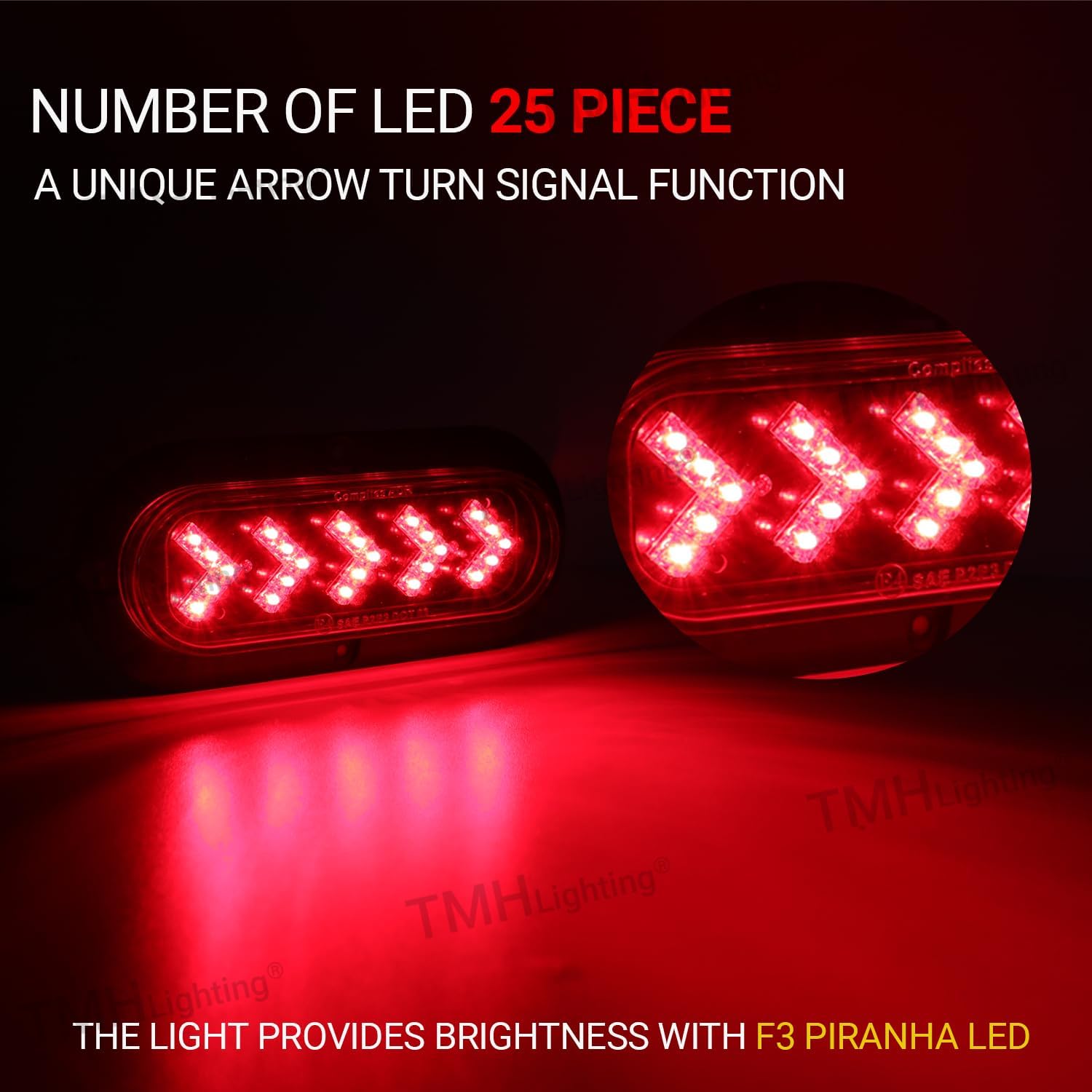

Εικόνα 1.2: LED Count and Arrow Pattern. This image provides a close-up view of the light's lens, clearly showing the 25 individual F3 Piranha LEDs arranged to form a distinct arrow shape.

Εικόνα 1.3: F3 Piranha LED. This image shows a detailed view of the F3 Piranha LED component used in the lights, known for its brightness and durability.

2. Πληροφορίες Ασφάλειας

• Αποσυνδέετε πάντα την μπαταρία του οχήματος πριν από οποιαδήποτε ηλεκτρική εργασία για να αποφύγετε ηλεκτροπληξία ή βραχυκύκλωμα.
• Ensure all wiring connections are secure and properly insulated to prevent corrosion and electrical faults.
• Βεβαιωθείτε ότι ο λειτουργικός τόμοςtage of your vehicle is 12V DC. Connecting to an incorrect voltage may damage the lights.
• Να φοράτε κατάλληλο ατομικό προστατευτικό εξοπλισμό, όπως γυαλιά ασφαλείας και γάντια, κατά την εγκατάσταση.
• Do not modify the lights or their components. Unauthorized modifications may void the warranty and create safety hazards.
• If you are unsure about any part of the installation process, consult a qualified automotive electrician.

3. Περιεχόμενα συσκευασίας

Το πακέτο περιλαμβάνει τα ακόλουθα είδη:

• 2 x TMH 6-Inch Oval Arrow LED Red Tail Lights
• 4 x Βίδες στερέωσης

4. Προδιαγραφές

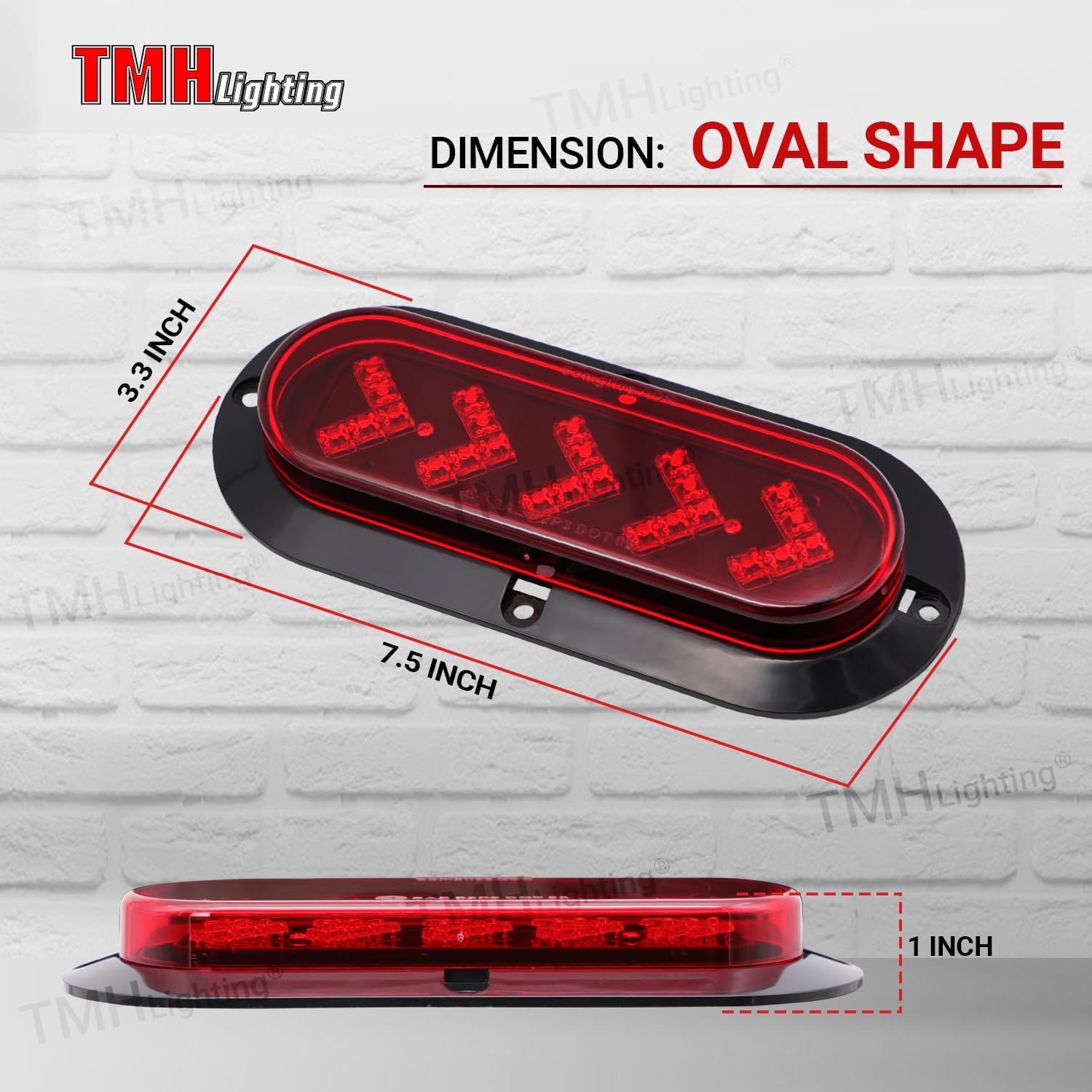

Εικόνα 4.1: Product Dimensions. This diagram illustrates the oval shape and measurements of the light, indicating a length of 7.5 inches, a width of 3.3 inches, and a depth of 1 inch.

5. Εγκατάσταση

5.1 Έλεγχος προεγκατάστασης

• Ensure the mounting surface is clean, flat, and free from obstructions.
• Confirm that the vehicle's electrical system is 12V DC.
• Gather necessary tools: drill, screwdriver, wire strippers, crimpers, electrical tape or heat shrink tubing.

5.2 Οδηγίες τοποθέτησης

1. Position the light on the desired surface. Ensure the arrow pattern is oriented correctly for the intended signal direction.
2. Mark the locations for the four mounting screws.
3. Drill pilot holes if necessary, ensuring they are appropriately sized for the provided screws.
4. Secure the light to the surface using the provided mounting screws. Do not overtighten.

5.3 Διάγραμμα καλωδίωσης και συνδέσεις

The TMH LED Tail Lights feature a 3-wire connection system for dual-functionality (low brightness for tail light, high brightness for brake/turn signal).

• Μαύρο σύρμα: Γήπεδο (-)
• Κόκκινο σύρμα: Low Brightness (Tail Light / Running Light) (+)
• Λευκό σύρμα: High Brightness (Brake Light / Turn Signal) (+)

1. Συνδέστε το Μαύρο σύρμα from the light to the vehicle's chassis ground or negative (-) terminal.
2. Συνδέστε το Κόκκινο σύρμα from the light to the vehicle's tail light or running light positive (+) circuit. This will activate the low brightness mode.
3. Συνδέστε το Λευκό σύρμα from the light to the vehicle's brake light or turn signal positive (+) circuit. This will activate the high brightness mode.
4. Ensure all connections are secure and protected from moisture and abrasion using electrical tape or heat shrink tubing.

Εικόνα 5.1: Wiring Diagram. This image illustrates the three-wire connection: black for ground, red for low brightness (tail light), and white for high brightness (brake/turn signal).

Εικόνα 5.2: Two-Step Brightness Function. This image demonstrates the difference between the low brightness (Step 1) and high brightness (Step 2) modes of the LED light.

6. Λειτουργία

Once properly installed and wired, the TMH 6-Inch Oval Arrow LED Red Tail Lights will operate as follows:

• When the vehicle's running lights or tail lights are activated, the lights will illuminate at χαμηλή φωτεινότητα (via the Red wire connection).
• When the vehicle's brake pedal is pressed or the turn signal is activated, the lights will illuminate at υψηλή φωτεινότητα (via the White wire connection). If used as a turn signal, the high brightness will flash according to the vehicle's flasher relay.

Σημείωμα: If you intend to use these lights solely as turn signals or emergency lights, a flasher relay or controller (not included) may be required for proper flashing functionality.

7. Συντήρηση

The TMH LED Tail Lights are designed for durability and minimal maintenance.

• Καθάρισμα: Clean the lens periodically with a soft cloth and mild soap and water to ensure maximum light output. Avoid abrasive cleaners or solvents.
• Επιθεώρηση: Regularly inspect the lights and wiring for any signs of damage, loose connections, or corrosion. Address any issues promptly to maintain optimal performance and safety.
• Αντοχή στις καιρικές συνθήκες: These lights are waterproof, shockproof, and dustproof, designed to withstand various environmental conditions.

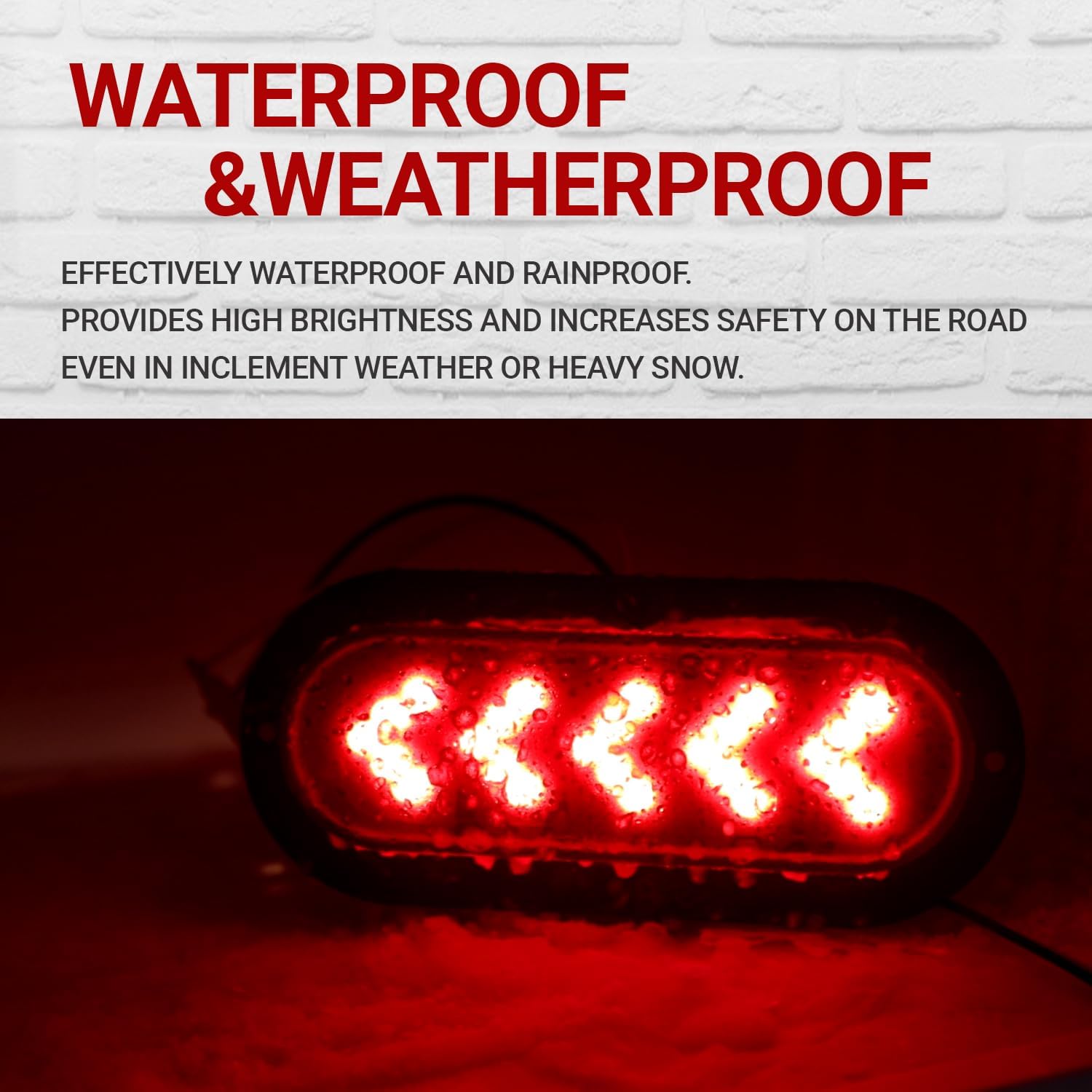

Εικόνα 7.1: Waterproof and Weatherproof Design. This image shows the light being exposed to water, highlighting its resistance to environmental elements.

8. Αντιμετώπιση Προβλημάτων

If you encounter issues with your TMH LED Tail Lights, refer to the following troubleshooting guide:

If troubleshooting steps do not resolve the issue, please contact TMH customer support.

9. Εγγύηση και υποστήριξη

9.1 Πληροφορίες εγγύησης

TMH provides a 1-year Premium TMH warranty for these LED Tail Lights, covering free replacement for manufacturing defects. Please retain your proof of purchase for warranty claims.

9.2 Υποστήριξη πελατών

For technical assistance, warranty claims, or any questions regarding your TMH product, please visit the official TMH webιστότοπο ή επικοινωνήστε με το τμήμα εξυπηρέτησης πελατών τους.

TMH Brand Store: https://www.amazon.com/stores/TMH/page/47AA2177-AADC-4F12-A7C1-4D521FE33484
