SCHMETZ Universal Machine Needles User Manual

1. Εισαγωγή

This manual provides essential information for the proper use, installation, and maintenance of SCHMETZ Universal Machine Needles, Size 80/12. These needles are designed for general sewing applications across a wide range of woven and knit materials, making them a versatile choice for household sewing machines.

2. Το προϊόν τελείωσεview

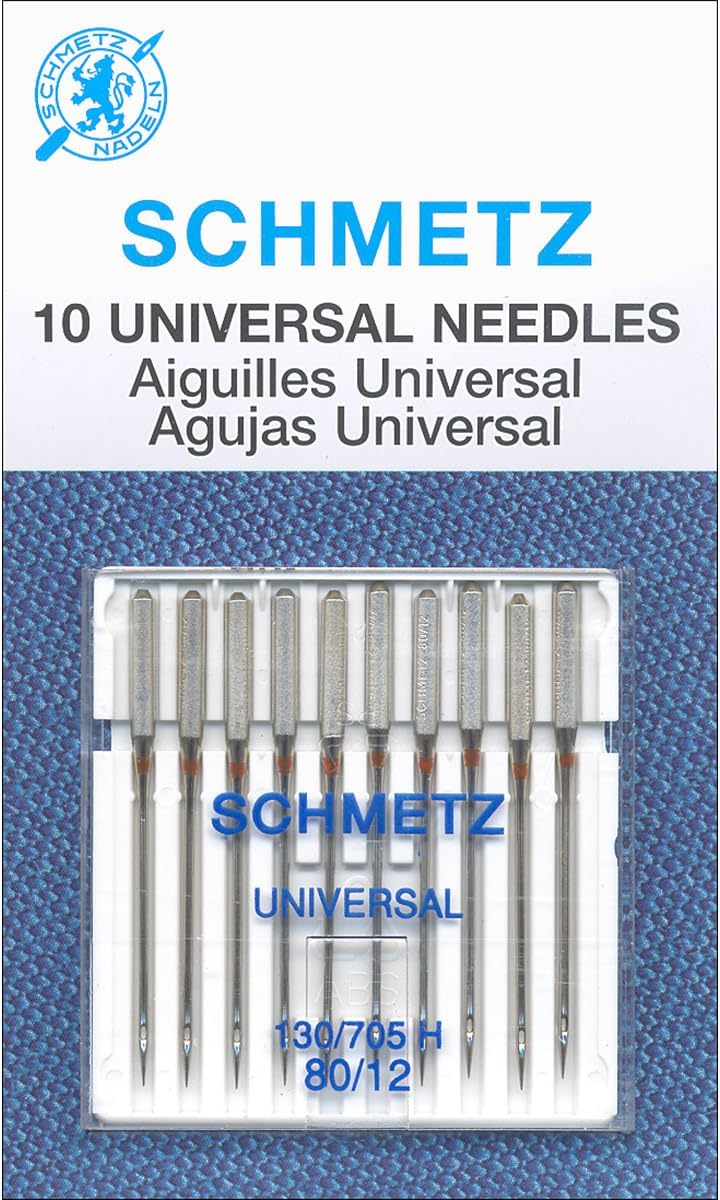

The SCHMETZ Universal Machine Needles package contains ten (10) needles of size 80/12. This size is suitable for general sewing tasks on light to medium weight fabrics. The needles feature a slightly rounded point, allowing them to penetrate woven fabrics without damaging threads and to push aside knit fibers without breaking them.

Each needle is precisely manufactured to ensure consistent quality and performance. The shank of the needle is flat on one side, ensuring correct insertion into household sewing machines. The needle size (80/12) is typically marked on the needle shank for easy identification.

3. Προδιαγραφές

4. Οδηγός εγκατάστασης

Proper needle installation is crucial for optimal sewing performance and to prevent damage to your machine or fabric. Always refer to your sewing machine's specific instruction manual for detailed steps, as procedures may vary slightly between models.

1. Απενεργοποιώ: Ensure your sewing machine is turned off and unplugged from the power outlet before changing the needle. This prevents accidental operation and potential injury.
2. Κάτω Ποδαράκι Πίεσης: Lower the presser foot to provide better access to the needle clamp έκταση.
3. Χαλαρώστε τη βελόνα Clamp Βίδα: Εντοπίστε τη βελόνα clamp screw on the needle bar. Use the screwdriver provided with your machine (or a suitable small screwdriver) to loosen this screw. Do not remove it completely.
4. Αφαιρέστε την παλιά βελόνα: Τραβήξτε προσεκτικά την παλιά βελόνα προς τα κάτω και έξω από τη βελόνα.amp. Dispose of used needles safely in a sharps container or a dedicated needle disposal box.
5. Εισαγωγή νέας βελόνας: Take a new SCHMETZ Universal Needle. The needle has a flat side on the shank. Insert the needle into the needle clamp με την επίπεδη πλευρά στραμμένη προς το πίσω μέρος του μηχανήματος (ή όπως καθορίζεται στο εγχειρίδιο του μηχανήματός σας). Πιέστε τη βελόνα προς τα πάνω όσο περισσότερο γίνεται μέσα στο clamp.
6. Σφίξτε τη βελόνα Clamp Βίδα: Κρατώντας σταθερά τη βελόνα στη θέση της, σφίξτε τη βελόναamp screw securely. Do not overtighten, as this can damage the screw or the needle.
7. Δοκιμή: Plug in and turn on your machine. Manually turn the handwheel a few times to ensure the needle moves freely and does not strike any part of the machine.

5. Οδηγίες χρήσης

SCHMETZ Universal Needles are highly versatile, but understanding their optimal use can enhance your sewing results.

• Συμβατότητα υφάσματος: These needles are suitable for a wide range of woven fabrics such as cotton, linen, broadcloth, and poplin, as well as knits like jersey and interlock. For very delicate or very heavy fabrics, specialized needles (e.g., Microtex, Denim) may yield better results.
• Needle Size Selection: The 80/12 size is a good all-purpose choice for medium-weight fabrics and threads. For finer fabrics or threads, a smaller needle size (e.g., 70/10) might be preferred. For heavier fabrics or threads, a larger size (e.g., 90/14) would be more appropriate.
• Τακτική αντικατάσταση: Needles dull and bend over time, even if not visibly damaged. A general rule of thumb is to change your needle after every 8 hours of sewing or at the start of a new project. A dull or bent needle can cause skipped stitches, fabric damage, or even needle breakage.
• Matching Thread: Always use a thread size appropriate for your needle size. Thread that is too thick for the needle eye can cause friction, shredding, and breakage.

6. Συντήρηση και αποθήκευση

Proper care and storage will extend the life of your needles and ensure they are ready for your next project.

• Καθαριότητα: Keep needles clean and free from lint and adhesive residue. A small brush can be used to gently clean the needle eye and shaft.
• Ξηρή αποθήκευση: Store needles in a dry environment to prevent rust. The original plastic case is ideal for this purpose.
• Ασφαλής απόρριψη: Never dispose of used needles directly into household trash. Use a dedicated sharps container, a hard plastic bottle with a secure lid, or a commercial needle disposal box.
• Επιθεώρηση: Before each use, quickly inspect the needle for any signs of bending, burrs, or a dull point. Run your fingernail gently down the point; if it snags, the needle is dull and should be replaced.

7. Αντιμετώπιση προβλημάτων κοινών προβλημάτων

Many common sewing problems can be attributed to the needle. Here are some issues and their potential needle-related causes:

If you experience any of these issues, the first step is often to replace the needle with a new, correct type and size SCHMETZ Universal Needle.

8. Προφυλάξεις ασφαλείας

Sewing machine needles are sharp and can cause injury if not handled properly.

• Always turn off and unplug your sewing machine before changing needles or performing any maintenance.
• Handle needles by the shank whenever possible to avoid pricking your fingers.
• Keep needles out of reach of children and pets.
• Dispose of used or broken needles safely in a puncture-proof container.
• Never sew over pins, as this can cause the needle to break and potentially send fragments flying.

9. Υποστήριξη

For further assistance or information regarding SCHMETZ products, please visit the official SCHMETZ website or consult your sewing machine's manual for specific needle compatibility and installation instructions.

Μπορείτε επίσης να επισκεφθείτε το SCHMETZ Store on Amazon για περισσότερα προϊόντα και πόρους.
