Hoteche A832690A 26 Gallon Silent Oil-Free Air Compressor User Manual

Einführung

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Hoteche A832690A 26 Gallon Silent Oil-Free Air Compressor. Please read all instructions carefully before using the product to ensure proper function and to prevent injury or damage.

The Hoteche A832690A is a 26-gallon (100L) silent, oil-free air compressor designed for professional environments. It features three 1.8HP motors (total 5.4HP) and dual cylinders, delivering a high air flow of 425 L/Min (15 CFM) at a maximum pressure of 115 PSI (8 Bar). Its ultra-quiet operation and maintenance-free design make it suitable for workshops, industrial painting, and various air tools.

Sicherheitshinweise

WARNING: Read and understand all instructions before using this air compressor. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

Allgemeine Sicherheitsregeln

• Sicherheit am Arbeitsplatz: Halten Sie den Arbeitsbereich sauber und gut beleuchtet. Unordnung oder Dunkelheit erhöhen die Unfallgefahr. Betreiben Sie Elektrowerkzeuge nicht in explosionsgefährdeten Bereichen, z. B. in der Nähe von brennbaren Flüssigkeiten, Gasen oder Stäuben.
• Elektrische Sicherheit: Der Stecker des Elektrowerkzeugs muss zur Steckdose passen. Verändern Sie den Stecker niemals. Gehen Sie sorgsam mit dem Kabel um. Verwenden Sie das Kabel niemals zum Tragen, Ziehen oder Ausstecken des Elektrowerkzeugs. Halten Sie das Kabel von Hitze, Öl, scharfen Kanten und beweglichen Teilen fern.
• Persönliche Sicherheit: Always wear eye protection. Use hearing protection when operating the compressor. Dress properly. Do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
• Compressor Specific Safety:
  • Do not direct air stream at people or animals.
  • Überschreiten Sie nicht den maximalen Betriebsdruck von Druckluftwerkzeugen oder Zubehörteilen.
  • Stellen Sie sicher, dass der Kompressor auf einer stabilen, ebenen Fläche steht.
  • Regularly drain condensation from the air tank to prevent corrosion.
  • Versuchen Sie niemals, das Druckbegrenzungsventil zu reparieren oder zu verändern.
  • Vor jeglichen Wartungs- oder Einstellungsarbeiten die Stromzufuhr unterbrechen.

Produktkomponenten und mehrview

Familiarize yourself with the main parts of your Hoteche air compressor.

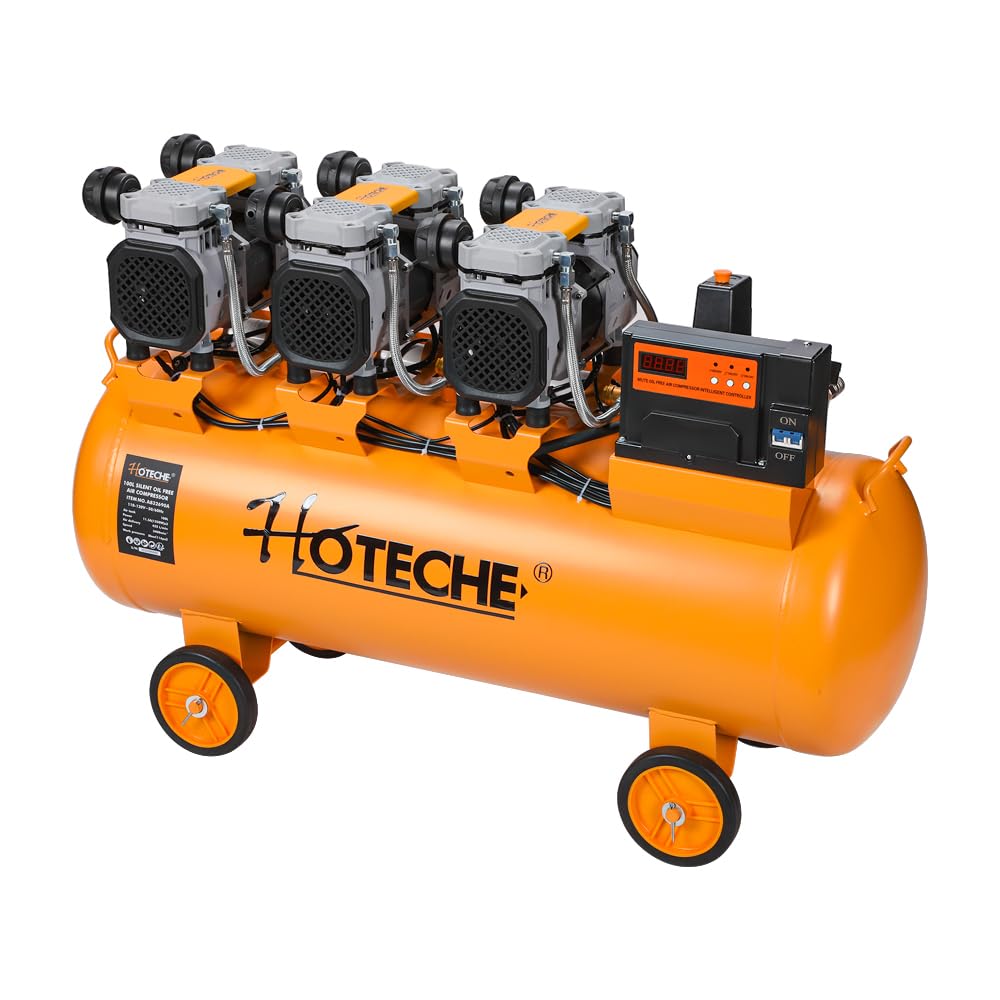

Abbildung 1: Gesamt view of the Hoteche 26 Gallon Silent Oil-Free Air Compressor. This image displays the main body, tank, motor assembly, and control panel from a front perspective.

Abbildung 2: Seite view of the air compressor, highlighting the control panel, pressure gauges, and air outlets. This view provides a clearer look at the operational interface.

Abbildung 3: Detaillierte view of the pressure gauge and safety valve. The pressure gauge indicates the tank pressure, while the safety valve is a critical component for preventing over-pressurization.

Abbildung 4: An internal perspective showing the triple motor and dual cylinder assembly. This illustrates the core components responsible for air compression.

Abbildung 5: The air compressor equipped with wheels, demonstrating its portability for easy movement within a workspace.

Installationsanweisungen

Befolgen Sie diese Schritte, um Ihren Luftkompressor für den ersten Gebrauch vorzubereiten.

1. Auspacken: Carefully remove the compressor from its packaging. Inspect for any shipping damage. Report any damage to the carrier immediately.
2. Räder anbringen: The compressor comes with wheels for portability. Attach the wheels to the designated mounting points on the tank using the provided hardware. Ensure they are securely fastened.
3. Positionierung: Place the compressor on a firm, level surface in a clean, well-ventilated area. Ensure there is adequate space around the unit for air circulation and to prevent overheating.
4. Elektrischer Anschluss: Überprüfen Sie, ob die Stromversorgungsspannungtage matches the compressor's requirements (120 Volts AC). Plug the power cord into a grounded electrical outlet. Do not use extension cords unless absolutely necessary, and ensure any used extension cord is rated for the compressor's power requirements.
5. Check Drain Valve: Ensure the tank drain valve (located at the bottom of the tank) is closed before starting the compressor.

Bedienungsanleitung

This section details how to operate your Hoteche air compressor safely and effectively.

Starten des Kompressors

1. Ensure all connections are secure and the drain valve is closed.
2. Turn the power switch to the 'ON' position. The motors will start, and the tank will begin to pressurize.
3. Allow the compressor to run until it reaches its maximum pressure (115 PSI / 8 Bar) and automatically shuts off. This indicates the tank is full.

Anschluss von Druckluftwerkzeugen

1. Attach your air hose to the compressor's air outlet.
2. Connect your desired air tool to the other end of the air hose.
3. Adjust the regulator knob (if present) to set the desired working pressure for your tool. Refer to your air tool's manual for recommended pressure settings.

Herunterfahren

1. Schalten Sie den Netzschalter in die Position „AUS“.
2. Disconnect the air hose and air tool.
3. Slowly open the tank drain valve to release all air pressure from the tank. This is crucial for safety and to prevent moisture buildup.
4. Once the tank is fully depressurized, close the drain valve.

Abbildung 6: Examples of common applications for the Hoteche air compressor, including tire inflation, auto repair, spray painting, and woodworking nailing.

Wartung

Regular maintenance ensures the longevity and optimal performance of your oil-free air compressor.

• Daily: Drain Condensation: After each use, or at least daily, open the tank drain valve to release any accumulated moisture. This prevents rust and corrosion inside the tank. Ensure the tank is depressurized before draining.
• Weekly: Inspect Air Filter: Check the air intake filter for dust and debris. Clean or replace if necessary to ensure proper airflow to the motors. A clogged filter can reduce efficiency and cause overheating.
• Monthly: Check for Leaks: With the compressor pressurized, apply a soapy water solution to all fittings, hoses, and connections. Bubbles indicate air leaks. Tighten connections or replace faulty parts as needed.
• Allgemeine Reinigung: Keep the exterior of the compressor clean. Wipe down with a damp cloth. Do not use harsh chemicals or solvents. Ensure cooling fins on the motors are free from dust and obstructions to maintain proper heat dissipation.
• Ölfreies Design: This compressor features an oil-free pump, eliminating the need for oil changes or oil level checks. This simplifies maintenance significantly.

Fehlerbehebung

In dieser Tabelle finden Sie häufig auftretende Probleme und deren Lösungen.

Technische Daten

Key technical specifications for the Hoteche A832690A Air Compressor.

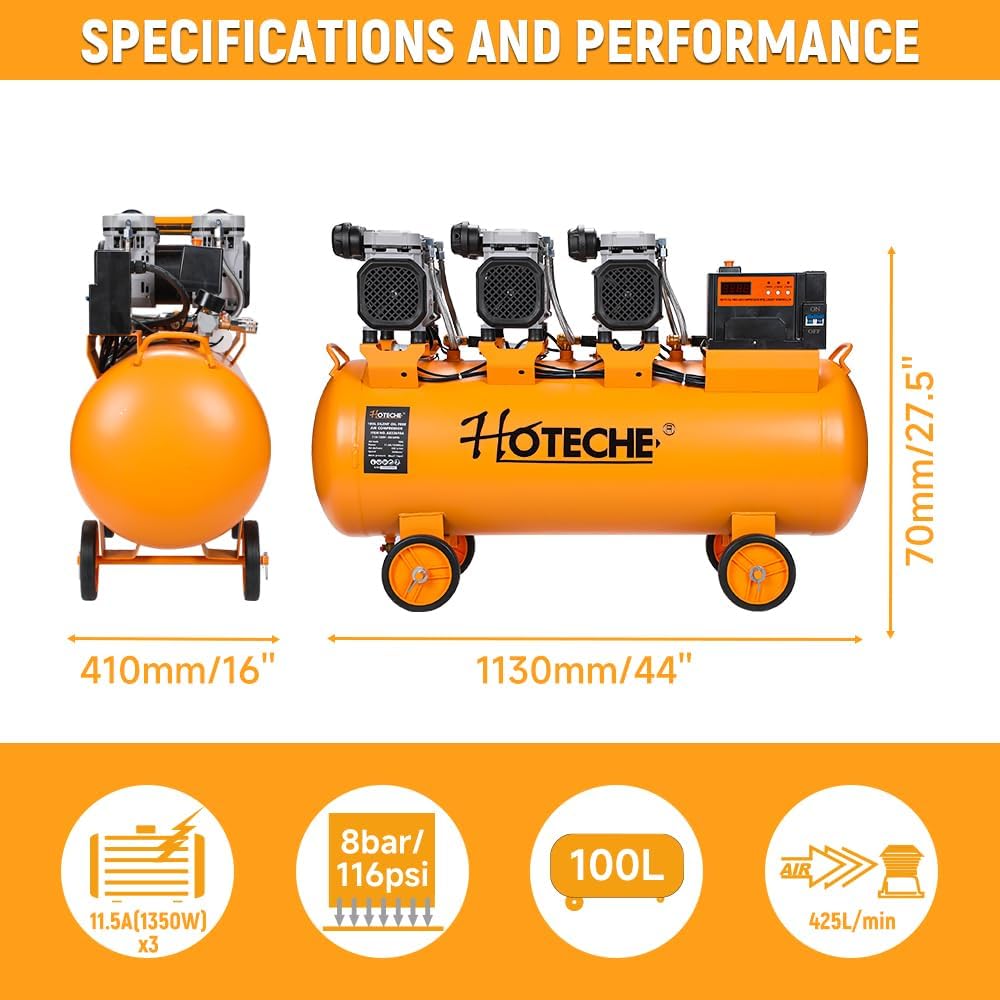

Abbildung 7: Visual representation of the compressor's dimensions and key performance specifications, including power, pressure, tank capacity, and airflow.

Garantie und Support

For warranty information, technical assistance, or to order replacement parts, please contact Hoteche customer support. Keep your purchase receipt as proof of purchase for any warranty claims.

Contact information for Hoteche customer support can typically be found on the product packaging, the official Hoteche webWebsite oder über Ihren Händler.
