JolyWell 2-in-1 Laser-Maßband (Modell JW-MT002) Bedienungsanleitung

1. Einleitung

This manual provides detailed instructions for the safe and effective use of your JolyWell 2-in-1 Laser Tape Measure, Model JW-MT002. This device combines a 131ft (40m) laser distance meter with a 16ft (5m) traditional self-locking tape measure, offering versatility for various measurement tasks in construction, DIY projects, and woodworking.

2. Sicherheitshinweise

WARNING: Read all safety warnings and instructions before using this product.

• Dieses Gerät emittiert einen Laser der Schutzklasse II. Schauen Sie nicht direkt in den Laserstrahl. Vermeiden Sie direkten Augenkontakt.
• Do not attempt to disassemble or modify the device. Unauthorized modifications can result in hazardous radiation exposure.
• Bewahren Sie das Gerät außerhalb der Reichweite von Kindern auf.
• Verwenden Sie das Gerät nur für den vorgesehenen Zweck, wie in dieser Anleitung beschrieben.
• Ensure the work area is clear of obstacles and hazards when taking measurements.
• Schützen Sie das Gerät vor extremen Temperaturen, Feuchtigkeit und starken Stößen.

3. Produktüberschreitungview

The JolyWell 2-in-1 Laser Tape Measure integrates both laser and traditional tape measurement capabilities into a single compact unit.

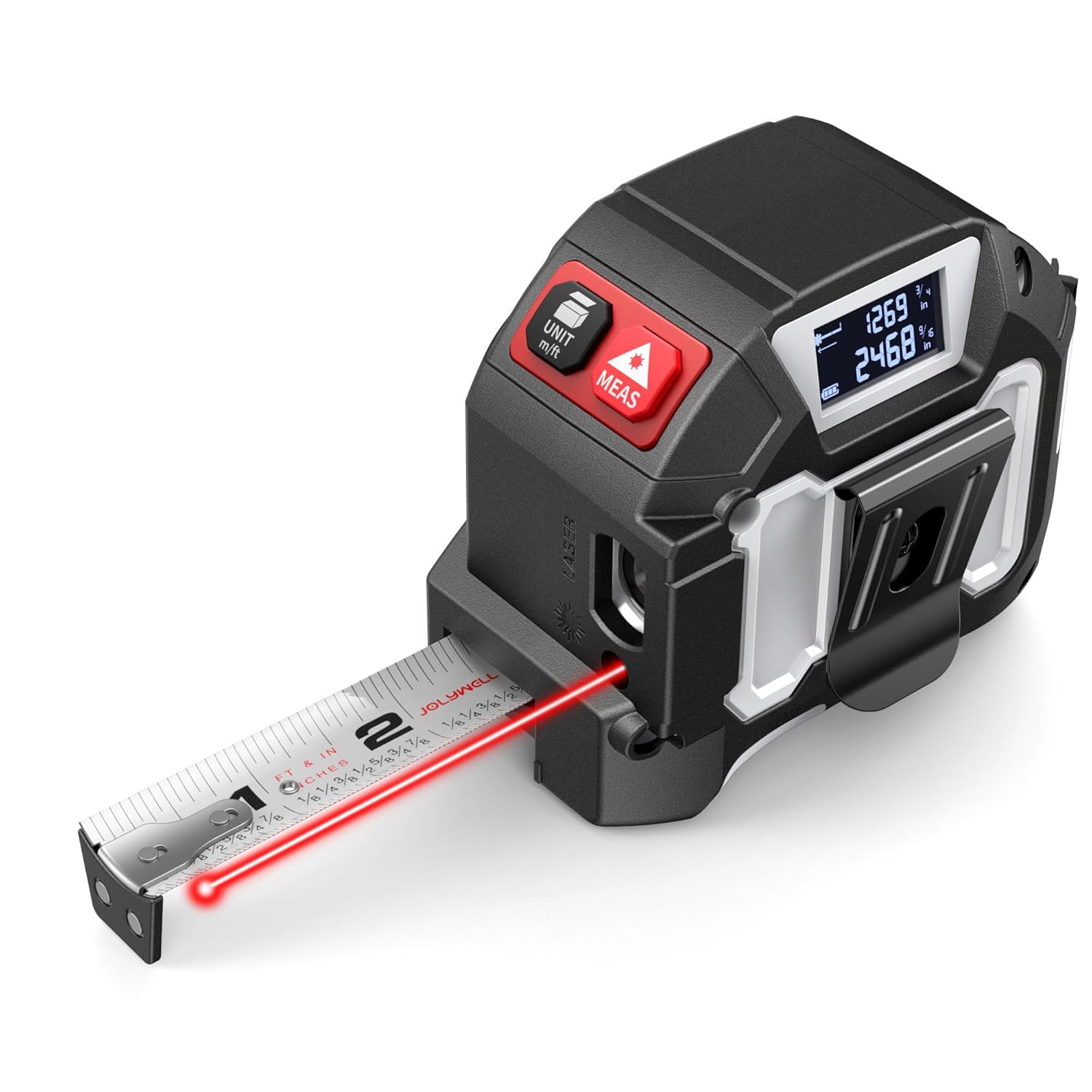

Abbildung 1: JolyWell 2-in-1 Laser Tape Measure. This image shows the device with its laser beam active, displaying the digital screen and the physical tape measure extending from the unit.

Hauptmerkmale:

• Doppelte Messung: 131ft (40m) laser distance measurement and 16ft (5m) traditional self-locking tape measure.
• Multiple Laser Modes: Single, Continuous, Area, Volume, and Pythagorean measurements.
• Hohe Genauigkeit: Laser accuracy up to ±0.11 inches (0.04 inches stated in feature bullets, using the more conservative value from description).
• Magnethaken: Movable magnetic hook for precise internal and external measurements.
• Auto-Locking Tape: The physical tape automatically locks in place when extended.
• Wiederaufladbar: USB Type-C charging, providing approximately 5000 measurements per full charge.
• Langlebiges Design: Shock-resistant ABS housing and carbon steel tape for durability.
• LCD Anzeige: Large, backlit LCD screen for clear readability in various lighting conditions.

Abbildung 2: Versatility of the 2-in-1 Tape Measure. This image illustrates the device being used for both short-range tape measurements (e.g., on furniture) and long-range laser measurements (e.g., in a room).

4. Einrichtung

4.1 Aufladen des Geräts

The device is powered by a rechargeable battery. Before first use, or when the battery indicator on the LCD is low, charge the device using the provided USB Type-C cable.

1. Suchen Sie den Typ-C-Ladeanschluss an der Seite des Geräts.
2. Connect the USB Type-C cable to the device and the other end to a compatible USB power adapter (not included) or a computer USB port.
3. The battery indicator on the LCD will show charging status. A full charge allows for approximately 5000 measurements.

Abbildung 3: Type-C Charging and Belt Clip. This image highlights the USB Type-C charging port for convenient recharging and the integrated belt clip for easy portability.

4.2 Ein-/Ausschalten

• Zum Einschalten drücken Sie die MESS Taste.
• Zum Ausschalten die Taste lange gedrückt halten MESS Taste. Das Gerät schaltet sich nach einer gewissen Zeit der Inaktivität automatisch aus, um den Akku zu schonen.

5. Bedienungsanleitung

5.1 Using the Traditional Tape Measure

The integrated 16ft (5m) tape measure functions like a standard tape measure with added features:

• Selbstverriegelnd: Pull the tape out, and it will automatically lock in position. To retract, press the release button located on the top of the device.
• Magnethaken: The end hook is magnetic and movable, allowing for accurate internal and external measurements. For external measurements, the hook's thickness is included. For internal measurements, the hook's thickness is excluded.
• Double-Sided Measurements: The tape features markings on both sides for convenience.

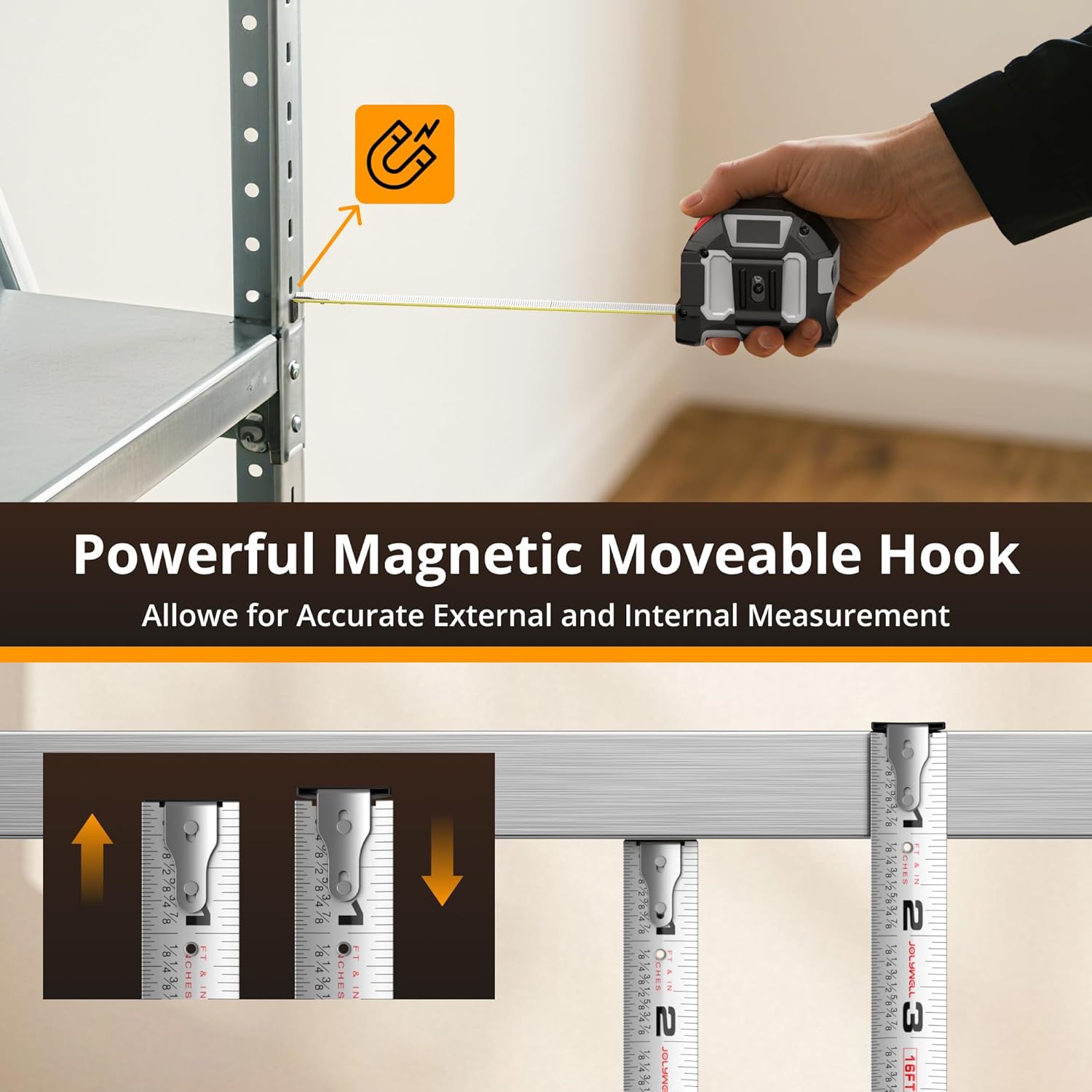

Abbildung 4: Magnetic Movable Hook. This image demonstrates the magnetic hook's functionality for both external and internal measurements, highlighting how the hook adjusts for accuracy.

Abbildung 5: Auto-Locking and Double-Sided Tape. This image illustrates the auto-locking mechanism of the tape measure and the convenience of double-sided measurement markings.

5.2 Laser Measurement Modes

The laser measurement function offers five distinct modes:

Abbildung 6: Multiple Laser Measurement Modes. This image visually represents the different measurement modes available: Distance, Area, Volume, and Continuous measurement.

1. Einzelmessung:
   Drücken Sie die MESS button once to activate the laser. Press it again to take a single distance measurement.
2. Kontinuierliche Messung:
   At power up, press the UNIT m/ft Und MESS buttons three times in quick succession to enter Continuous Measurement Mode. The display will show real-time distance as you move the device. Press any button to exit this mode (only available in Distance Mode).

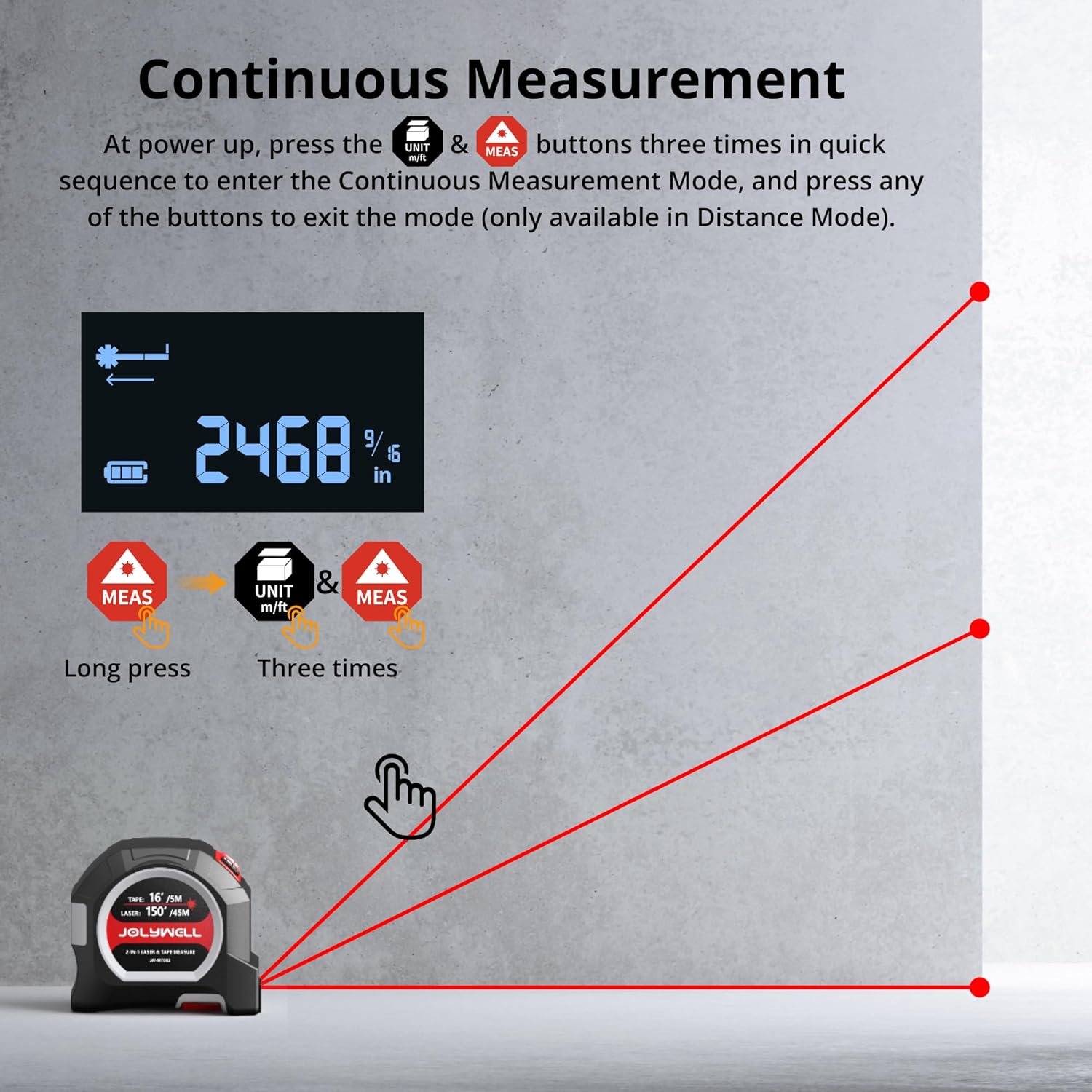

   Abbildung 7: Continuous Measurement Mode. This image illustrates the sequence of button presses required to activate and use the continuous measurement function, showing real-time distance updates on the display.
3. Flächenmessung:
   Drücken Sie kurz die UNIT m/ft button (0.5 sec) until the Area icon appears on the display. Take two consecutive distance measurements (length and width). The device will automatically calculate and display the area.
4. Volumenmessung:
   Drücken Sie kurz die UNIT m/ft button (0.5 sec) until the Volume icon appears. Take three consecutive distance measurements (length, width, and height). The device will automatically calculate and display the volume.
5. Pythagoräische Messung:
   Drücken Sie kurz die UNIT m/ft button (0.5 sec) until the Pythagorean icon appears. Follow the on-screen prompts to take the required measurements for indirect height or length calculation.

5.3 Einheitenumschaltung

The device supports four units: meters (m), feet (ft), inches (in), and feet+inches (ft+in).

• To switch between units (m/ft/in/ft+in), long press the UNIT m/ft Taste (3 Sekunden).

5.4 Changing the Measurement Base Line

The measurement can be taken from the front or the back of the device.

• To change the base line (Front/Back), press the UNIT m/ft Und MESS buttons together. An icon on the LCD will indicate the current base line.

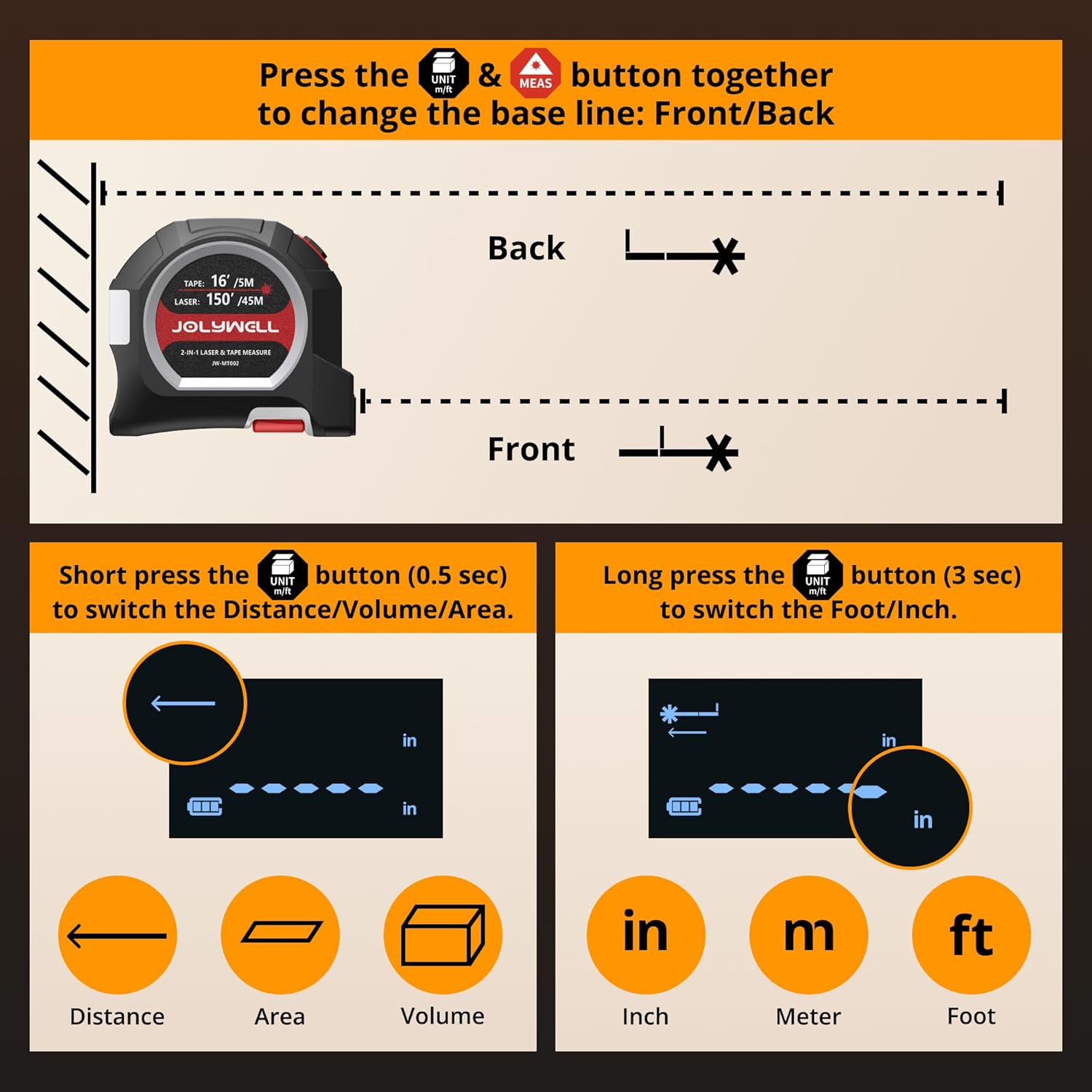

Abbildung 8: Unit and Base Line Selection. This image provides a visual guide for switching between measurement units (inches, meters, feet) and changing the measurement reference point (front or back of the device).

6. Wartung

• Reinigung: Verwenden Sie ein weiches,amp Reinigen Sie das Gerät mit einem Tuch. Verwenden Sie keine Scheuermittel oder Lösungsmittel. Achten Sie darauf, dass die Laserlinse für genaue Messungen sauber bleibt.
• Lagerung: Bewahren Sie das Gerät an einem kühlen, trockenen Ort fern von direkter Sonneneinstrahlung und extremen Temperaturen auf.
• Batteriepflege: Um eine optimale Akkulaufzeit zu gewährleisten, vermeiden Sie häufiges vollständiges Entladen des Akkus. Laden Sie das Gerät regelmäßig auf, auch wenn es längere Zeit nicht benutzt wird.

7. Fehlerbehebung

8. Spezifikationen

9. Garantie und Support

For warranty information or technical support, please refer to the product packaging or contact JolyWell customer service through your retailer or the official JolyWell website. Please have your model number (JW-MT002) and purchase details ready when contacting support.
