Einführung
This manual provides detailed instructions for the installation, operation, and maintenance of your Ctronics F20-5MP Outdoor Wi-Fi Surveillance Camera. This camera features 3K 5MP HD resolution, a 6W solar panel for continuous power, PIR and human detection, 10 LED lights for color night vision up to 30 meters, two-way audio, and flexible storage options including TF card, cloud, and FTP. It is compatible with both PC and smartphone devices, offering comprehensive security monitoring.
Image: The Ctronics F20-5MP camera with its solar panel, mounted on an exterior wall, illustrating its outdoor application and solar power feature.
Aufstellen
1. Packungsinhalt
Vor der Installation prüfen Sie bitte, ob alle Komponenten vorhanden sind:
- Ctronics F20-5MP Camera
- 6 W Solarmodul
- Montagehalterung und Schrauben
- Bedienungsanleitung
2. Physische Installation
Mount the camera and solar panel in a location that provides optimal sunlight exposure for the solar panel and a clear view for surveillance. Use the provided mounting bracket and screws to secure the camera and solar panel to a wall or suitable surface. Ensure the solar panel is positioned to receive direct sunlight for several hours daily to maintain battery charge.
Bild: Eine detaillierte view of the Ctronics F20-5MP camera and its solar panel, highlighting the integrated design for outdoor security.
3. Erstes Einschalten und App-Verbindung
Ensure the camera's battery is sufficiently charged. Download the Ctronics app from your smartphone's app store. Follow the in-app instructions to create an account and add your camera. The camera supports both Wi-Fi and Bluetooth for initial setup, allowing for a quick and stable connection process.
Image: A smartphone displaying the Ctronics app, showing Wi-Fi and Bluetooth connection options for easy camera setup and control.
Bedienungsanleitung
1. Leben View und Kamerasteuerung
Access the live video feed through the Ctronics app on your smartphone or PC. The camera provides 3K 5MP HD resolution (2560x1920P) for clear images. You can manually adjust the camera's pan (355°) and tilt (90°) angles via the app to monitor different areas.

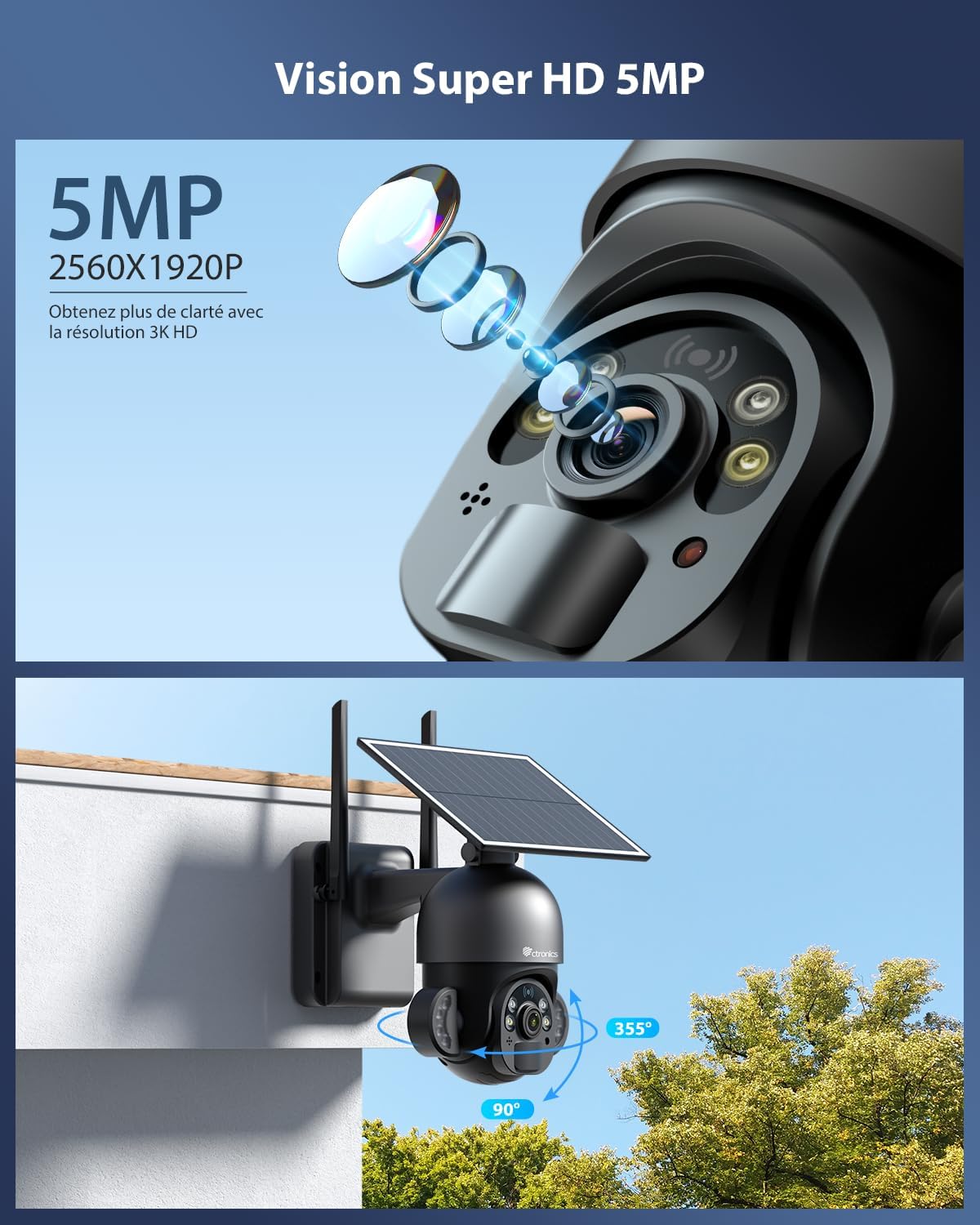

Image: The camera's 5MP Super HD lens and its range of motion (355° pan, 90° tilt) for comprehensive area coverage.
2. Nachtsicht
The camera is equipped with 10 integrated LED lights, enabling color night vision up to 30 meters. This feature ensures clear and detailed surveillance even in low-light conditions.
Image: The camera's LED lights activated for color night vision, illuminating an outdoor scene at night.
3. PIR and Human Detection
The integrated PIR sensor and human detection technology accurately identify human movement, reducing false alarms. You can adjust the alarm sensitivity (low, medium, high) within the app. Upon detection, instant notifications are sent to your smartphone.
Bild: Ein Example of human detection, where the camera identifies a person in its field of view, indicated by a white detection box.
4. Zwei-Wege-Audio
Utilize the built-in microphone and speaker for two-way communication. This allows you to speak to visitors or deter intruders directly through the camera via the app. The system also supports multi-user sharing, allowing family members to access the camera.
Image: Illustrations of two-way audio functionality, showing interaction with a delivery person and multiple users accessing the camera feed.
5. Flexible Speicheroptionen
Die Kamera unterstützt mehrere Speichermethoden für aufgezeichnete Lebensmittel.tage:
- TF-Karte: Supports up to 128GB Micro SD cards (not included).
- Cloud-Speicher: Secure cloud-based storage for easy access and backup.
- FTP: Option to upload recordings to an FTP server.
Image: A hand inserting a TF card into the camera, alongside icons representing cloud and FTP storage options.
6. Multiplattform-Kompatibilität
The Ctronics F20-5MP camera is compatible with various operating systems, allowing you to monitor your property from different devices:
- iOS (iPhone, iPad)
- Android-Smartphones und -Tablets
- Windows PCs (via Ctronics Pro or HiP2P Client software)
- Mac OS (via Ctronics Pro or HiP2P Client software)
Image: Multiple devices, including a desktop, laptop, tablet, and smartphone, showing the camera's live feed and interface, demonstrating broad compatibility.
Wartung
1. Reinigung
Reinigen Sie die Kameralinse und die Oberfläche des Solarpanels regelmäßig mit einem weichen, fusselfreien Tuch.amp cloth to ensure optimal performance. Avoid using harsh chemicals that could damage the surfaces.
2. Batteriepflege
Ensure the solar panel receives adequate sunlight to keep the internal 7800mAh battery charged. In prolonged periods of low sunlight, consider temporarily repositioning the panel or providing a supplementary charge if the camera supports it (check product specifications for details).
3. Firmware-Updates
Check the Ctronics app periodically for available firmware updates. Keeping your camera's firmware up-to-date ensures access to the latest features, security enhancements, and bug fixes.
Fehlerbehebung
Häufige Probleme und Lösungen:
- Kein Strom/Kamera offline:
Check the solar panel connection and ensure it's receiving sufficient sunlight. Verify the battery level in the app. If the battery is critically low, ensure the solar panel is clean and unobstructed. - Probleme mit der Wi-Fi-Verbindung:
Ensure the camera is within range of your 2.4 GHz Wi-Fi network. Restart your router and the camera. Re-attempt the connection process via the Ctronics app. - Schlechte Bildqualität:
Reinigen Sie das Kameraobjektiv. Stellen Sie sicher, dass sich keine Hindernisse im Sichtfeld der Kamera befinden. viewÜberprüfen Sie Ihre Internetverbindungsgeschwindigkeit, da eine langsame Verbindung die Streaming-Qualität beeinträchtigen kann. - Fehlalarme oder verpasste Erkennungen:
Adjust the PIR and human detection sensitivity settings in the app. Ensure the camera's detection zone is correctly configured. Avoid placing the camera where moving foliage or direct sunlight could trigger false alerts. - Probleme mit der Zwei-Wege-Audioübertragung:
Check the volume settings on your device and within the app. Ensure there are no obstructions blocking the camera's microphone or speaker. - Storage Issues (TF Card/Cloud/FTP):
For TF cards, ensure it is correctly inserted and formatted (if necessary) within the app. For cloud storage, verify your subscription status. For FTP, confirm server settings are correct.
If you encounter persistent issues, refer to the Ctronics app's help section or contact customer support.
Technische Spezifikationen
| Besonderheit | Spezifikation |
|---|---|
| Modellnummer | F20-5 MP |
| Auflösung | 3K 5MP (2560 x 1920P) |
| Sensor Technology | CMOS |
| Nachtsicht | Color Night Vision, 10 LED lights, up to 30 meters |
| Stromquelle | 6W Solar Panel, 7800mAh Battery (2 x 12V included) |
| Konnektivität | WLAN (2.4 GHz), Bluetooth |
| Erkennung | PIR Sensor, Human Detection |
| Audio | Zwei-Wege-Audio |
| Speicheroptionen | TF Card (up to 128GB), Cloud Storage, FTP |
| Kompatibilität | iOS, Android, Windows, Mac OS |
| Wetterbeständigkeit | IP66 (Wasserschutz) |
| Abmessungen (L x B x H) | 18 x 15 x 24 cm |
| Gewicht | 1.49 kg |
| Kontrollmethode | Anwendung |
| Videokodierung | H.265 |
| Videoformat | MP4 |
| Viewing-Winkel | 90 Grad |
| Zoomtyp | Digitalzoom (4x) |
| Montagetyp | Wandhalterung |
Garantieinformationen
Ctronics products typically come with a limited manufacturer's warranty. For specific warranty terms, conditions, and duration, please refer to the official Ctronics website or the warranty card included with your product. Retain your proof of purchase for warranty claims.
Unterstützung
For technical assistance, troubleshooting, or further inquiries regarding your Ctronics F20-5MP camera, please utilize the following resources:
- Ctronics Mobile Application: Access the help section, FAQs, and direct support options within the app.
- Official Ctronics WebWebsite: Besuchen Sie die offizielle Website von Ctronics website for comprehensive support, product documentation, and contact information.
Always ensure you have your product model number (F20-5MP) and purchase details ready when contacting support.
