1. Einleitung
Thank you for choosing the HEBEOT Self-Resetting Door Release Button. This device is designed for secure and convenient access control in various environments. It features a durable construction and a self-resetting mechanism for reliable operation. Please read this manual carefully before installation and use to ensure proper function and safety.
Abbildung 1: Vorderseite view of the HEBEOT Self-Resetting Door Release Button, showing the "PRESS TO EXIT" text and green button.
2. Produktmerkmale
- Langlebiges Material: Constructed from aluminum alloy with a stainless steel panel, ensuring suitability for both indoor and outdoor use.
- Verbesserte Haltbarkeit: Features a built-in anti-deformation spring for extended service life.
- Elegantes Design: The 3.85mm thick stainless steel panel is brushed using a wire drawing process, providing a beautiful and shiny appearance.
- Robuste Leistung: IK10 explosion-proof rating for increased safety.
- Klarer Hinweis: The green button is highly visible and engraved with "PRESS TO EXIT" for clear operation.
- Vielseitige Anwendung: Ideal for various access control security and electronic access control systems.
Figure 2: Detail of the 3.85mm thick stainless steel panel, highlighting its brushed finish for durability and corrosion resistance.
3. Packungsinhalt
Bitte überprüfen Sie nach dem Öffnen der Verpackung, ob alle Komponenten vorhanden und unbeschädigt sind:
- 1 x HEBEOT Self-Resetting Door Release Button
- 2 x Befestigungsschrauben
- 2 x Rubber Plugs (for screw holes)

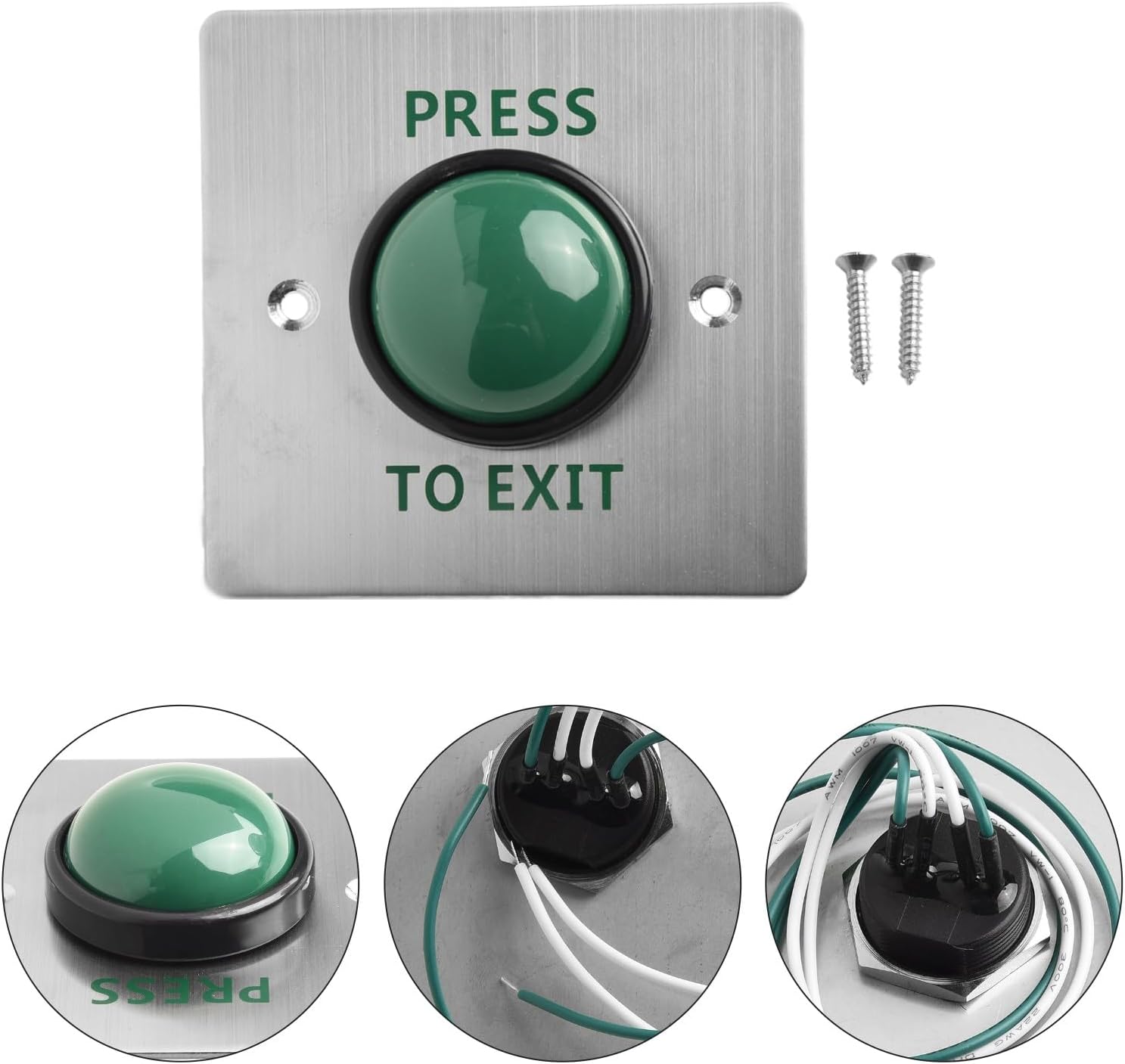

Figure 3: Contents of the package, including the door release button, two mounting screws, and two rubber plugs for secure installation.
4. Spezifikationen
| Parameter | Wert |
|---|---|
| Produktname | Switch Button / Door Release Button |
| Marke | HEBEOT |
| Modellnummer | PE7J254XY81SW4DNT4F2 |
| Farbe | As shown (Silver panel, Green button) |
| Material | Edelstahl, Aluminiumlegierung |
| Bandtage | 12-24 V DC |
| Nennstrom | 5 A |
| Betriebsart | Self-Resetting Type |
| Explosion-proof Class | IK10 |
| Betriebstemperatur | -20 bis 50 °C |
| Luftfeuchtigkeit bei Betrieb | 10% ~ 99% Relative Humidity |
| Panelgröße | Ca. 86 x 86 mm (3.39 x 3.39 Zoll) |
| Produktabmessungen (L x B x H) | 8 x 5 x 5 cm (3.15 x 1.97 x 1.97 Zoll) |
| Artikelgewicht | 100 g (0.22 Pfund) |
5. Einrichtung und Installation
This door release button is designed for easy installation. Please follow these steps carefully:
- Ort wählen: Select a suitable location near the door or access point where the button will be easily accessible. Ensure the surface is flat and stable.
- Bohrpunkte markieren: Place the button panel against the wall or door frame and mark the positions for the two mounting screws.
- Bohrlöcher: Drill appropriate holes at the marked points. If installing on a hollow wall, use the provided rubber plugs as anchors.
- Verdrahtung: Connect the button's wires to your access control system. Refer to your access control system's manual for specific wiring diagrams. Typically, the button acts as a normally open (NO) or normally closed (NC) contact to trigger the door release.
Abbildung 4: Rückseite view of the button showing the wiring terminals. Ensure correct polarity and connection type (NO/NC) as per your access control system requirements.
- Montieren Sie den Knopf: Align the button panel with the drilled holes and secure it using the provided screws. Do not overtighten.
- Testfunktionalität: After installation, test the button to ensure it properly triggers the door release mechanism of your access control system.
Notiz: Professional installation is recommended for complex access control systems. Always disconnect power before performing any wiring.
6. Bedienungsanleitung
The HEBEOT Self-Resetting Door Release Button operates on a simple push-to-exit principle.
- To exit a controlled area, simply press the green "PRESS TO EXIT" button.
- The button will momentarily activate the door release mechanism of your access control system.
- Once released, the button will automatically return to its original position, ready for the next use.
Abbildung 5: Bspample of the button in use within an office setting, demonstrating its application in access control systems.
7. Wartung
The HEBEOT Door Release Button requires minimal maintenance to ensure long-term performance:
- Reinigung: Periodically wipe the surface of the button and panel with a soft, damp Mit einem Tuch abwischen. Vermeiden Sie die Verwendung von Scheuermitteln oder Lösungsmitteln, da diese die Oberfläche beschädigen können.
- Inspektion: Regularly inspect the button for any signs of physical damage, loose connections, or unusual operation.
- Umgebungsbedingungen: While designed for indoor and outdoor use, avoid exposing the button to extreme conditions beyond its specified operating temperature and humidity ranges.
8. Fehlerbehebung
If you encounter issues with your HEBEOT Door Release Button, refer to the following common problems and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Button does not trigger door release. |
|
|
| Button feels stuck or does not self-reset. |
|
|
| Button panel is loose. |
|
|
9. Garantie und Support
No specific warranty information is provided with this product. For technical support, troubleshooting assistance, or inquiries regarding replacement parts, please contact your retailer or the HEBEOT customer service department through the contact information provided at the point of purchase.
Please have your model number (PE7J254XY81SW4DNT4F2) and purchase date ready when contacting support.
