Generic 6-Inch Wafer Butterfly Valve Instruction Manual

1. Einleitung

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Generic 6-Inch Wafer Butterfly Valve, Model BFVM1025. This valve is designed for industrial and scientific applications requiring reliable flow control. Please read this manual thoroughly before installation or operation.

2. Sicherheitshinweise

Adherence to the following safety guidelines is crucial for preventing injury and equipment damage.

• Always wear appropriate personal protective equipment (PPE) during installation, maintenance, and operation.
• Ensure the system is depressurized and drained before attempting any installation or maintenance.
• Verify that the valve's pressure rating (200 PSI) is suitable for the application's maximum operating pressure.
• Do not modify the valve. Unauthorized modifications can compromise safety and performance.
• Handle the valve with care to avoid damage to the body, disc, or seals.

3. Produktüberschreitungview

The Generic 6-Inch Wafer Butterfly Valve is constructed with a ductile iron body and features a nickel-plated disc and Buna seats. It is equipped with a 10-position handle for precise flow control.

Abbildung 1: Vorderseite view of the 6-inch Wafer Butterfly Valve, showing the red ductile iron body, black disc, and operating handle.

This valve is suitable for various applications, including agriculture, oil & gas, and tank truck systems, offering robust performance with its 410 stainless steel stem and greasable stem design.

Figure 2: Diagram highlighting the multi-use capabilities and key features such as 410 Stainless Stem, 200 PSI rating, and greasable stem.

4. Einrichtung und Installation

Proper installation is critical for the valve's performance and longevity. Refer to the detailed diagrams for dimensions and component identification.

Figure 3: Technical drawing of the DWBV Series Wafer Butterfly Valve, showing detailed dimensions, parts list, and flange specifications (ISO 5752, ISO 5211, ANSI 150).

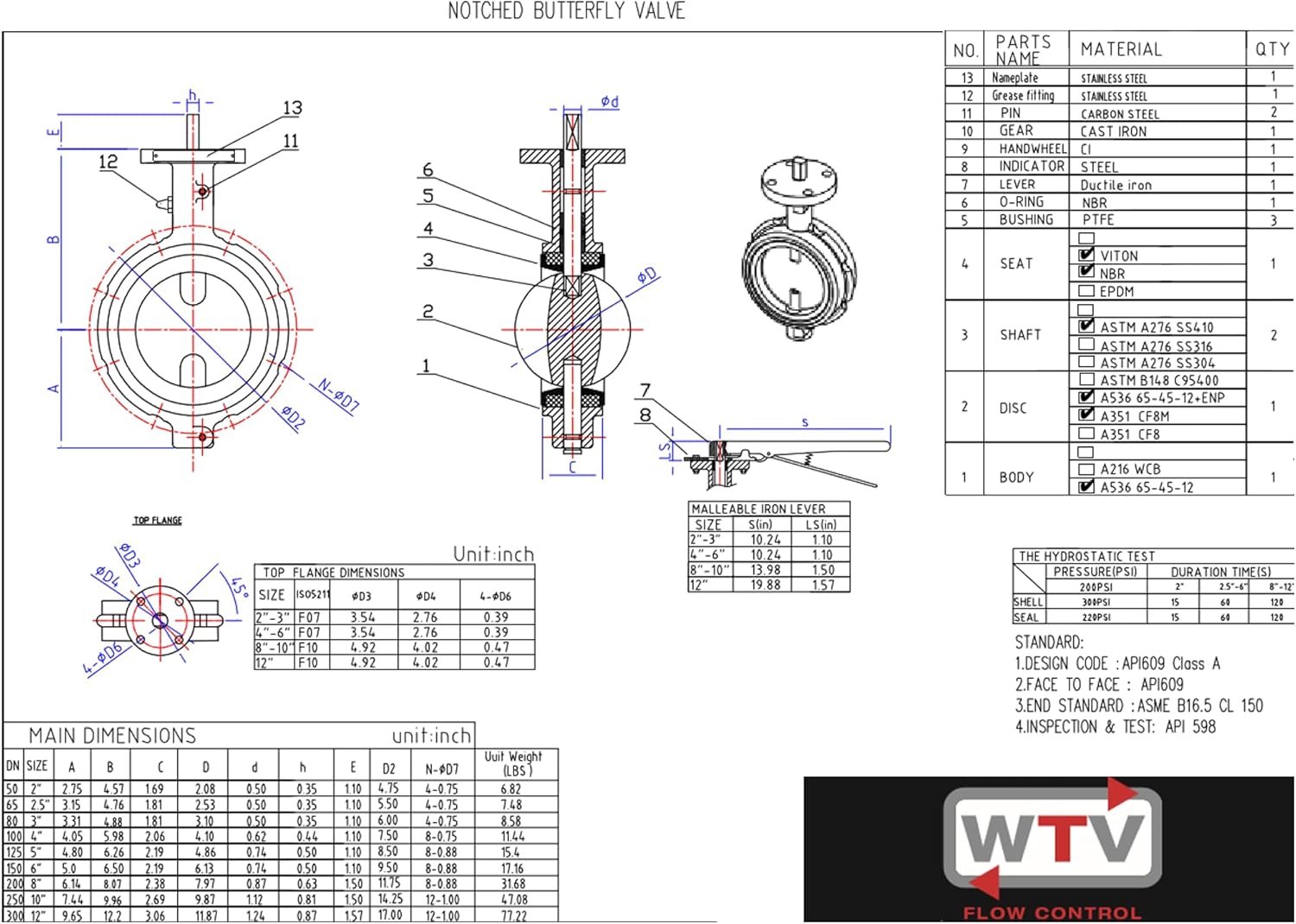

Figure 4: Engineering drawing of a notched butterfly valve, providing main dimensions, material specifications for various parts, and pressure test information.

1. Vorbereitung: Ensure the pipeline is clean and free of debris. Verify that the mating flanges are clean, flat, and properly aligned.
2. Dichtungsplatzierung: The valve's integral seats act as gaskets. No additional flange gaskets are typically required.
3. Valve Positioning: Center the valve between the flanges. Ensure the disc is in the partially open position (approximately 10-20 degrees) to prevent damage during installation.
4. Bolzenmontage: Insert flange bolts through the pipeline flanges and the valve body. Hand-tighten all bolts.
5. Anziehreihenfolge: Gradually tighten the bolts in a crisscross pattern to ensure even compression and prevent flange distortion. Refer to ANSI 150 flange specifications for appropriate torque values.
6. Endkontrolle: After tightening, cycle the valve through its full range of motion (open to close) to ensure smooth operation and proper seating.

5. Bedienungsanleitung

The butterfly valve is operated using a 10-position handle, allowing for incremental flow adjustment.

Figure 5: Close-up of the 10-position handle mechanism, showing the notched plate for precise disc positioning and the 'CLOSE' and 'OPEN' indicators.

• Ventil öffnen: Move the handle towards the 'OPEN' indicator. Each notch corresponds to a specific disc position, allowing for throttling.
• Ventil schließen: Move the handle towards the 'CLOSE' indicator until it reaches the fully closed position.
• Drosselung: The 10-position handle allows for intermediate settings to regulate flow. Avoid prolonged operation in partially open positions if cavitation or excessive wear is a concern for the specific application.

6. Wartung

Regelmäßige Wartung gewährleistet optimale Leistung und verlängert die Lebensdauer des Ventils.

• Inspektion: Periodically inspect the valve for external leaks, corrosion, or damage to the body, handle, and stem.
• Schmierung: The valve features a greasable stem. Apply appropriate grease to the stem lubrication point as needed to ensure smooth operation and prevent wear.
• Sitzzustand: Monitor the condition of the Buna seats. If signs of wear or leakage are observed, the valve may require servicing or replacement.
• Aktuatorprüfung: Ensure the 10-position handle mechanism operates freely and securely locks into each position.
• Reinigung: Keep the exterior of the valve clean to prevent accumulation of corrosive substances.

7. Fehlerbehebung

This section addresses common issues that may arise during the valve's operation.

8. Spezifikationen

Detailed technical specifications for the Generic 6-Inch Wafer Butterfly Valve.

9. Garantie und Support

For warranty information or technical support, please contact the seller or manufacturer directly. Keep your purchase receipt and product model number (BFVM1025) available for reference.
