Einführung
This manual provides detailed instructions for the safe and effective operation, setup, and maintenance of your XYFSP Bait Boat with Sonar and GPS. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Abbildung 1: Überview of the XYFSP Bait Boat. This image displays the bait boat from an aerial perspective, highlighting its sleek design and dual bait compartments.
Produkteigenschaften
- Long Range & Safety Function: Equipped with advanced high-frequency wireless technology, offering a remote control distance of up to 500 meters (546 yards) without interference. Features an automatic return function if signal is lost, battery is low, or the boat goes out of range.
- Large Bait Containers: Three independently controlled bait containers with a total load capacity of 2 kg (4.4 lb), allowing for precise bait release.
- Langlebige Batterie: Powered by a 12000 mAh rechargeable lithium battery, providing approximately 4 hours of continuous use. The battery can be charged independently of the boat.
- Robuste Konstruktion: The boat body is molded from impact-resistant, weather-resistant, wave-resistant, and scratch-resistant ABS material. Its streamlined, fully enclosed, and waterproof design reduces water resistance and enhances stability. Propeller covers prevent entanglement with aquatic vegetation.
- Integriertes GPS: Features a built-in GPS module for precise positioning, cruising, automatic return, and marking fishing spots. Includes up to 4 fixed autopilot points and automatic return on connection loss or low battery.
- Night Vision Lights: Front and rear two-color lights for clear visibility and navigation during low-light conditions.
- Windbeständigkeit: Designed to withstand 7-8 level winds, suitable for both freshwater and saltwater environments.
Packungsinhalt
Bitte überprüfen Sie den Packungsinhalt nach dem Auspacken. Sollten Artikel fehlen oder beschädigt sein, kontaktieren Sie bitte unseren Kundenservice.
- XYFSP Bait Boat
- Fernbedienung
- 12000 mAh Lithium Battery (x2 for this model)
- Ladegerät
- Antenne
- Benutzerhandbuch (dieses Dokument)
Aufstellen
1. Laden des Akkus
- Schließen Sie das Ladegerät an eine Steckdose an.
- Schließen Sie den Akku an das Ladegerät an.
- Allow the battery to charge fully. The indicator light on the charger will change color (e.g., red to green) when charging is complete.
- Charging typically takes several hours. Do not overcharge.
2. Installing the Battery and Antenna
- Suchen Sie das Batteriefach am Köderboot.
- Carefully insert the charged 12000 mAh lithium battery into the compartment, ensuring correct polarity.
- Securely close the battery compartment cover to maintain waterproofing.
- Screw the antenna onto its designated port on the boat. Ensure it is firmly attached for optimal signal reception.
Figure 2: Key components of the bait boat. This image labels the power light, handle, bait compartments (Playhouse 1, 2, 3), night vision light, and antenna.
3. Vorbereiten der Fernbedienung
- Install the required batteries (not included, typically AA or AAA) into the remote control unit.
- Schalten Sie die Fernbedienung ein.
- Turn on the bait boat. The boat and remote control should automatically pair. Refer to the remote control diagram for specific button functions.
Figure 3: Layout of the two-handed remote control. This image shows the calibration key, direction control keys, switch, one-click direct positioning key, return home button, cruise control cancel button, silo open buttons, night vision lights on/off, and set key.
Bedienungsanleitung
1. Grundlegende Navigation
- Verwenden Sie die Direction Control Keys on the remote control to move the boat forward, backward, left, and right.
- The boat can operate up to 500 meters (546 yards) from the remote control.

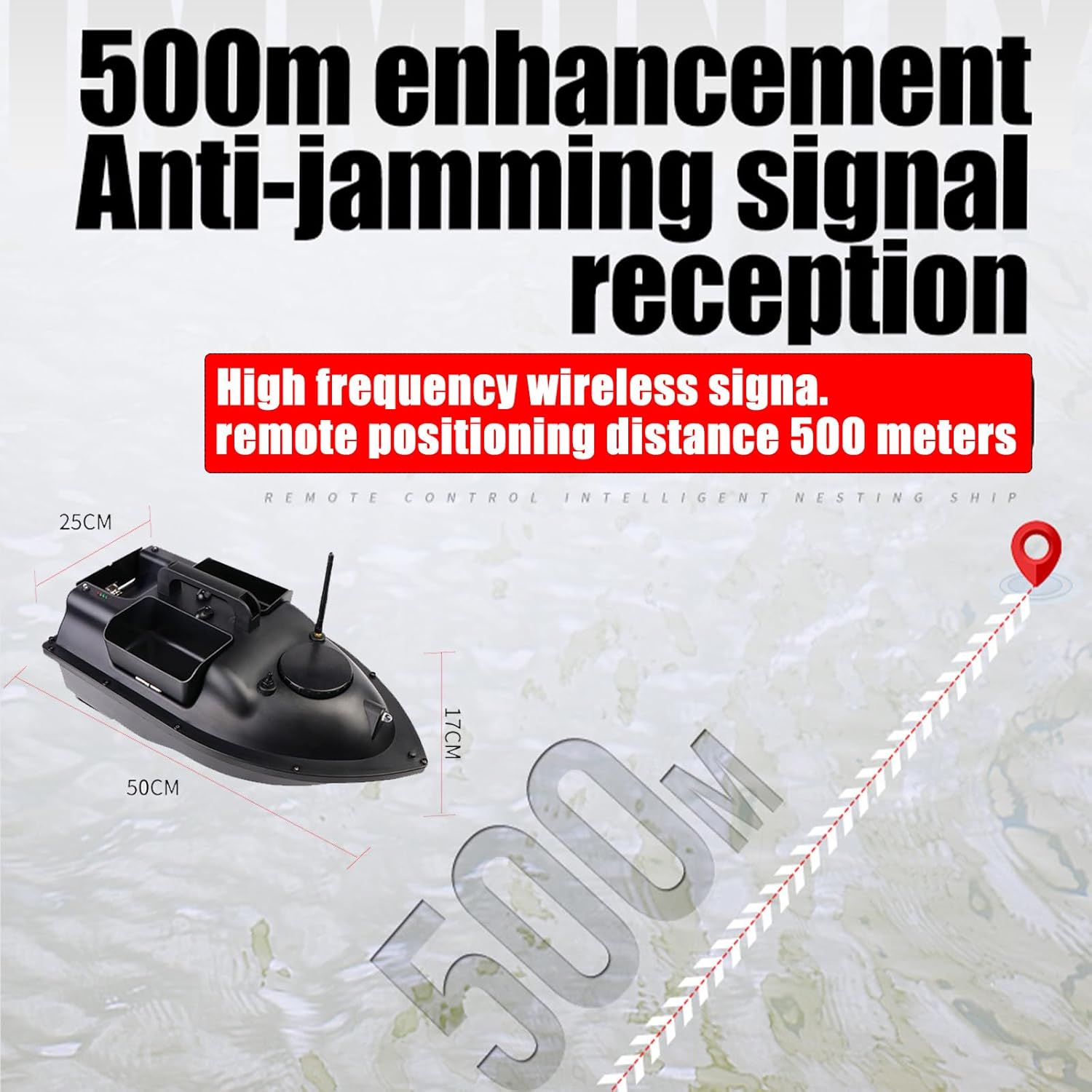

Figure 4: Illustration of the 500-meter remote control range. This image depicts the bait boat and remote control, showing the effective operating distance.
2. Köderauslösung
- Load bait into the three independent bait containers (Playhouse 1, 2, and 3). The total capacity is 2 kg.
- Steuern Sie das Boot zu Ihrem gewünschten Köderplatz.
- Drücken Sie die entsprechende Taste Silo Open buttons on the remote control to release bait from each compartment individually.
Figure 5: Bait release from the three independent compartments. This image shows bait being dispensed from the boat's containers into the water.
3. GPS-Funktionen
- Positionierung: Use the GPS module to pinpoint your current location or mark specific fishing spots.
- Tempomat: Engage cruise control for fixed-speed navigation.
- Fixed Autopilot Points: Set up to 4 fixed autopilot points. The boat can navigate to these points automatically.
- One-Key Return Home: Drücken Sie die Heimkehr button for the boat to automatically return to its starting point.
- Automatische Rückgabe: The boat will automatically return to its starting point if the signal is lost or the battery level is critically low.
4. Night Vision Lights
- Aktivieren Sie die Night Vision Lights using the dedicated button on the remote control.
- The front and rear two-color lights provide clear visibility, allowing you to monitor the boat's position from a distance in low-light conditions.
Figure 6: Night light design for enhanced visibility. This image shows the front night light illuminated, along with battery and indicator lights.
Wartung
- Reinigung: After each use, especially in saltwater, rinse the boat thoroughly with fresh water to prevent corrosion. Wipe it dry with a soft cloth.
- Batteriepflege:
- Laden Sie den Akku vor der Lagerung immer vollständig auf.
- Lagern Sie die Batterie nicht bei extremen Temperaturen.
- If storing for extended periods, charge the battery every 3 months to maintain its health.
- Die Batterie darf nicht durchstochen oder beschädigt werden.
- Propeller: Regularly check the propellers for any debris (weeds, fishing line) and remove them carefully to ensure smooth operation. The propeller covers help prevent entanglement.
- Lagerung: Bewahren Sie das Köderboot und die Fernbedienung an einem kühlen, trockenen Ort fern von direkter Sonneneinstrahlung und extremen Temperaturen auf.
- Abdichtung: Ensure all covers and seals (e.g., battery compartment) are properly closed and secured before placing the boat in water to maintain its waterproof integrity.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Das Boot springt nicht an. | Batterie nicht geladen oder falsch eingesetzt. | Ensure battery is fully charged and correctly inserted. Check battery compartment connections. |
| Das Boot reagiert nicht auf die Fernbedienung. | Remote control batteries low or not installed. Out of range. Interference. | Replace remote control batteries. Bring boat closer to remote. Ensure no strong interference sources nearby. Re-pair if necessary (refer to remote control instructions). |
| Boat returns automatically. | Low battery or signal loss. | This is a safety feature. Recharge the boat's battery. Ensure you are within the 500m operating range. |
| Bait compartments do not open. | Mechanism jammed or remote command not received. | Check for any obstructions in the bait compartments. Ensure the boat is within range and the remote control batteries are sufficient. |
| Boat moves slowly or erratically. | Propellers entangled or damaged. Low battery. | Check propellers for debris and clear them. Recharge the boat's battery. |
Technische Daten
| Besonderheit | Detail |
|---|---|
| Modellnummer | B0D9W81SPC |
| Marke | XYFSP |
| Reichweite der Fernbedienung | Bis zu 500 Meter (546 Yards) |
| Bait Capacity | 2 kg (4.4 lb) across 3 independent containers |
| Akku-Typ | 12000 mAh Lithium Battery (2 included) |
| Betriebsdauer | Approximately 4 hours (per battery) |
| Material | Schlagfestes ABS |
| Windbeständigkeit | 7-8 Ebene |
| Abmessungen (ca.) | Länge: 50 cm, Breite: 25 cm, Höhe: 17 cm |
| Merkmale | Integrated GPS, Sonar capability, Automatic Return, Night Vision Lights, Cruise Control, Fixed Autopilot Points |
Figure 7: Bait boat dimensions and wind resistance capability. This image shows the boat's approximate measurements (50cm length, 25cm width, 17cm height) and highlights its 7-8 level wind resistance for both freshwater and saltwater use.
Garantie und Support
For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official XYFSP webBewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.
