IsEasy 4-Burner Gas Hob Instruction Manual

Wichtige Sicherheitsinformationen

Please read this manual carefully before installing or using your IsEasy Gas Hob. Keep it for future reference. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.

• Gassicherheit: Ensure proper ventilation. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. If you smell gas, follow the instructions provided by your gas supplier.
• Elektrische Sicherheit: Any electrical work required to install this hob must be carried out by a qualified electrician or a competent person. Ensure the appliance is properly grounded.
• Installation: This appliance must be installed by a qualified person in accordance with all local codes and ordinances.
• Kindersicherheit: Keep children away from the appliance during operation. Do not allow children to play with the controls.
• Heiße Oberflächen: The hob and its components become hot during use. Avoid touching hot surfaces. Use oven mitts or pot holders.

Produkt überview

The IsEasy 4-Burner Gas Hob is a built-in cooking appliance designed for efficient and versatile cooking. It features a stainless steel panel, cast iron pan supports, and four burners with varying power outputs to accommodate diverse culinary needs.

Hauptmerkmale

• High Power Burners: Equipped with one 3.3KW burner, two 1.75KW burners, and one 1KW burner for flexible cooking.
• Integriertes Design: Integrates seamlessly into your kitchen countertop, saving space and providing a sleek appearance.
• Sicherheitsschutz: Each burner includes a thermocouple flame protection device that automatically cuts off the gas supply if the flame extinguishes, preventing gas leakage.
• Leicht zu reinigen: The stainless steel surface is designed for easy cleaning, resisting oil stains and fingerprints.
• NG/LPG-Umrüstbar: Suitable for both Natural Gas (NG) and Liquefied Petroleum Gas (LPG) with included conversion nozzles.
• Schnelle Zündung: Features pulse electric ignition for convenient, one-hand operation without the need for external flames.
• Stable Pan Supports: Durable cast iron pan supports provide stable and secure placement for cookware.

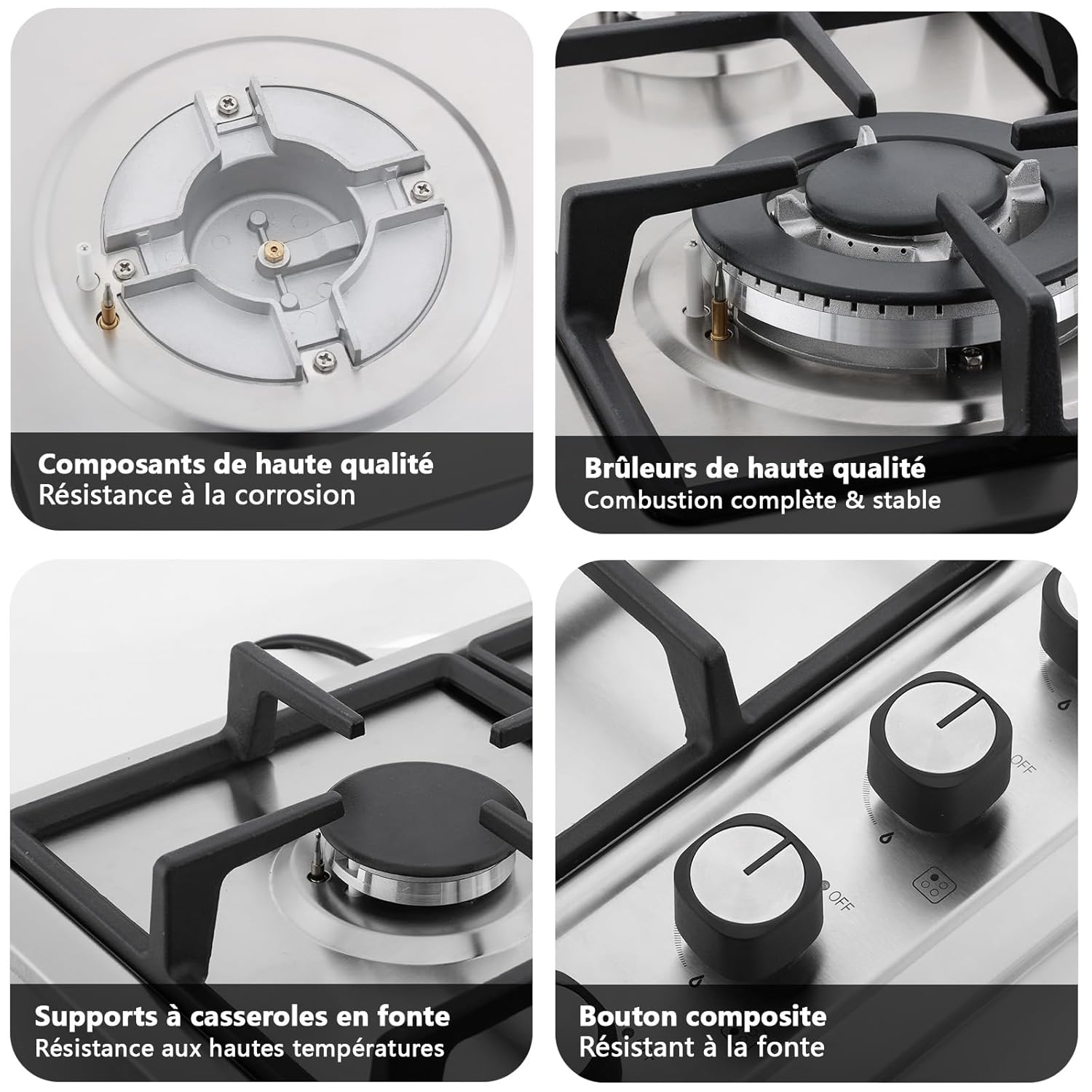

Bild: Detailliert view of the IsEasy gas hob components, highlighting the quality of the burners, cast iron pan supports, and control knobs. This image shows the robust construction and design elements of the appliance.

Auspacken und enthaltene Komponenten

Carefully unpack the appliance and check for any damage. Report any damage to your supplier immediately. Ensure all components listed below are present before proceeding with installation.

Mitgeliefertes Zubehör:

• IsEasy 4-Burner Gas Hob Unit
• Produkthandbuch (dieses Dokument)
• LPG Nozzle Sets (30mbr and 50mbr) x2
• Gas connector x1
• Feste Halterung x2
• Fixed ring x1
• Sealing strips x1
• Cast Iron Pot Rack (pre-installed or separate)

Image: The IsEasy 4-burner gas hob displayed with its complete set of accessories, including LPG nozzles, gas connector, fixed brackets, fixed ring, and sealing strips. This image helps verify all parts are present.

Installation und Setup

Installation must be performed by a qualified professional in accordance with all applicable local and national codes and regulations.

1. Prüfungen vor der Installation

• Verify that the gas supply type (Natural Gas or LPG) matches the appliance's configuration.
• Sorgen Sie für ausreichende Belüftung im Installationsbereich.
• Confirm that the electrical supply (127-240V for pulse ignition) is available and meets requirements.

2. Dimensions and Countertop Cut-out

Prepare the countertop opening according to the specified dimensions to ensure a proper fit and safe installation.

• Gesamtabmessungen: 59 cm (width) × 51 cm (depth) × 5.5 cm (height)
• Opening size (cut-out): 56 cm (Breite) x 48 cm (Tiefe)

Image: A visual representation of the IsEasy gas hob's overall dimensions and the precise cut-out measurements required for countertop installation. This ensures a correct and secure fit.

3. Gas Connection (NG/LPG Conversion)

The hob is factory-set for Natural Gas (NG). If you intend to use LPG (propane/butane), the conversion must be performed by a qualified technician using the provided LPG nozzle sets.

• Disconnect the appliance from the gas supply before any conversion.
• Replace the existing NG nozzles with the appropriate LPG nozzles for each burner.
• Passen Sie die minimale Flammeneinstellung gegebenenfalls nach dem Umbau an.
• Connect the gas supply line to the hob's gas connector, ensuring all connections are tight and leak-free. Use a gas leak detector or soapy water to check for leaks.

Image: The IsEasy gas hob highlighting its compatibility with both city gas (Natural Gas) and bottle gas (LPG). This image emphasizes the flexibility of the appliance for different gas sources.

4. Elektrische Verbindung

Connect the hob to a suitable electrical outlet (127-240V) for the pulse ignition system. Ensure the connection is secure and grounded.

5. Befestigung des Kochfelds

Place the sealing strips around the edge of the hob opening. Carefully lower the hob into the countertop cut-out. Use the fixed brackets and fixed ring to secure the hob firmly to the countertop from underneath.

Bedienungsanleitung

1. Zündung

1. Stellen Sie sicher, dass das Gaszufuhrventil geöffnet ist.
2. Push down the control knob for the desired burner and turn it counter-clockwise to the maximum flame position (large flame symbol).
3. The pulse igniter will click, and the burner will ignite.
4. Hold the knob down for a few seconds after ignition to allow the thermocouple to heat up and activate the flame safety device.
5. Lassen Sie den Knopf los. Sollte die Flamme erlöschen, wiederholen Sie den Vorgang.

2. Adjusting Flame

Once the burner is lit, you can adjust the flame size by rotating the control knob between the maximum (large flame symbol) and minimum (small flame symbol) positions. For simmering, use the minimum flame setting.

3. Burner Power Levels

The hob features four burners with distinct power outputs for various cooking tasks:

• Großer Brenner: 3.3 KW (Ideal for rapid boiling and high-heat cooking)
• Medium Burners (x2): 1.75 KW each (Suitable for general cooking, frying, and sautéing)
• Kleiner Brenner: 1 KW (Best for simmering, melting, and low-heat cooking)

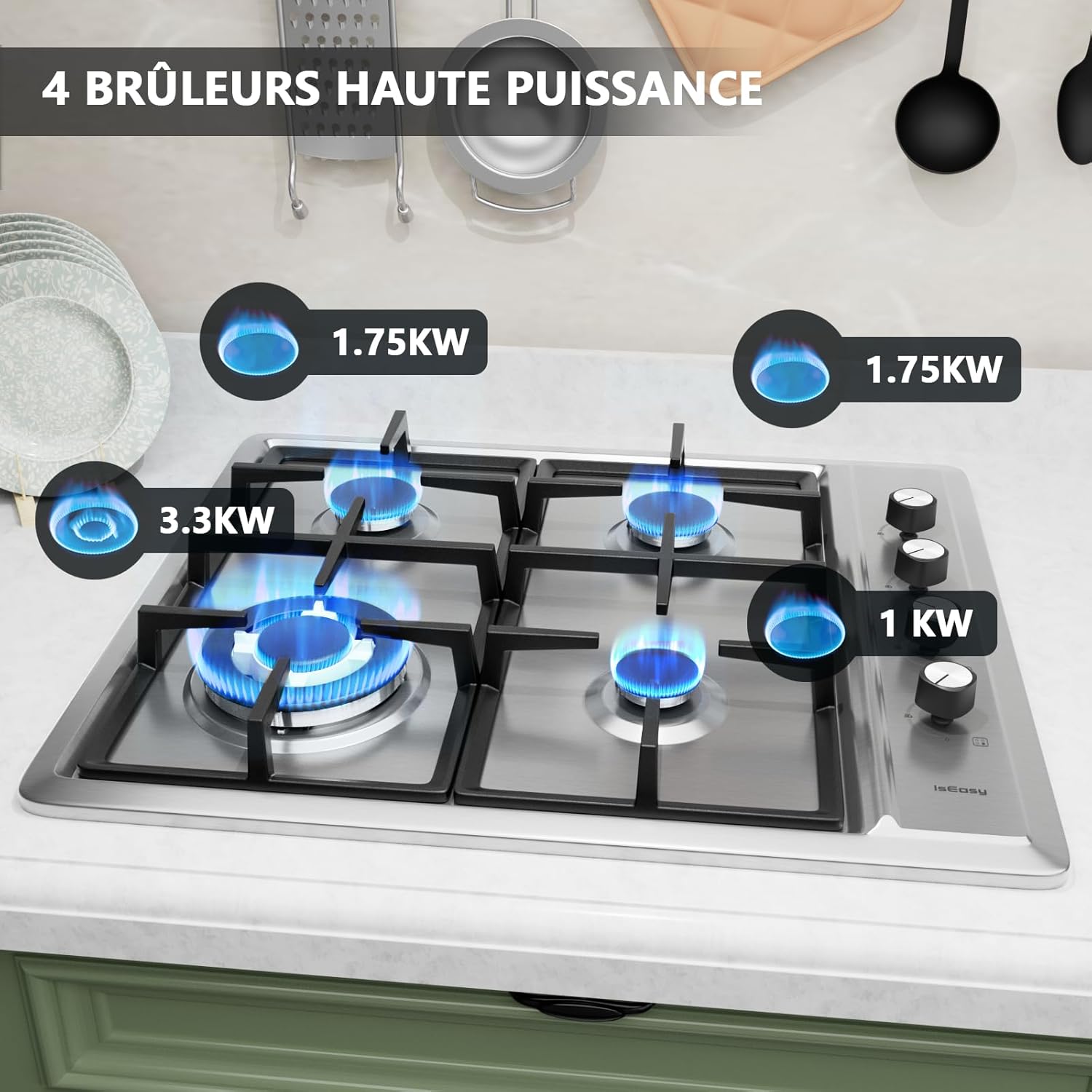

Image: The IsEasy gas hob with visual indicators of the power output for each of its four burners (3.3KW, 1.75KW, 1.75KW, 1KW). This illustrates the varied heat capabilities for different cooking needs.

4. Sicherheitsfunktionen

Each burner is equipped with a thermocouple flame failure device. If the flame accidentally extinguishes (e.g., due to a draft or boil-over), the thermocouple will detect the absence of heat and automatically shut off the gas supply to that burner, preventing gas leakage.

Wartung und Reinigung

Regular cleaning and maintenance will ensure the longevity and optimal performance of your gas hob. Always ensure the appliance is cool and disconnected from the gas and electrical supply before cleaning.

1. Allgemeine Reinigung

• Wipe the stainless steel panel with a damp Verwenden Sie ein Tuch und ein mildes Reinigungsmittel. Vermeiden Sie Scheuermittel oder Scheuerschwämme, da diese die Oberfläche zerkratzen können.
• Bei hartnäckigen Flecken verwenden Sie einen speziellen Edelstahlreiniger.
• Dry the surface thoroughly with a soft cloth to prevent water spots.

2. Burner Cleaning

• Remove the burner caps and crowns. Wash them in warm soapy water, rinse, and dry thoroughly.
• Clean the burner bases with a brush to remove any food debris or blockages from the gas ports. Ensure the ignition pin and thermocouple are clean and free from residue.
• Ensure all burner parts are completely dry before reassembling them. Incorrect reassembly can affect ignition and flame quality.

3. Cast Iron Pan Supports

• The cast iron pan supports can be washed in warm soapy water.
• For baked-on food, soak them before cleaning.
• Dry them completely to prevent rust.

Fehlerbehebung

Bevor Sie sich an den Kundendienst wenden, konsultieren Sie bitte die folgende Tabelle mit häufig auftretenden Problemen und deren Lösungen.

Technische Daten

Garantie und Support

This IsEasy Gas Hob comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact IsEasy customer support. For technical assistance, spare parts, or service inquiries, please contact your retailer or the authorized IsEasy service center.

Informationen zur Entsorgung

Do not dispose of this appliance with general household waste. This product contains materials that can be recycled. Please take it to a designated collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
