Seevoo Ergonomischer Bürostuhl (Modell SV23) - Bedienungsanleitung

1. Produktüberschreitungview

The Seevoo Ergonomic Office Chair (Model SV23) is designed to provide comfort and support for extended periods of sitting. It features adjustable components to customize your seating experience, including lumbar support, seat height, and recline angle. The chair combines breathable mesh for the backrest with a durable PU leather seat cushion, all supported by a robust steel base and smooth-gliding blade wheels.

Figure 1: Seevoo Ergonomic Office Chair in a typical office environment.

2. Sicherheitshinweise

Bitte lesen und verstehen Sie alle Anweisungen vor der Montage und Inbetriebnahme. Bewahren Sie diese Anleitung zum späteren Nachschlagen auf.

• Maximale Gewichtskapazität: This chair has a maximum weight capacity of 300 pounds (136 kg). Do not exceed this limit.
• Bestimmungsgemäße Verwendung: Improper use of adjustable features, such as the lumbar support, reclining angle, and flip-up armrests, could lead to instability or injury. Always follow the assembly instructions and guidelines for safe use.
• Montage: Ensure all screws and bolts are securely tightened before using the chair. Periodically check and re-tighten fasteners as needed.
• Bodenschutz: While blade wheels are designed for smooth movement, consider using a chair mat on delicate flooring to prevent potential marks or scratches.

3. Aufbau und Montage

The Seevoo Ergonomic Office Chair is designed for straightforward assembly. All necessary tools and hardware are included. Follow the step-by-step instructions provided in the packaging for detailed guidance.

Wichtigste Montageschritte:

1. Attach the casters (blade wheels) to the steel base.
2. Setzen Sie den Gasliftzylinder mittig in den Sockel ein.
3. Secure the armrests to the seat cushion using the provided screws.
4. Befestigen Sie die Rückenlehne am Sitzkissen und an den Armlehnen.
5. Montieren Sie die Kopfstütze oben an der Rückenlehne.
6. Setzen Sie den montierten Sitz und die Rückenlehne auf den Gasdruckfederzylinder.

Abbildung 2: Überview of ergonomic features and adjustable components.

4. Bedienungsanleitung

4.1 Sitzhöhenverstellung

To adjust the seat height, locate the lever on the right side beneath the seat. Pull the lever upwards while taking your weight off the seat to raise it. To lower the seat, pull the lever upwards while remaining seated. The chair offers a 4.7-inch adjustable height range.

4.2 Verstellfunktion

The chair features a reclining angle from 90° to 130°. To recline, pull the lever on the left side of the seat outwards. Lean back to your desired angle and push the lever inwards to lock the position. To return to an upright position, pull the lever outwards, lean forward slightly, and then push the lever inwards to lock.

Figure 3: Illustration of the chair's reclining capabilities and tilt tension adjustment.

4.3 Adjustable Lumbar Support

The chair includes adjustable lumbar support designed to conform to the shape of the human spine. Adjust the knob on the backrest to increase or decrease the lumbar pressure for personalized comfort.

4.4 Flip-Up Armrests

The padded armrests can be flipped up to provide more seating space or to allow the chair to be pushed closer to a desk. Simply lift the armrests upwards until they lock into the vertical position. To lower them, pull them slightly outwards and then push them down.

4.5 Verstellbare Kopfstütze

The large-area headrest can be adjusted in height and angle. To adjust the height, pull the headrest upwards or push it downwards. To adjust the angle, tilt it forward or backward to find your preferred position for neck support.

5. Wartung

To ensure the longevity and appearance of your Seevoo Ergonomic Office Chair, follow these simple maintenance guidelines:

• Reinigung: Mit Anzeige abwischenamp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the mesh fabric or PU leather.
• Inspektion: Überprüfen Sie regelmäßig alle Schrauben und Verbindungen auf festen Sitz. Ziehen Sie sie gegebenenfalls nach.
• Vermeiden Sie direktes Sonnenlicht: Prolonged exposure to direct sunlight can cause the materials to fade or degrade.

6. Fehlerbehebung

If you encounter any issues with your Seevoo Ergonomic Office Chair, please refer to the following common solutions:

• Der Stuhl fühlt sich instabil an: Stellen Sie sicher, dass alle Montageschrauben fest angezogen sind. Prüfen Sie, ob die Gasdruckfeder korrekt im Sockel sitzt.
• Difficulty adjusting height/recline: Verify that the levers are engaged correctly. Ensure no obstructions are preventing movement.
• Quietschgeräusche: Check and tighten any loose screws. A small amount of lubricant can be applied to moving parts if necessary.

Bei anhaltenden Problemen wenden Sie sich bitte an den Kundendienst.

7. Spezifikationen

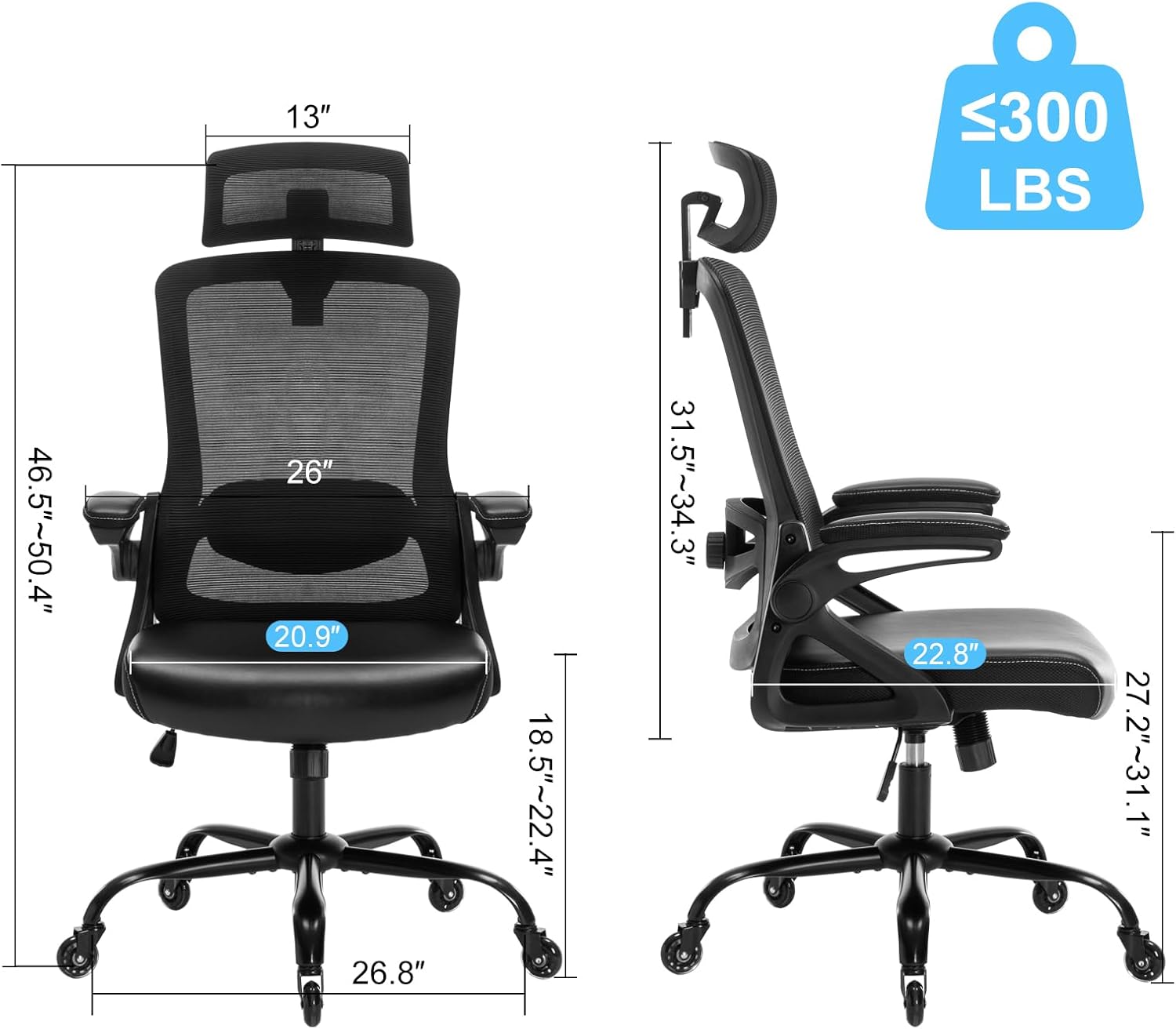

Figure 4: Detailed dimensions of the Seevoo Ergonomic Office Chair.

8. Garantie und Support

Seevoo offers a 5 Jahr Garantie on this product. This warranty covers manufacturing defects and ensures the quality and durability of your office chair.

For any questions, concerns, or warranty claims, please contact our professional after-sales service team via email. We are committed to providing a 100% satisfactory response within 24 hours.

Thank you for choosing the Seevoo Ergonomic Office Chair.
