OUKANING 10" Hinterrad Felge Reifen Montage Benutzerhandbuch

Einführung

This manual provides essential information for the proper installation, operation, and maintenance of your OUKANING 10" Rear Wheel Rim Tire Assembly. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.

This rear wheel assembly is designed for various 50cc-110cc Dirt Pit Bikes, including models like CRF50, DRZ70, and PW50. It features a durable construction with a 12mm axle hole diameter and a 2.50-10 tire size.

Figure 1: OUKANING 10" Rear Wheel Rim Tire Assembly.

Produktspezifikationen

Figure 2: Key dimensions of the OUKANING 10" Rear Wheel Rim Tire Assembly.

Packungsinhalt

Bitte überprüfen Sie nach dem Öffnen der Verpackung, ob alle Komponenten vorhanden und unbeschädigt sind:

• 1 x Wheel Rim Tyre Assembly

Note: Installation manual is not included. Professional installation is highly recommended.

Setup und Installation

The OUKANING 10" Rear Wheel Rim Tire Assembly is designed for direct replacement. While professional installation is recommended, the following general steps outline the process:

1. Vorbereitung: Ensure your dirt bike is securely supported on a stand. Gather necessary tools, including wrenches, sockets, and a torque wrench.
2. Altes Rad entfernen: Loosen and remove the axle nut and any other fasteners securing the existing rear wheel. Carefully slide the axle out and remove the old wheel assembly.
3. Komponenten prüfen: Before installing the new wheel, inspect the swingarm, chain, and brake components for any wear or damage. Ensure the brake drum and hub are compatible with the new assembly.
4. Neues Rad einbauen: Carefully align the new OUKANING wheel assembly with the swingarm and brake components. Insert the axle through the wheel hub and swingarm.
5. Sichere Befestigungselemente: Reinstall the axle nut and any other fasteners. Tighten all nuts and bolts to the manufacturer's specified torque settings for your dirt bike model. Nicht zu fest anziehen.
6. Check Alignment and Chain Tension: Verify that the wheel is properly aligned and the chain tension is correct. Adjust as needed.
7. Bremsenprüfung: Test the rear brake function to ensure it operates correctly and safely.

Wichtig: Tire sizes vary by ride. Please check your current tire and wheel sizes before placing an order to ensure compatibility. The axle hole diameter for this assembly is 12mm.

Abbildung 3: Bspample of a wheel assembly installed on a dirt bike.

Überlegungen zum Betrieb

This OUKANING rear wheel assembly is designed for off-road use on dirt bikes. It is not intended for highway use.

• Reifenhaftung: The tire features thickened and deepened blocks for excellent grip across various road conditions, including wet roads, muddy roads, and harsh terrains.
• Tragfähigkeit: The assembly has a maximum load capacity of 255 lbs, providing stable and reliable performance during riding.
• Haltbarkeit: Constructed from durable rubber for the tire and a combination of aluminum and steel for the rim and hub, ensuring longevity and reliability.

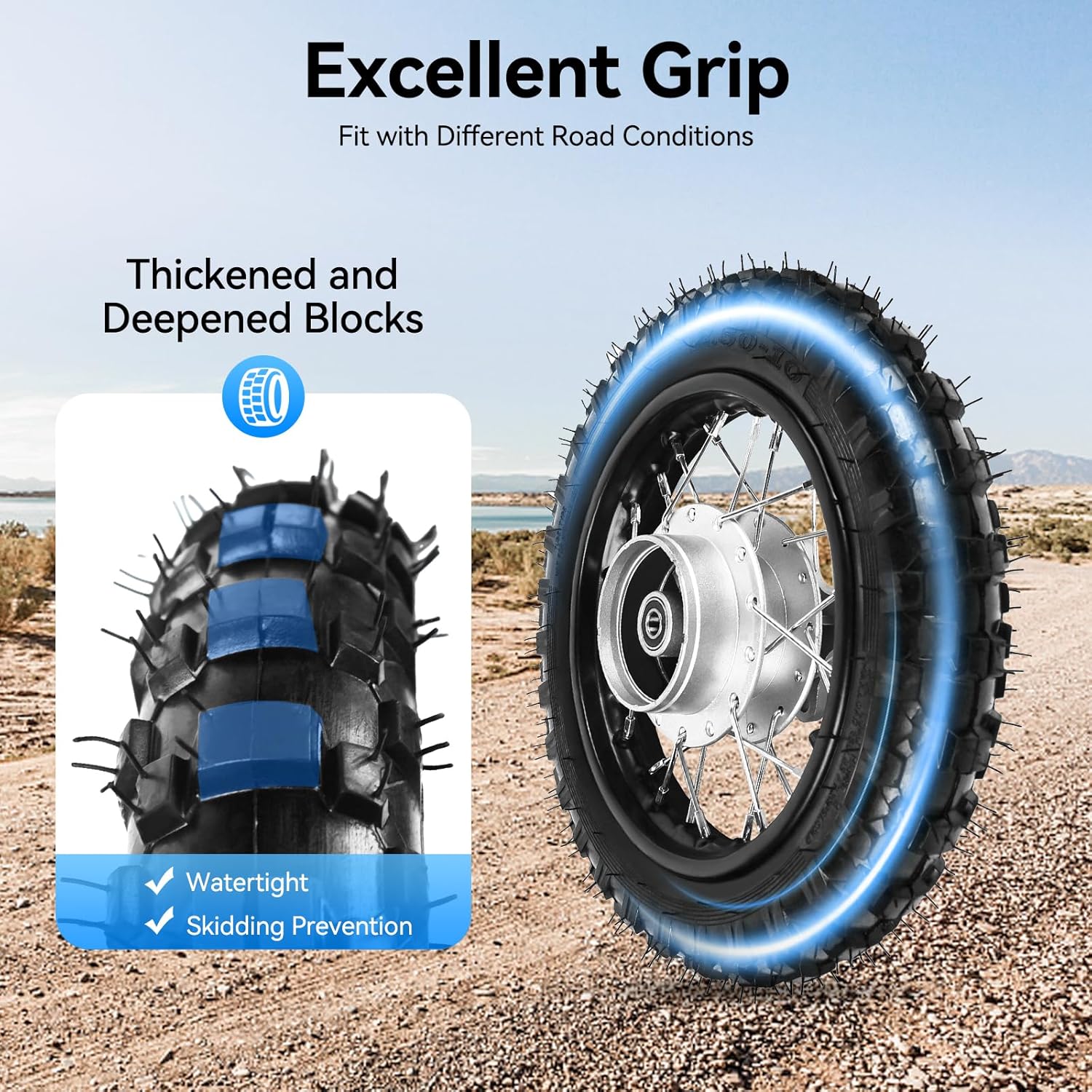

Figure 4: Excellent grip provided by thickened and deepened tire blocks, suitable for various terrains.

Figure 5: The wheel assembly is designed to handle a strong load capacity of up to 255 lbs.

Figure 6: Durable and reliable construction using high-quality rubber for the tire and aluminum/steel for the rim.

Figure 7: The tire is suitable for wet, muddy, and harsh terrains, but not for highway use.

Wartung

Regular maintenance is crucial for the longevity and safe operation of your OUKANING rear wheel assembly:

• Reifendruck: Regularly check and maintain the recommended tire pressure for your specific dirt bike model and riding conditions. Incorrect pressure can affect performance and tire life.
• Reifenverschleiß: Inspect the tire tread for signs of excessive wear, cuts, or punctures. Replace the tire if the tread depth is insufficient or if there is significant damage.
• Rim and Spokes: Periodically check the rim for dents or cracks and ensure all spokes are tight and properly tensioned. Loose spokes can lead to wheel instability.
• Lager: Inspect the wheel bearings for smooth rotation and any signs of play. Worn bearings should be replaced promptly to prevent further damage and ensure safe operation.
• Ventilkappe: Ensure the valve cap is always securely in place to effectively protect the interior from contamination.

Figure 8: Details of the tire's rubber strips and the protective valve cup.

Fehlerbehebung

This section addresses common issues you might encounter with your rear wheel assembly:

Garantie und Support

For information regarding warranty coverage or technical support for your OUKANING 10" Rear Wheel Rim Tire Assembly, please refer to the original purchase documentation or contact your retailer. As this product is a direct replacement part, specific warranty details may vary based on the seller's policy.

For general inquiries or assistance, you may visit the official OUKANING Store on Amazon: OUKANING Store
