Olmlmo GC-01 Geiger Counter Nuclear Radiation Detector

1. Einleitung

The Olmlmo GC-01 is a portable nuclear radiation detector designed to measure ionizing radiation, including Beta particles, Gamma rays, and X-rays. This device utilizes a built-in Geiger-Müller (GM) sensor for fast response and high accuracy, providing real-time, average, and maximum radiation dose rate readings. It is suitable for personal safety monitoring and environmental radiation detection in various settings.

Abbildung 1: Front view of the Olmlmo GC-01 Geiger Counter, showing the LCD display and control buttons.

2. Sicherheitshinweise

Please read and understand all safety instructions before operating the device. Improper use may lead to inaccurate readings or damage to the device.

• Versuchen Sie nicht, das Gerät zu öffnen oder zu verändern.
• Das Gerät sollte von extremen Temperaturen, hoher Luftfeuchtigkeit und starken elektromagnetischen Feldern ferngehalten werden.
• Vermeiden Sie es, das Gerät fallen zu lassen oder starken Stößen auszusetzen.
• Use only the provided charging cable or a compatible charger to prevent damage to the battery.
• This device is for detection and monitoring purposes. It does not protect against radiation exposure. Always follow official safety guidelines when dealing with radioactive materials.

3. Produktüberschreitungview und Funktionen

The Olmlmo GC-01 is equipped with several features to ensure reliable and user-friendly operation:

• High Sensitivity GM Sensor: Detects Beta, Gamma, and X-rays with a fast response time.
• LCD Anzeige: Clear display of real-time, average, and maximum dose rates.
• Mehrere Alarmmodi: Configurable light, vibration, and sound alarms for exceeding set thresholds.
• Wiederaufladbarer Akku: Eingebauter Akku für den mobilen Einsatz.
• Unit and Language Settings: Supports multiple dosage units and language options (English/Chinese).

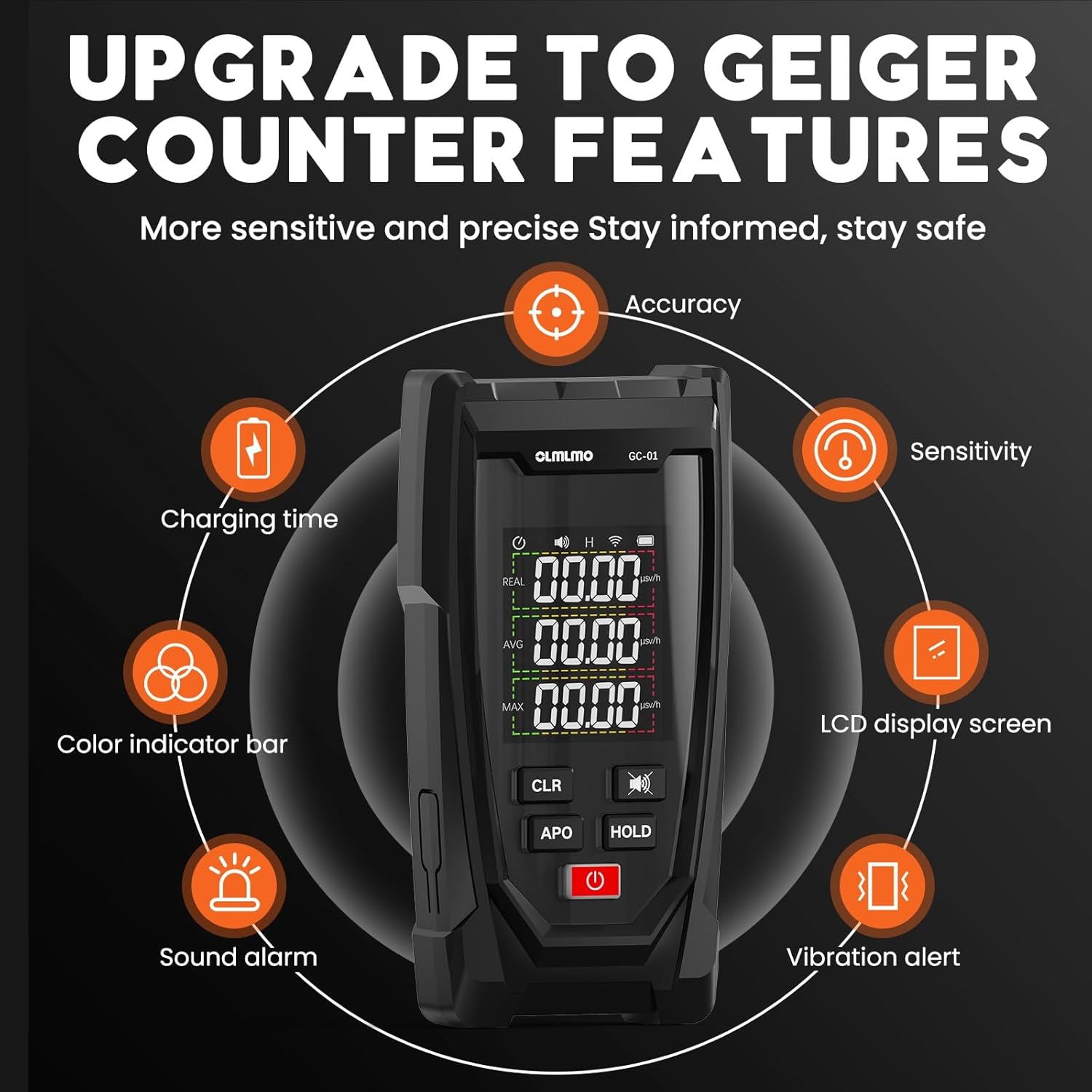

Abbildung 2: Diagram highlighting key features such as accuracy, sensitivity, charging, color indicator bar, sound alarm, vibration alert, and LCD display screen.

4. Einrichtung

4.1 Erstaufladung

Before first use, fully charge the device. Connect the provided USB cable to the charging port on the device and to a standard USB power adapter (not included). The charging indicator on the display will show the charging status.

4.2 Ein-/Ausschalten

• So schalten Sie das Gerät ein: Press and hold the power button (usually marked with a universal power symbol) until the display illuminates.
• So schalten Sie das Gerät aus: Halten Sie den Netzschalter gedrückt, bis sich das Display ausschaltet.

5. Bedienungsanleitung

5.1 Das Display verstehen

The LCD display provides three main readings:

• ECHT: Displays the current, real-time radiation dose rate. This value fluctuates based on immediate detection.
• AVG: Shows the average radiation dose rate over a period of time, providing a more stable reading.
• MAX: Records the highest radiation dose rate detected since the last reset.

Abbildung 3: The device display showing real-time (REAL), average (AVG), and maximum (MAX) radiation data in µSv/h.

5.2 Alarmeinstellungen

The device features a smart alarm system that can be configured for current dose and accumulated dose thresholds. When the detected radiation exceeds the set alarm value, the monitor will activate an alarm.

• Alarmmodi: Choose from Light, Vibration, or Sound alarms, or a combination of these.
• Setting Thresholds: Access the alarm setting option in the menu to adjust the desired current and accumulated dose alarm values.

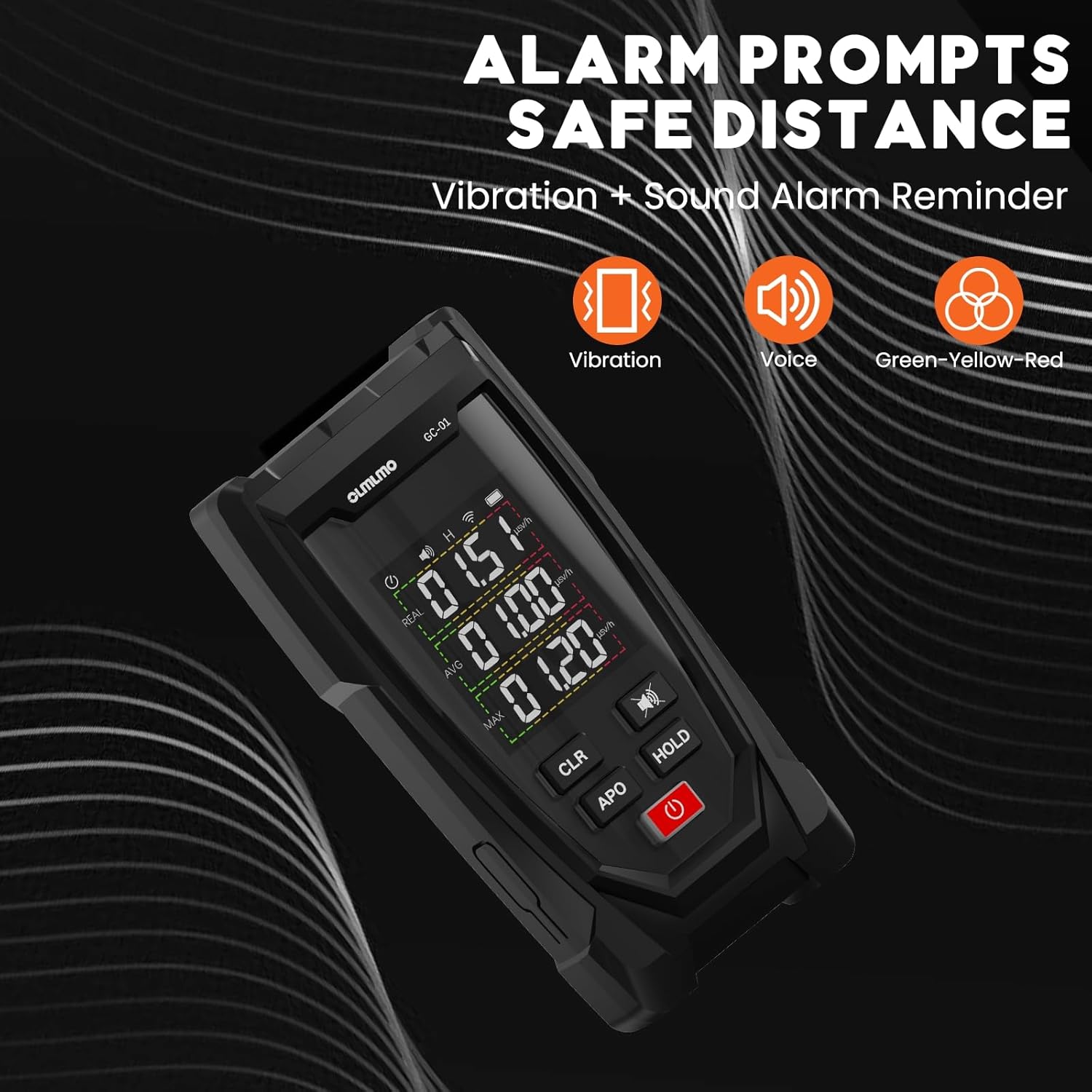

Abbildung 4: Illustration of the alarm features, including vibration, voice (sound), and a green-yellow-red color indicator for radiation levels.

5.3 Unit and Language Settings

The device allows customization of measurement units and display language:

• Einheit: Select from available dosage units (e.g., µSv/h).
• Sprache: Switch between English (default) and Chinese.
• Refer to the on-screen menu for navigation and selection of these settings.

5.4 Funktionsprinzip

The Olmlmo GC-01 operates using a Geiger-Müller counter. This technology detects the intensity of ionizing radiation (Beta particles, Gamma rays, and X-rays) by employing a gas tube or a small chamber as a probe. When the voltage applied to the probe reaches a specific range, each time a ray ionizes in the tube, it produces a pair of ions. These ions are amplified to generate an electric pulse of uniform size, which is then recorded by the connected electronic device. The number of rays detected per unit time is thus measured and displayed.

Abbildung 5: Diagram illustrating the Geiger tube technology, showing its sensitivity, measuring range, basic error, response time, and measurable rays (X-ray, γ Ray, β Ray).

6. Wartung

• Reinigung: Reinigen Sie das Gerät mit einem weichen, trockenen Tuch. Verwenden Sie keine Scheuer- oder Lösungsmittel.
• Lagerung: Bewahren Sie das Gerät bei Nichtgebrauch an einem kühlen, trockenen Ort fern von direkter Sonneneinstrahlung und extremen Temperaturen auf.
• Batteriepflege: For optimal battery life, avoid fully discharging the battery frequently. Charge the device regularly if stored for extended periods.

7. Fehlerbehebung

• Gerät lässt sich nicht einschalten: Stellen Sie sicher, dass der Akku geladen ist. Schließen Sie das Gerät an eine Stromquelle an und versuchen Sie es erneut.
• Ungenaue Messwerte: Ensure the device is not near strong electromagnetic interference. Calibrate if a calibration option is available (refer to advanced settings if applicable).
• Kein Alarm: Check alarm settings to ensure sound/vibration is enabled and thresholds are set appropriately.
• Anzeigeprobleme: If the display is frozen or unresponsive, try restarting the device by holding the power button.

8. Spezifikationen

9. Anwendungsbereiche

The Olmlmo GC-01 Geiger Counter is widely applicable in environments where ionizing radiation may be present. Typical uses include:

• Home improvement radiation detection (e.g., building materials).
• Geological surveys.
• Inspection of vehicles and goods.
• Monitoring around nuclear power plants.
• Industrial radiation safety.
• Radiology departments and laboratories.

Abbildung 6: Visual representation of diverse application areas for the Geiger Counter, including offices, industrial sites, food inspection, and residential settings.

10. Garantie und Support

For warranty information and technical support, please refer to the product packaging or contact the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.
