1. Produktüberschreitungview
The Aroha Safety Pro Combimelder (Model CS11) is an advanced 2-in-1 device designed to provide early warning of both smoke and dangerous levels of carbon monoxide (CO). This detector features a sealed 10-year lithium battery, ensuring long-term, maintenance-free operation. It incorporates photoelectric sensors for effective smoke detection and electrochemical sensors for accurate carbon monoxide monitoring.
Image 1.1: Aroha Safety Pro Combimelder 5-pack.
Hauptmerkmale:
- 2-in-1-Schutz: Erkennt sowohl Rauch als auch Kohlenmonoxid.
- 10 Jahre Batterielebensdauer: Sealed lithium battery provides continuous power for a decade. The battery is non-replaceable.
- Photoelectric Smoke Sensor: Highly effective at detecting slow-burning fires.
- Elektrochemischer CO-Sensor: Accurately detects carbon monoxide levels.
- 85 dB Alarm: Lauter, hörbarer Alarm, um die Bewohner zu warnen.
- Test-/Stummschalttaste: Large, easily accessible button for testing and silencing alarms.
- Intelligent Self-Test: Performs automatic checks every minute to ensure functionality.
- Zertifizierte Sicherheit: Complies with European safety standards EN14604 (smoke) and EN50291 (carbon monoxide).
- Kompaktes Design: Ultra-thin and round design (12 cm diameter, 2.8 cm height).
Image 1.2: Features of the Aroha Safety Pro Combimelder.
2. Sicherheitshinweise
Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in improper operation, property damage, or personal injury.
- Dieses Gerät ist nur für den Gebrauch in Innenräumen vorgesehen.
- Der Detektor darf nicht lackiert werden. Farbe kann die Sensoröffnungen verstopfen und die ordnungsgemäße Funktion beeinträchtigen.
- Nicht in Bereichen mit hoher Luftfeuchtigkeit, extremen Temperaturen oder übermäßiger Staub-/Schmutzbelastung installieren.
- Regularly test the detector as described in the 'Testing' section.
- The 10-year battery is sealed and non-replaceable. Do not attempt to open the unit or replace the battery.
- Dieses Gerät ist kein Ersatz für ordnungsgemäße Belüftung und Wartung von Brennstoffgeräten.
- Im Alarmfall verlassen Sie bitte unverzüglich das Gebäude und rufen Sie den Notdienst.
Image 2.1: The Aroha Safety Pro Combimelder is CE and NEN certified.
3. Packungsinhalt
Vergewissern Sie sich beim Öffnen der Verpackung, dass alle Artikel vorhanden und unbeschädigt sind:
- Aroha Safety Pro Combimelder(s)
- Montagehalterung(en)
- Schrauben und Dübel
- Benutzerhandbuch
4. Installation
The Aroha Safety Pro Combimelder is designed for easy installation. Follow these steps for optimal placement and secure mounting.
4.1 Recommended Placement:
- Install at least one detector on each floor of your home, including the basement.
- Place detectors in or near sleeping areas.
- For smoke detection, mount on the ceiling in the center of the room, or at least 10 cm (4 inches) from any wall.
- For CO detection, place the detector at breathing height in rooms with fuel-burning appliances.
- Avoid placing near windows, doors, or ventilation openings that could interfere with detection.
- Avoid placing in 'dead air' spaces, such as the peak of a vaulted ceiling or in corners.
4.2 Montageanleitung:
- Choose a suitable location according to the recommendations above.
- Verwenden Sie die Montagehalterung als Schablone, um zwei Bohrlöcher an der Decke oder Wand zu markieren.
- Bohren Sie die Löcher und setzen Sie die Dübel ein.
- Befestigen Sie die Montagehalterung mit den mitgelieferten Schrauben.
- Richten Sie den Detektor an der Montagehalterung aus und drehen Sie ihn im Uhrzeigersinn, bis er hörbar einrastet.
- The detector will automatically activate upon installation.
Image 4.1: The compact design of the Aroha Safety Pro Combimelder.
5. Bedienung
Once installed, the Aroha Safety Pro Combimelder operates continuously, monitoring for smoke and carbon monoxide.
5.1 Normalbetrieb:
During normal operation, the LED indicator will flash briefly every 55 seconds, indicating that the unit is functioning correctly.
5.2 Smoke Alarm:
If smoke is detected, the alarm will sound with a loud, intermittent siren (three long beeps, pause, three long beeps) and the red LED will flash rapidly. This indicates a potential fire hazard.
Image 5.1: Photoelectric sensor reacts to smoke within 10 seconds.
5.3 Carbon Monoxide (CO) Alarm:
If dangerous levels of carbon monoxide are detected, the alarm will sound with a loud, intermittent siren (four short beeps, pause, four short beeps) and the red LED will flash rapidly. This indicates a potential CO poisoning hazard.
The detector provides early warnings for various CO concentrations:
- 300 Seiten pro Minute: Alarm innerhalb von 3 Minuten.
- 100 Seiten pro Minute: Alarm innerhalb von 40 Minuten.
- 50 Seiten pro Minute: Alarm innerhalb von 90 Minuten.

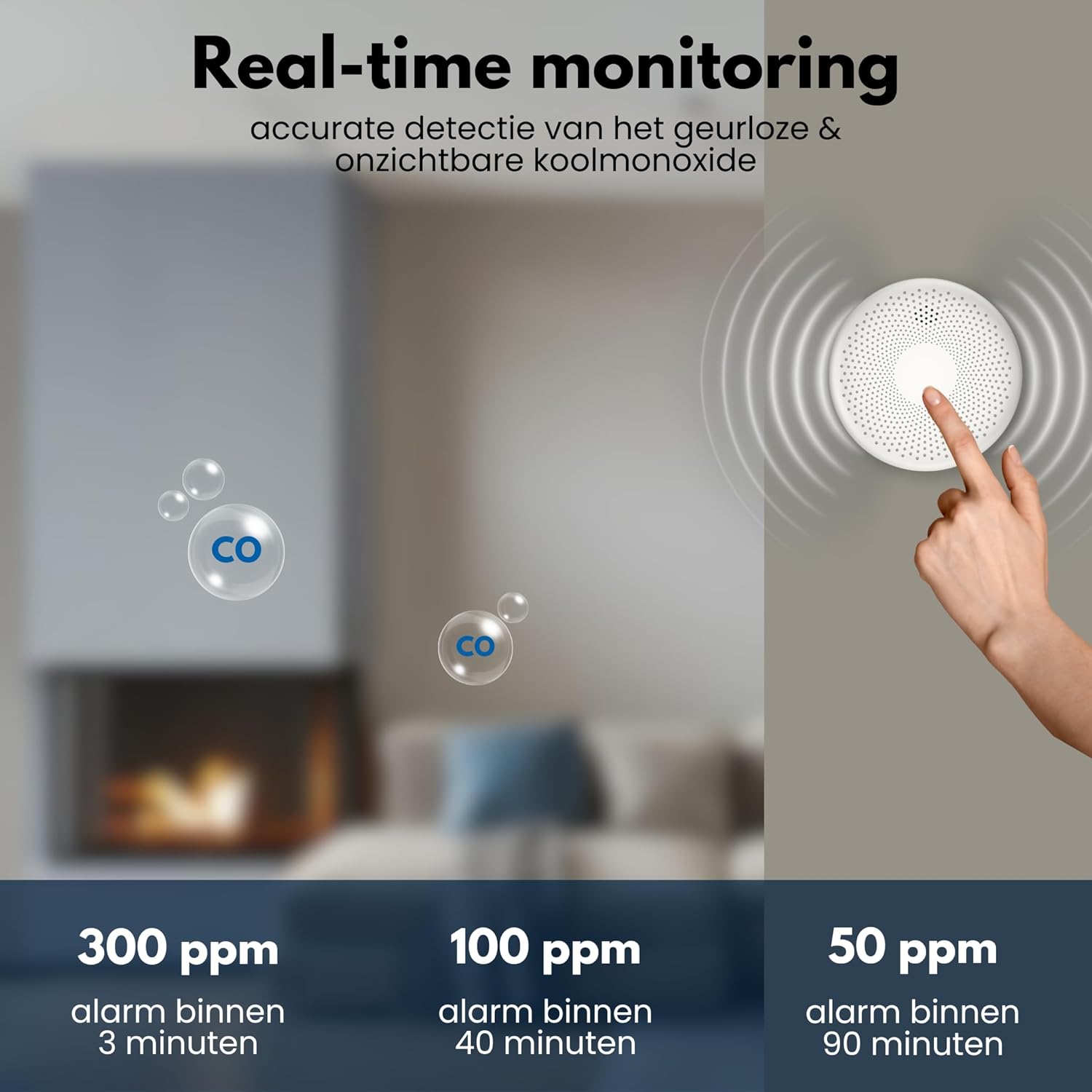

Image 5.2: Real-time monitoring for carbon monoxide.
5.4 Silencing the Alarm:
To silence a nuisance alarm (e.g., from cooking smoke), press the large test/mute button on the front of the detector. The alarm will temporarily silence for approximately 10 minutes. If the smoke or CO concentration remains high, the alarm will reactivate after the mute period. Do not silence an alarm unless you are certain it is a false alarm.

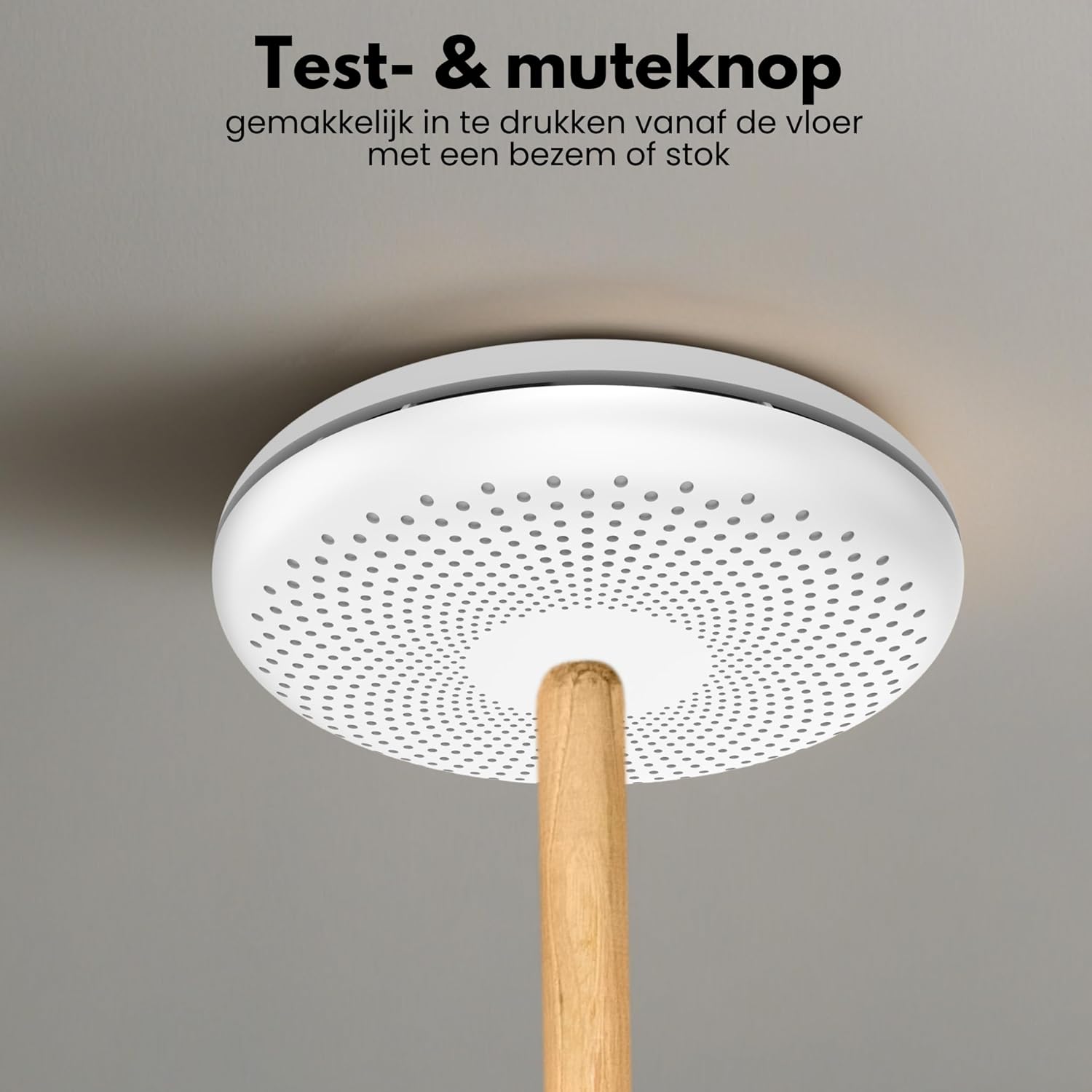

Image 5.3: Test and mute button, easily accessible with a broomstick.
6. Testen
It is crucial to test your Aroha Safety Pro Combimelder regularly to ensure it is functioning correctly. Test the detector weekly or at least once a month.
6.1 Performing a Test:
- Press and hold the large test/mute button on the front of the detector for at least 3 seconds.
- The alarm will sound with a series of beeps (smoke and CO alarm patterns) and the red LED will flash.
- Lassen Sie den Knopf los. Der Alarm sollte aufhören.
- If the alarm does not sound or the LED does not flash during the test, refer to the 'Troubleshooting' section.
7. Wartung
Minimal maintenance is required for the Aroha Safety Pro Combimelder due to its 10-year sealed battery and intelligent self-test function.
7.1 Reinigung:
- Dust and debris can accumulate on the detector and affect its performance.
- Gently vacuum the exterior of the detector using a soft brush attachment at least once a month.
- Verwenden Sie keine Reinigungsmittel oder Waschmittel am Detektor.
7.2 End of Life Indication:
After approximately 10 years of operation, the detector will emit a short beep every 40 seconds, indicating that it has reached the end of its service life and needs to be replaced. The battery cannot be replaced.
8. Fehlerbehebung
If your Aroha Safety Pro Combimelder is not functioning as expected, refer to the following common issues and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Detector does not activate after installation. | Not properly twisted onto the mounting bracket. | Ensure the detector is fully twisted clockwise onto the mounting bracket until it clicks. |
| Alarm sounds intermittently (e.g., every 40 seconds). | End of service life. | Tauschen Sie den Detektor umgehend aus. |
| Alarm sounds during normal operation (not a test). | Presence of smoke or CO. | Evacuate immediately and call emergency services. If it's a nuisance alarm (e.g., cooking), press the mute button. |
| Die Testtaste löst keinen Alarm aus. | Geräteausfall oder Lebensdauerende. | Ensure the button is pressed firmly for at least 3 seconds. If still unresponsive, replace the detector. |
| Fehlalarme. | Dust, steam, cooking fumes, or improper placement. | Clean the detector. Relocate if frequently exposed to steam or fumes. Ensure proper ventilation during cooking. |
9. Spezifikationen
| Spezifikation | Detail |
|---|---|
| Modellnummer | CS11 |
| Marke | Aroha-Elektronik |
| Stromquelle | 10-Year Sealed Lithium-metal Battery (non-replaceable) |
| Rauchsensortyp | Fotoelektrisch |
| CO-Sensortyp | Elektrochemisch |
| Alarmlautstärke | 85 dB |
| Betriebstemperatur | Bis zu 55 °C |
| Installationsmethode | Screws (mounting bracket included) |
| Abmessungen (Durchmesser) | 12 cm |
| Gewicht | 144 Gramm |
| Zertifizierungen | CE, EN14604, EN50291 |
| Im Lieferumfang enthaltene Komponenten | Detector, Mounting Bracket, Screws and Plugs, User Manual |
10. Garantie und Support
Aroha Electronics stands behind the quality of its products. For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official Aroha Electronics webBewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.
For further assistance, you may contact Aroha Electronics directly via their Amazon store page: Aroha Store on Amazon.nl.
