GGM Gastro HDVJ446 Hot-Dog-Dampfgarer und beheiztes Display – Benutzerhandbuch

1. Einleitung

Thank you for choosing the GGM Gastro HDVJ446 Hot Dog Steamer and Heated Display. This appliance is designed for professional use to efficiently steam hot dogs and keep buns warm, ensuring optimal serving temperature and presentation. To ensure safe and proper operation, please read this instruction manual thoroughly before initial use and keep it for future reference.

This manual provides essential information on setup, operation, maintenance, and troubleshooting to help you maximize the performance and longevity of your hot dog steamer.

Abbildung 1: The GGM Gastro HDVJ446 Hot Dog Steamer and Heated Display. This image shows the complete unit with its stainless steel casing, glass front, and the 'Hot Dogs' graphic on the top panel.

2. Sicherheitshinweise

Beachten Sie stets die folgenden Sicherheitsvorkehrungen, um Verletzungen oder Schäden am Gerät zu vermeiden:

• Elektrische Sicherheit: Connect the appliance only to a properly grounded 230V / 1N/PE / 50 Hz power outlet. Do not use extension cords or adapters unless absolutely necessary and ensure they are rated for the appliance's 1.2 kW power consumption.
• Heiße Oberflächen: The appliance operates at temperatures up to 85 °C. Surfaces, especially the glass and internal components, will become hot during operation. Use caution and wear protective gloves if necessary.
• Wasserhandhabung: Always ensure the water reservoir is filled to the appropriate level before operation. Use the drain cock on the side to safely empty water after use and during cleaning.
• Platzierung: Place the appliance on a stable, level, and heat-resistant surface. Ensure adequate ventilation around the unit. Do not place near flammable materials.
• Reinigung: Disconnect the appliance from the power supply before cleaning. Allow it to cool down completely. Do not immerse the appliance in water.
• Aufsicht: Dieses Gerät ist nicht für die Verwendung durch Personen mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten oder mangelnder Erfahrung und Kenntnis bestimmt, es sei denn, sie werden von einer für ihre Sicherheit verantwortlichen Person beaufsichtigt oder in die Verwendung des Geräts eingewiesen.
• Schaden: Do not operate the appliance if it is damaged in any way. Contact qualified service personnel for repairs.
• Verwendungszweck: Use the appliance only for its intended purpose of steaming hot dogs and warming buns.

3. Produktüberschreitungview

The GGM Gastro HDVJ446 is a two-level hot dog steamer and heated display unit, constructed with a durable AISI 304 stainless steel casing and a clear glass front for product visibility. It features an adjustable thermostat for temperature control and a convenient drain cock for water management.

Schlüsselkomponenten:

• Edelstahl C.asing: Durable and hygienic AISI 304 stainless steel construction.
• Glasfront: Provides clear visibility of products while maintaining heat.
• Zweistufiger Dampfgarer: Allows for steaming hot dogs on one level and warming buns on another.
• Ein-/Ausschalter: Hauptstromregler für das Gerät.
• Operation Indicator Lights: Visual feedback for power and heating status.
• Einstellbarer Thermostat: Controls the internal temperature up to 85 °C.
• Drain Cock: Located on the side for easy water drainage.

Abbildung 2: Nahaufnahme view of the control panel, showing the red 'POWER' on/off switch and the amber 'HEAT' indicator light.

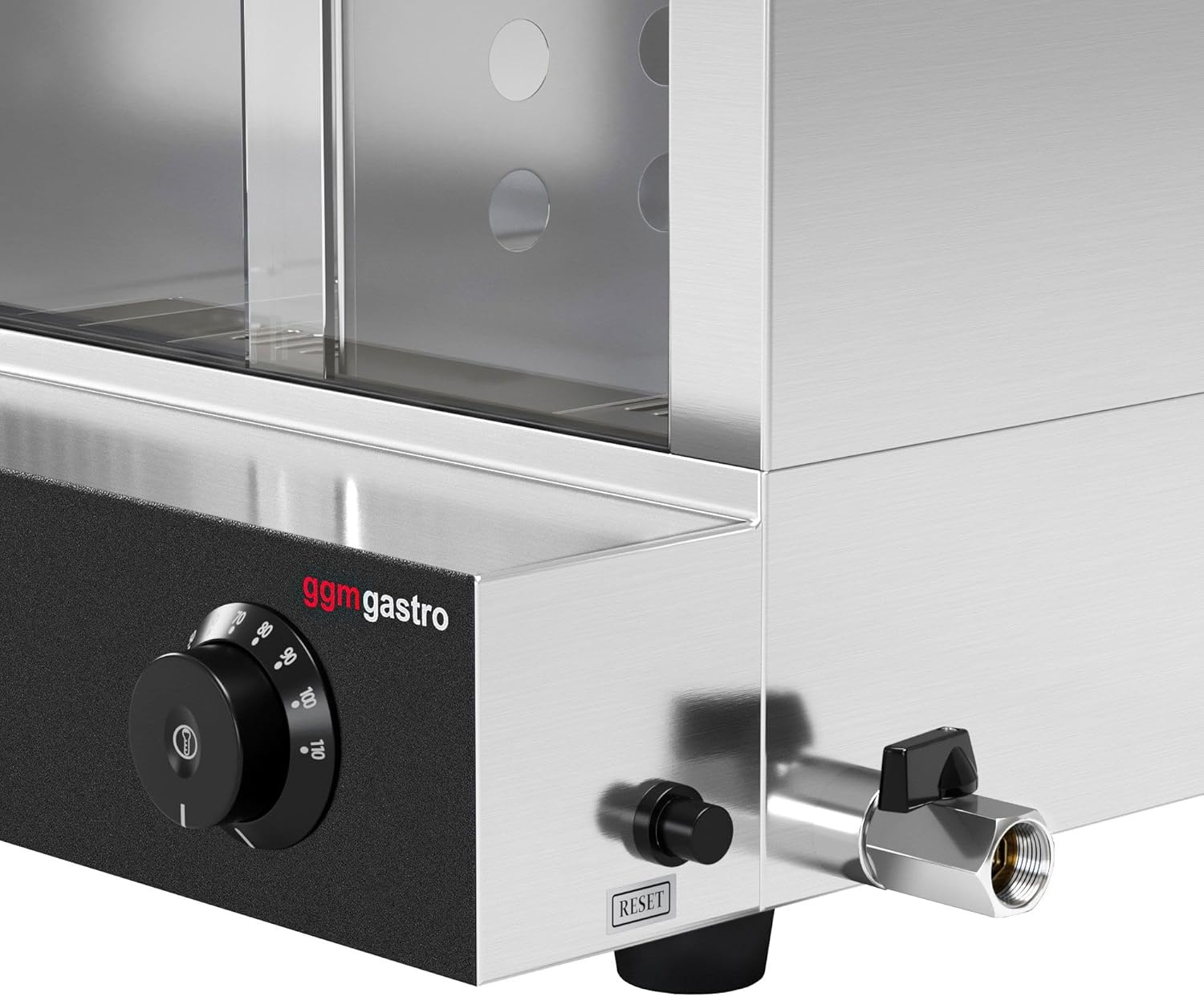

Abbildung 3: Nahaufnahme view of the adjustable thermostat dial on the front panel and the drain cock assembly on the side of the unit.

4. Einrichtung

1. Auspacken: Carefully remove the appliance from its packaging. Retain packaging materials for potential future transport or storage.
2. Inspektion: Inspect the unit for any signs of damage incurred during shipping. If damage is found, do not operate the appliance and contact your supplier immediately.
3. Platzierung: Position the hot dog steamer on a stable, level, and heat-resistant countertop or surface. Ensure there is sufficient space around the unit for air circulation (at least 10 cm from walls or other equipment). Avoid placing it near water sources or flammable materials.
4. Erstreinigung: Before first use, clean all internal and external surfaces that will come into contact with food. Refer to the 'Maintenance and Cleaning' section for detailed instructions.
5. Wasser füllen: Locate the water reservoir (typically at the bottom of the steaming section). Fill it with clean, potable water up to the indicated maximum fill line. Do not overfill.
6. Elektrischer Anschluss: Plug the power cord into a grounded 230V / 1N/PE / 50 Hz electrical outlet. Ensure the outlet is easily accessible.

Abbildung 4: The interior of the hot dog steamer, showing the two levels for hot dogs and buns, and the water reservoir at the bottom. This view is prior to loading products.

5. Bedienungsanleitung

Follow these steps for efficient operation of your hot dog steamer:

1. Einschalten: Ensure the unit is properly set up and the water reservoir is filled. Flip the 'POWER' switch to the 'ON' position. The power indicator light will illuminate.
2. Temperatur einstellen: Turn the adjustable thermostat dial to your desired temperature. The maximum operating temperature is 85 °C. The 'HEAT' indicator light will turn on, indicating that the heating element is active. It will cycle on and off to maintain the set temperature.
3. Vorwärmen: Allow the unit to preheat for approximately 15-20 minutes, or until the internal temperature stabilizes at the set point.
4. Loading Hot Dogs: Place hot dogs on the lower rack of the steamer. The steam will keep them warm and moist without drying them out.
5. Loading Buns: Place hot dog buns on the upper rack. The gentle heat and steam will keep the buns warm and soft.
6. Überwachung: Periodically check the water level in the reservoir and refill as needed to ensure continuous steaming.
7. Portion: Once hot dogs and buns reach the desired temperature, they are ready for serving.
8. Ausschalten: After use, turn the thermostat dial to the minimum setting, then flip the 'POWER' switch to the 'OFF' position. Unplug the appliance from the power outlet.

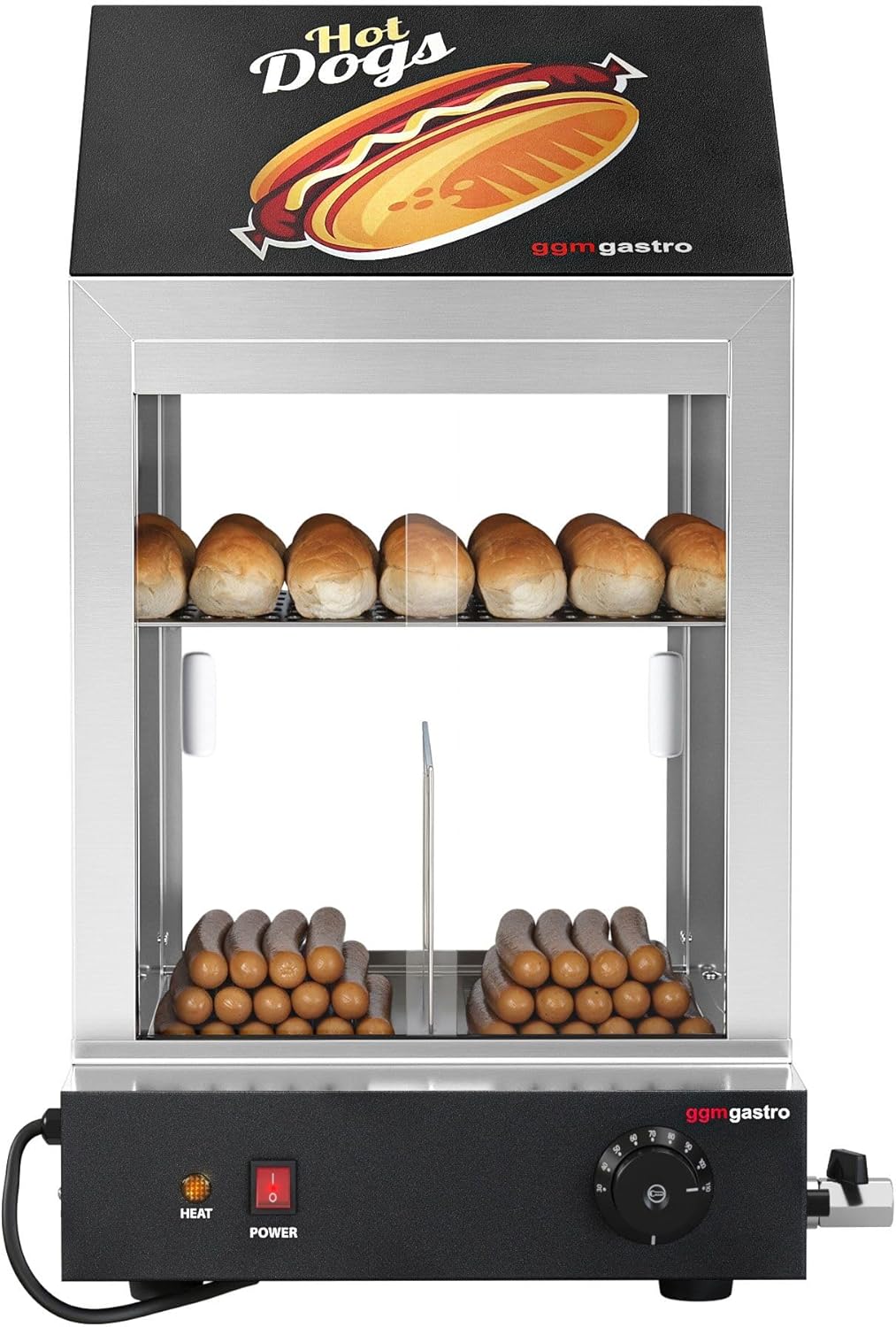

Abbildung 5: The hot dog steamer in operation, displaying hot dogs on the lower level and buns on the upper level, ready for serving.

6. Wartung und Reinigung

Regular cleaning and maintenance are crucial for the hygiene, performance, and longevity of your appliance.

1. Stromversorgung trennen: Vor der Reinigung immer den Netzstecker ziehen und das Gerät vollständig abkühlen lassen.
2. Wasser ablassen: Open the drain cock on the side of the unit to empty any remaining water from the reservoir into a suitable container.
3. Komponenten entfernen: Carefully remove the racks and any other removable internal components for separate cleaning.
4. Sauberer Innenraum: Wipe down the interior surfaces, including the water reservoir, with a damp cloth and a mild, food-safe detergent. Rinse thoroughly with a clean, damp cloth to remove all detergent residue.
5. Sauberes Äußeres: Clean the stainless steel casing and glass panels with a soft cloth and a mild cleaner. For stainless steel, wipe in the direction of the grain to prevent streaks.
6. Entkalkung: Depending on water hardness, mineral deposits (limescale) may accumulate in the water reservoir. Periodically descale the unit using a food-safe descaling solution according to the product instructions. Rinse thoroughly after descaling.
7. Trocknen: Ensure all components and surfaces are thoroughly dry before reassembling and storing or operating the unit again.

Abbildung 6: Seite view of the hot dog steamer, highlighting the drain cock for easy water removal during cleaning and maintenance.

Abbildung 7: The hot dog steamer with its front glass door open, providing access to the interior for cleaning and loading/unloading components.

7. Fehlerbehebung

If you encounter issues with your GGM Gastro HDVJ446, refer to the following common problems and solutions:

For issues not listed above or if solutions do not resolve the problem, please contact GGM Gastro customer support or a qualified service technician.

8. Spezifikationen

Technical specifications for the GGM Gastro HDVJ446 Hot Dog Steamer and Heated Display:

Abbildung 8: Diagram illustrating the external dimensions of the GGM Gastro HDVJ446: 640mm height, 430mm depth, and 410mm width.

9. Garantie und Support

For information regarding warranty coverage, spare parts, or technical support, please contact your GGM Gastro supplier or refer to the official GGM Gastro website. Please have your model number (HDVJ446) and purchase date available when contacting support.

Verfügbarkeit von Ersatzteilen: Informationen nicht verfügbar.
