Acezoe Slow Juicer JM01 Bedienungsanleitung

1. Einleitung

Vielen Dank für Ihren Einkauf.asing the Acezoe Slow Juicer JM01. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference.

The Acezoe Slow Juicer is designed to extract juice from various fruits and vegetables, preserving maximum nutrients through its low-speed masticating technology. It features a powerful yet quiet motor, a reverse function to prevent clogging, and easy-to-clean components.

2. Produktüberschreitungview

Familiarize yourself with the components of your Acezoe Slow Juicer.

Image: The Acezoe Slow Juicer JM01, fully assembled, extracting juice into a glass, with a separate container for pulp.

Hauptmerkmale:

• Maximum Nutrient Retention: Low-speed motor and fine grinding minimize heat and oxidation, preserving vitamins, enzymes, and minerals.
• Hohe Saftausbeute: 7-segment upgraded spiral system extracts up to 30% more juice and 90% more nutrients compared to centrifugal juicers.
• Multifunktionale Nutzung: Processes a wide range of fruits and vegetables, including fibrous items like ginger, celery, and wheatgrass.
• Leiser Betrieb: Operates at less than 50 dB, allowing for use at any time without significant disturbance.
• Leicht zu reinigen: Removable parts are dishwasher safe, and a cleaning brush is included.
• Umkehrfunktion: Prevents clogging by reversing the motor direction.

3. Aufbau und Montage

Before first use, ensure all packaging materials are removed and all parts are clean. Refer to the 'Maintenance and Cleaning' section for initial cleaning instructions.

Montageschritte:

1. Stellen Sie den Motorsockel auf eine stabile, ebene Fläche.
2. Richten Sie den Entsafterbehälter an der Motorbasis aus und drehen Sie ihn im Uhrzeigersinn, bis er einrastet.
3. Insert the filter into the juicing bowl. Ensure it is seated correctly.
4. Place the auger (spiral system) into the filter, pushing it down firmly.
5. Attach the feeding chute assembly to the juicing bowl, aligning the marks and twisting clockwise until secure.
6. Place the pulp container under the pulp outlet and the juice cup under the juice outlet.

4. Bedienungsanleitung

Follow these steps for optimal juicing results.

Zubereitung der Zutaten:

• Waschen Sie alle Obst- und Gemüsesorten gründlich.
• Früchte mit dicker Schale (z. B. Orangen, Zitronen, Ananas) schälen.
• Remove hard seeds or pits from fruits (e.g., peaches, plums, cherries).
• Cut ingredients into pieces that fit easily into the feeding chute. For fibrous vegetables like celery or wheatgrass, cut them into shorter lengths (approx. 1-2 inches) to prevent tangling.

Image: A visual representation of various fruits and vegetables, such as oranges, celery, apples, carrots, wheatgrass, pineapple, and ginger, alongside glasses of their respective juices, demonstrating the juicer's versatility.

Entsaftungsprozess:

1. Ensure the juicer is correctly assembled and the juice cup and pulp container are in place.
2. Stecken Sie das Netzkabel in eine geeignete Steckdose.
3. Drücken Sie den „EIN“-Knopf, um den Entsafter zu starten.
4. Slowly feed the prepared ingredients into the feeding chute. Use the food pusher only if necessary to guide ingredients down, but do not force them.
5. Allow the juicer to process the ingredients at its own pace. Overloading can reduce efficiency and potentially damage the motor.
6. Once juicing is complete, press the 'OFF' button to stop the appliance.
7. Unplug the juicer from the power outlet before disassembling or cleaning.

Umkehrfunktion:

If ingredients become jammed or the juicer stops, use the reverse function:

1. Press the 'OFF' button.
2. Press and hold the 'REVERSE' button for a few seconds. This will rotate the auger in the opposite direction to clear any blockages.
3. Release the 'REVERSE' button, then press 'ON' to resume juicing.
4. If the blockage persists, disassemble the juicer, clear the obstruction manually, and reassemble before continuing.

5. Wartung und Reinigung

Regular cleaning ensures optimal performance and extends the lifespan of your juicer.

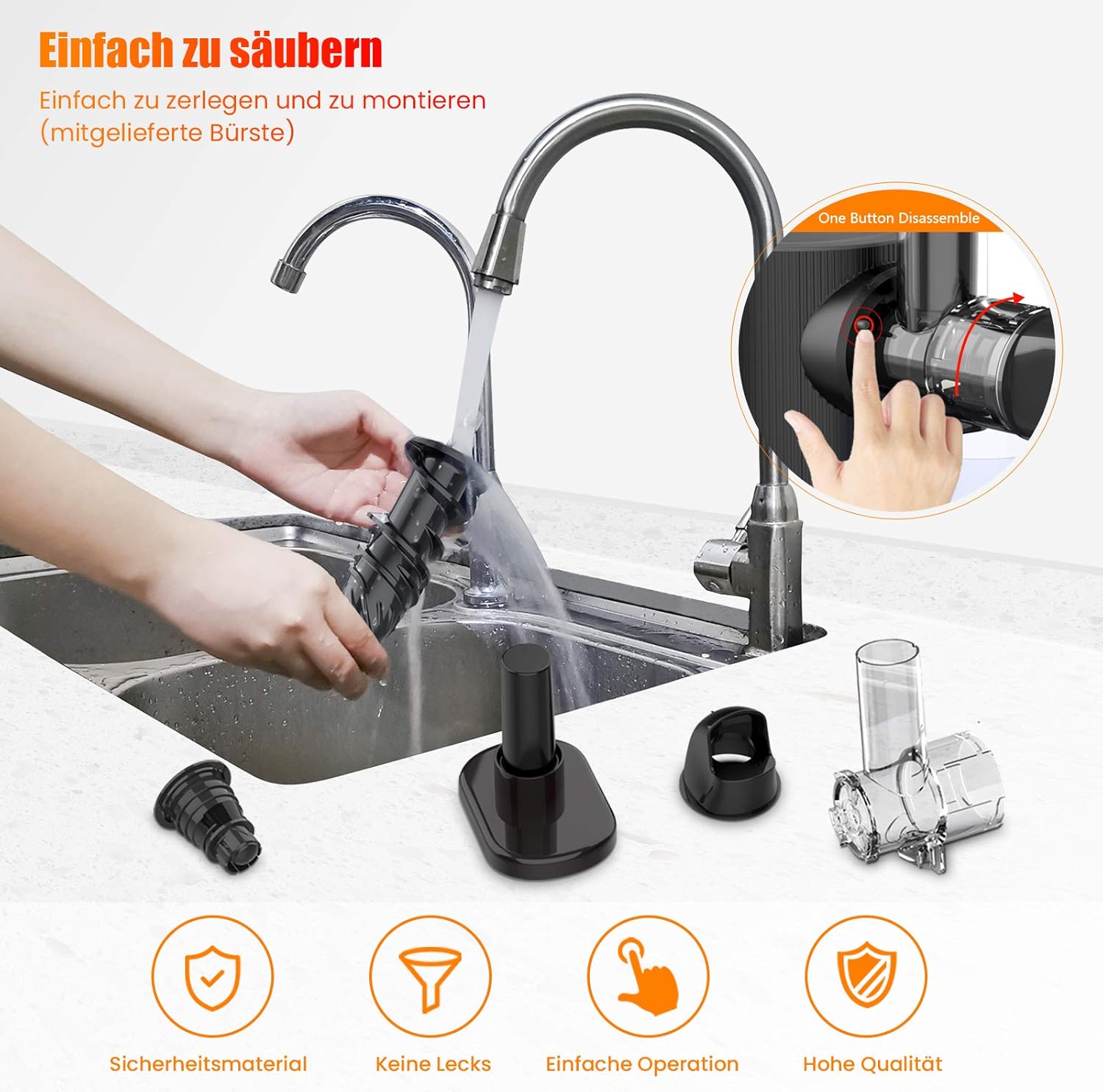

Image: Disassembled components of the Acezoe Slow Juicer, including the auger and filter, being rinsed under a kitchen faucet, illustrating the ease of cleaning.

Reinigungsschritte:

1. Ziehen Sie vor der Reinigung immer den Stecker aus der Steckdose.
2. Disassemble the juicer by twisting the feeding chute assembly counter-clockwise, then removing the auger, filter, and juicing bowl.
3. Spülen Sie alle abnehmbaren Teile sofort nach Gebrauch unter fließendem Wasser ab, damit das Zellstoff nicht austrocknet und verklebt.
4. Use the included cleaning brush to remove any stubborn pulp from the filter and other components.
5. The removable parts are dishwasher safe (top rack recommended).
6. Wischen Sie die Motorbasis mit adamp Tuch. Die Motorbasis darf niemals in Wasser oder eine andere Flüssigkeit getaucht werden.
7. Stellen Sie sicher, dass alle Teile vollständig trocken sind, bevor Sie den Entsafter wieder zusammenbauen oder verstauen.

6. Fehlerbehebung

If you encounter any issues, refer to the following troubleshooting guide.

7. Spezifikationen

Technical details of the Acezoe Slow Juicer JM01.

• Marke: Acezoe
• Modellnummer: JM01
• Farbe: Weiß
• Produktabmessungen (L x B x H): 44 x 33.5 x 19 cm
• Gewicht: 4.05 Kilogramm
• Leistung: 150 Watt
• Material: P (Plastic)
• Besonderheit: Leistungsstarker, leiser Motor
• Empfohlene Verwendung: Fruits, vegetables, leafy greens
• Pflegehinweise: Dishwasher safe (removable parts)
• Energiequelle: Kabelgebundene Elektrik

8. Garantie und Support

The Acezoe Slow Juicer JM01 is BPA-free and CE certified, ensuring product safety and quality.

All Acezoe customers benefit from lebenslanger technischer Support Und 24-hour primary service. If you encounter any problems with your appliance, please contact us directly via message. Our customer service team is dedicated to providing an appropriate solution as quickly as possible.
