Pamo babe Compact Baby Stroller Model c628 Instruction Manual

Model: c628

1. Wichtige Sicherheitshinweise

Please read these instructions carefully before using the Pamo babe Compact Baby Stroller. Failure to follow these instructions could result in serious injury to your child.

  • Sichern Sie Ihr Kind immer mit dem 5-Punkt-Gurt.
  • Lassen Sie Ihr Kind niemals unbeaufsichtigt im Kinderwagen.
  • Stellen Sie vor der Verwendung sicher, dass alle Verriegelungsvorrichtungen eingerastet sind.
  • Do not overload the storage basket; maximum weight capacity is 7 pounds (3.17 kg).
  • Verwenden Sie den Kinderwagen nicht auf Treppen oder Rolltreppen.
  • Achten Sie darauf, dass Kinder beim Verstellen des Kinderwagens nicht mit beweglichen Teilen in Berührung kommen.
  • Dieser Kinderwagen ist nur für ein Kind konzipiert.
  • Regularly check the stroller for loose parts, damaged components, or worn fabric.

2. Produktüberschreitungview

The Pamo babe Compact Baby Stroller is designed for convenience and portability, featuring a lightweight frame and a one-hand fold mechanism.

2.1 Hauptmerkmale

  • Leichtbauweise: Weighs approximately 14.7 pounds (6.67 kg) for easy transport.
  • One-Hand Fold: Convenient self-standing fold for quick storage and travel.
  • Mehrfach verstellbare Rückenlehne: Adjustable seat recline for child comfort.
  • Verstellbares Sonnendach: Extended canopy provides protection from UV rays.
  • Zusätzlicher Speicher: Includes a large storage basket and a cup holder.
  • Sicherheitsausrüstung: 5-point safety harness for secure seating.
  • Räder: Anti-shock front wheels and lockable rear wheels.

2.2 Komponenten

Familiarize yourself with the main components of your stroller:

  • Lenker
  • Überdachung
  • Seat with 5-point harness
  • Verstellbare Fußstütze
  • Front wheels (swivel, anti-shock)
  • Hinterräder mit Bremse
  • Aufbewahrungskorb
  • Getränkehalter
  • Carry bag (for transport/storage)
Pamo babe Compact Baby Stroller with dimensions

Figure 1: Stroller dimensions and overall view. The stroller measures approximately 41 inches (104 cm) in height, 15.4 inches (39 cm) in width, and 21.7 inches (55 cm) in depth. The folded dimensions are approximately 26.4 inches (67 cm) in height, 10.6 inches (27 cm) in width, and 11 inches (28 cm) in depth.

Pamo babe Compact Baby Stroller carry bag

Figure 2: Included carry bag for the folded stroller, facilitating easy transport and storage.

3. Aufbau und Montage

The Pamo babe Compact Baby Stroller comes largely pre-assembled. Follow these steps for initial setup:

  1. Aufklappen des Kinderwagens: Release the folding latch (if engaged) and gently pull the handlebar upwards until the frame locks into place. Ensure both sides of the frame are securely locked.
  2. Anbringen von Zubehör: Insert the cup holder into its designated slot on the handlebar.
  3. First Use Check: Before placing your child in the stroller, ensure all parts are correctly assembled and securely fastened.

4. Bedienungsanleitung

4.1 Zusammenklappen des Kinderwagens

The stroller features a convenient one-hand fold mechanism:

  1. Ensure the canopy is folded back and the seat is in an upright position.
  2. Suchen Sie den Klappmechanismus am Lenker.
  3. Press the safety button and simultaneously pull the lever to initiate the fold.
  4. Push the handlebar downwards until the stroller collapses into its compact, self-standing position.
  5. Engage the folding latch to secure the stroller in the folded position.

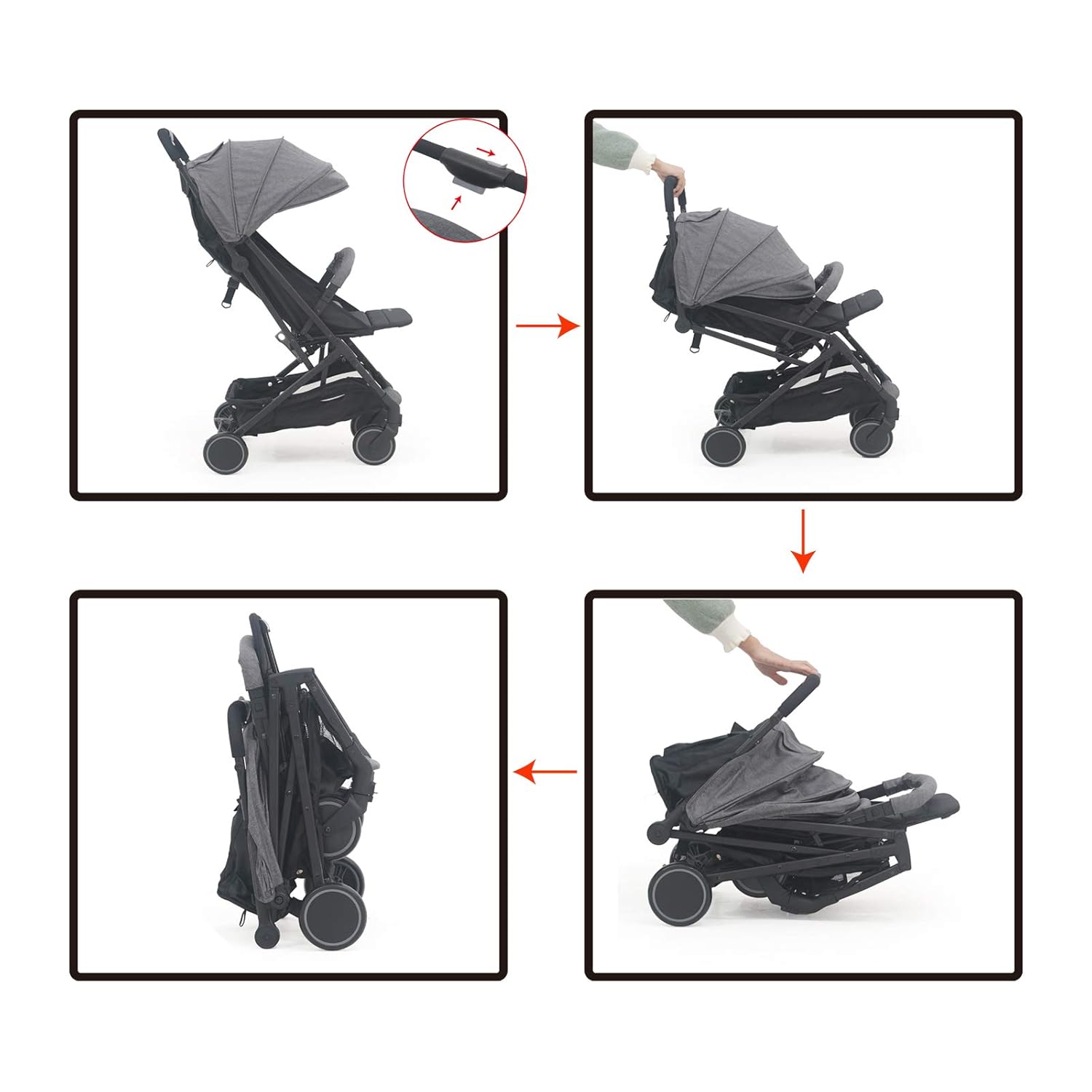

Pamo babe Compact Baby Stroller folding sequence

Figure 3: Step-by-step visual guide for folding the stroller into its compact form.

4.2 Einstellen der Sitzneigung

To adjust the seat recline for your child's comfort:

  • Locate the recline strap/lever at the back of the seat.
  • Gently pull the strap or press the lever to adjust the seat to the desired angle.
  • Ensure the seat is securely locked in the chosen position before placing your child in it.

4.3 Einstellen des Baldachins

The canopy can be adjusted to provide shade and protection:

  • Simply push or pull the canopy forward or backward to extend or retract it.
  • The canopy can be adjusted to block harmful UV rays as needed.

4.4 Adjusting the Footrest

The footrest can be adjusted for your child's leg comfort:

  • Locate the adjustment buttons or levers on either side of the footrest.
  • Press the buttons/levers and move the footrest up or down to the desired position.
  • Release the buttons/levers to lock the footrest in place.
Pamo babe Compact Baby Stroller adjustable footrest

Figure 4: The adjustable footrest provides comfort for your child's legs.

4.5 Verwenden der Bremsen

To engage the rear wheel brakes:

  • Press down firmly on the brake pedal located near the rear wheels.
  • Ensure both wheels are locked before releasing the stroller.
  • To release the brakes, lift the brake pedal upwards.

4.6 Ihr Kind mit dem 5-Punkt-Gurt sichern

Always use the 5-point harness to secure your child:

  1. Setzen Sie Ihr Kind in den Sitz.
  2. Legen Sie die Schultergurte über die Schultern Ihres Kindes und die Hüftgurte um seine Taille.
  3. Insert the two buckle prongs into the central buckle until they click securely.
  4. Adjust the straps to ensure a snug, but comfortable, fit.
  5. Zum Öffnen den Knopf an der zentralen Schnalle drücken.

4.7 Tragbarkeit

When folded, the stroller can be easily transported:

  • Use the padded carry handle or shoulder strap for carrying.
  • The folded stroller can also be pulled like a suitcase using its wheels.
  • For air travel, store the folded stroller in the included carry bag.

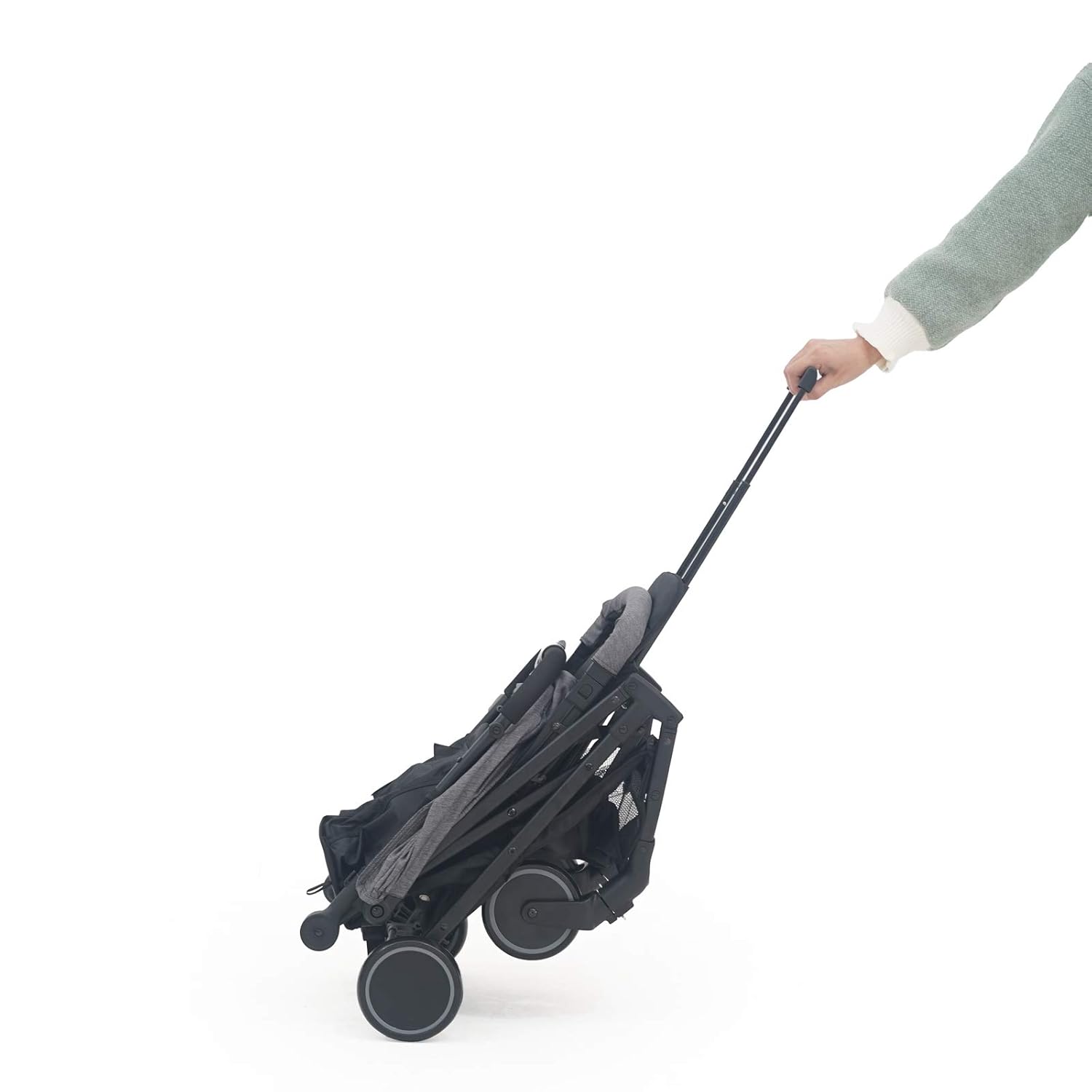

Pamo babe Compact Baby Stroller being pulled like luggage

Figure 5: The folded stroller can be conveniently pulled using its wheels, similar to luggage.

5. Wartung

Regular maintenance will prolong the life of your stroller:

  • Textilreinigung: Stoffteile mit einem Tuch abwischenamp cloth and mild soap. Do not use harsh detergents or bleach. Allow to air dry completely.
  • Rahmenreinigung: Wischen Sie den Rahmen mit einem weichen, fusselfreien Tuch ab.amp Tuch ab. Gründlich abtrocknen.
  • Radwartung: Periodically clean dirt and debris from the wheels and axles. Lubricate moving parts with a silicone-based lubricant if necessary.
  • Lagerung: Store the stroller in a dry, cool place, away from direct sunlight and extreme temperatures. Use the provided carry bag for protection.

6. Fehlerbehebung

If you encounter any issues with your stroller, refer to the following common problems and solutions:

Problem Mögliche Ursache Lösung
Der Kinderwagen lässt sich nicht reibungslos ein- und ausklappen. Klappmechanismus blockiert oder nicht vollständig eingerastet. Ensure all components are clear of the folding mechanism. Apply light lubricant to moving parts if stiff.
Wheels are stiff or not swiveling. Debris in wheel mechanism or lack of lubrication. Clean wheels and axles thoroughly. Apply silicone-based lubricant to the swivel mechanisms.
Die Bremsen funktionieren nicht richtig. Debris in brake mechanism or worn parts. Clear any obstructions from the brake mechanism. If the issue persists, contact customer support.
Das Geschirr lässt sich schwer an- und abschnallen. Debris in buckle or misaligned prongs. Check for and remove any debris from the buckle. Ensure prongs are correctly aligned before inserting.

7. Spezifikationen

  • Modellnummer: c628
  • Artikelgewicht: 14.7 Pfund (6.67 kg)
  • Gefaltete Größe: 20.5 x 17.3 x 7.1 Zoll (52 x 44 x 18 cm)
  • Geschirrtyp: 5 Punkt
  • Kinderwagentyp: Standard-Kinderwagen
  • Sitzplatzkapazität: 1 Kind
  • Rahmenmaterial: Aluminium
  • Sitzmaterial: Stoff
  • Maximum Weight Recommendation (Storage Basket): 7 Pfund (3.17 kg)
  • Enthaltene Komponenten: Extra-large storage basket, cup holder, carry bag.

8. Garantie und Support

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official Pamo babe webBewahren Sie Ihren Kaufbeleg für eventuelle Garantieansprüche auf.

If you have questions or require assistance, please contact Pamo babe customer service.
