Knifel 300GPH Submersible Pump User Manual

1. Einführung und Endeview

Thank you for choosing the Knifel 300GPH Submersible Pump. This pump is designed for reliable and efficient water circulation in various applications, including fountains, hydroponic systems, ponds, and aquariums. Its ultra-quiet operation and built-in overheating protection ensure a long service life and a peaceful environment.

This manual provides essential information for the safe and effective installation, operation, and maintenance of your pump. Please read it thoroughly before use and retain it for future reference.

Image 1.1: Knifel 300GPH Submersible Pump. This image shows the compact design of the pump with its power cord.

2. Produktmerkmale

• Ultra-Quiet Design & Long Life: Engineered with a high-quality rotor and copper components to ensure quiet operation and extended durability.
• Multi-Occasions Use: Suitable for medium-sized aquariums, small ponds, water gardens, desktop water fountains, backyard fountains/waterfalls, fish tanks, garden statuary, patio drip irrigation systems, and hydroponic systems.
• Hohe Leistung: Delivers a high flow rate with low power consumption, promoting energy efficiency and longevity.
• Wasserflusskontrolle: Features an adjustable knob to regulate the water flow rate, allowing customization of water pressure. Maximum flow rate: 300 GPH (1100 L/H).
• Abnehmbar und reinigbar: Designed for easy disassembly without tools, simplifying cleaning and maintenance.

Image 2.1: Ultra-Quiet Design. This graphic highlights the pump's quiet operation (30-40db) compared to other sounds, featuring a high-quality rotor and 100% copper winding.

Image 2.2: Adjustable Water Flow Rate. This image illustrates the pump's adjustable flow knob, showing a maximum flow rate of 300 GPH (1100 L/h) and a maximum lift height of 6 ft (180 cm), along with overheating protection.

3. Packungsinhalt

Your Knifel 300GPH Submersible Pump package should include the following items:

• 1 x Knifel 300GPH Submersible Pump
• 1 x Power Cord (6 ft long)
• 2 x Nozzles (1/2 inch / 13mm and 5/8 inch / 16mm)
• 4 x Suction Cups (for secure placement)
• 1 x Filter Sponge (pre-installed)

Image 3.1: Package Contents. This image displays the pump, its 6 ft power cord, and the two included nozzles (1/2 inch and 5/8 inch).

4. Sicherheitshinweise

WARNING: To reduce the risk of electric shock, connect only to a properly grounded, grounding-type receptacle.

• Always disconnect the pump from the power supply before handling, cleaning, or performing any maintenance.
• Ensure the pump is fully submerged in water during operation. Running the pump dry can cause overheating and permanent damage.
• Die Pumpe darf nicht in Betrieb genommen werden, wenn das Netzkabel oder der Stecker beschädigt ist.
• This pump is designed for use with water only. Do not use with flammable liquids.
• Keep children and pets away from the pump and water feature during operation.
• Diese Pumpe wurde nicht für den Einsatz in Schwimmbädern oder im Meeresbereich untersucht.
• Ensure the electrical outlet is protected by a Ground Fault Circuit Interrupter (GFCI).

5. Einrichtung

1. Wählen Sie eine Düse: Select the appropriate nozzle (1/2 inch or 5/8 inch) based on your desired water flow and hose size. Attach it firmly to the pump's outlet.
2. Saugnäpfe anbringen: Secure the four suction cups to the designated spots on the bottom of the pump.
3. Positionieren Sie die Pumpe: Place the pump at the bottom of your fountain, pond, or aquarium. Press down firmly to ensure the suction cups adhere to the surface, preventing movement.
4. Tauchen Sie die Pumpe ein: Fill your water feature with water, ensuring the pump is completely submerged before connecting to power.
5. Strom anschließen: Plug the power cord into a properly grounded GFCI-protected electrical outlet.

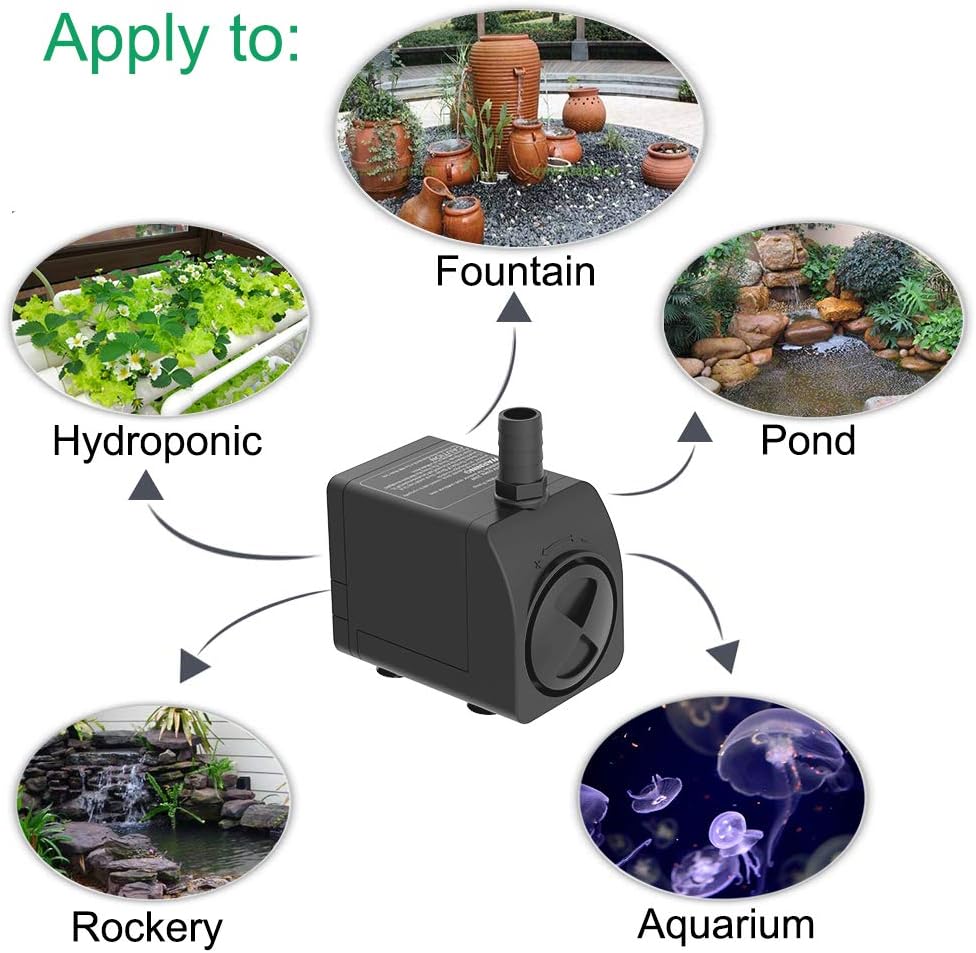

Image 5.1: Pump Applications. This image shows various uses for the pump, including fountains, hydroponics, ponds, rockeries, and aquariums.

6. Bedienungsanleitung

• Ein-/Ausschalten: The pump does not have an integrated on/off switch. To operate, plug the power cord into an electrical outlet. To turn off, unplug the power cord.
• Wasserfluss anpassen: Use the adjustable knob located on the side of the pump to increase or decrease the water flow rate. Turn the knob towards the '+' symbol for higher flow and towards the '-' symbol for lower flow.
• Wasserstand überwachen: Regularly check the water level in your feature to ensure the pump remains fully submerged. Continuous dry running can damage the pump.

7. Wartung

Regular maintenance will prolong the life of your pump and ensure optimal performance.

1. Reinigen der Pumpe:
   • Trennen Sie die Stromversorgung.
   • Nehmen Sie die Pumpe aus dem Wasser.
   • Detach the front cover and impeller cover (no tools required).
   • Remove the impeller and clean it with a soft brush under running water.
   • Clean the inside of the pump housing and the filter sponge to remove any debris, algae, or mineral buildup.
   • Alle Teile wieder sicher zusammenbauen.
2. Wasserqualität: Maintain good water quality to prevent excessive buildup and clogging. Consider using appropriate water treatments for your specific application (e.g., algaecides for ponds).
3. Überwinterung: In freezing temperatures, remove the pump from the water feature, clean it thoroughly, and store it in a dry, frost-free location.

8. Fehlerbehebung

9. Spezifikationen

Image 9.1: Specifications Diagram. This graphic provides a visual overview of the pump's dimensions, material, color, max flow rate, max lift height, and power cord length.

10. Garantie und Support

Knifel is committed to providing high-quality products. While specific warranty details are not provided in this manual, please refer to the product packaging or the retailer's webDie aktuellsten Garantieinformationen finden Sie auf der entsprechenden Webseite.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Knifel customer service through the retailer where you purchased the product or visit the official Knifel webWebsite.
