Einführung
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new AREBOS 5-Drawer Workshop Trolley. Please read this manual carefully before use to ensure safe and efficient operation and to maximize the lifespan of your product.
Figure 1: AREBOS 5-Drawer Workshop Trolley (Black)
The AREBOS workshop trolley is designed for organizing and storing tools and accessories in workshops, garages, and hobby areas. It features a robust steel construction, five spacious drawers, a central locking system, and mobile wheels for easy maneuverability.
Einrichtung und Montage
Your AREBOS workshop trolley requires minimal assembly. Please follow these steps carefully.
1. Auspacken
- Entnehmen Sie vorsichtig alle Komponenten aus der Verpackung.
- Inspect all parts for any damage that may have occurred during transit. If any parts are damaged, do not proceed with assembly and contact customer support.
- Ensure all listed components are present before beginning assembly.
2. Anbringen der Räder
The trolley comes with 2 fixed wheels and 2 swivel castors with parking brakes. Attach them to the designated points at the bottom of the trolley.
- Identify the fixed wheels and the swivel castors. The swivel castors will have a brake mechanism.
- Attach the 2 fixed wheels to one end of the trolley base.
- Attach the 2 swivel castors with parking brakes to the opposite end of the trolley base. Ensure the brakes are easily accessible.
- Securely tighten all bolts.
Figure 2: Attaching Wheels and Handle
The trolley features a practical push handle for easy maneuvering and two fixed wheels along with two swivel castors equipped with parking brakes for stability.
3. Attaching the Push Handle
Attach the push handle to the side of the trolley where the swivel castors are located for optimal maneuverability.
- Align the handle with the pre-drilled holes on the side of the trolley.
- Insert and tighten the screws to secure the handle firmly.
Bedienungsanleitung
1. General Features Overview

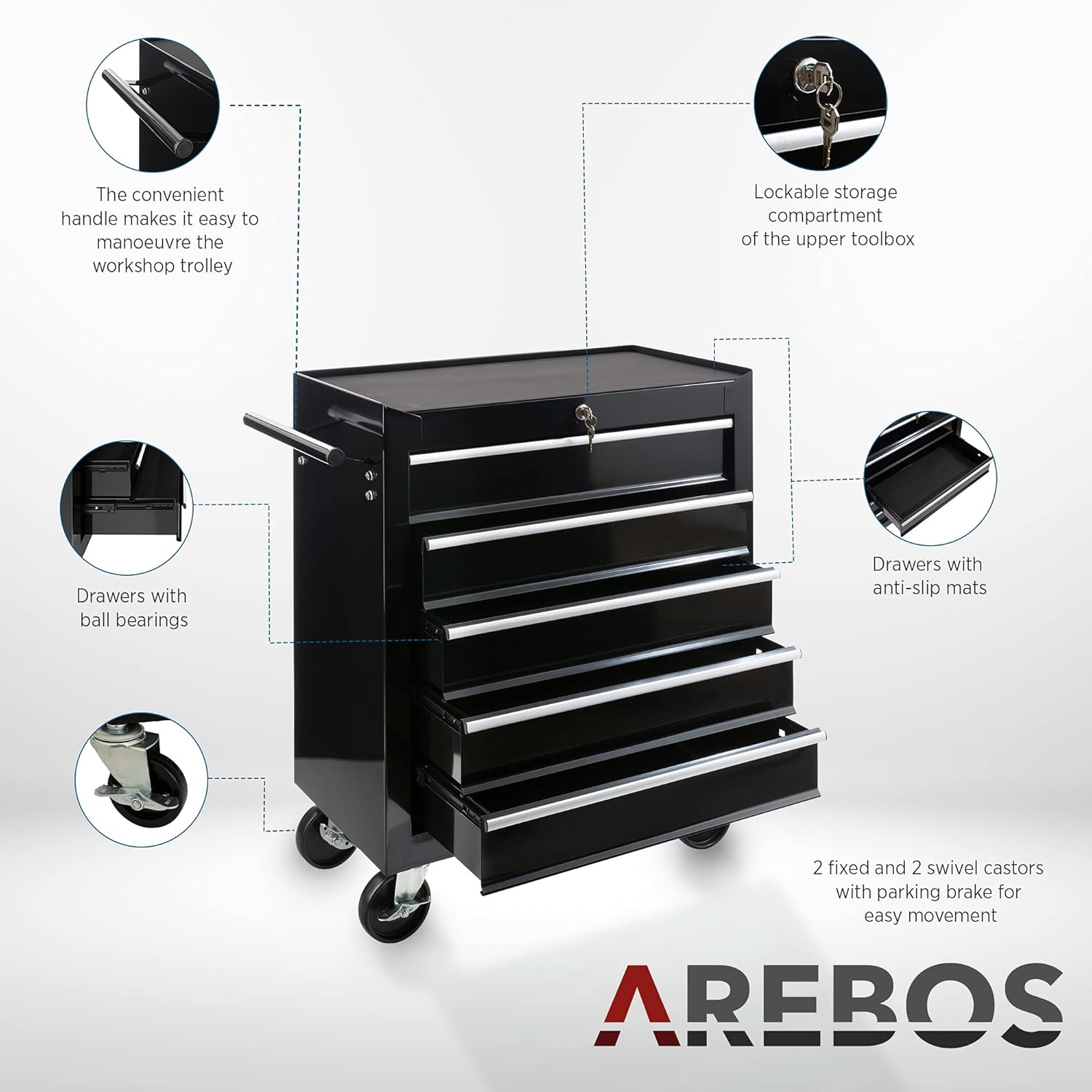

Figure 3: Key Features of the Workshop Trolley
This diagram illustrates the main functional components of the AREBOS workshop trolley, including its handle, locking mechanism, drawers, and wheels.
2. Benutzung der Schubladen
The trolley is equipped with 5 drawers designed for smooth operation and secure storage.
- Each drawer features ball bearing slides for smooth opening and closing.
- Anti-slip mats are included in each drawer to prevent tools from shifting and rattling during movement.
- To open a drawer, pull the handle strip across its entire width.
- Um eine Schublade zu schließen, drücken Sie sie fest zu, bis sie vollständig eingerastet ist.
Figure 4: Open Drawers with Anti-Slip Mats
The drawers are designed with ball bearing slides for smooth operation and include anti-slip mats to keep tools organized and secure.
Figure 5: Ball Bearing System
The ball bearing system ensures effortless opening and closing of the drawers, even when fully loaded.
3. Central Locking System
The trolley features a central locking system to secure all drawers simultaneously.
- Insert one of the provided keys into the lock located on the top drawer.
- Turn the key to lock all drawers. This prevents accidental opening during transport and secures your tools from unauthorized access.
- Turn the key in the opposite direction to unlock the drawers.
- Always remove the key after locking or unlocking.
Figure 6: Central Locking System
The central locking system provides maximum security, allowing all drawers to be locked with a single key.
4. Den Wagen bewegen
The trolley is designed for easy mobility within your workspace.
- To move the trolley, ensure the parking brakes on the swivel castors are disengaged.
- Use the push handle to guide the trolley.
- When positioning the trolley in a desired location, engage the parking brakes on the swivel castors to prevent unintended movement.
- Avoid opening multiple heavy drawers simultaneously, especially when the trolley is not stationary, to prevent tipping.
Wartung
Regular maintenance will ensure the longevity and optimal performance of your workshop trolley.
1. Reinigung
- Wischen Sie die Außenflächen mit Ad abamp Tuch und mildem Reinigungsmittel.
- Avoid abrasive cleaners or solvents that could damage the paint finish.
- Ensure the trolley is dry after cleaning to prevent rust.
2. Drawer Slides
- Periodically check the ball bearing slides for smooth operation.
- If the drawers become stiff, apply a small amount of silicone spray or light lubricant to the slides.
- Keep the slides free from dirt and debris.
3. Wheels and Brakes
- Inspect the wheels regularly for wear and tear.
- Ensure the parking brakes engage and disengage properly.
- Remove any tangled hair or debris from the wheel axles to maintain smooth rolling.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Die Schubladen sind schwergängig oder lassen sich nur schwer öffnen/schließen. | Accumulation of dirt or debris in slides; lack of lubrication; overloaded drawer. | Clean the drawer slides and apply a light lubricant. Reduce the load in the drawer if it exceeds capacity. |
| Trolley does not roll smoothly. | Debris caught in wheels; wheel bearings need lubrication; parking brake partially engaged. | Clear any debris from the wheels. Lubricate wheel bearings if necessary. Ensure parking brakes are fully disengaged. |
| Central lock does not engage/disengage. | Drawer not fully closed; key is bent or damaged; lock mechanism obstructed. | Ensure all drawers are fully closed. Check the key for damage. Do not force the key; contact support if the lock is jammed. |
| Trolley tips over easily. | Multiple heavy drawers open simultaneously; uneven load distribution. | Only open one drawer at a time, especially if heavily loaded. Distribute weight evenly across drawers. Ensure trolley is on a level surface. |
Technische Daten
Detailed technical specifications for the AREBOS 5-Drawer Workshop Trolley.
- Marke: Arebos
- Modellnummer: AR-HE-WW5S (4260551583308)
- Farbe: Schwarz
- Material: Legierter Stahl
- Product Dimensions (with wheels): 70 cm (B) x 33 cm (T) x 78 cm (H)
- Product Dimensions (without wheels): 70 cm (B) x 33 cm (T) x 66 cm (H)
- Schubladenmaße: 50 cm (B) x 28 cm (T) x 9.5 cm (H)
- Gewicht: Ca. 21.75 kg
- Maximale Gewichtskapazität: 23 kg (overall)
- Besondere Merkmale: Scratch-resistant, Central Locking System, Ball Bearing Slides, Anti-slip Mats
- Montageart: Bodenhalterung
- Zimmertyp: Garage, Werkstatt

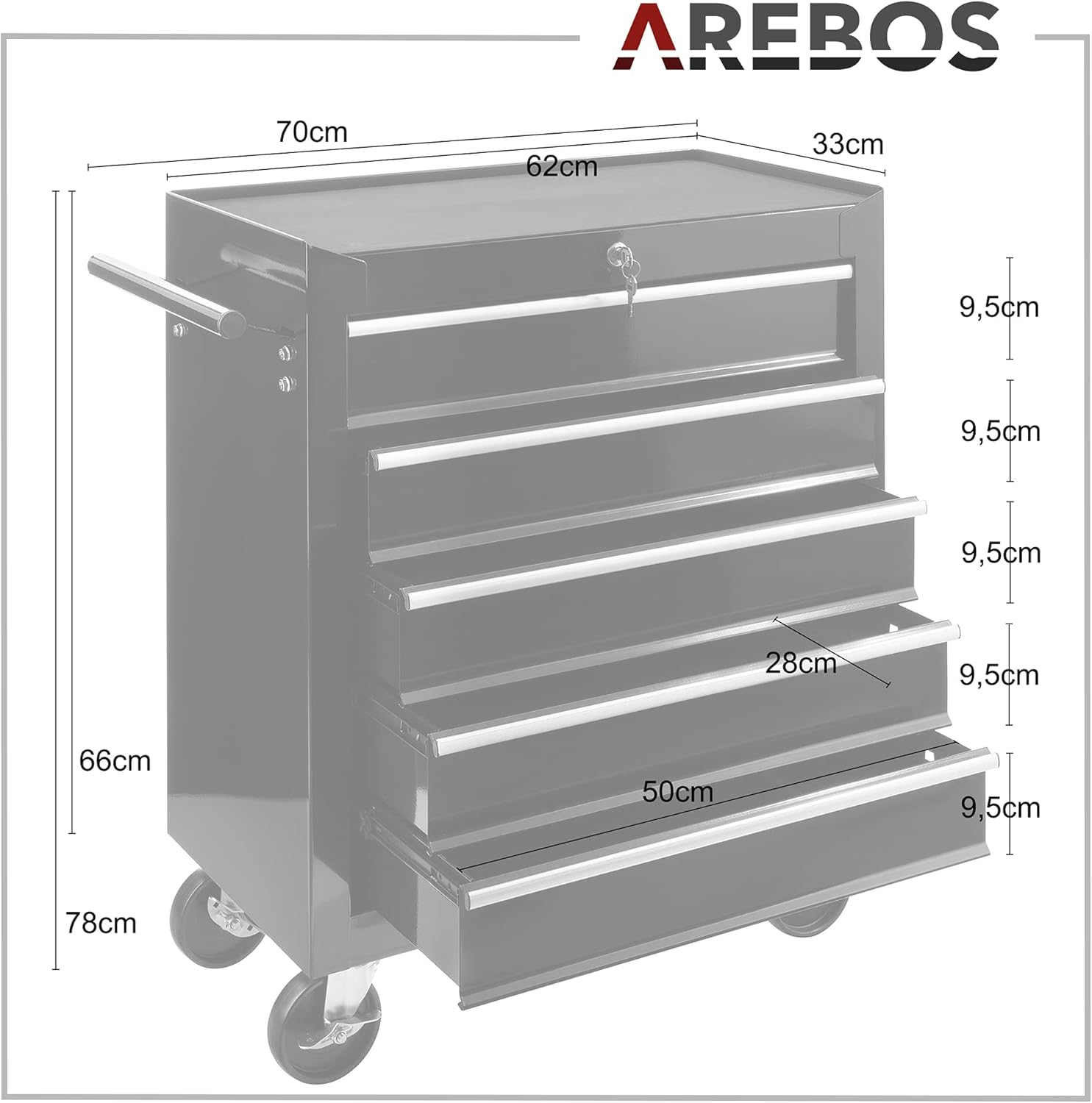

Abbildung 7: Produktabmessungen-Diagramm
This diagram illustrates the key dimensions of the workshop trolley, including its height with and without wheels, overall width and depth, and the internal dimensions of the drawers.
Garantieinformationen
Your AREBOS workshop trolley is covered by a return policy. For specific details regarding warranty coverage and duration, please refer to your purchase documentation or contact the seller directly.
- Rückgaberecht: 30 Tage (Rückerstattung/Umtausch)
Kundenservice
For any questions, technical assistance, or warranty claims, please contact the manufacturer or seller.
- Hersteller: Arebos
- Verkäufer: AREBOS (as per buybox winner information)
- For direct support, please refer to the contact information provided with your purchase or visit the official Arebos webWebsite.
