SHIMANO SG-C3001-7D Internal Hub Assembly User Manual

Einführung

This manual provides essential information for the proper installation, operation, and maintenance of your SHIMANO SG-C3001-7D Internal Hub Assembly. This component is a genuine Shimano replacement part designed for bicycles requiring an internal gear hub with a 187 mm axle length. Adhering to these instructions will help ensure the longevity and optimal performance of your bicycle's drivetrain.

Produkt überview

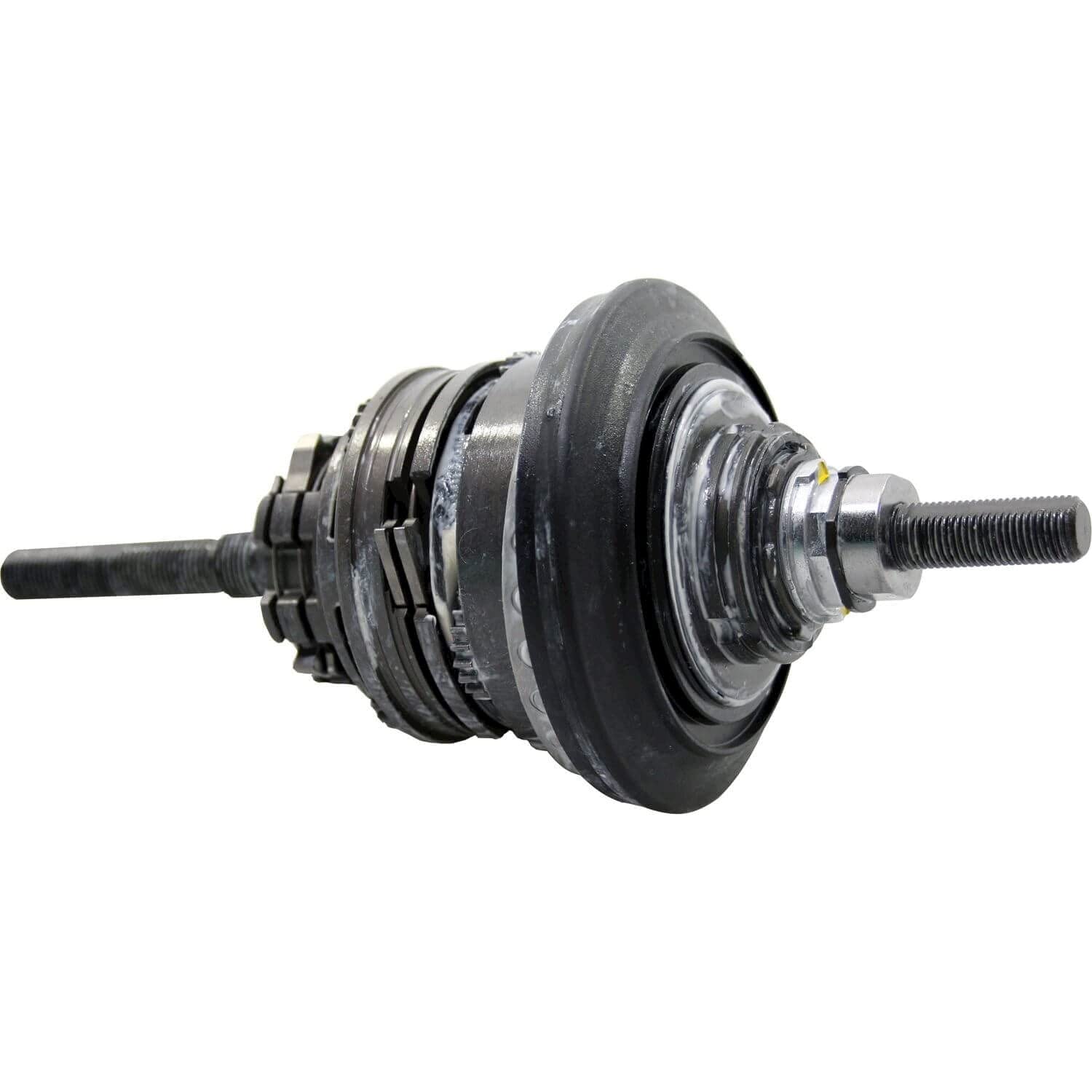

Abbildung 1: SHIMANO SG-C3001-7D Internal Hub Assembly. This image displays the complete internal hub assembly, featuring the threaded axle extending from both sides, the gear mechanism in the center, and a protective rubber boot on one side.

The SHIMANO SG-C3001-7D is an internal gear hub assembly, meaning the gearing mechanism is enclosed within the hub shell, protecting it from dirt and damage. This specific model features an axle length of 187 mm, making it suitable for specific bicycle frame types. It is crucial to verify compatibility with your bicycle before installation.

Close-up of SHIMANO SG-C3001-7D Internal Hub Assembly

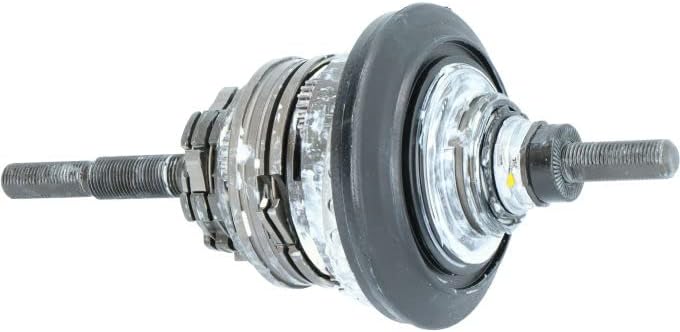

Abbildung 2: Nahaufnahme view of the SHIMANO SG-C3001-7D Internal Hub Assembly. This image provides a detailed look at the internal components and the threaded axle, highlighting the precision engineering of the hub.

Setup und Installation

Installation of an internal gear hub assembly requires specialized tools and technical knowledge. It is highly recommended that installation be performed by a qualified bicycle mechanic. Improper installation can lead to component damage, poor performance, or safety hazards.

General Installation Steps (Consult a Professional)

Vorbereitung: Ensure the bicycle frame's dropouts are clean and free from debris. Gather all necessary tools, including appropriate wrenches, chain whip, lockring tool, and grease.
Wheel Building (if applicable): If installing into a new wheel, the hub must be laced into a rim by a skilled wheel builder.
Axle Insertion: Carefully insert the hub axle into the bicycle's rear dropouts, ensuring proper alignment.
Securing the Hub: Install the appropriate non-turn washers, axle nuts, and other securing hardware as per Shimano's detailed technical documentation for your specific hub model. Torque all fasteners to the manufacturer's specified values.
Kettenmontage: Install the bicycle chain, ensuring proper tension and alignment with the rear sprocket.
Shifter Cable Connection: Connect and adjust the shifter cable to the hub's shifting mechanism according to Shimano's instructions. This step is critical for correct gear engagement.
Letzte Kontrollen: Perform a thorough check of all connections, ensure the wheel spins freely, and test gear shifting through all ranges before riding.

For detailed, model-specific installation instructions, refer to the official SHIMANO technical service instructions (dealer's manual) available on the SHIMANO website or consult an authorized SHIMANO dealer.

Bedienungsanleitung

The SHIMANO SG-C3001-7D internal hub assembly provides a range of gears for various riding conditions. Proper operation ensures smooth shifting and extends the life of the component.

Gangwechsel

Shift While Pedaling Lightly: For optimal performance and to prevent damage, it is best to shift gears while pedaling with light pressure. Avoid shifting under heavy load or while standing on the pedals.
Shift While Stationary: Ein wichtiger Vorteiltage of internal gear hubs is the ability to shift gears while the bicycle is stationary. This is particularly useful when stopping at traffic lights or preparing to start on an incline.
Sanfte Übergänge: Operate the shifter lever smoothly and deliberately. Avoid abrupt or forceful movements.
Gangbereich: Familiarize yourself with the gear range to select the appropriate gear for climbing, cruising, or accelerating.

Wartung

Regular maintenance is crucial for the longevity and reliable performance of your SHIMANO internal hub assembly. While internal hubs are generally low-maintenance, periodic checks and servicing are recommended.

Empfohlener Wartungsplan

After Each Ride (or weekly):
- Wipe down the exterior of the hub and chain with a clean cloth.
- Check chain tension and lubricate the chain as needed with appropriate bicycle chain lubricant.
Monthly (or every 200-300 km):
- Inspect the shifter cable for fraying or damage. Replace if necessary.
- Check the adjustment of the shifter mechanism. Ensure smooth and precise shifting.
- Verify that all axle nuts and securing hardware are properly torqued.
Annually (or every 2,000-3,000 km):
- It is recommended to have the internal hub serviced by a professional bicycle mechanic. This typically involves disassembling, cleaning, inspecting, and re-greasing die internen Komponenten.
- Check for any play in the axle or bearings.

Wichtig: Do not attempt to disassemble the internal gear mechanism yourself unless you have specific training and tools. Improper reassembly can cause irreversible damage and void the warranty.

Fehlerbehebung

This section addresses common issues you might encounter with your SHIMANO internal hub assembly. For complex problems, consult a professional bicycle mechanic.

Problem	Mögliche Ursache	Lösung
Schwierigkeiten beim Schalten	Falsche Kabelspannung Friction in shifter cable/housing Bent or damaged shift mechanism	Adjust cable tension according to Shimano's instructions. Lubricate or replace shifter cable and housing. Überprüfen und ersetzen Sie beschädigte Teile.
Gears slip or jump	Incorrect cable adjustment Abgenutzte interne Komponenten Damaged sprocket or chain	Re-adjust shifter cable. Professional service required for internal component inspection/replacement. Inspect and replace worn chain or sprocket.
Unusual noises from hub	Mangelnde Schmierung Lose Komponenten Innere Schäden	Professional service for lubrication and inspection. Überprüfen Sie alle externen Befestigungselemente auf festen Sitz. Seek professional diagnosis and repair.

Technische Daten

Key specifications for the SHIMANO SG-C3001-7D Internal Hub Assembly:

Modellnummer: SG-C3001-7D (Internal Assembly)
Teilenummer: Y3EW98010
Axle Length: 187 mm
Marke: SHIMANO
Material: Plastic (for certain components), Metal (for internal gears and axle)
Artikelgewicht: ungefähr 500 Gramm
Enthaltene Komponenten: Internal Assemblies
Vorgeschlagene Benutzer: Unisex
Sportart: Cyclism
Modelljahr: 2018
ASIN: B0795XFD2J

Garantieinformationen

SHIMANO products are covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product type. Please retain your proof of purchase.

For detailed warranty information, including coverage, limitations, and how to make a claim, please refer to the official SHIMANO website or contact an authorized SHIMANO dealer. Warranty claims typically require inspection by an authorized service center.

Support und Kontakt

If you require further assistance, have questions regarding installation, operation, or maintenance, or need to locate an authorized service center, please utilize the following resources:

SHIMANO Offiziell WebWebsite: Besuchen bike.shimano.com for technical documentation, product information, and dealer locators.
Authorized SHIMANO Dealers: Your local authorized SHIMANO dealer or bicycle shop can provide expert advice, professional installation services, and warranty support.
Technical Service Instructions: Detailed technical manuals for specific components are available on the SHIMANO webWebsite.
